Spring Hinges

You may choose from our very large assortment of spring hinges according to different lengths, bracket width and form, bolt aperture, perforations and surface finishes.

In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to produce a multiplicity of different components with little effort, even in small quantities.

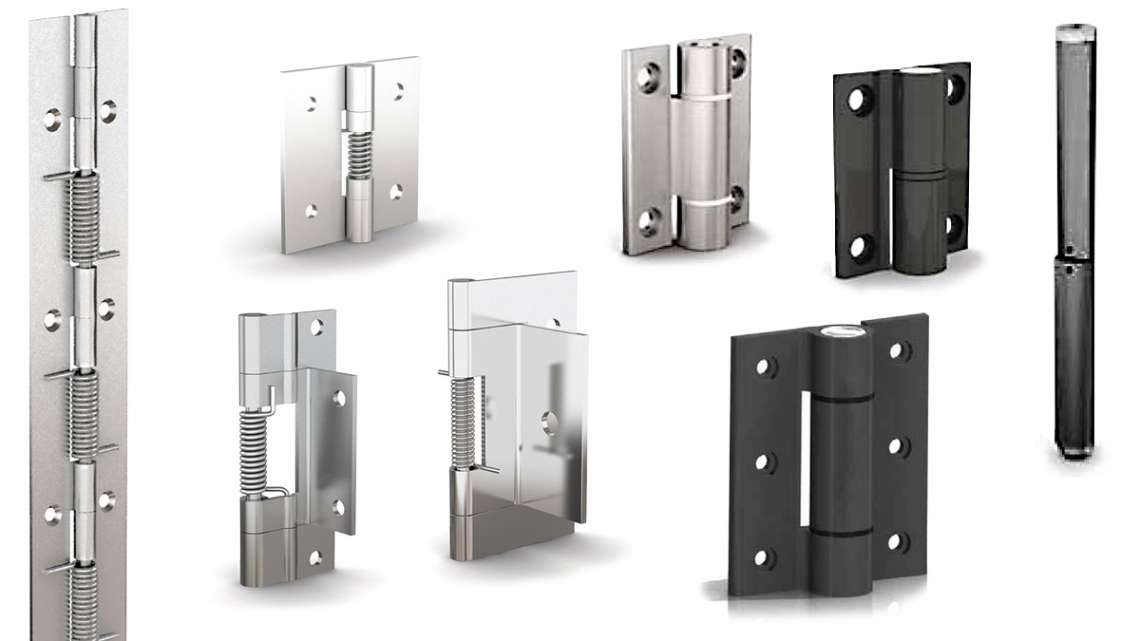

Our offer includes spring hinges:

made of raw steel
made of stainless steel
with steel pin
with steel pin and stainless steel tension spring
yellow chromated
with different surface treatments (on enquiry)

More details can be found in this PDF data file:

Download

Design your individual Hinges, Piano Hinges and weld-on Hinges:

Hinge Configurator

Additional Hinges:

3D PDF

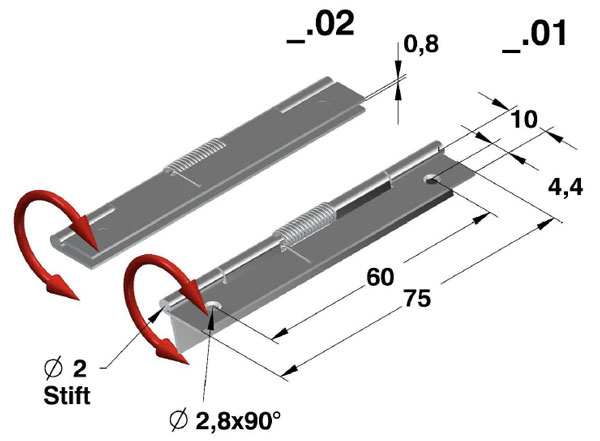

Serie 6062
drilled and countersunk

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6062.01.00	75 x 20 x 0,8 mm	Steel untreated
6062.02.00	75 x 20 x 0,8 mm	Steel untreated
6062.01.30	75 x 20 x 0,8 mm	Stainless steel untreated
6062.02.30	75 x 20 x 0,8 mm	Stainless steel untreated

3D PDF

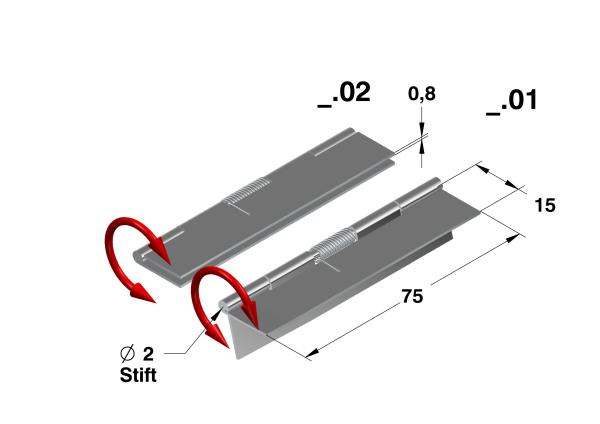

Serie 6063
undrilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6063.01.00	75 x 30 x 0,8 mm	Steel untreated
6063.01.30	75 x 30 x 0,8 mm	Stainless steel untreated
6063.02.00	75 x 30 x 0,8 mm	Steel untreated
6063.02.30	75 x 30 x 0,8 mm	Stainless steel untreated

3D PDF

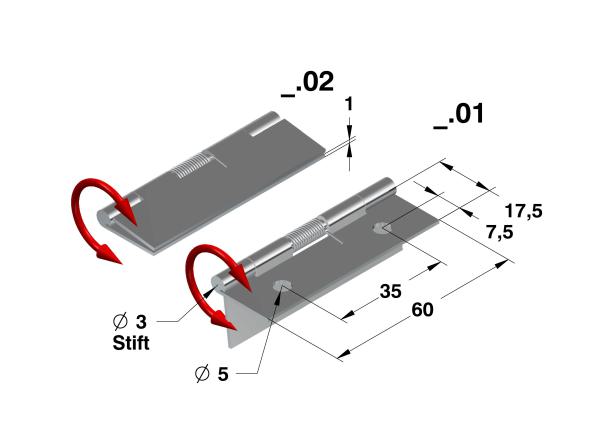

Serie 6064
drilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6064.01.00	60 x 35 x 1 mm	Steel untreated
6064.02.00	60 x 35 x 1 mm	Steel untreated
6064.03.00	60 x 35 x 1 mm	Steel untreated
6064.04.00	60 x 35 x 1 mm	Steel untreated

3D PDF

Serie 6065
drilled

Executions

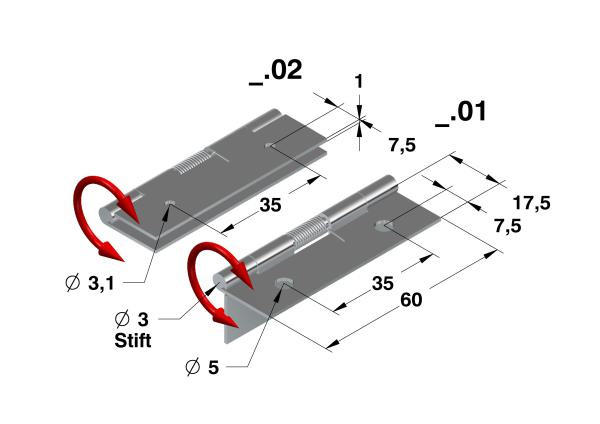

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6065.01.30	60 x 35 x 1 mm	Stainless steel untreated
6065.02.30	60 x 35 x 1 mm	Stainless steel untreated

3D PDF

Serie 6066
drilled

Executions

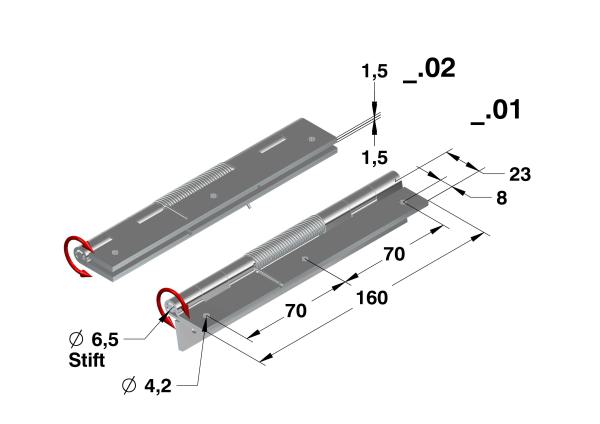

Hammered Hinge, Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6066.01.00	160 x 46 x 1,5 mm	Steel untreated
6066.01.30	160 x 46 x 1,5 mm	Stainless steel untreated
6066.02.00	160 x 46 x 1,5 mm	Steel untreated
6066.02.30	160 x 46 x 1,5 mm	Stainless steel untreated

3D PDF

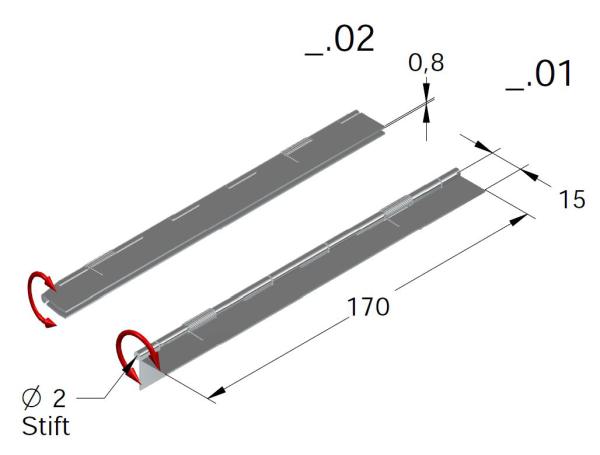

Serie 6067
undrilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6067.01.00	170 x 30 x 0,8 mm	Steel untreated
6067.01.30	170 x 30 x 0,8 mm	Stainless steel untreated
6067.02.00	170 x 30 x 0,8 mm	Steel untreated
6067.02.30	170 x 30 x 0,8 mm	Stainless steel untreated

3D PDF

Serie 6068
drilled

Executions

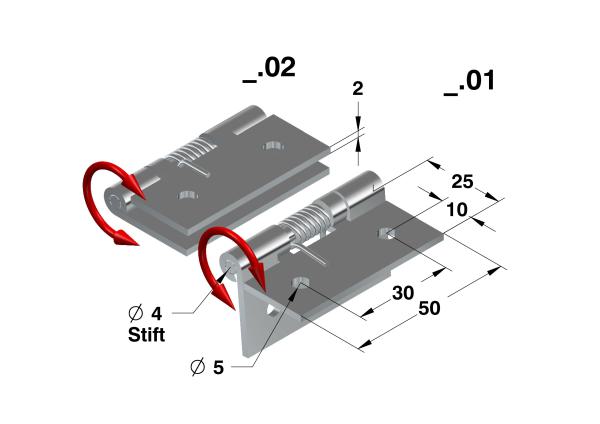

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6068.01.08	50 x 50 x 2 mm	Steel galvanised
6068.01.30	50 x 50 x 2 mm	Stainless steel untreated
6068.02.08	50 x 50 x 2 mm	Steel galvanised
6068.02.30	50 x 50 x 2 mm	Stainless steel untreated
6068.01.08.F08	50 x 50 x 2 mm	Steel galvanised
6068.01.30.F08	50 x 50 x 2 mm	Stainless steel untreated
6068.02.08.F08	50 x 50 x 2 mm	Steel galvanised
6068.02.30.F08	50 x 50 x 2 mm	Stainless steel untreated
6068.01.08.F10	50 x 50 x 2 mm	Steel galvanised
6068.01.30.F10	50 x 50 x 2 mm	Stainless steel untreated
6068.02.08.F10	50 x 50 x 2 mm	Steel galvanised
6068.02.30.F10	50 x 50 x 2 mm	Stainless steel untreated
6068.01.08.F1,25	50 x 50 x 2 mm	Steel galvanised
6068.01.30.F1,25	50 x 50 x 2 mm	Stainless steel untreated
6068.02.08.F1,25	50 x 50 x 2 mm	Steel galvanised
6068.02.30.F1,25	50 x 50 x 2 mm	Stainless steel untreated

3D PDF

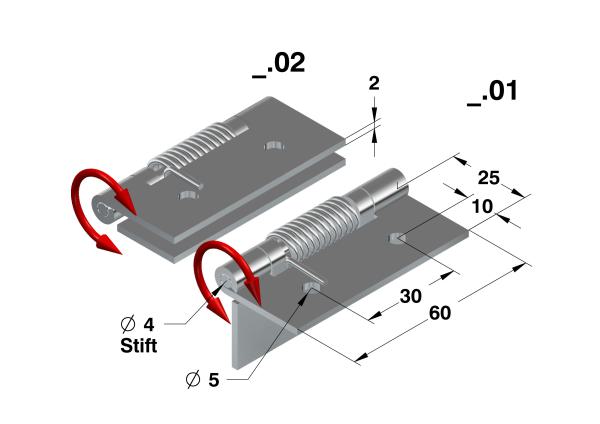

Serie 6107
drilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6107.01.04.F18	60 x 50 x 2 mm	Steel galvanised
6107.02.04.F18	60 x 50 x 2 mm	Steel galvanised
6107.01.30.F18	60 x 50 x 2 mm	Stainless steel untreated
6107.02.30.F18	60 x 50 x 2 mm	Stainless steel untreated

3D PDF

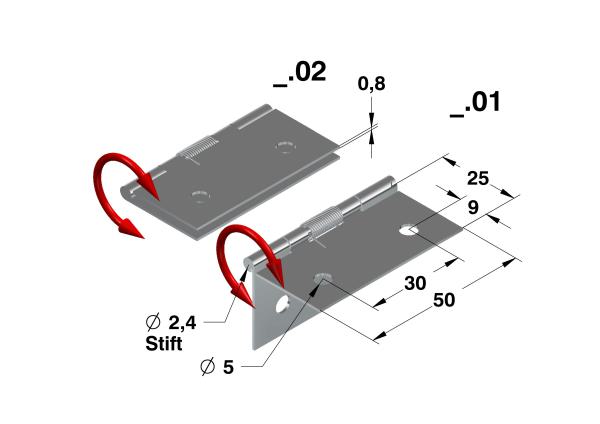

Serie 6108
drilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6108.01.30.F05	50 x 50 x 0,8 mm	Stainless steel untreated
6108.02.30.F05	50 x 50 x 0,8 mm	Stainless steel untreated
6108.01.30.F06	50 x 50 x 0,8 mm	Stainless steel untreated
6108.02.30.F06	50 x 50 x 0,8 mm	Stainless steel untreated
6108.01.30.F08	50 x 50 x 0,8 mm	Stainless steel untreated
6108.02.30.F08	50 x 50 x 0,8 mm	Stainless steel untreated

3D PDF

Serie 99.A100
drilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
99.A100.01.04	100 x 50 x 0,8 mm	Steel galvanised
99.A100.02.04	100 x 50 x 0,8 mm	Steel galvanised
99.A100.01.30.F08	100 x 50 x 0,8 mm	Stainless steel untreated
99.A100.02.30.F08	100 x 50 x 0,8 mm	Stainless steel untreated
99.A100.01.04.F08	100 x 50 x 0,8 mm	Steel galvanised
99.A100.02.04.F08	100 x 50 x 0,8 mm	Steel galvanised
99.A100.01.30.F08	100 x 50 x 0,8 mm	Stainless steel untreated
99.A100.02.30.F08	100 x 50 x 0,8 mm	Stainless steel untreated

3D PDF

Serie 6164
undrilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6164.01.00	120 x 40 x 1,5 mm	Steel untreated
6164.02.00	120 x 40 x 1,5 mm	Steel untreated
6164.01.30	120 x 40 x 1,5 mm	Stainless steel untreated
6164.02.30	120 x 40 x 1,5 mm	Stainless steel untreated
6164.01.70	120 x 40 x 1,5 mm	Aluminium 5754
6164.02.70	120 x 40 x 1,5 mm	Aluminium 5754

3D PDF

Serie 6164
drilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6164.01.04/G	120 x 40 x 1,5 mm	Steel galvanised
6164.02.04/G	120 x 40 x 1,5 mm	Steel galvanised
6164.01.30/G	120 x 40 x 1,5 mm	Stainless steel untreated
6164.02.30/G	120 x 40 x 1,5 mm	Stainless steel untreated
6164.01.70/G	120 x 40 x 1,5 mm	Aluminium 5754
6164.02.70/G	120 x 40 x 1,5 mm	Aluminium 5754

3D PDF

Serie 6164
with threaded bolt M5, with grub screw

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6164.03.04	120 x 20 x 1,5 mm	Steel galvanised
6164.04.04	120 x 20 x 1,5 mm	Steel galvanised
6164.03.30	120 x 20 x 1,5 mm	Stainless steel untreated
6164.04.30	120 x 20 x 1,5 mm	Stainless steel untreated
6164.03.70	120 x 20 x 1,5 mm	Alu5754
6164.04.70	120 x 20 x 1,5 mm	Alu5754

3D PDF

Serie 6165
undrilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6165.01.00	180 x 40 x 1,5 mm	Steel untreated
6165.02.00	180 x 40 x 1,5 mm	Steel untreated
6165.01.30	180 x 40 x 1,5 mm	Stainless steel untreated
6165.02.30	180 x 40 x 1,5 mm	Stainless steel untreated

3D PDF

Serie 6165
drilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6165.01.04/G	180 x 40 x 1,5 mm	Steel galvanised
6165.02.04/G	180 x 40 x 1,5 mm	Steel galvanised
6165.01.30/G	180 x 40 x 1,5 mm	Stainless steel untreated
6165.02.30/G	180 x 40 x 1,5 mm	Stainless steel untreated

3D PDF

Serie 6165
with threaded bolt M5, with grub screw

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6165.03.04	180 x 20 x 1,5 mm	Steel galvanised
6165.04.04	180 x 20 x 1,5 mm	Steel galvanised
6165.03.30	180 x 20 x 1,5 mm	Stainless steel untreated
6165.04.30	180 x 20 x 1,5 mm	Stainless steel untreated

3D PDF

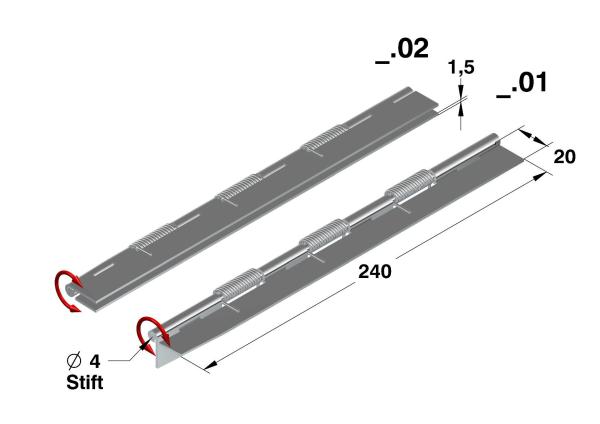

Serie 6166
undrilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6166.01.00	240 x 40 x 1,5 mm	Steel untreated
6166.02.00	240 x 40 x 1,5 mm	Steel untreated
6166.01.30	240 x 40 x 1,5 mm	Stainless steel untreated
6166.02.30	240 x 40 x 1,5 mm	Stainless steel untreated

3D PDF

Serie 6166
drilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6166.01.04/G	240 x 40 x 1,5 mm	Steel galvanised
6166.02.04/G	240 x 40 x 1,5 mm	Steel galvanised
6166.01.30/G	240 x 40 x 1,5 mm	Stainless steel untreated
6166.02.30/G	240 x 40 x 1,5 mm	Stainless steel untreated

3D PDF

Serie 6166
with threaded bolt M5, with grub screw

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6166.03.04	240x20x1,5mm	Steel galvanised
6166.03.30	240x20x1,5mm	Stainless steel untreated
6166.04.04	240x20x1,5mm	Steel galvanised
6166.04.30	240x20x1,5mm	Stainless steel untreated

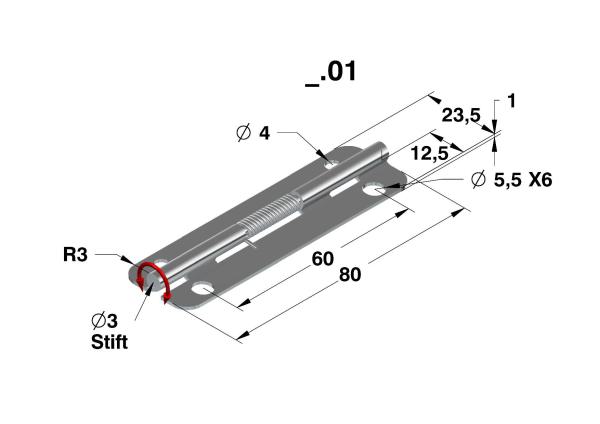

Serie 6169
drilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6169.01.30	80 x 23,5 x 1 mm	Stainless steel 1.4016

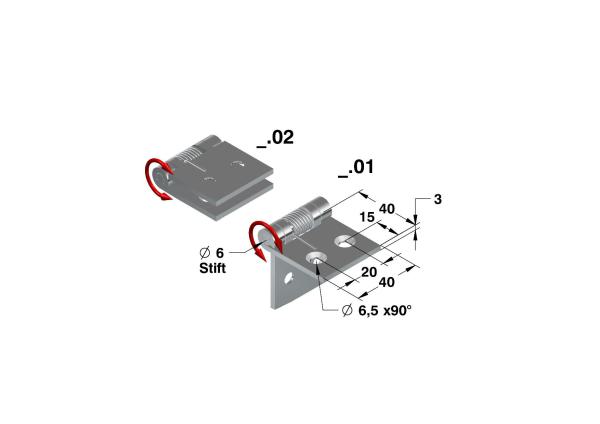

Serie 64080
drilled and countersunk

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
64080.01.30.F15	40 x 80 x 3 mm	Stainless steel untreated
64080.02.30.F15	40 x 80 x 3 mm	Stainless steel untreated

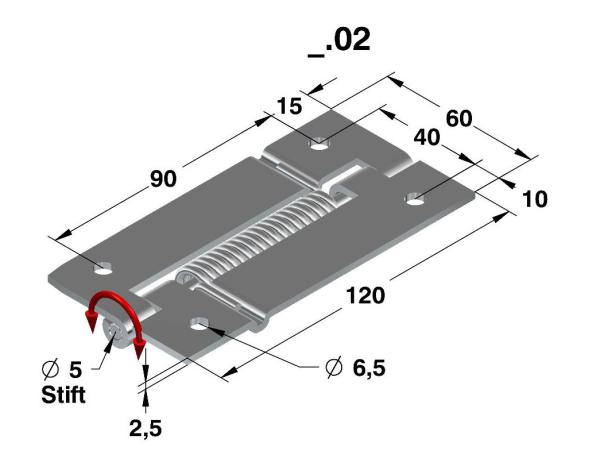

Serie 6941
drilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6941.01.30.F28	120 x 60 x 2,5 mm	Stainless steel untreated
6941.02.30.F28	120 x 60 x 2,5 mm	Stainless steel untreated

3D PDF

Serie 6167
drilled

Executions

Tension spring made of stainless steel

Art.-No.	Dimensions	Material
6167.01.35	66 x 22,5 x 1,5 mm	Stainless steel polished

3D PDF

Serie 6486
drilled

Executions

Art.-No.	Dimensions	Material
6486.01.35	60 x 30 x 1,5 mm	Stainless steel 1.4401

3D PDF

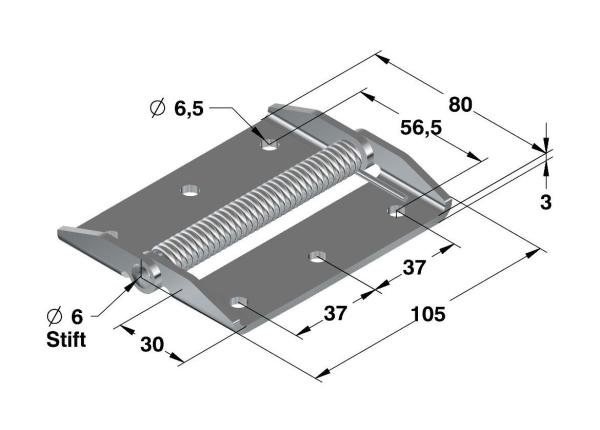

Serie 6269
Edelstahl pin riveted , drilled

Executions

Art.-No.	Dimensions	Material
6269.01.04	105 x 80 x 3 mm	Steel galvanised

3D PDF

Serie 6872

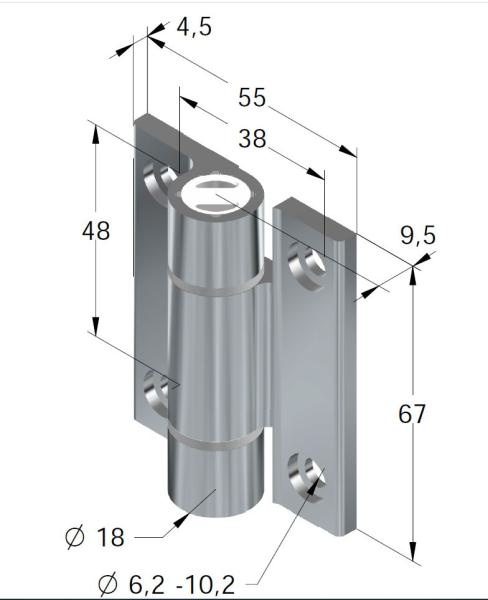

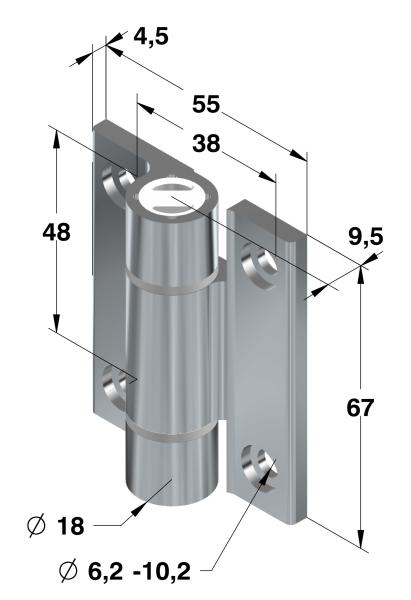

self-opening, drilled and countersunk

Executions

with integrated spring
Also available as free-running hinge, torque hinge and detend hinge.

Art.-No.	Dimensions	Material
6872.01.70	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6872.02.70	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6872.01.77	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6872.02.77	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6872.01.30	67 x 55 x 4,5 mm	Stainless steel
6872.02.30	67 x 55 x 4,5 mm	Stainless steel
6872.01.72	67 x 55 x 4,5 mm	anodised blue
6872.01.73	67 x 55 x 4,5 mm	anodised red
6872.01.74	67 x 55 x 4,5 mm	anodised bronze
6872.01.75	67 x 55 x 4,5 mm	anodised gold
6872.01.70-AG	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6872.01.77-AG	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6872.02.72	67 x 55 x 4,5 mm	anodised blue
6872.02.73	67 x 55 x 4,5 mm	anodised red
6872.02.74	67 x 55 x 4,5 mm	anodised bronze
6872.02.75	67 x 55 x 4,5 mm	anodised gold
6872.02.70-AG	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6872.02.77-AG	67 x 55 x 4,5 mm	Aluminium 6060 T5 black

3D PDF

Serie 6872
self-closing, drilled and countersunk

Executions

with integrated spring
Also available as free-running hinge, torque hinge and detend hinge.

Art.-No.	Dimensions	Material
6872.03.70	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6872.04.70	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6872.03.77	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6872.04.77	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6872.03.30	67 x 55 x 4,5 mm	Stainless steel
6872.04.30	67 x 55 x 4,5 mm	Stainless steel
6872.03.72	67 x 55 x 4,5 mm	anodised blue
6872.03.73	67 x 55 x 4,5 mm	anodised red
6872.03.74	67 x 55 x 4,5 mm	anodised bronze
6872.03.75	67 x 55 x 4,5 mm	anodised gold
6872.04.72	67 x 55 x 4,5 mm	anodised blue
6872.04.73	67 x 55 x 4,5 mm	anodised red
6872.04.74	67 x 55 x 4,5 mm	anodised bronze
6872.04.75	67 x 55 x 4,5 mm	anodised gold

3D PDF

Serie 6873
self-closing, drilled and countersunk

Executions

with integrated spring
Also available as free-running hinge, torque hinge and detend hinge.

Art.-No.	Dimensions	Material
6873.02.70	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6873.02.77	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6873.01.30	67 x 55 x 4,5 mm	Stainless steel
6873.02.30	67 x 55 x 4,5 mm	Stainless steel
6873.01.77	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6873.01.70	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6873.01.72	67 x 55 x 4,5 mm	anodised blue
6873.01.73	67 x 55 x 4,5 mm	anodised red
6873.01.74	67 x 55 x 4,5 mm	anodised bronze
6873.01.75	67 x 55 x 4,5 mm	anodised gold
6873.01.70-AG	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6873.01.77-AG	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6873.02.72	67 x 55 x 4,5 mm	anodised blue
6873.02.73	67 x 55 x 4,5 mm	anodised red
6873.02.74	67 x 55 x 4,5 mm	anodised bronze
6873.02.75	67 x 55 x 4,5 mm	anodised gold

PDF

Serie 6873
with threaded bolt M6, with grub screw

Executions

with integrated spring
Available as: free-running hinge, torque hinge, detend hinge

Art.-No.	Dimensions	Material
6873.04.70	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6873.05.70	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6873.06.70	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6873.07.70	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6873.08.70	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6873.09.70	67 x 55 x 4,5 mm	Aluminium 6060 T5 silver
6873.04.77	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6873.05.77	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6873.06.77	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6873.07.77	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6873.08.77	67 x 55 x 4,5 mm	Aluminium 6060 T5 black
6873.09.77	67 x 55 x 4,5 mm	Aluminium 6060 T5 black

3D PDF

Serie 6876
drilled and countersunk

Executions

with integrated spring
Also available as free-running hinge, soft-closing hinge or detend hinge.

Art.-No.	Dimensions	Material
6876.01.70	100 x 82,5 x 5,5 mm	Aluminium 6060 T5 silver
6876.02.77	100 x 82,5 x 5,5 mm	Aluminium 6060 T5 black
6876.01.77	100 x 82,5 x 5,5 mm	Aluminium 6060 T5 silver
6876.02.70	100 x 82,5 x 5,5 mm	Aluminium 6060 T5 black

3D PDF

Serie 6876
with M6x 14,5mm bolt

Executions

with integrated spring
Available as: free-running hinge, soft-closing hinge

Art.-No.	Dimensions	Material
6876.03.70	100 x 82,5 x 5,5 mm	Aluminium 6082 T5 silver
6876.03.77	100 x 82,5 x 5,5 mm	Aluminium 6082 T5 black

3D PDF

Serie 6960
drilled and countersunk

Executions

with integrated spring
Also available as torque hinge or detend hinge

Art.-No.	Dimensions	Material
6960.01.71	30 x 35 x 3 mm	Aluminium 6060 T5 colourless
6960.02.77	30 x 35 x 3 mm	Aluminium 6060 T5 black
6960.01.77	30 x 35 x 3 mm	Aluminium 6060 T5 colourless
6960.02.71	30 x 35 x 3 mm	Aluminium 6060 T5 black

3D PDF

Serie 6896
self-opening, drilled and countersunk

Executions

with integrated spring

Art.-No.	Dimensions	Material
6896.01.71	60 x 35 x 3,3 mm	Aluminium 6060 T5 colourless
6896.01.77	60 x 35 x 3,3 mm	Aluminium 6060 T5 black

3D PDF

Serie 6960
with threaded bolt M3, with grub screw

Executions

with integrated spring

Art.-No.	Dimensions	Material
6960.03.71	30 x 35 x 3 mm	Aluminium 6060 T5 colourless
6960.04.71	30 x 35 x 3 mm	Aluminium 6060 T5 colourless
6960.03.77	30 x 35 x 3 mm	Aluminium 6060 T5 black
6960.04.77	30 x 35 x 3 mm	Aluminium 6060 T5 black

3D PDF

Serie 158.5314
spring force adjustable, Material thickness 2,5 mm, drilled

Executions

with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.

Art.-No.	Dimensions	Material
158.5314.08.04	120 x 80 x 2,5 mm	Steel galvanised
158.5314.05.30	120 x 80 x 2,5 mm	Stainless steel brushed

3D PDF

Serie 158.5814
spring force adjustable, Material thickness 3 mm, drilled

Executions

with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.

Art.-No.	Dimensions	Material
158.5814.08.04	180 x 80 x 3 mm	Steel galvanised
158.5814.05.30	180 x 80 x 3 mm	Stainless steel brushed

3D PDF

Serie 158.5414
spring force adjustable, Material thickness 2,5 mm, drilled

Executions

Double joint hinge/Swing door hinge with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.

Art.-No.	Dimensions	Material
158.5414.08.04	120 x 133 x 2,5 mm	Steel galvanised
158.5414.05.30	120 x 133 x 2,5 mm	Stainless steel brushed

3D PDF

Serie 158.5914
spring force adjustable, Material thickness 2,5 mm, drilled

Executions

Art.-No.	Dimensions	Material
158.5914.08.04	180 x 133 x 3 mm	Steel galvanised
158.5914.05.30	180 x 133 x 3 mm	Stainless steel brushed

3D PDF

Serie 158.5314
spring force adjustable, Material thickness 4 mm, drilled

Executions

with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.

Art.-No.	Dimensions	Material
158.5314.01.71	120 x 80 x 4 mm	Aluminium anodised silver
158.5314.02.72	120 x 80 x 4 mm	Aluminium anodised gold
158.5314.03.73	120 x 80 x 4 mm	Aluminium anodised bronze
158.5314.06.76	120 x 80 x 4 mm	Aluminium anodised Weiss
158.5314.09.77	120 x 80 x 4 mm	Aluminium anodised black

3D PDF

Serie 158.5814
spring force adjustable, Material thickness 4 mm, drilled

Executions

with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.

Art.-No.	Dimensions	Material
158.5814.01.71	120 x 80 x 4 mm	Aluminium anodised silver
158.5814.02.72	120 x 80 x 4 mm	Aluminium anodised gold
158.5814.03.73	120 x 80 x 4 mm	Aluminium anodised bronze
158.5814.06.76	120 x 80 x 4 mm	Aluminium anodised Weiss
158.5814.09.77	120 x 80 x 4 mm	Aluminium anodised black

3D PDF

Serie 158.5414
spring force adjustable, Material thickness 4 mm, drilled

Executions

Art.-No.	Dimensions	Material
158.5414.01.71	120 x 133 x 4 mm	Aluminium anodised silver
158.5414.02.72	120 x 133 x 4 mm	Aluminium anodised gold
158.5414.03.73	120 x 133 x 4 mm	Aluminium anodised bronze
158.5414.06.76	120 x 133 x 4 mm	Aluminium anodised Weiss
158.5414.09.77	120 x 133 x 4 mm	Aluminium anodised black

3D PDF

Serie 158.5914
spring force adjustable, Material thickness 4 mm, drilled

Executions

Art.-No.	Dimensions	Material
158.5914.01.71	120 x 133 x 4 mm	Aluminium anodised silver
158.5914.02.72	120 x 133 x 4 mm	Aluminium anodised gold
158.5914.03.73	120 x 133 x 4 mm	Aluminium anodised bronze
158.5914.06.76	120 x 133 x 4 mm	Aluminium anodised Weiss
158.5914.09.77	120 x 133 x 4 mm	Aluminium anodised black

3D PDF

Serie 158.6314
drilled

Executions

with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.

Art.-No.	Dimensions	Material
158.6314.01.71	153 x 76 x 2,5 mm	Aluminium anodised silver
158.6314.02.72	153 x 76 x 2,5 mm	Aluminium anodised gold
158.6314.03.73	153 x 76 x 2,5 mm	Aluminium anodised bronze
158.6314.06.76	153 x 76 x 2,5 mm	Aluminium anodised Weiss
158.6314.09.77	153 x 76 x 2,5 mm	Aluminium anodised black

3D PDF

Serie 158.6717
drilled

Executions

with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.

Art.-No.	Dimensions	Material
158.6717.01.71	149 x 80 x 4 mm	Aluminium anodised silver
158.6717.02.72	149 x 80 x 4 mm	Aluminium anodised gold
158.6717.03.73	149 x 80 x 4 mm	Aluminium anodised bronze
158.6717.06.76	149 x 80 x 4 mm	Aluminium anodised Weiss
158.6717.09.77	149 x 80 x 4 mm	Aluminium anodised black

PDF

Serie 158.I
drilled

Executions

with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.

Art.-No.	Dimensions	Material
158.I-5524.00	120 x 21	Steel untreated
158.I-5324.00	180 x 21	Steel untreated
158.I-5124.00	235 x 26	Steel untreated
158.I-5524.05.30	120 x 21	Stainless steel V2A untreated
158.I-5324.05.30	180 x 21	Stainless steel V2A untreated
158.I-5124.05.30	235 x 26	Stainless steel V2A untreated

PDF

Serie 158.I
drilled

Executions

with integrated spring and ball bearing
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.

Art.-No.	Dimensions	Material
158.I-5334.00	180 x 21	Steel untreated
158.I-5134.00	235 x 26	Steel untreated
158.I-5334.05.30	180 x 21	Stainless steel V2A untreated
158.I-5134.05.30	235 x 26	Stainless steel V2A untreated

3D PDF

Serie 158.I
for Brandschutztüren, drilled

Executions

with integrated spring and ball bearing
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.

Art.-No.	Dimensions	Material
158.I-5224.00	250 x 77,5 x 3 mm	Steel untreated

3D PDF

Serie 6897
self-opening, drilled and countersunk

Executions

with integrated spring

Art.-No.	Dimensions	Material
6897.01.71	90 x 35 x 3,3 mm	Aluminium 6060 T5 colourless
6897.01.77	90 x 35 x 3,3 mm	Aluminium 6060 T5 black

3D PDF

Serie 6898
self-opening, drilled and countersunk

Executions

with integrated spring

Art.-No.	Dimensions	Material
6898.01.71	120 x 35 x 3,3 mm	Aluminium 6060 T5 colourless
6898.01.77	120 x 35 x 3,3 mm	Aluminium 6060 T5 black

3D PDF

Serie 6962
drilled and countersunk

Executions

with adjustable torque
temperaturee resistance: 0 up to +40°C

Art.-No.	Dimensions	Material

Produktsuche

Liste Produktanfrage

Spring Hinges

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Browse website ...
