You may choose from our very large assortment of spring latches according to different materials and surface finishes.
In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to prduce a multiplicity of different components with little effort, even in small quantities.
Our offer includes spring latches:
- with spring
- with safety
- with padlock
More details can be found in this PDF data file:
Additional Latches:

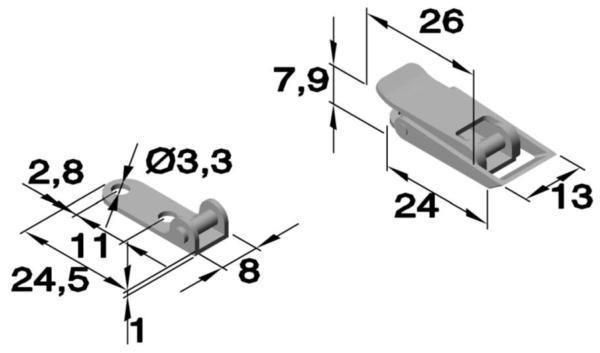

Serie 6208
with spring clamp, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6208.02.30 | 24 x 13 mm | Stainless steel |
Zubehör: Strikes
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6379.01.30 | 9,5 x 13,5 mm | Stainless steel |

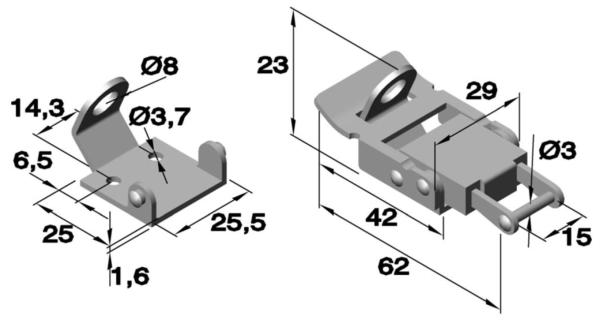

Serie 6200
with lock bracket, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6200.01.04 | 62 x 25,5 mm | Steel galvanised |
| 6200.01.30 | 62 x 25,5 mm | Stainless steel |
Zubehör: Strikes
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6200.30 | 15,8 x 16 mm | Stainless steel |
| 6200.30 | 15,8 x 16 mm | Stainless steel |

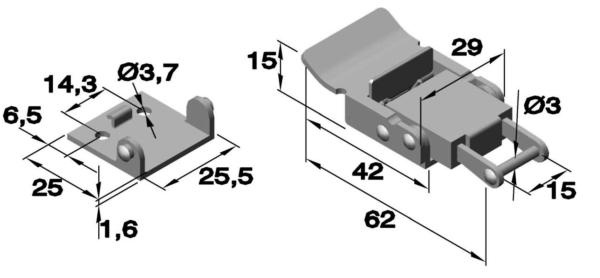

Serie 6201
with spring brackets and safety spring, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6201.01.30 | 62 x 25,5 mm | Stainless steel |
Zubehör: Strikes
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6200.30 | 15,8 x 16 mm | Stainless steel |
Serie 1034
with spring clamp, drilled
Executions
Permitted tractive force: 500 N
Breaking strength: 1500 N
| Art.-No. | Dimensions | Material |
|---|---|---|
| 1034.04/6 | 48 x 15 mm | Steel galvanised |
| 1034.30/6 | 48 x 15 mm | Stainless steel |

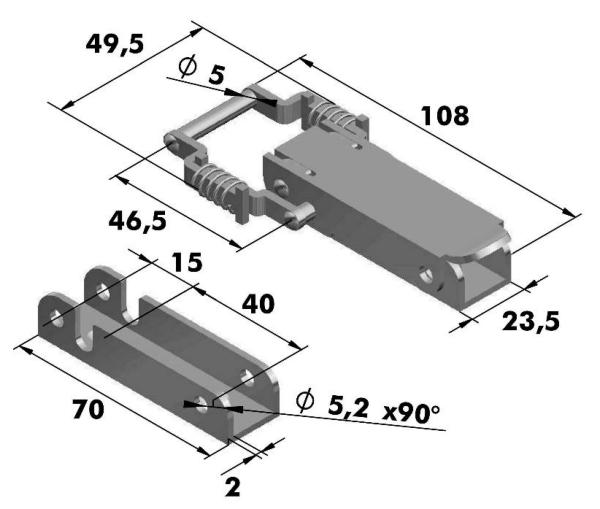

Serie 6243
with lock bracket, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6243.01.00 | 108 x 49,5 mm | Steel untreated |
| 6243.02.04 | 108 x 49,5 mm | Steel galvanised |
Serie 6255
with lock bracket, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6255.03.04/6 | 48 x 34,5 mm | Steel galvanised |
| 6255.04.30/6 | 48 x 34,5 mm | Stainless steel |

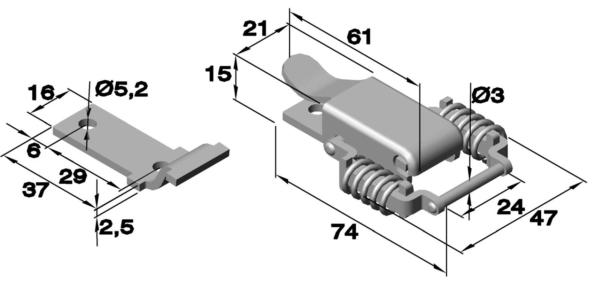

Serie 6602
drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6602.05.02 | 74 x 47 mm | Steel galvanised |
| 6602.06.30 | 74 x 47 mm | Stainless steel |
Zubehör: Strikes
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6603.05.04 | 37 x 40 mm | Steel galvanised |
| 6603.06.30 | 37 x 40 mm | Stainless steel |

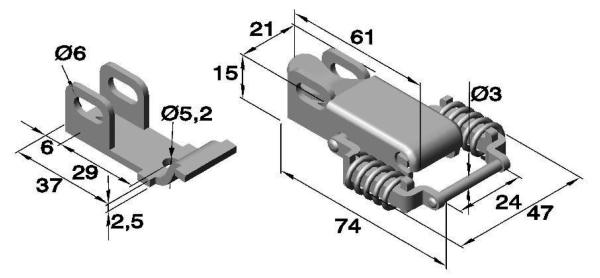

Serie 6610
with lock bracket, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6610.05.04 | 74 x 47 mm | Steel galvanised |
| 6610.05.30 | 74 x 47 mm | Stainless steel |
Zubehör: Strikes
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6603.05.04 | 37 x 40 mm | Steel galvanised |
| 6603.06.30 | 37 x 40 mm | Stainless steel |
Serie 1036
with spring clamp, drilled
Executions
Permitted tractive force: 150 N
Breaking strength: 300 N
| Art.-No. | Dimensions | Material |
|---|---|---|
| 1036.04/6 | 24 x 13 mm | Steel galvanised |
Zubehör: Strikes
| Art.-No. | Dimensions | Material |
|---|---|---|
| 1036.04/5 | 9x 14 mm | Steel galvanised |

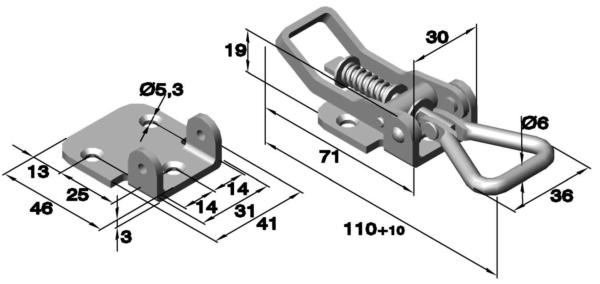

Serie 3020
with spring riveted triangle, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 3020.04 | 110 x 41 mm | Steel galvanised |
Zubehör: Strikes
| Art.-No. | Dimensions | Material |
|---|---|---|
| 3608.04 | 29 x 30 mm | Steel galvanised |

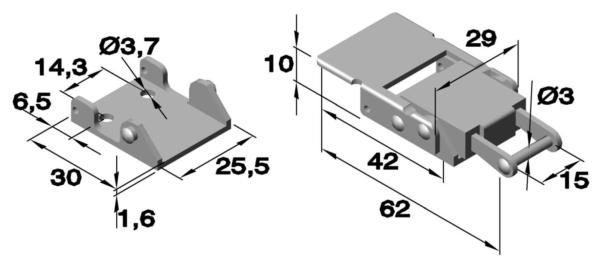

Serie 6203
drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6203.01.30 | 62 x 25,5 mm | Stainless steel |
Zubehör: Strikes
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6200.30 | 15,8 x 16 mm | Stainless steel |

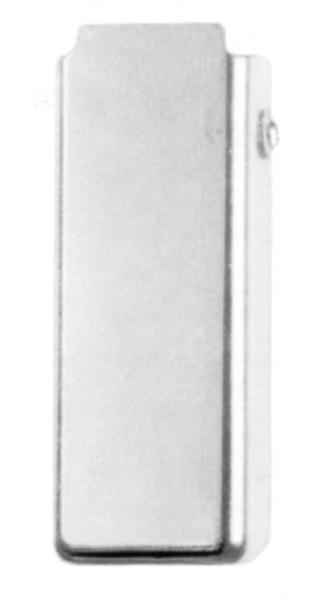

Serie V95L07-1
Tolerance compensation per spring clip, drilled
Executions
Tensile load max. 445 N
Operating load 220 N
| Art.-No. | Dimensions | Material |
|---|---|---|
| V95L07-1-1BC | 43,7 x 18 mm | Stainless steel |

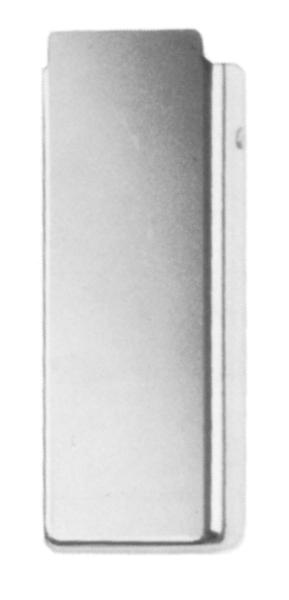

Serie V95L15
Tolerance compensation per spring clip, drilled
Executions
Tensile load max. 445 N
Operating load 220 N
| Art.-No. | Dimensions | Material |
|---|---|---|
| V95L15-1BD | 43,7 x 18 mm | Steel chrome-plated |

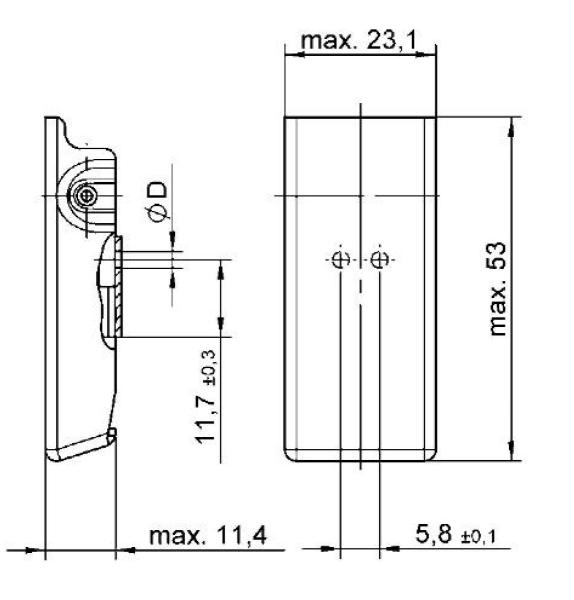

Serie V96L01
Tolerance compensation per spring clip, drilled
Executions
Tensile load max. 1000 N
Operating load 650 N
| Art.-No. | Dimensions | Material |
|---|---|---|
| V96L01-1-1AG | 53 x 23,1 mm | Steel chrome-plated |
| V96L01-1-1AO | 53 x 23,1 mm | Steel galvanised |
| V96L01-1-2AG | 53 x 23,1 mm | Steel chrome-plated |
| V96L01-1-2AO | 53 x 23,1 mm | Steel galvanised |
