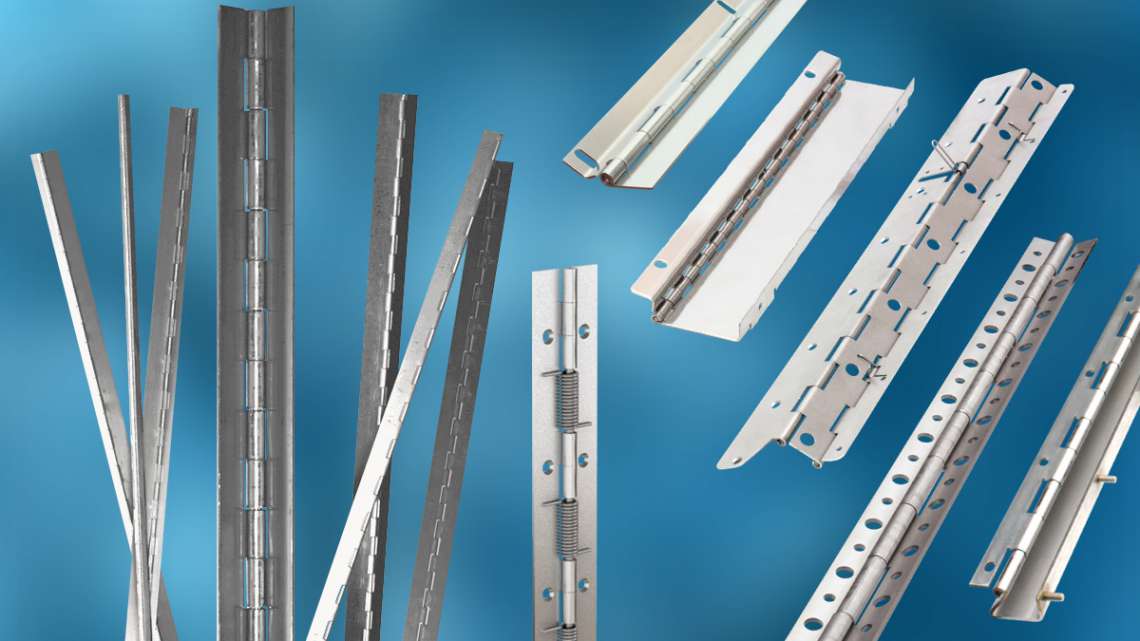

Piano hinges in a variety of designs
Bar
hinges are also known as piano hinges, as they are often used on pianos
and grand pianos. In addition, the hinge-like hinges are also often
used for furniture. Our product range includes a wide variety of rod
hinges in different lengths, leg widths and shapes as well as thread
pitches, pin diameters, perforations (drilled and undrilled) and surface
finishes. If you cannot find a component in your desired design, please
do not hesitate to contact us. In our factory, we offer the possibility
of producing numerous types, even in small quantities.
The respective 3D data for the article groups in this chapter serve as a guide for the widths of the rod hinges.
STEP files for the individual items are available and can be provided on request.
Serie 6702
rolled, 15 mm, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6702.00 | 2040 x 15 x 0,7 mm | Steel untreated |
Serie 6711-6718
rolled, 20 mm, drilled and countersunk
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6711.00 | 2040 x 20 x 0,8 / D pin Ø 2mm / E=15/ F=11,2/ G=60/ ØS=2,8 | Steel untreated |
| 6712.30 | 2041 x 20 x 0,8 mm / D pin Ø 2 / E=15/ F=11,2/ G=60/ ØS=2,8 | Stainless steel untreated |
| 6716.70 | 2000 x 20 x 0,6 mm | Aluminium |
| 6717.00 | 2040 x 20 x 0,8 mm | Steel untreated |
| 6718.30 | 2040 x 20 x 0,8 mm | Stainless steel untreated |
Serie 6703-6730
rolled, 25 mm, undrilled
Executions
the hinge is prepared from already zinc plated steel. The edge cuts are, thus, not zinc plated
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6703.70 | 1000 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15 | Aluminium |
| 6706.30 | 1020 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15 | Stainless steel untreated |
| 6707.30 | 1980 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15 | Stainless steel seaworthy |
| 6719.30 | 1800 x 25 x 1 mm / D = pin Ø 2mm / E = 15 | Stainless steel untreated |
| 6720.04 | 1800 x 25 x 1,2 mm / D = pin Ø 3mm / E = 15 | Steel untreated |
| 6721.00 | 2040 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15/ F=14,2/ G=60/ ØS= 2,8 | Steel untreated |
| 6726.00 | 2040 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15 | Steel untreated |
| 6728.30 | 2040 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15 | Stainless steel untreated |
| 6729.30 | 2040 x 25 x 1 mm / D = pin Ø 2mm / E = 15 | Stainless steel untreated |
| 6730.30 | 2040 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15/ F=14,2/ G=60/ ØS= 3,6 | Stainless steel untreated |
Serie 6708-6747
rolled, 30 mm, undrilled/drilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6708.70 | 1980 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Aluminium |
| 6709.30 | 1020 x 30 x 0,8 mm / D = pin Ø 2mm / E= 15 | Stainless steel untreated |
| 6710.30 | 1020 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Stainless steel seaworthy |
| 6731.00 | 2040 x 30 x 0,8 mm / D = pin Ø 2mm / E= 15/ F = 16,8/ G=60/ Ø S= 3,9 | Steel untreated |
| 6733.00 | 2040 x 30 x 1 mm / D = pin Ø 2mm / E= 15/ F = 16,8/ G=60/ Ø S= 3,9 | Steel untreated |
| 6735.00 | 2040 x 30 x 0,8 mm / D = pin Ø 2mm / E= 15 | Steel untreated |
| 6736.30 | 2040 x 30 x 0,8 mm/ D = pin Ø 2mm / E= 15 | Stainless steel untreated |
| 6738.30 | 2040 x 30 x 1 mm / D = pin Ø 2mm / E= 15/ F = 16,8/ G=60/ Ø S= 3,9 | Stainless steel untreated |
| 6740.30 | 1800 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Stainless steel untreated |
| 6741.00 | 2040 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Steel untreated |
| 6742.30 | 2040 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Stainless steel untreated |
| 6743.30 | 2040 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Stainless steel seaworthy |
| 6745.30 | 2000 x 30 x 1,5 mm / D = pin Ø 4mm / E=30 | Stainless steel untreated |
| 6746.30 | 2000 x 30 x 1 mm / D = pin Ø 6mm / E= 25 | Stainless steel untreated |
| 6747.00 | 2000 x 30 x 1 mm / D = pin Ø 6mm / E= 30 | Steel untreated |
Serie 6749-6750
rolled, 32 mm, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6749.30 | 1800 x 32 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
| 6750.00 | 1950 x 32 x 1,5 mm / D = pin Ø 3mm / E= 12,5 | Steel untreated |
| 6750.30 | 1950 x 32 x 1,5 mm / D = pin Ø 3mm / E= 12,5 | Stainless steel untreated |
Serie 6753-6755
rolled, 35 mm, undrilled/drilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6753.00 | 2040 x 35 x 1 mm / D = pin Ø 2mm / E= 15/ F=19,5/ G=60/ Ø S= 4,5 | Steel untreated |
| 6754.00 | 2040 x 35 x 1 mm / D = pin Ø 2mm / E= 15 | Steel untreated |
| 6755.70 | 1995 x 35 x 1mm / D = pin Ø 3mm / E= 30 | Aluminium |
Serie 6757-6799
rolled, 40 mm, undrilled
Executions
galvanised steel – the hinge is prepared from already zinc plated steel. The edge cuts are, thus, not zinc plated
Hinges can be delivered in other lengths, according to enquiry
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6757.70 | 1000 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Aluminium |
| 6758.04 | 1800 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Steel galvanised |
| 6759.30 | 1800 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
| 6760.35 | 2040 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30/ F = 22,7/ G=60/ Ø S= 4,2 | Stainless steel untreated |
| 6763.00 | 2040 x 40 x 0,8 mm / D = pin Ø 2mm / E= 15 | Steel untreated |
| 6764.30 | 2040 x 40 x 0,8 mm / D = pin Ø 2mm / E= 15 | Stainless steel untreated |
| 6765.00 | 2040 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30/ F = 22,7/ G=60/ Ø S= 3,2 | Steel untreated |
| 6767.00 | 2040 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Steel untreated |
| 6769.70 | 2040 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Aluminium |
| 6770.30 | 1020 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
| 6771.30 | 2040 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
| 6773.00 | 2040 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15 | Steel untreated |
| 6774.30 | 2040 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15 | Stainless steel untreated |
| 6775.30 | 2040 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15 | Stainless steel seaworthy |
| 6776.70 | 2000 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15 | Aluminium |
| 6779.30 | 2040 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15/ F = 22,7/ G=60/ Ø S= 4 | Stainless steel untreated |
| 6756.00 | 1950 x 40 x 1,5 mm / D = pin Ø 3mm / E= 12,5 | Steel untreated |
| 6756.30 | 1950 x 40 x 1,5 mm / D = pin Ø 3mm / E= 12,5 | Stainless steel untreated |
| 6799.30 | 1020 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15 | Stainless steel seaworthy |
Serie 6777
rolled, 44 mm, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6777.30 | 2040 x 44 x 2 mm / D = pin Ø 6mm / E= 30 | Stainless steel untreated |

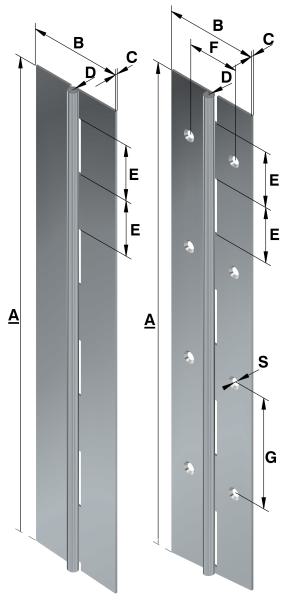

Serie 6781-6823
rolled, 50 mm, undrilled/drilled
Executions
galvanised steel - das Hinge wird aus bereits vorgalvanisedem Steel
gefertigt and die Schnittkanten sind demnach nicht galvanised
Hinges can be delivered in other lengths, according to enquiry and other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6781.00 | 2040 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30 | Steel untreated |
| 6783.00 | 2040 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30/ F = 28/ G=60/ Ø S= 4 | Steel untreated |
| 6784.70 | 2000 x 50 x 1,2 mm / D = pin Ø 3mm / E= 20 | Aluminium |
| 6785.30 | 2040 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
| 6786.70 | 2000 x 50 x 1,5 mm / D = pin Ø 4mm / E= 15 | Aluminium |
| 6787.30 | 2000 x 50 x 2 mm / D = pin Ø 4mm / E= 25 | Stainless steel untreated |
| 6788.00 | 2040 x 50 x 2 mm / D = pin Ø 6mm / E= 30 | Steel untreated |
| 6790.04 | 1800 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30 | galvanised steel |
| 6791.30 | 1800 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
| 6792.30 | 2040 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30/ F = 28/ G=60/ Ø S= 4 | Stainless steel untreated |
| 6793.30 | 1800 x 50 x 1,5 mm / D = pin Ø 4mm / E= 15 | Stainless steel untreated |
| 6794.30 | 2040 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel seaworthy |
| 6798.00 | 1950 x 50 x 1,5 mm / D = pin Ø 3mm / E= 12,5 | Steel untreated |
| 6798.30 | 1950 x 50 x 1,5 mm / D = pin Ø 3mm / E= 12,5 | Stainless steel untreated |
| 6809.70 | 1000 x 50 x 1,5 mm / D = pin Ø 4mm / E= 15 | Aluminium |
| 6822.30 | 1020 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
| 6823.30 | 1020 x 50 x 1,2 mm / D = pin Ø 3mm / E= 20 | Stainless steel seaworthy |
Serie 6795-6797
rolled, 57 mm, undrilled
Executions
galvanised steel - das Hinge wird aus bereits vorgalvanisedem Steel
gefertigt and die Schnittkanten sind demnach nicht galvanised
Hinges can be delivered in other lengths, according to enquiry and other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6795.04 | 2160 x 57 x 1,5 mm / D = pin Ø 4mm / E= 15 | galvanised steel |
| 6796.30 | 2160 x 57 x 1,5 mm / D = pin Ø 4mm / E= 15 | Stainless steel untreated |
| 6797.04 | 2160 x 57 x 2 mm / D = pin Ø 6mm / E= 30 | galvanised steel |
Serie 6704-6807
rolled, 60 mm, undrilled/drilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6704.30 | 1020 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel untreated |
| 6705.30 | 1020 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel seaworthy |
| 6801.00 | 2000 x 60 x 1,5 mm / D = pin Ø 8mm / E=40 | Steel untreated |
| 6802.00 | 2000 x 60 x 1,5 mm / D = pin Ø 5mm / E=40 | Steel untreated |
| 6803.00 | 2040 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Steel untreated |
| 6804.30 | 2040 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel untreated |
| 6805.30 | 2040 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel seaworthy |
| 6806.70 | 2000 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Aluminium |
| 6807.30 | 2040 x 60 x 2 mm / D = pin Ø 6mm / E=30/ F=35/ G=60/ Ø S= 4 | Stainless steel untreated |
Serie 6808
rolled, 63 mm, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6808.30 | 1800 x 63 x 1,5 mm / D = pin Ø 4mm / E=15 | Stainless steel untreated |
Serie 6810-6812
rolled, 70 mm, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6810.30 | 1800 x 70 x 1,5 mm / D = pin Ø 4mm / E=15 | Stainless steel untreated |
| 6811.00 | 2040 x 70 x 2 mm / D = pin Ø 6mm / E=30 | Steel untreated |
| 6812.30 | 2040 x 70 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel untreated |
Serie 6817-6818
rolled, 76 mm, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6817.04 | 2160 x 76 x 1,5 mm / D = pin Ø 4mm / E=15 | galvanised steel |
| 6818.30 | 2160 x 76 x 1,5 mm / D = pin Ø 4mm / E=15 | Stainless steel untreated |
Serie 6813-6829
rolled, 80 mm, undrilled/drilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6813.00 | 2000 x 80 x 2 mm / D = pin Ø 7,6mm / E=40 | Steel untreated |
| 6814.30 | 1000 x 80 x 3 mm / D = pin Ø 6mm / E=40 | Stainless steel untreated |
| 6815.00 | 2000 x 80 x 3 mm / D = pin Ø 6mm / E=40 | Steel untreated |
| 6816.30 | 2000 x 80 x 3 mm / D = pin Ø 6mm / E=40 | Stainless steel untreated |
| 6819.00 | 1950 x 80 x 1,5 mm / D = pin Ø 3mm / E=12,5 | Steel untreated |
| 6819.30 | 1950 x 80 x 1,5 mm / D = pin Ø 3mm / E=12,5 | Stainless steel untreated |
| 6820.70 | 2000 x 80 x 3 mm / D = pin Ø 6mm / E=40 | Aluminium |
| 6828.30 | 2000 x 80 x 3 mm / D = pin Ø 6mm / E=40/ F=35/ G=60/ SØ = 5,2 | Stainless steel untreated |
| 6829.30 | 1980 x 80 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel seaworthy |
Serie 6830-6838
rolled, 100 mm, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6830.00 | 2000 x 100 x 3 mm / D = pin Ø 10mm / E=40 | Steel untreated |
| 6830.30 | 2000 x 100 x 3 mm / D = pin Ø 10mm / E=40 | Stainless steel untreated |
| 6836.00 | 1000 x 100 x 4 mm / D = pin Ø 10mm / E=40 | Steel untreated |
| 6836.70 | 1000 x 100 x 4 mm / D = pin Ø 10mm / E=40 | Aluminium |
| 6838.30 | 2000 x 100 x 3 mm / D = pin Ø 6mm / E=40 | Stainless steel untreated |
Serie 6831-6840
rolled, 120 mm, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6831.30 | 2100 x 120 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel untreated |
| 6840.00 | 1000 x 120 x 5 mm / D = pin Ø 10mm / E=40 | Steel untreated |
Serie 6833
rolled, 127 mm, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6833.04 | 2160 x 127 x 3 mm / D = pin Ø 6mm / E=40 | Steel galvanisiert |

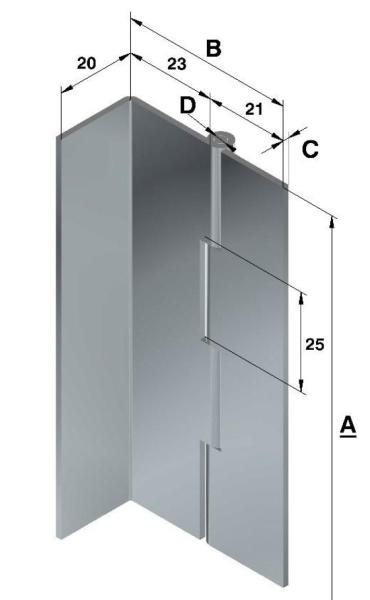

Serie 6837-6839
1 angulated leaf, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6837.04 | 2000 x 44 x 1,5 mm / D = pin Ø 3mm | Steel galvanised |
| 6837.30 | 2000 x 44 x 1,5 mm / D = pin Ø 3mm | Stainless steel untreated |
| 6839.30 | 1600 x 44 x 1,5 mm / D = pin Ø 3mm | Stainless steel untreated |
Serie 6832-6835
1 angulated leaf, drilled and countersunk
Executions
Hinges can be delivered in other lengths, according to enquiry
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6832.04 | 1000 x 31,5 x 1mm/ D= pin 2mm | galvanised |
| 6834.04 | 1000 x 31,5 x 1mm/ D= pin 2mm | galvanised |
| 6835.04 | 1000 x 31,5 x 1mm/ D= pin 2mm | Stainless steel |

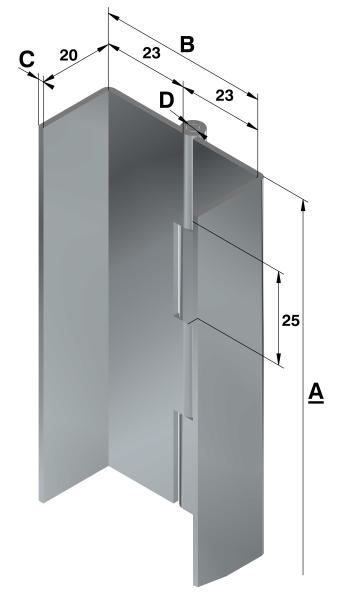

Serie 6844-6846
2 angulated leafs, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6844.04 | 2000 x 46 x 1,5 mm / D = pin Ø 3mm / E=25 | Steel galvanised |
| 6846.30 | 2000 x 46 x 1,5 mm / D = pin Ø 3mm / E=25 | Stainless steel untreated |
Serie 6521-6524
temperature: - 40° C up to + 80°C
Executions
Fixation with rivets, pins, nails and bars
Chemical resistance: oil, seawater, solvents and most chemical substances
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6521.01 | 15250 x 28,6 x 3,2mm | Polypropylene white |
| 6521.02 | 15250 x 28,6 x 3,2mm | Polypropylene grey |
| 6521.03 | 15250 x 28,6 x 3,2mm | Polypropylene black |
| 6522.01 | 15250 x 38,1 x 3,2mm | Polypropylene white |
| 6522.02 | 15250 x 38,1 x 3,2mm | Polypropylene grey |
| 6522.03 | 15250 x 38,1 x 3,2mm | Polypropylene black |
| 6523.01 | 15250 x 50,8 x 3,2mm | Polypropylene white |
| 6523.02 | 15250 x 50,8 x 3,2mm | Polypropylene grey |
| 6523.03 | 15250 x 50,8 x 3,2mm | Polypropylene black |
| 6524.01 | 15250 x 76,2 x 3,2mm | Polypropylene white |
| 6524.02 | 15250 x 76,2 x 3,2mm | Polypropylene grey |
| 6524.03 | 15250 x 76,2 x 3,2mm | Polypropylene black |

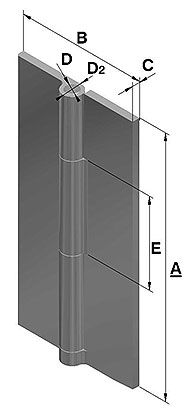

Serie 6848
rolled, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6848.70 | 2000 x 50 x 3 mm / D = pin Ø 5,2mm / E=35,5 | Aluminium 6060 T5 |
Serie MS6841-MS6849
comparable Military Standard (MS)
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| MS-6841.71 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6841.72 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6841.73 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6841.74 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6841.75 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6842.70 | 1830 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6844.71 | 915 x 38,1 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6846.70 | 1830 x 38,1 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6845.70 | 1830 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6847.71 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6847.72 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6847.73 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6847.74 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6847.75 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6843.71 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6843.72 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6843.73 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6843.74 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6843.75 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6849.70 | 1830 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |

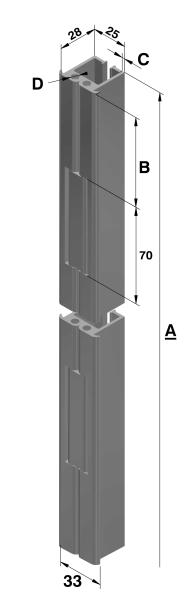

Serie 6850-6852
with double articulation, undrilled
Executions
Opening angle of 180° without sealing (ordered separately)
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6850.70 | 2000 x 65 mm / D pin Ø = 5 | Aluminium 6060 T5 |
| 6851.70 | 2500 x 15 / D pin Ø = 5 | Aluminium 6060 T5 |
| 6852.70 | 3000 x 115 / D pin Ø = 5 | Aluminium 6060 T5 |

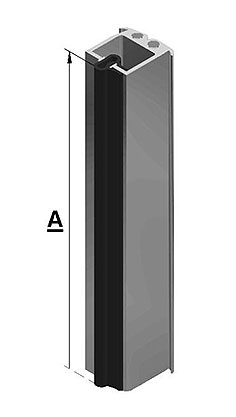

Zubehör: Seal
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6853.D | 2000 mm | Rubber black |
| 6854.D | 2500 mm | Rubber black |
| 6855.D | 3000 mm | Rubber black |
