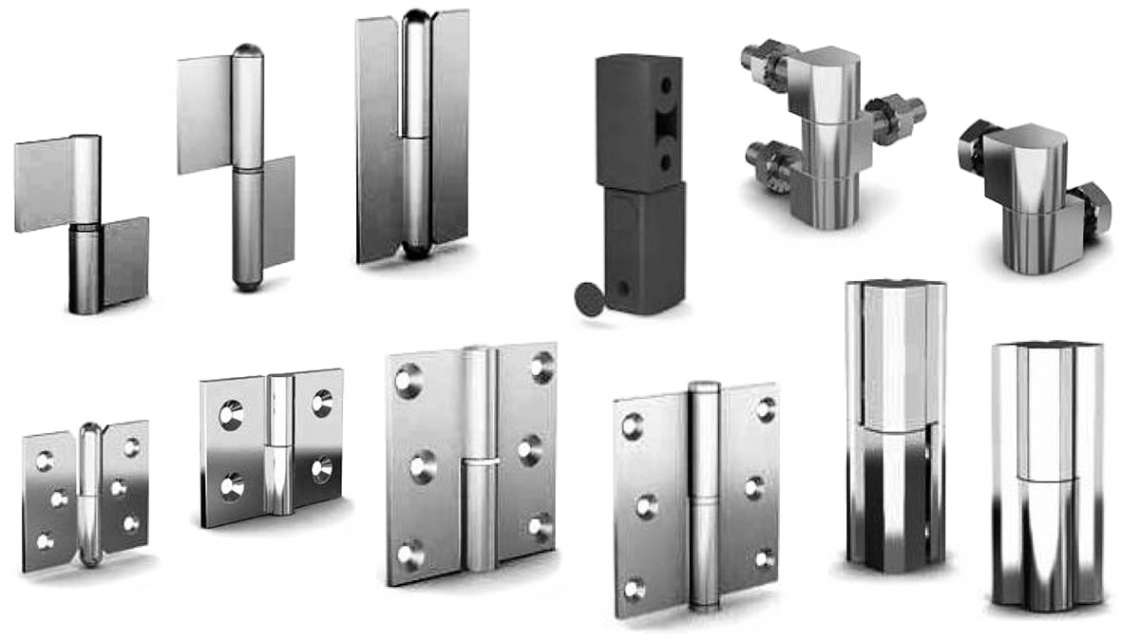

Weld-On Hinges

You may choose from our very large assortment of Weld-on hinges according to different lengths, bracket width and form, bolt aperture, perforations and surface finishes.

In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to produce a multiplicity of different components with little effort, even in small quantities.

Our offer includes weld-on hinges:

made of raw steel
made of stainless steel
with or without grommet
with surface refinements on enquiry
made of brassed or nickel-plated steel
made of chromated or polished brass

More details can be found in this PDF data file:

Download

Design your individual Hinges, Piano Hinges and weld-on Hinges:

Hinge Configurator

Additional Hinges:

Serie 6072
with fixed steel pin, undrilled

Executions

Art.-No.	Dimensions	Material
6072.01.00	60 x 40 x 1,5 mm	Steel untreated
6072.02.00	80 x 50 x 2 mm	Steel untreated
6072.05.00	80 x 40 x 1,5 mm	Steel untreated
6072.01.30	60 x 40 x 1,5 mm	Stainless steel untreated
6072.02.30	80 x 50 x 2 mm	Stainless steel untreated
6072.05.00	80 x 40 x 1,5 mm	Stainless steel untreated

Serie 6072
with fixed steel pin and brass intermediate ring, undrilled

Executions

Art.-No.	Dimensions	Material
6072.03.00	61,5 x 40 x 1,5 mm	Steel untreated
6072.04.00	81,5 x 50 x 2 mm	Steel untreated
6072.03.30	61,5 x 40 x 1,5 mm	Stainless steel untreated
6072.04.30	81,5 x 50 x 2 mm	Stainless steel untreated

Serie 6073
with extractable steel pin and brass intermediate ring, undrilled

Executions

Art.-No.	Dimensions	Material
6073.01.00	62 x 62 x 2,5 mm	Steel untreated
6073.02.00	62 x 62 x 2,5 mm	Steel untreated

Serie 6098
with fixed steel pin and Messing-intermediate ring, undrilled

Executions

Art.-No.	Dimensions	Material
6098.01.00	63 x 80 x 4,2 mm	Steel untreated
6098.02.00	83,5 x 80 x 5,1 mm	Steel untreated
6098.03.00	104 x 92 x 5,5 mm	Steel untreated
6098.04.00	124 x 108 x 6,5 mm	Steel untreated
6098.05.00	144 x 108 x 6,5 mm	Steel untreated

Serie 6099
with fixed steel pin and Messing-intermediate ring, undrilled

Executions

Art.-No.	Dimensions	Material
6099.02.00	83,5 x 80 x 5,1 mm	Steel untreated
6099.03.00	104 x 92 x 5,5 mm	Steel untreated
6099.07.00	83,5 x 80 x 5,1 mm	Steel untreated
6099.08.00	104 x 92 x 5,5 mm	Steel untreated

Serie 6120
with fixed steel pin, undrilled

Executions

Art.-No.	Dimensions	Material
6120.01.00	60 x 40 x 1,5 mm	Steel untreated
6120.03.00	80 x 48 x 2 mm	Steel untreated
6120.02.00	60 x 40 x 1,5 mm	Steel untreated
6120.04.00	80 x 48 x 2 mm	Steel untreated

Serie 6120
with fixed steel pin and brass intermediate ring, undrilled

Executions

Art.-No.	Dimensions	Material
6120.05.00	61,5 x 40 x 1,5 mm	Steel untreated
6120.07.00	81,5 x 50 x 2 mm	Steel untreated
6120.06.00	61,5 x 40 x 1,5 mm	Steel untreated
6120.08.00	81,5 x 50 x 2 mm	Steel untreated

Serie 10010048
with stainless steel pin, drilled

Executions

Art.-No.	Dimensions	Material
10010048.01.30	100 x 100 x 4 mm	Stainless steel untreated
10010048.02.30	100 x 100 x 4 mm	Stainless steel untreated

Serie F2879
with welded stainless steel pin, drilled and countersunk

Executions

Trade welded

Art.-No.	Dimensions	Material
F28795/F28797.30	56 x 120 x 3 mm	Stainless steel 1.4571, untreated
F28796/F28797.30	56 x 120 x 3 mm	Stainless steel 1.4571, untreated

Serie 6120
without ring washer, drilled

Executions

Art.-No.	Dimensions	Material
6120.09.30	80x48mm	Stainless steel untreated

Serie 6076
with fixed steel pin, undrilled

Executions

Art.-No.	Dimensions	Material
6076.02.00	50 x 30 x 1,2 mm	Steel untreated
6076.03.00	60 x 40 x 1,5 mm	Steel untreated
6076.01.00	50 x 30 x 1,2 mm	Steel untreated
6076.04.00	60 x 40 x 1,5 mm	Steel untreated

Serie 6077
with fixed steel pin, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6077.01.01	30 x 40 x 1,2 mm	Steel nickel-plated
6077.02.01	30 x 40 x 1,2 mm	Steel nickel-plated

Serie 6078
with fixed steel pin, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6078.02.01	40 x 50 x 1,5 mm	Steel nickel-plated
6078.01.01	40 x 50 x 1,5 mm	Steel nickel-plated

Serie 6079
with fixed steel pin, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6079.01.01	50 x 30 x 1,3 mm	Steel nickel-plated
6079.02.01	50 x 30 x 1,3 mm	Steel nickel-plated

Serie 6080
with fixed steel pin, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6080.02.01	60 x 40 x 1,5 mm	Steel nickel-plated
6080.03.01	70 x 45 x 1,5 mm	Steel nickel-plated
6080.06.01	80 x 50 x 1,5 mm	Steel nickel-plated
6080.01.01	60 x 40 x 1,5 mm	Steel nickel-plated
6080.04.01	70 x 45 x 1,5 mm	Steel nickel-plated
6080.05.01	80 x 50 x 1,5 mm	Steel nickel-plated

Serie 6085
with fixed, Zinc plated steel bolt and nylon coating, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6085.02.70	80 x 80 x 3,5 mm	Aluminium anodised silver
6085.01.70	80 x 80 x 3,5 mm	Aluminium anodised silver

Serie 6086
with fixed, Zinc plated steel bolt and nylon coating, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6086.01.70	100 x 85 x 3,5 mm	Aluminium anodised silver
6086.02.70	100 x 85 x 3,5 mm	Aluminium anodised silver

Serie 6087
with fixed, Zinc plated steel bolt and nylon coating, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6087.01.70	100 x 100 x 4 mm	Aluminium anodised silver
6087.02.70	100 x 100 x 4 mm	Aluminium anodised silver

Serie 6088
with fixed stainless steel pin and Edelstahl intermediate ring, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6088.01.30	80 x 80 x 2,5 mm	Stainless steel brushed
6088.02.30	80 x 80 x 2,5 mm	Stainless steel brushed

Serie 6088
with fixed stainless steel pin and Edelstahl intermediate ring, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6088.03.30	80 x 80 x 2,5 mm	Stainless steel brushed
6088.04.30	80 x 80 x 2,5 mm	Stainless steel brushed

Serie 6088
with fixed stainless steel pin and Edelstahl intermediate ring, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6088.09.30	100 x 82 x 2,5 mm	Stainless steel brushed
6088.10.30	100 x 82 x 2,5 mm	Stainless steel brushed

Serie 6088
with fixed stainless steel pin and Edelstahl intermediate ring, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6088.11.30	100 x 82 x 2,5 mm	Stainless steel brushed
6088.12.30	100 x 82 x 2,5 mm	Stainless steel brushed

Serie 6125
with fixed steel pin with brass intermediate ring,, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6125.01.00	48 x 40 x 3 mm	Steel untreated
6125.02.00	60 x 50 x 3,5 mm	Steel untreated
6125.03.00	72 x 60 x 4 mm	Steel untreated
6125.04.00	84 x 70 x 4,5 mm	Steel untreated
6125.05.00	96 x 80 x 5 mm	Steel untreated
6125.06.00	48 x 40 x 3 mm	Steel untreated
6125.07.00	60 x 50 x 3,5 mm	Steel untreated
6125.08.00	72 x 60 x 4 mm	Steel untreated
6125.09.00	84 x 70 x 4,5 mm	Steel untreated
6125.10.00	96 x 80 x 5 mm	Steel untreated

Serie 99.40402
with stainless steel pin ohne intermediate ring, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
99.40402.33/AL	40 x 40 x 2 mm	Stainless steel elektropolished
99.40402.33/AR	40 x 40 x 2 mm	Stainless steel elektropolished

Serie 6129
with stainless steel pin with intermediate ring, drilled

Executions

Art.-No.	Dimensions	Material
6129.01.30	80 x 60 x 2 mm	Stainless steel untreated
6129.02.30	80 x 60 x 2 mm	Stainless steel untreated

Serie 6088
with spring and Nylon intermediate ring, drilled and countersunk

Executions

The hinge moves itself automatically back to the initial position with an opening angle of up to 80°
Above 80° the spring function is cancelled.

Art.-No.	Dimensions	Material
6088.05.77	65 x 55 x 4,5 mm	Aluminium anodised silver
6088.07.77	65 x 55 x 4,5 mm	Aluminium anodised black
6088.06.77	65 x 55 x 4,5 mm	Aluminium anodised silver
6088.08.77	65 x 55 x 4,5 mm	Aluminium anodised black

Serie 6124
with stainless steel pin, drilled and countersunk

Executions

Maximum load: 40kg

Art.-No.	Dimensions	Material
6124.01.80	74 x 60 x 7 mm	Polyamide untreated
6124.02.80	74 x 60 x 7 mm	Polyamide untreated

Serie 6961
with stainless steel pin 1.4301, drilled

Executions

No metal-metal contact. Polyacetal sleeves minimize penetrating particles. Adapted for Doors 600 x 800
max. door weight: 8kg per pair

Art.-No.	Dimensions	Material
6961.03.71	65 x 60 x 3,5 mm	Aluminium untreated
6961.04.71	65 x 60 x 3,5 mm	Aluminium untreated

Serie 6196
washer is made of Nylon, with internal thread

Executions

Art.-No.	Dimensions	Material
6196.01.56	64 x 50 x 17,5 mm	Zamak black
6196.02.56	64 x 50 x 17,5 mm	Zamak black

Serie 6128
reinforced hinge hook bolts ohne intermediate ring, with internal thread

Executions

Art.-No.	Dimensions	Material
6128.04.30	64 x 13 x 16 mm	Stainless steel brushed

Serie 6488
hinge hook bolts ohne intermediate ring,, drilled and countersunk

Executions

Art.-No.	Dimensions	Material
6488.01.50	63,5 x 15,1 x 17,5 mm	Zamak black

Serie 6101
with extractable brass bolt and zinc plated brass intermediate ring

Executions

Assembly kit with screw nuts and grommets.

Art.-No.	Dimensions	Material
6101.01.04	49 x 18 x 16 mm	Steel galvanised

Serie 6101
with extractable brass bolt and zinc plated brass intermediate ring

Executions

Assembly kit with screw nuts and grommets

Art.-No.	Dimensions	Material
6101.03.04	33 x 18 x 16 mm	Steel galvanised

Serie 6101
with extractable steel pin

Executions

Assembly kit with screw nuts and grommets

Art.-No.	Dimensions	Material
6101.04.00	36 x 12,5 x 12 mm	Steel untreated

Serie 6101
with extractable steel pin

Executions

Without screw nuts and grommets

Art.-No.	Dimensions	Material
6101.05.00	36 x 18,5 x 12 mm	Steel untreated

Serie 6121
with fixed pin, drilled

Executions

Art.-No.	Dimensions	Material
6121.01.30	60 x 72 x 2 mm	Stainless steel untreated
6121.02.30	60 x 72 x 2 mm	Stainless steel untreated

Serie 6198
with fixed pin, drilled

Executions

Body in aluminium, shaft in stainless steel. Covers in Polyacetal (POM) Friction in one direction only. 30.000 load change. Torque is constant in torque direction
Torque per pair: 9 N/m. Initial torque may vary from - 20% and + 40%. Torque will be affected by temperature. Do not lubricate. Not suited for vibration enviroment. For indoor use only

Art.-No.	Dimensions	Material
6198.01.70	77,5 x 60 x 16 mm	Aluminium anodised
6198.02.70	77,5 x 60 x 16 mm	Aluminium anodised

Serie 6879
drilled

Executions

with constant torque. Opening angle approx. 115°. Hinge with built-in dampers. Install a stopper such as a stay at the lid opening closing position (0 ~ 115 degree) for not exceeding the specified swivelling range.

Art.-No.	Dimensions	Material
6879.01.02	75 x 60 mm	PBT Plastik

Serie 6195
pin made of stainless steel

Executions

Fastening with stud bolt

Art.-No.	Dimensions	Material
6195.01.56	60 x 72 x 8 mm	Stainless steel untreated
6195.02.56	60 x 72 x 8 mm	Stainless steel untreated
