  Handles

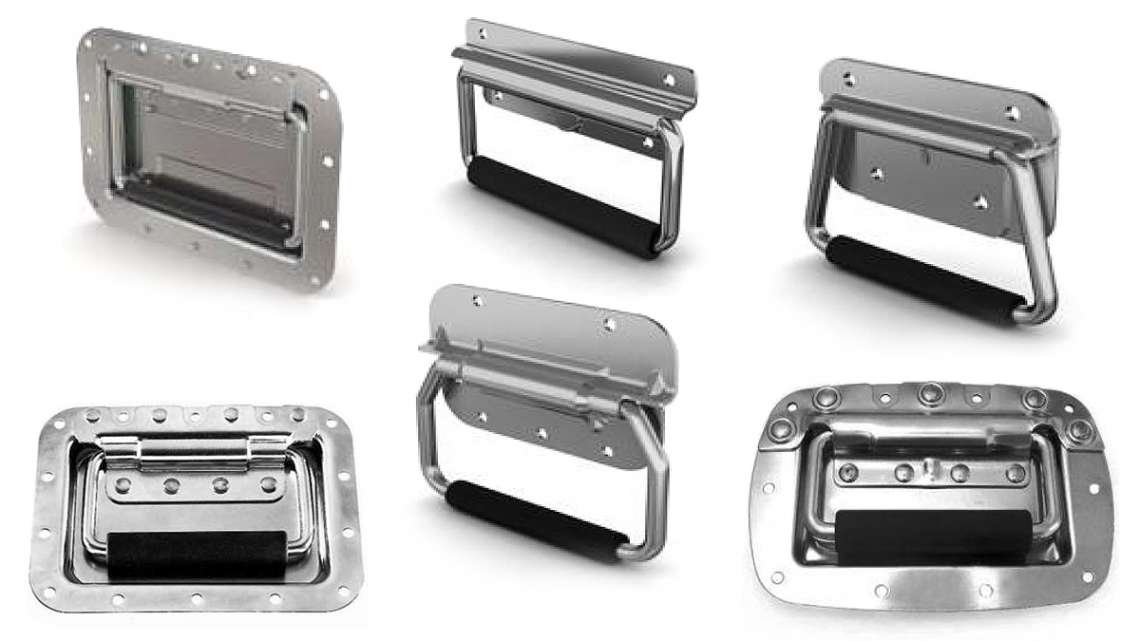

Box Handles with Return Spring

You may choose from our very large assortment of box handles with return spring according to different materials and damping characteristics.

In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to prduce a multiplicity of different components with little effort, even in small quantities.



Our offer includes box handles with retrurn spring:

  • made of steel or stainless steel
  • galvanized and nickel-plated
  • burnished and brassed
  • with rubber sleeve
  • with spring adjustment
  • with internal handle

More details can be found in this PDF data file:

Download



Additional Handles:



3D PDF

Serie 3103
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3103.04128 x 90 mmSteel galvanised

PDF

Serie 3112
drilled

Executions


Art.-No.DimensionsMaterial
3112.04123 x 74 mmSteel galvanised

3D PDF

Serie 6401
drilled

Executions


Maximum load: approx.57 kg Opening angle: up to 90°
Installation opening: 79x132

Art.-No.DimensionsMaterial
6401.04155 x 84 x 1,6 mmSteel galvanised

3D PDF

Serie 6402
drilled

Executions


Maximum load: approx.67 kg Opening angle: up to 90°
Installation opening: 99x146

Art.-No.DimensionsMaterial
6402.04178 x 127 x 1,6 mmSteel galvanised
6402.07178 x 127 x 1,6 mmEpoxy lacquer black Steel

PDF

Serie 6403
drilled

Executions


Maximum load: approx.45 kg
aperture angle: up to 90°

Art.-No.DimensionsMaterial
6403.05.04130,3 x 104,1 x 2 mmSteel galvanised
6403.06.04130,3 x 82,6 x 2 mmSteel galvanised
6403.05.30130,3 x 104,1 x 2 mmStainless steel
6403.06.30130,3 x 82,6 x 2 mmStainless steel

3D PDF

Serie 6405
drilled

Executions


Maximum load: approx.25 kg
aperture angle: up to 70°

Art.-No.DimensionsMaterial
6405.08110 x 87 x 1mmyellow chromatised Steel

PDF

Serie 6415
with return spring and neoprene sheathing, drilled

Executions


Maximum load: Art. No.: 6415.01.30: approx.54 kg Art. No.: 6415.02.04: approx.68 kg Art. No.: 6415.03.04: approx.68 kg
aperture angle: up to 90°

Art.-No.DimensionsMaterial
6415.01.30130 x 112,7 x 2,3 mmStainless steel untreated
6415.02.04130 x 101,6 x 2,3 mmSteel galvanised
6415.03.04130 x 104,1 x 2,3 mmSteel galvanised

3D PDF

Serie 6419
with return spring and neoprene sheathing, drilled

Executions


Maximum load: approx.34 kg
aperture angle: up to 180°

Art.-No.DimensionsMaterial
6419.01.07130 x 75 mmSteel burnished
6419.01.30130 x 75 mmStainless steel passivated

3D PDF

Serie 100.H1033Z
with rubber hose, drilled

Executions


Art.-No.DimensionsMaterial
100.H1033Z.04102 x 55 x 1,5 mmSteel galvanised

3D PDF

Serie 100.HE-2341
drilled

Executions


Art.-No.DimensionsMaterial
100.HE-2341.AL124 x 75 x 3 mmAluminium untreated

PDF

Serie 100.H10527
drilled

Executions


Art.-No.DimensionsMaterial
100.H10527.04140 x 81 x 1,5 mmSteel galvanised

3D PDF

Serie 100.H1053z
drilled

Executions


Art.-No.DimensionsMaterial
100.H1053z.04140 x 82,5 x 1,5 mmSteel galvanised
100.H1053z.07140 x 82,5 x 1,5 mmSteel burnished-black

3D PDF

Serie 100.H1078
drilled

Executions


Art.-No.DimensionsMaterial
100.H1078.04130 x 78 x 1,5 mmSteel galvanised

3D PDF

Serie 100.H1050
drilled

Executions


Installation opening: 75x128

Art.-No.DimensionsMaterial
100.H1050.04160 x 107 x 1,3 mmSteel galvanised
100.H1050.07160 x 107 x 1,3 mmSteel burnished-black

3D PDF

Serie 100.H7165
drilled

Executions


Installation opening: 148 x 98

Art.-No.DimensionsMaterial
100.H7165.Z.04178 x 127 x 1,5 mmSteel galvanised
100.H7165.K.07178 x 127 x 1,5 mmSteel burnished -black

3D PDF

Serie 100.H7165-10
drilled

Executions


Art.-No.DimensionsMaterial
100.H7165-10.04178 x 127 x 1,5 mmSteel galvanised
100.H7165-10.07178 x 127 x 1,5 mmSteel galvanised

3D PDF

Serie 100.H7149
drilled

Executions


Art.-No.DimensionsMaterial
100.H7149.04160 x 107 Steel galvanised

3D PDF

Serie 100.H7151
drilled

Executions


Art.-No.DimensionsMaterial
100.H7151.c.03160 x 107 Steel chrome-plated
100.H7151.z.04160 x 107 Steel galvanised
100.H7151.s.30160 x 107 Stainless steel untreated

3D PDF

Serie 100.H7159
drilled

Executions


Art.-No.DimensionsMaterial
100.H7159.z.04160 x 107Steel galvanised
100.H7159.K.07160 x 107Steel burnished-black

3D PDF

Serie 100.H1085
drilled

Executions


Art.-No.DimensionsMaterial
100.H1085.04160 x 107 x 0,9Steel galvanised
100.H1085.07160 x 107 x 0,9Steel burnished-black

3D PDF

Serie 100.H1906
drilled

Executions


Art.-No.DimensionsMaterial
100.H1906.04160 x 107,2 x 0,9 mmSteel galvanised
100.H1906.07160 x 107,2 x 0,9 mmSteel galvanised

3D PDF

Serie 100.H1065/BP
drilled

Executions


Art.-No.DimensionsMaterial
100.H1065/BP.04178 x 127 x 0,9 mmSteel galvanised

3D PDF

Serie 100.H2751
drilled

Executions


Installation opening: 130 x 75

Art.-No.DimensionsMaterial
100.H2751.K.07162 x 108 ABS black

3D PDF

Serie 100.H7148
drilled

Executions


Installation opening: 130 x 55

Art.-No.DimensionsMaterial
100.H7148.04155,5 x 83 x 1,2 mmSteel galvanised

3D PDF

Serie 100.H8154
drilled

Executions


Installation opening: 130 x 75

Art.-No.DimensionsMaterial
100.H8154.04170 x 114 x 1,5 mmSteel galvanised

3D PDF

Serie 100.H4051
drilled

Executions


Art.-No.DimensionsMaterial
100.H4051.04160 x 102 x 1,2 mmSteel galvanised
