You may choose from our very large assortment of Weld-on hinge rolls according to different lengths, bracket width and form, bolt aperture, perforations and surface finishes.
In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to produce a multiplicity of different components with little effort, even in small quantities.

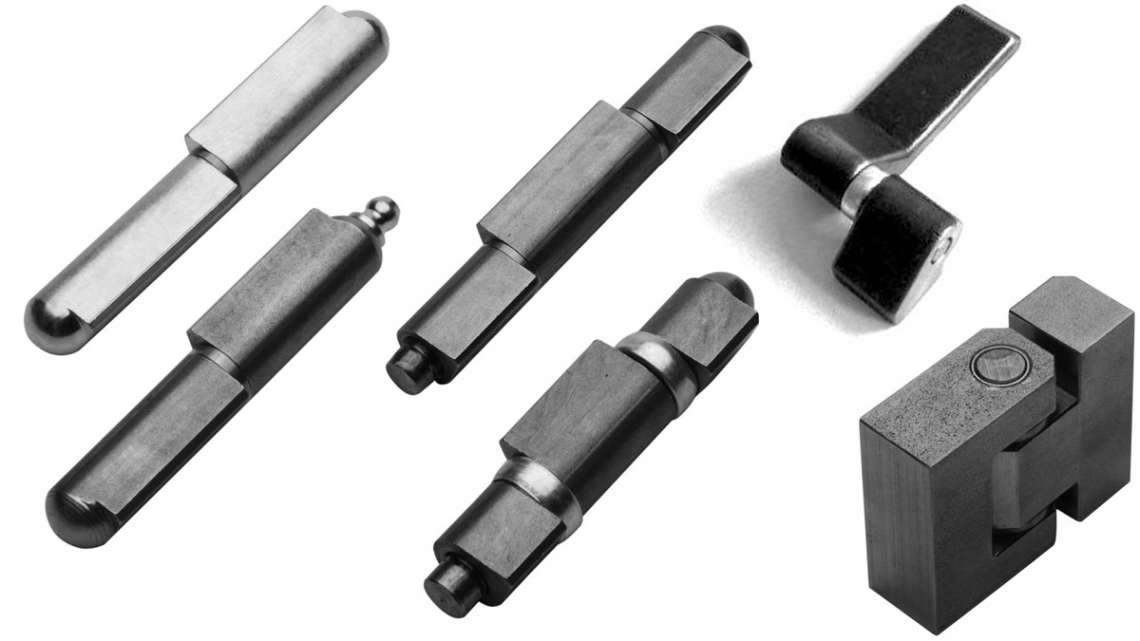

Our offer includes weld-on hinge rolls and hinge hooks:
- with brass pin
- with steel pin
- with flat endings, round endings
- with bearing
- with brass grommet
- made of raw or surface-refined steel
- made of stainless steel
- made of steel with black polyamide
More details can be found in this PDF data file:
Download
Design your individual Hinges, Piano Hinges and weld-on Hinges:
Additional Hinges:
Serie ABR
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABR40FES.00 | 40 x 10 mm | Steel untreated |
| ABR50FES.00 | 50 x 10 mm | Steel untreated |
| ABR60FES.00 | 60 x 12 mm | Steel untreated |
| ABR70FES.00 | 70 x 12 mm | Steel untreated |
| ABR80FES.00 | 80 x 16 mm | Steel untreated |
| ABR90FES.00 | 90 x 16 mm | Steel untreated |
| ABR100FES.00 | 100 x 20 mm | Steel untreated |
| ABR120FES.00 | 120 x 20 mm | Steel untreated |
| ABR135FES.00 | 135 x 22,5 mm | Steel untreated |
| ABR150FES.00 | 150 x 25,5 mm | Steel untreated |
| ABR180FES.00 | 180 x 25,5 mm | Steel untreated |
| ABR200FES.00 | 200 x 29 mm | Steel untreated |
| ABR40FMS.00 | 40 x 10 mm | Steel untreated |
| ABR50FMS.00 | 50 x 10 mm | Steel untreated |
| ABR60FMS.00 | 60 x 12 mm | Steel untreated |
| ABR70FMS.00 | 70 x 12 mm | Steel untreated |
| ABR80FMS.00 | 80 x 16 mm | Steel untreated |
| ABR90FMS.00 | 90 x 16 mm | Steel untreated |
| ABR100FMS.00 | 100 x 20 mm | Steel untreated |
| ABR120FMS.00 | 120 x 20 mm | Steel untreated |
| ABR135FMS.00 | 135 x 22,5 mm | Steel untreated |
| ABR150FMS.00 | 150 x 25,5 mm | Steel untreated |
| ABR180FMS.00 | 180 x 25,5 mm | Steel untreated |
| ABR200FMS.00 | 200 x 29 mm | Steel untreated |
Serie ABR
Executions
AES with extractable steel pin and brass intermediate ring
AMS with extractable brass pin and brass intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABR40AES.00 | 40 x 10 mm | Steel untreated |
| ABR50AES.00 | 50 x 10 mm | Steel untreated |
| ABR60AES.00 | 60 x 12 mm | Steel untreated |
| ABR80AES.00 | 80 x 16 mm | Steel untreated |
| ABR100AES.00 | 100 x 20 mm | Steel untreated |
| ABR120AES.00 | 120 x 20 mm | Steel untreated |
| ABR135AES.00 | 135 x 22,5 mm | Steel untreated |
| ABR150AES.00 | 150 x 25,5 mm | Steel untreated |
| ABR180AES.00 | 180 x 25,5 mm | Steel untreated |
| ABR200AES.00 | 200 x 29 mm | Steel untreated |
| ABR40AMS.00 | 40 x 10 mm | Steel untreated |
| ABR50AMS.00 | 50 x 10 mm | Steel untreated |
| ABR60AMS.00 | 60 x 12 mm | Steel untreated |
| ABR80AMS.00 | 80 x 12 mm | Steel untreated |
| ABR100AMS.00 | 100 x 16 mm | Steel untreated |
| ABR120AMS.00 | 120 x 20 mm | Steel untreated |
| ABR135AMS.00 | 135 x 22.5 mm | Steel untreated |
| ABR150AMS.00 | 150 x 25.5 mm | Steel untreated |
| ABR180AMS.00 | 180 x 25.5 mm | Steel untreated |
| ABR200AMS.00 | 200 x 29 mm | Steel untreated |
Serie ABR
Executions
FVS with fixed stainless steel pin and stainless steel intermediate ring
AVS with extractable stainless steel pin and stainless steel intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABR40FVS.30 | 40 x 10 mm | Stainless steel (V2A) untreated |
| ABR50FVS.30 | 50 x 10 mm | Stainless steel (V2A) untreated |
| ABR60FVS.30 | 60 x 12 mm | Stainless steel (V2A) untreated |
| ABR80FVS.30 | 80 x 16 mm | Stainless steel (V2A) untreated |
| ABR90FVS .30 | 90 x 16 mm | Stainless steel (V2A) untreated |
| ABR100FVS.30 | 100 x 20 mm | Stainless steel (V2A) untreated |
| ABR135FVS.30 | 135 x 22,5 mm | Stainless steel (V2A) untreated |
| ABR120FVS.30 | 120 x 20 mm | Stainless steel (V2A) untreated |
| ABR60FVS.35 | 60 x 12 mm | Stainless steel (V2A) untreated |
| ABR80FVS.35 | 80 x 16 mm | Stainless steel (V2A) untreated |
| ABR100FVS.35 | 100 x 20 mm | Stainless steel (V2A) untreated |
| ABR120FVS.35 | 120 x 20 mm | Stainless steel (V2A) untreated |
| ABR150FVS.35 | 150 x 25,5 mm | Stainless steel (V2A) untreated |
| ABR180FVS.35 | 180 x 25,5 mm | Stainless steel (V2A) untreated |
Serie ABR
Executions
FVS with fixed stainless steel pin and brass intermediate ring
AVS with extractable stainless steel pin and brass intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABR60FVS.70 | 60 x 12 mm | Aluminium untreated |
| ABR80FVS.70 | 80 x 16 mm | Aluminium untreated |
| ABR100FVS.70 | 100 x 20 mm | Aluminium untreated |
| ABR120FVS.70 | 120 x 20 mm | Aluminium untreated |
| ABR150FVS.70 | 150 x 25,5 mm | Aluminium untreated |
| ABR180FVS.70 | 180 x 25,5 mm | Aluminium untreated |
| ABR60AVS.70 | 60 x 12 mm | Aluminium untreated |
| ABR80AVS.70 | 80 x 16 mm | Aluminium untreated |
| ABR100AVS.70 | 100 x 20 mm | Aluminium untreated |
| ABR120AVS.70 | 120 x 20 mm | Aluminium untreated |
| ABR150AVS.70 | 150 x 25,5 mm | Aluminium untreated |
| ABR180AVS.70 | 180 x 25,5 mm | Aluminium untreated |
Serie ABR
Executions
FES with fixed steel pin and ball bearing
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABR141FES.00 | 141 x 22,5 mm | Steel untreated |
| ABR155,5FES.00 | 155 x 25,5 mm | Steel untreated |
| ABR206FES.00 | 206 x 29 mm | Steel untreated |
Serie ABN
Executions
FES with fixed steel pin and brass intermediate ring
FMS with fixed brass pin and brass intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABN60FES.00 | 60 x 12 mm | Steel untreated |
| ABN80FES.00 | 80 x 16 mm | Steel untreated |
| ABN100FES.00 | 100 x 20 mm | Steel untreated |
| ABN120FES.00 | 120 x 20 mm | Steel untreated |
| ABN135FES.00 | 135 x 22,5 mm | Steel untreated |
| ABN150FES.00 | 150 x 25,5 mm | Steel untreated |
| ABN180FES.00 | 180 x 25,5 mm | Steel untreated |
| ABN200FES.00 | 200 x 29 mm | Steel untreated |
| ABN60FMS.00 | 60 x 12 mm | Steel untreated |
| ABN80FMS.00 | 80 x 16 mm | Steel untreated |
| ABN100FMS.00 | 100 x 20 mm | Steel untreated |
| ABN120FMS.00 | 120 x 20 mm | Steel untreated |
| ABN135FMS.00 | 135 x 22,5 mm | Steel untreated |
| ABN150FMS.00 | 150 x 25,5 mm | Steel untreated |
| ABN180FMS.00 | 180 x 25,5 mm | Steel untreated |
| ABN200FMS.00 | 200 x 29 mm | Steel untreated |
Serie ABN
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABN60FVS.30 | 60 x 12 mm | Stainless steel (V2A) untreated |
| ABN80FVS.30 | 80 x 16 mm | Stainless steel (V2A) untreated |
| ABN100FVS.30 | 100 x 20 mm | Stainless steel (V2A) untreated |
| ABN120FVS.30 | 120 x 20 mm | Stainless steel (V2A) untreated |
| ABN135FVS.30 | 135 x 25,5 mm | Stainless steel (V2A) untreated |
| ABN150FVS.30 | 150 x 25,5 mm | Stainless steel (V2A) untreated |
| ABN180FVS.30 | 180 x 25,5 mm | Stainless steel (V2A) untreated |
Serie ABF
Executions
FES with fixed steel pin and brass intermediate ring
FMS with fixed brass pin and brass intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABF45FMS.00 | 45 x 10 mm | Steel untreated |
| ABF60FMS.00 | 60 x 12 mm | Steel untreated |
| ABF80FMS.00 | 80 x 16 mm | Steel untreated |
| ABF100FMS.00 | 100 x 20 mm | Steel untreated |
| ABF120FMS.00 | 120 x 20 mm | Steel untreated |
| ABF140FMS.00 | 140 x 25,5 mm | Steel untreated |
| ABF45FMS.00 | 45 x 10 mm | Steel untreated |
| ABF60FMS.00 | 60 x 12 mm | Steel untreated |
| ABF80FMS.00 | 80 x 16 mm | Steel untreated |
| ABF100FMS.00 | 100 x 20 mm | Steel untreated |
| ABF120FMS.00 | 120 x 20 mm | Steel untreated |
| ABF140FMS.00 | 140 x 25,5 mm | Steel untreated |
Serie ABF
Executions
FES with fixed steel pin and ball bearing
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABF200FES.00 | 200 x 29 mm | Steel untreated |
| ABF200FES.00 | 200 x 29 mm | Steel untreated |
| ABF84FES.00 | 84 x 16 mm | Steel untreated |
| ABF104FES.00 | 104 x 20 mm | Steel untreated |
Serie ABF
Executions
FVS with fixed stainless steel pin and brass intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABF60FVS.30 | 60 x 12 mm | Stainless steel (V2A) untreated |
| ABF80FVS.30 | 80 x 16 mm | Stainless steel (V2A) untreated |
| ABF100FVS.30 | 100 x 20 mm | Stainless steel (V2A) untreated |
| ABF120FVS.30 | 120 x 20 mm | Stainless steel (V2A) untreated |
Serie AG
with fixed steel pin
Executions
FES on self-lubrificating bushes and brass intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| AG60FES.00 | 60 x 50 x 20 mm | Steel untreated |
| AG70FES.00 | 70 x 60 x 25 mm | Steel untreated |
| AG80FES.00 | 80 x 60 x 30 mm | Steel untreated |
| AG100FES.00 | 100 x 80 x 40 mm | Steel untreated |
| AG120FES.00 | 120 x 100 x 50 mm | Steel untreated |
| AG140FES.00 | 140 x 120 x 60 mm | Steel untreated |
| AG60FES.30 | 60 x 50 x 20 mm | Stainless steel (V2A) untreated |
| AG70FES.30 | 70 x 60 x 25 mm | Stainless steel (V2A) untreated |
| AG80FES.30 | 80 x 60 x 30 mm | Stainless steel (V2A) untreated |
| AG100FES.30 | 100 x 80 x 40 mm | Stainless steel (V2A) untreated |
| AG120FES.30 | 120 x 100 x 50 mm | Stainless steel (V2A) untreated |
| AG140FES.30 | 140 x 120 x 60 mm | Stainless steel (V2A) untreated |
Serie AK
with fixed steel pin
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| AK115AES.00 | 115 x 30 x 63 mm | Steel untreated |
Serie AB
3-part with 2 ball bearings
Executions
AES with extractable steel pin and 2 ball bearingn
AMS with extractable brass pin and 2 ball bearings
| Art.-No. | Dimensions | Material |
|---|---|---|
| AB90/3AES.00 | 90/3 x 25,5 mm | Steel untreated |
| AB110/3AES.00 | 110/3 x 29 mm | Steel untreated |
| AB90/3AMS.00 | 90/3 x 25,5 mm | Steel untreated |
| AB110/3AMS.00 | 110/3 x 29 mm | Steel untreated |
Serie AB
Adjustable heights and sides
Executions
AES with extractable steel pin
AMS with extractable brass pin, AVS with extractable stainless steel pin
| Art.-No. | Dimensions | Material |
|---|---|---|
| AB118AES-3D.00 | 118 x 25,5 mm | Steel untreated |
| AB147AES-3D.00 | 147 x 28,5 mm | Steel untreated |
| AB118AVS-3D.30 | 118 x 25,5 mm | Stainless steel (V2A) untreated |
Serie 158.I
Adjustable heights and sides
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 158.I-5524.05.30 | 120 x 21 mm | Stainless steel (V2A) untreated |
| 158.I-5324.05.30 | 180 x 21 mm | Stainless steel (V2A) untreated |
| 158.I-5124.05.30 | 235 x 26 mm | Stainless steel (V2A) untreated |
| 158.I-5524.05.00 | 120 x 21 mm | Steel untreated |
| 158.I-5324.05.00 | 180 x 21 mm | Steel untreated |
| 158.I-5124.05.00 | 235 x 26 mm | Steel untreated |
Serie 158.I
Adjustable heights and sides
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 158.I-5334.00 | 180 x 21 mm | Steel untreated |
| 158.I-5134.00 | 235 x 26 mm | Steel untreated |
| 158.I-5334.05.30 | 180 x 21 mm | Stainless steel (V2A) untreated |
| 158.I-5134.05.30 | 235 x 26 mm | Stainless steel (V2A) untreated |
Serie 158.I
spring force adjustable
Executions
with integrated spring
This product will be delivered only in pairs; Schließt die Tür automatisch,
eingebaute Mechanik ist sehr widerstandsfähig and einstellbar, max. aperture angle 180°
| Art.-No. | Dimensions | Material |
|---|---|---|
| 158.I-5224.00 | 250 x 77,5 x 3 mm | Steel untreated |
Serie ABS
spring force adjustable
Executions
AES with extractable steel pin and brass intermediate ring
AMS with extractable brass pin and brass intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABS40AES.00 | 40 x 10 mm | Steel untreated |
| ABS50AES.00 | 50 x 10 mm | Steel untreated |
| ABS60AES.00 | 60 x 12 mm | Steel untreated |
| ABS80AES.00 | 80 x 16 mm | Steel untreated |
| ABS100AES.00 | 100 x 20 mm | Steel untreated |
| ABS120AES.00 | 120 x 20 mm | Steel untreated |
| ABS135AES.00 | 135 x 22,5 mm | Steel untreated |
| ABS150AES.00 | 150 x 25,5 mm | Steel untreated |
| ABS180AES.00 | 150 x 25,5 mm | Steel untreated |
| ABS200AES.00 | 200 x 29 mm | Steel untreated |
| ABS40AMS.00 | 40 x 10 mm | Steel untreated |
| ABS50AMS.00 | 50 x 10 mm | Steel untreated |
| ABS60AMS.00 | 60 x 12 mm | Steel untreated |
| ABS80AMS.00 | 80 x 16 mm | Steel untreated |
| ABS100AMS.00 | 100 x 20 mm | Steel untreated |
| ABS120AMS.00 | 120 x 20 mm | Steel untreated |
| ABS135AMS.00 | 135 x 22,5 mm | Steel untreated |
| ABS150AMS.00 | 150 x 25,5 mm | Steel untreated |
| ABS180AMS.00 | 150 x 25,5 mm | Steel untreated |
| ABS200AMS.00 | 200 x 29 mm | Steel untreated |
Serie ABS
spring force adjustable
Executions
AVS with extractable stainless steel pin and stainless steel intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABS60AVS.30 | 60 x 16 mm | Stainless steel ( V2A ) |
| ABS80AVS.30 | 80 x 16 mm | Stainless steel ( V2A ) |
| ABS100AVS.30 | 100 x 20 mm | Stainless steel ( V2A ) |
| ABS120AVS.30 | 120 x 20 mm | Stainless steel ( V2A ) |
| ABS150AVS.30 | 150 x 25,5 mm | Stainless steel ( V2A ) |
| ABS180AVS.30 | 180 x 25,5 mm | Stainless steel ( V2A ) |
Serie AB
spring force adjustable
Executions
AES with extractable steel pin and brass intermediate ring
AMS with extractable brass pin and brass intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| AB135/3AES.00 | 135/3 x 22,5 mm | Steel untreated |
| AB150/3AES.00 | 150/3 x 25,5 mm | Steel untreated |
| AB180/3AES.00 | 180/3 x 25,5 mm | Steel untreated |
| AB200/3AES.00 | 180/3 x 29 mm | Steel untreated |
| AB135/3AMS.00 | 135/3 x 22,5 mm | Steel untreated |
| AB150/3AMS.00 | 150/3 x 25,5 mm | Steel untreated |
| AB180/3AMS.00 | 180/3 x 25,5 mm | Steel untreated |
| AB200/3AMS.00 | 180/3 x 29 mm | Steel untreated |
Serie AB
spring force adjustable
Executions
AVS with extractable stainless steel pin and brass intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| AB135/3AVS.30 | 135/3 x 22,5 mm | Stainless steel untreated (V2A) |
| AB150/3AVS.30 | 150/3 x 25,5 mm | Stainless steel untreated (V2A) |
| AB180/3AVS.30 | 180/3 x 25,5 mm | Stainless steel untreated (V2A) |
Serie ABN
3-part with lubrication nipple
Executions
AMS with extractable brass pin and brass intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABN135/3AMS.00 | 135/3 x 22,5 mm | Steel untreated |
| ABN150/3AMS.00 | 150/3 x 25,5 mm | Steel untreated |
| ABN180/3AMS.00 | 180/3 x 25,5 mm | Steel untreated |
| ABN200/3AMS.00 | 200/3 x 29 mm | Steel untreated |
