Spannverschlüsse mit Drahtbügel:

Art.-Nr.MaßeMaterialMenge
1001.00/566 x 27 mmStahl unbehandelt

1001.01/566 x 27 mmStahl vernickelt




Kapitel-PDF


  Latches

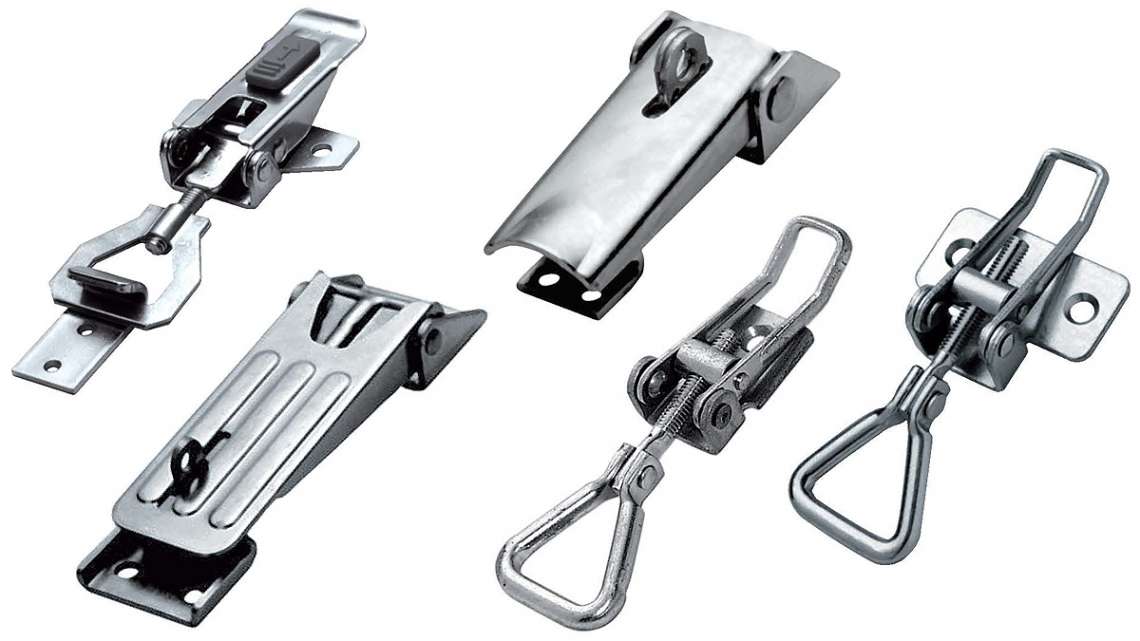

Adjustable Latches

You may choose from our very large assortment of adjustable latches according to different constructive solutions, materials and surfacee finishes.

In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to produce a multiplicity of different components with little effort, even in small quantities.



Our order includes adjustable latches:

  • with safety lock
  • akin to DIN 3134
  • with padlock

More deatils can be found in this PDF data file:

  Download



Additional Latches:



3D PDF

Serie 1015
undrilled

Executions


Permitted tractive force: 1100N
Breaking strength: 2500N

Art.-No.DimensionsMaterial
1015.00/6112+12 x 52 mmSteel untreated
1015.01/6112+12 x 52 mmSteel nickel-plated
1015.04/6112+12 x 52 mmSteel galvanised
1015.30/6112+12 x 52 mmStainless steel


Zubehör: Strikes

Art.-No.DimensionsMaterial
1015.00/536 x 19 mmSteel untreated
1015.01/536 x 19 mmSteel nickel-plated
1015.04/536 x 19 mmSteel galvanised
1015.30/536 x 19 mmStainless steel

3D PDF

Serie 1016
with safety interlock, drilled

Executions


Art.-No.DimensionsMaterial
1016.01/6112 +12 x 52 x 18 mmSteel nickel-plated
1016.30/6112 + 12 x 52 x 18 mmStainless steel


Zubehör: Strikes

Art.-No.DimensionsMaterial
1015.01/536 x 19 mmSteel nickel-plated
1015.30/536 x 19 mmStainless steel

3D PDF

Serie 1024
undrilled

Executions


Permitted tractive force: 1500 N
Breaking strength: 3000 N

Art.-No.DimensionsMaterial
1024.04/670+12 x 48,5 x 26 mmSteel galvanised
1024.30/670+12 x 48,5 x 26 mmStainless steel


Zubehör: Strikes

Art.-No.DimensionsMaterial
1024.04/517x 26 mmSteel galvanised
1024.30/517x 26 mmStainless steel

3D PDF

Serie 1025
with lock bracket, drilled

Executions


Permitted tractive force: 1500 N
Breaking strength: 3000 N

Art.-No.DimensionsMaterial
1025.04/670+12 x 48,5 x 26 mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
1024.04/517x 26 mmSteel galvanised

3D PDF

Serie 1027
undrilled

Executions


Permitted tractive force: 1000 N
Breaking strength: 2000 N

Art.-No.DimensionsMaterial
1027.01/668+14 x 27 x 22 mmSteel nickel-plated
1027.04/668+14 x 27 x 22 mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
1027.01/517,5 x 10 mmSteel nickel-plated
1027.04/517,5 x 10 mmSteel galvanised

3D PDF

Serie 1028
with safety spring, drilled

Executions


Permitted tractive force: 1000 N
Breaking strength: 2000 N

Art.-No.DimensionsMaterial
1028.04/668+14 x 27 x 22 mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
1027.04/517,5 x 10 mmSteel galvanised

3D PDF

Serie 1029
undrilled

Executions


Permitted tractive force: 2000 N
Breaking strength: 4000 N

Art.-No.DimensionsMaterial
1029.04/6115+15 x 45,5 x 23 mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
1029.04/530,5 x 40 mmSteel galvanised

3D PDF

Serie 1030
with lock bracket, drilled

Executions


Permitted tractive force: 2000 N
Breaking strength: 4000 N

Art.-No.DimensionsMaterial
1030.04/6115+15 x 45,5 x 23mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
1029.04/530,5 x 40 mmSteel galvanised

3D PDF

Serie 1031
undrilled

Executions


Permitted tractive force: 1000 N
Breaking strength: 1400 N

Art.-No.DimensionsMaterial
1031.04/672 x 25,5 x 16mmSteel galvanised
1031.30/672 x 25,5 x 16mmStainless steel


Zubehör: Strikes

Art.-No.DimensionsMaterial
1031.04/514 x 16 mmSteel galvanised
1031.30/514 x 16 mmStainless steel

3D PDF

Serie 1032
with lock bracket, drilled

Executions


Permitted tractive force: 1000 N
Breaking strength: 1400 N

Art.-No.DimensionsMaterial
1032.04/672 x 25,5 x 16mmSteel galvanised
1032.30/672 x 25,5 x 16mmuntreated Stainless steel


Zubehör: Strikes

Art.-No.DimensionsMaterial
1031.04/514 x 16 mmSteel galvanised
1031.30/514 x 16 mmStainless steel

3D PDF

Serie 1033
with safety spring, drilled

Executions


Permitted tractive force: 1000 N
Breaking strength: 1400 N

Art.-No.DimensionsMaterial
1033.04/672 x 25,5 x 16mmSteel galvanised
1033.30/672 x 25,5 x 16mmuntreated Stainless steel


Zubehör: Strikes

Art.-No.DimensionsMaterial
1031.04/514 x 16 mmSteel galvanised
1031.30/514 x 16 mmStainless steel

3D PDF

Serie 1038
drilled

Executions


Permitted tractive force: 750 N
Breaking strength: 1500 N

Art.-No.DimensionsMaterial
1038.04/653+7 x 19mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
1038.04/514 x 16 mmSteel galvanised

3D PDF

Serie 3012
drilled and countersunk

Executions

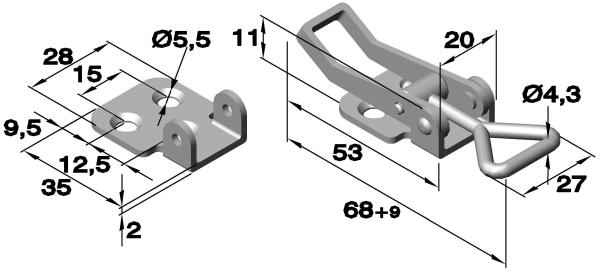

Art.-No.DimensionsMaterial
3012.0468+9 x 28 mmSteel galvanised
3012.3068+9 x 28 mmStainless steel
3012.3368+9 x 28 mmpolished stainless steel


Zubehör: Strikes

Art.-No.DimensionsMaterial
3616.0435 x 15 mmSteel galvanised
3616.0435 x 15 mmSteel galvanised
3616.0435 x 15 mmSteel galvanised

3D PDF

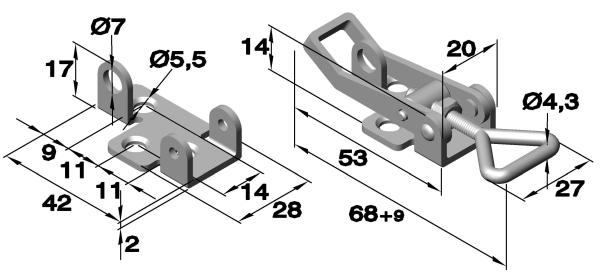

Serie 3013
with lock bracket and welded triangle, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3013.0468+9 x 28 mmSteel galvanised
3013.3068+9 x 28 mmStainless steel
3013.3368+9 x 28 mmpolished stainless steel


Zubehör: Strikes

Art.-No.DimensionsMaterial
3616.0435 x 15 mmSteel galvanised
3616.0435 x 15 mmSteel galvanised
3616.0435 x 15 mmSteel galvanised

3D PDF

Serie 3014
with welded triangle, undrilled

Executions

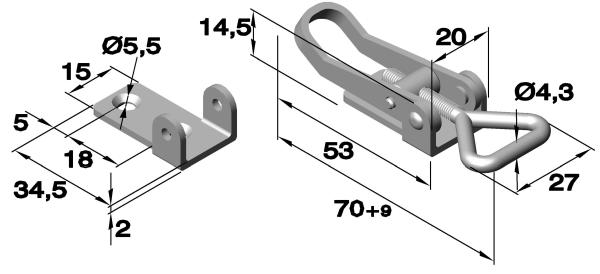

Art.-No.DimensionsMaterial
3014.0470+9 x 27 x 14,5mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
3616.0435 x 15 mmSteel galvanised

3D PDF

Serie 6251.02
with riveted triangle, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6251.02.0482+9 x 28mmSteel galvanised
6251.02.3082+9 x 28mmStainless steel


Zubehör: Strikes

Art.-No.DimensionsMaterial
3605.04 21 x 26 mmSteel galvanised
3605.30 21 x 26 mmStainless steel

3D PDF

Serie 3014
undrilled

Executions


Art.-No.DimensionsMaterial
3014.04-U170+9 x 27 x 14,5mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
3616.0435 x 15 mmSteel galvanised

3D PDF

Serie 3014
with welding projection, drilled

Executions


Art.-No.DimensionsMaterial
3014.04-U1S70+9 x 27 x 14,5 mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
3616.0435 x 15 mmSteel galvanised

3D PDF

Serie 3015
with riveted triangle, drilled and countersunk

Executions

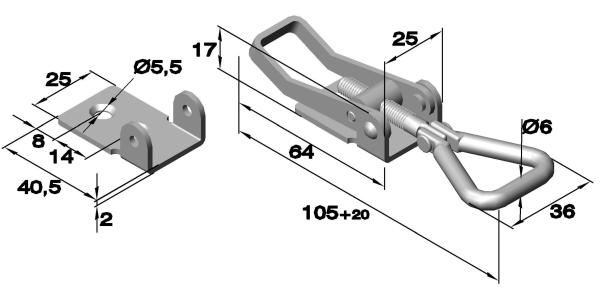

Art.-No.DimensionsMaterial
3015.04105+20 x 36 x 17 mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
3608.0429 x 30 mmSteel galvanised

3D PDF

Serie 3015
with riveted triangle, undrilled

Executions


Art.-No.DimensionsMaterial
3015.04 G-1105+20 x 36 mmSteel galvanised
3015.33 RF-1105+20 x 36 mmStainless steel polished


Zubehör: Strikes

Art.-No.DimensionsMaterial
3608.0429 x 30 mmSteel galvanised
3608.3329 x 30 mmpolished stainless steel

3D PDF

Serie 3015
with welded triangle, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3015.3096+20 x 40 x 17mmStainless steel


Zubehör: Strikes

Art.-No.DimensionsMaterial
3608.3029 x 30 mmStainless steel

3D PDF

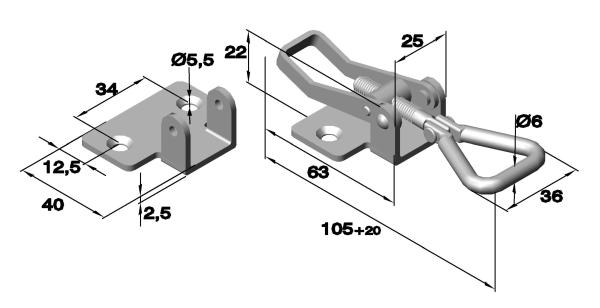

Serie 3016
with riveted triangle, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3016.04105+20 x 50 mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
3608.0429 x 30 mmSteel galvanised

3D PDF

Serie 3016
with riveted triangle, undrilled

Executions


Art.-No.DimensionsMaterial
3016.04-U1105+20 x 50 mmSteel galvanised
3016.30-U1105+20 x 50 mmStainless steel


Zubehör: Strikes

Art.-No.DimensionsMaterial
3608.04-U129x30x2,5mmSteel galvanised
3608.30-U129x30x2,5mmStainless steel untreated

3D PDF

Serie 3017
with riveted triangle, undrilled

Executions

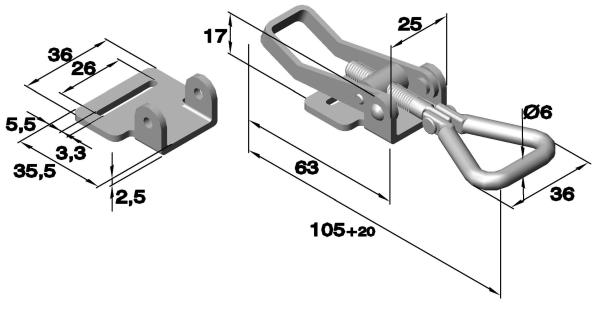

Art.-No.DimensionsMaterial
3017.04 105+20 x 36 mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
3609.04 29 x 36 mmSteel galvanised

3D PDF

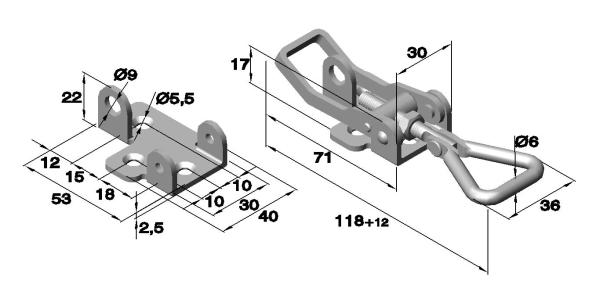

Serie 3018
with riveted triangle and lock bracket, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3018.04118+12 x 40 mmSteel galvanised
3018.30 118+12 x 40 mmStainless steel


Zubehör: Strikes

Art.-No.DimensionsMaterial
3608.0429 x 30 mmSteel galvanised
3608.3329 x 30 mmpolished stainless steel

3D PDF

Serie 3019
with riveted triangle, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3019.04 115+15 x 41 mmSteel galvanised


Zubehör: Strikes

Art.-No.DimensionsMaterial
3608.0429 x 30 mmSteel galvanised

3D PDF

Serie 3018
with riveted triangle, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3018.33.GT118+12 x 33Stainless steel polished

PDF

Serie V951L02-1
drilled

Executions


Tensile load max. 2300 N
Operating load up to 1550 N

Art.-No.DimensionsMaterial
V951L02-1-1AD72 x 29 mm / D= 3,6mm / L= 14,3mm Steel chrome-plated
V951L02-1-1AGV72 x 29 mm / D= 3,6mm / L= 14,3mm Steel galvanised
V951L02-1-1BP72 x 29 mm / D= 3,6mm / L= 14,3mm Stainless steel
V951L02-1-2AGV72 x 29 mmSteel galvanised
V951L02-1-2BP72 x 29 mmStainless steel
V951L02-1-5AGV72 x 29 mm / D= 4,2mm / L= 12,7mm Steel galvanised
V951L02-1-5BP72 x 29 mm / D= 4,2mm / L= 12,7mm Stainless steel

3D PDF

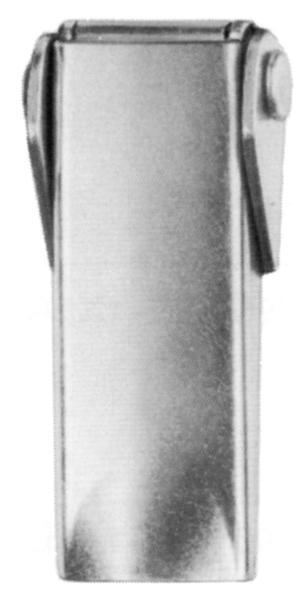

Serie V951L03-1
drilled

Executions


Tensile load max. 1200 N
Operating load up to 800 N

Art.-No.DimensionsMaterial
V951L03-1-1AD61 x 29 mmSteel chrome-plated
V951L03-1-1AGV61 x 29 mmSteel galvanised
V951L03-1-1BP61 x 29 mmStainless steel
V951L03-1-5AGV61 x 29 mmSteel galvanised
V951L03-1-5BP61 x 29 mmStainless steel

3D PDF

Serie V951L04-1X
with safety spring, drilled

Executions


Tensile load max. 2300 N
Operating load up to 1550 N

Art.-No.DimensionsMaterial
V951L04-1X-1AD72 x 29 mm / D= 3,6mm / L= 14,3mm Steel chrome-plated
V951L04-1X-1AGV72 x 29 mm / D= 3,6mm / L= 14,3mm Steel galvanised
V951L04-1X-1BP72 x 29 mm / D= 3,6mm / L= 14,3mm Stainless steel
V951L04-1X-2BP72 x 29 mmStainless steel
V951L04-1X-5AGV72 x 29 mm / D= 4,2mm / L= 12,7mm Steel galvanised
V951L04-1X-5BP72 x 29 mm / D= 3,6mm / L= 14,3mm Stainless steel

PDF

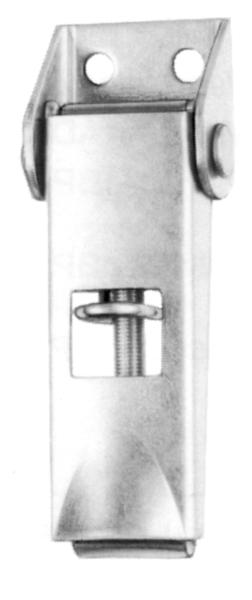

Serie V951L01-1Y
with lock bracket, drilled

Executions


Tensile load max. 2300 N
Operating load up to 1550 N

Art.-No.DimensionsMaterial
V951L01-1Y-2AGV72 x 29 mm/ D= 4,2mm Steel galvanised
V951L01-1Y-5AGV72 x 29 mmSteel galvanised

3D PDF

Serie V951L03-1X
with safety spring, drilled

Executions


Tensile load max. 1200 N
Operating load up to 800 N

Art.-No.DimensionsMaterial
V951L03-1X-1AD61 x 29 mm/ D= 3,6mm / L= 14,3mm Steel chrome-plated
V951L03-1X-1BP61 x 29 mm/ D= 3,6mm / L= 14,3mm Stainless steel
V951L03-1X-5AGV61 x 29 mm/ D= 4,2mm / L= 12,7mm Steel galvanised
V951L03-1X-5BP61 x 29 mm/ D= 4,2mm / L= 12,7mm Stainless steel

PDF

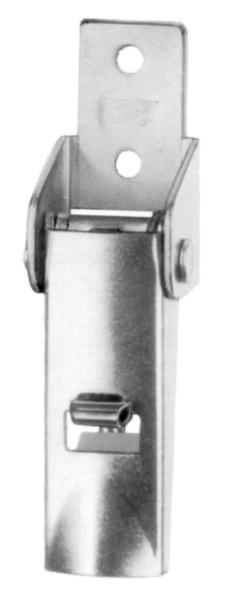

Serie V951L05-1X
with safety spring, drilled

Executions


Tensile load max. 2300 N
Operating load up to 1550 N

Art.-No.DimensionsMaterial
V951L05-1X-1AGV92 x 29 mm/ D= 4,2mm Steel galvanised
V951L05-1X-1BP92 x 29 mm/ D= 4,2mm Stainless steel
V951L05-1X-5BP92 x 29 mm/ D= 5,1mm Stainless steel

PDF

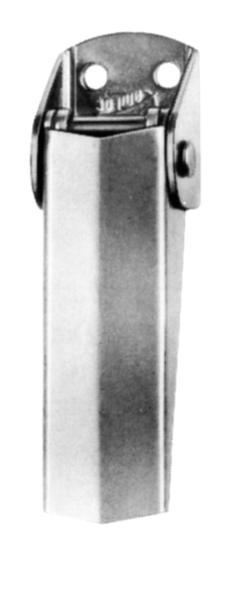

Serie V917L01-1
drilled

Executions


Tensile load max. 3600 N
Operating load up to 2700 N

Art.-No.DimensionsMaterial
V917L01-1-1AG97,3 x 33,5 mmSteel galvanised
V917L01-1-1BP97,3 x 33,5 mmStainless steel

PDF

Serie V17L12
drilled

Executions


Tensile load max. 3200 N
Operating load up to 2200 N

Art.-No.DimensionsMaterial
V17L12-1-1AA76,5 x 34 mmSteel galvanised

3D PDF

Serie V917L01-1X
with safety spring, drilled

Executions


Tensile load max. 3600 N
Operating load up to 2700 N

Art.-No.DimensionsMaterial
V917L01-1X-1AG98 x 33,5 mm/ D= 5,1mm Steel galvanised
V917L01-1X-1BP98 x 33,5 mm/ D= 5,1mm Stainless steel
V917L01-1X-1CP98 x 33,5 mm/ D= 5,1mm seaworthy stainless steel
V917L01-1X-2BP98 x 33,5 mmStainless steel
V917L01-1X-2CP98 x 33,5 mmseaworthy stainless steel

3D PDF

Serie V1449L02
with safety spring, drilled

Executions


Tensile load max. 3600 N
Operating load up to 2700 N

Art.-No.DimensionsMaterial
V1449L02-1X-1AG110 x 33,5 mmSteel galvanised
V1449L02-1X-1BP110 x 33,5 mmStainless steel

PDF

Serie V17L12
with safety spring, drilled

Executions


Tensile load max. 3200 N
Operating load up to 2200 N

Art.-No.DimensionsMaterial
V17L12-2X-1AA77 x 34 mmSteel galvanised

PDF

Serie V917L01-1Y
with lock bracket, drilled

Executions


Tensile load max. 3200 N
Operating load up to 2200 N

Art.-No.DimensionsMaterial
V917L01-1Y-1AG97,3 x 33,5 mmSteel galvanised

3D PDF

Serie V18L01
drilled

Executions


Tensile load max. 6000 N
Operating load up to 4200 N

Art.-No.DimensionsMaterial
V18L01-1-1AA120 x 45 mm/ D= 5,1mm Steel galvanised
V18L01-1-1BF120 x 45 mm/ D= 5,1mm Stainless steel
V18L01-1-2BF120 x 45 mmStainless steel

3D PDF

Serie V18L01
with safety spring, drilled

Executions


Tensile load max. 6000 N
Operating load up to 4200 N

Art.-No.DimensionsMaterial
V18L01-1X-1AA120 x 45 mm/ D= 5,1mm Steel galvanised
V18L01-1X-1BF120 x 45 mm/ D= 5,1mm Stainless steel
V18L01-1X-2BF120 x 45 mmStainless steel

PDF

Serie V18L01
with lock bracket, drilled

Executions


Tensile load max. 6000 N
Operating load up to 4200 N

Art.-No.DimensionsMaterial
V18L01-1Y-1AA120 x 45 mmSteel galvanised

3D PDF

Serie V46L38
drilled

Executions


Tensile load max. 4400 N
Operating load up to 3000 N

Art.-No.DimensionsMaterial
V46L38-1-1AA141 x 51 mmSteel galvanised
V46L38-1-6AA141 x 51 mm/ D= 6,3mm Steel galvanised

3D PDF

Serie 3019
with welded triangle, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3019.30103+15 x 40 mmuntreated Stainless steel
3019.33103+15 x 40 mmStainless steel polished


Zubehör: Strikes

Art.-No.DimensionsMaterial
3608.3029 x 30 mmStainless steel
3608.3029 x 30 mmStainless steel

PDF

Serie V18L45
with welded triangle, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
V18L45-1BP69 x 32untreated Stainless steel



Browse website ...
