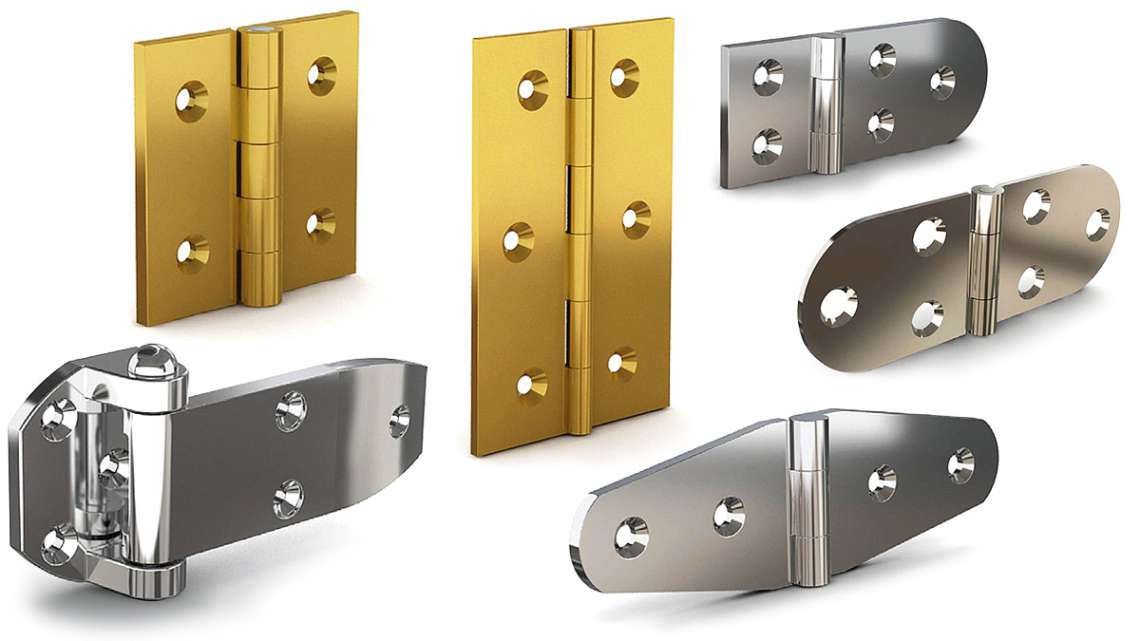

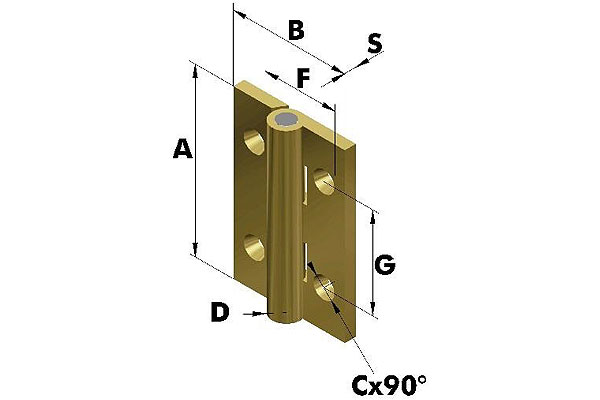

You may choose from our very large assortment of brassed hinges according to different lengths, bracket width and form, bolt aperture, perforations and surface finishes.
In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to produce a multiplicity of different components with little effort, even in small quantities.
Our offer includes brassed hinges:
More details can be found in this PDF data file:
Design your individual Hinges, Piano Hinges and weld-on Hinges:

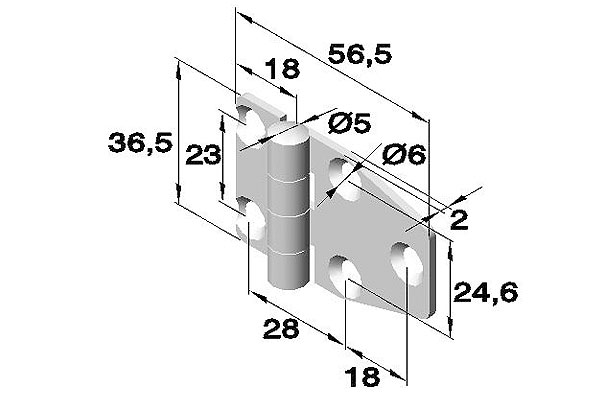

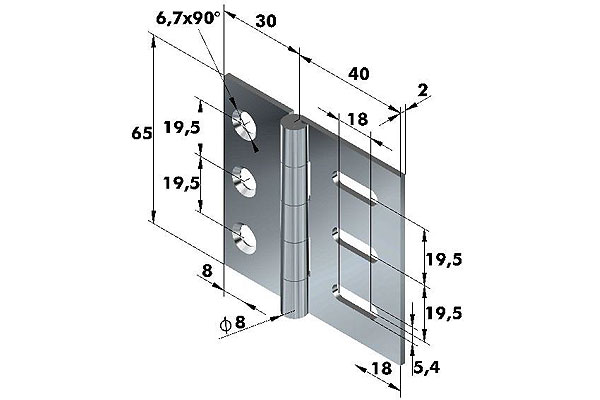

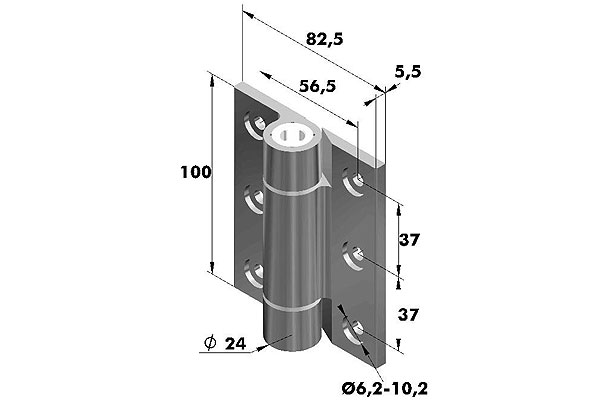

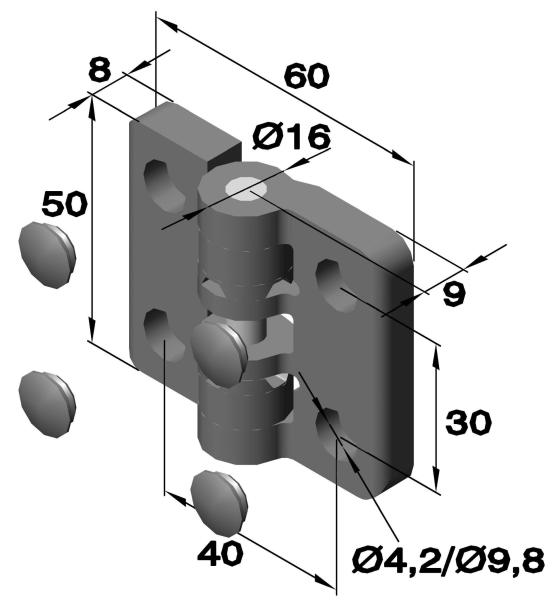

Additional Hinges:
Serie 6702
rolled, 15 mm, undrilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.

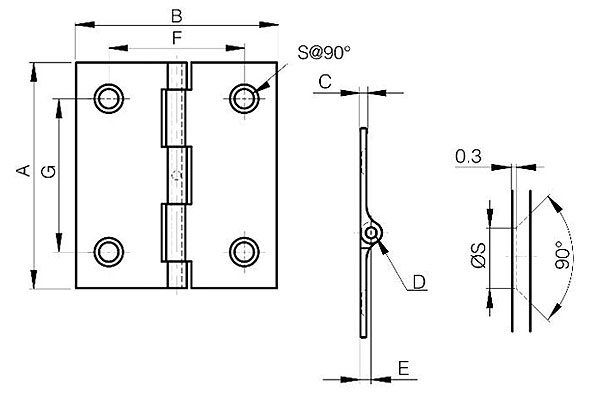

Art.-No. | Dimensions | Material |
---|---|---|
6702.00 | 2040 x 15 x 0,7 mm | Steel untreated |
Serie 6711-6718
rolled, 20 mm, drilled and countersunk
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6711.00 | 2040 x 20 x 0,8 / D pin Ø 2mm / E=15/ F=11,2/ G=60/ ØS=2,8 | Steel untreated |
6712.30 | 2041 x 20 x 0,8 mm / D pin Ø 2 / E=15/ F=11,2/ G=60/ ØS=2,8 | Stainless steel untreated |
6716.70 | 2000 x 20 x 0,6 mm | Aluminium |
6717.00 | 2040 x 20 x 0,8 mm | Steel untreated |
6718.30 | 2040 x 20 x 0,8 mm | Stainless steel untreated |
Serie 6703-6730
rolled, 25 mm, undrilled
the hinge is prepared from already zinc plated steel. The edge cuts are, thus, not zinc plated
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6703.70 | 1000 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15 | Aluminium |
6706.30 | 1020 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15 | Stainless steel untreated |
6707.30 | 1980 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15 | Stainless steel seaworthy |
6719.30 | 1800 x 25 x 1 mm / D = pin Ø 2mm / E = 15 | Stainless steel untreated |
6720.04 | 1800 x 25 x 1,2 mm / D = pin Ø 3mm / E = 15 | Steel untreated |
6721.00 | 2040 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15/ F=14,2/ G=60/ ØS= 2,8 | Steel untreated |
6726.00 | 2040 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15 | Steel untreated |
6728.30 | 2040 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15 | Stainless steel untreated |
6729.30 | 2040 x 25 x 1 mm / D = pin Ø 2mm / E = 15 | Stainless steel untreated |
6730.30 | 2040 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15/ F=14,2/ G=60/ ØS= 3,6 | Stainless steel untreated |
Serie 6708-6747
rolled, 30 mm, undrilled/drilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6708.70 | 1980 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Aluminium |
6709.30 | 1020 x 30 x 0,8 mm / D = pin Ø 2mm / E= 15 | Stainless steel untreated |
6710.30 | 1020 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Stainless steel seaworthy |
6731.00 | 2040 x 30 x 0,8 mm / D = pin Ø 2mm / E= 15/ F = 16,8/ G=60/ Ø S= 3,9 | Steel untreated |
6733.00 | 2040 x 30 x 1 mm / D = pin Ø 2mm / E= 15/ F = 16,8/ G=60/ Ø S= 3,9 | Steel untreated |
6735.00 | 2040 x 30 x 0,8 mm / D = pin Ø 2mm / E= 15 | Steel untreated |
6736.30 | 2040 x 30 x 0,8 mm/ D = pin Ø 2mm / E= 15 | Stainless steel untreated |
6738.30 | 2040 x 30 x 1 mm / D = pin Ø 2mm / E= 15/ F = 16,8/ G=60/ Ø S= 3,9 | Stainless steel untreated |
6740.30 | 1800 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Stainless steel untreated |
6741.00 | 2040 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Steel untreated |
6742.30 | 2040 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Stainless steel untreated |
6743.30 | 2040 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Stainless steel seaworthy |
6745.30 | 2000 x 30 x 1,5 mm / D = pin Ø 4mm / E=30 | Stainless steel untreated |
6746.30 | 2000 x 30 x 1 mm / D = pin Ø 6mm / E= 25 | Stainless steel untreated |
6747.00 | 2000 x 30 x 1 mm / D = pin Ø 6mm / E= 30 | Steel untreated |
Serie 6749-6750
rolled, 32 mm, undrilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6749.30 | 1800 x 32 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
6750.00 | 1950 x 32 x 1,5 mm / D = pin Ø 3mm / E= 12,5 | Steel untreated |
6750.30 | 1950 x 32 x 1,5 mm / D = pin Ø 3mm / E= 12,5 | Stainless steel untreated |
Serie 6753-6755
rolled, 35 mm, undrilled/drilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6753.00 | 2040 x 35 x 1 mm / D = pin Ø 2mm / E= 15/ F=19,5/ G=60/ Ø S= 4,5 | Steel untreated |
6754.00 | 2040 x 35 x 1 mm / D = pin Ø 2mm / E= 15 | Steel untreated |
6755.70 | 1995 x 35 x 1mm / D = pin Ø 3mm / E= 30 | Aluminium |
Serie 6757-6799
rolled, 40 mm, undrilled
galvanised steel – the hinge is prepared from already zinc plated steel. The edge cuts are, thus, not zinc plated
Hinges can be delivered in other lengths, according to enquiry
Art.-No. | Dimensions | Material |
---|---|---|
6757.70 | 1000 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Aluminium |
6758.04 | 1800 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Steel galvanised |
6759.30 | 1800 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
6760.35 | 2040 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30/ F = 22,7/ G=60/ Ø S= 4,2 | Stainless steel untreated |
6763.00 | 2040 x 40 x 0,8 mm / D = pin Ø 2mm / E= 15 | Steel untreated |
6764.30 | 2040 x 40 x 0,8 mm / D = pin Ø 2mm / E= 15 | Stainless steel untreated |
6765.00 | 2040 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30/ F = 22,7/ G=60/ Ø S= 3,2 | Steel untreated |
6767.00 | 2040 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Steel untreated |
6769.70 | 2040 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Aluminium |
6770.30 | 1020 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
6771.30 | 2040 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
6773.00 | 2040 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15 | Steel untreated |
6774.30 | 2040 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15 | Stainless steel untreated |
6775.30 | 2040 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15 | Stainless steel seaworthy |
6776.70 | 2000 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15 | Aluminium |
6779.30 | 2040 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15/ F = 22,7/ G=60/ Ø S= 4 | Stainless steel untreated |
6756.00 | 1950 x 40 x 1,5 mm / D = pin Ø 3mm / E= 12,5 | Steel untreated |
6756.30 | 1950 x 40 x 1,5 mm / D = pin Ø 3mm / E= 12,5 | Stainless steel untreated |
6799.30 | 1020 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15 | Stainless steel seaworthy |
Serie 6777
rolled, 44 mm, undrilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6777.30 | 2040 x 44 x 2 mm / D = pin Ø 6mm / E= 30 | Stainless steel untreated |
Serie 6781-6823
rolled, 50 mm, undrilled/drilled
galvanised steel - das Hinge wird aus bereits vorgalvanisedem Steel
gefertigt and die Schnittkanten sind demnach nicht galvanised
Hinges can be delivered in other lengths, according to enquiry and other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6781.00 | 2040 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30 | Steel untreated |
6783.00 | 2040 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30/ F = 28/ G=60/ Ø S= 4 | Steel untreated |
6784.70 | 2000 x 50 x 1,2 mm / D = pin Ø 3mm / E= 20 | Aluminium |
6785.30 | 2040 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
6786.70 | 2000 x 50 x 1,5 mm / D = pin Ø 4mm / E= 15 | Aluminium |
6787.30 | 2000 x 50 x 2 mm / D = pin Ø 4mm / E= 25 | Stainless steel untreated |
6788.00 | 2040 x 50 x 2 mm / D = pin Ø 6mm / E= 30 | Steel untreated |
6790.04 | 1800 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30 | galvanised steel |
6791.30 | 1800 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
6792.30 | 2040 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30/ F = 28/ G=60/ Ø S= 4 | Stainless steel untreated |
6793.30 | 1800 x 50 x 1,5 mm / D = pin Ø 4mm / E= 15 | Stainless steel untreated |
6794.30 | 2040 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel seaworthy |
6798.00 | 1950 x 50 x 1,5 mm / D = pin Ø 3mm / E= 12,5 | Steel untreated |
6798.30 | 1950 x 50 x 1,5 mm / D = pin Ø 3mm / E= 12,5 | Stainless steel untreated |
6809.70 | 1000 x 50 x 1,5 mm / D = pin Ø 4mm / E= 15 | Aluminium |
6822.30 | 1020 x 50 x 1,2 mm / D = pin Ø 3mm / E= 30 | Stainless steel untreated |
6823.30 | 1020 x 50 x 1,2 mm / D = pin Ø 3mm / E= 20 | Stainless steel seaworthy |
Serie 6795-6797
rolled, 57 mm, undrilled
galvanised steel - das Hinge wird aus bereits vorgalvanisedem Steel
gefertigt and die Schnittkanten sind demnach nicht galvanised
Hinges can be delivered in other lengths, according to enquiry and other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6795.04 | 2160 x 57 x 1,5 mm / D = pin Ø 4mm / E= 15 | galvanised steel |
6796.30 | 2160 x 57 x 1,5 mm / D = pin Ø 4mm / E= 15 | Stainless steel untreated |
6797.04 | 2160 x 57 x 2 mm / D = pin Ø 6mm / E= 30 | galvanised steel |
Serie 6704-6807
rolled, 60 mm, undrilled/drilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6704.30 | 1020 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel untreated |
6705.30 | 1020 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel seaworthy |
6801.00 | 2000 x 60 x 1,5 mm / D = pin Ø 8mm / E=40 | Steel untreated |
6802.00 | 2000 x 60 x 1,5 mm / D = pin Ø 5mm / E=40 | Steel untreated |
6803.00 | 2040 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Steel untreated |
6804.30 | 2040 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel untreated |
6805.30 | 2040 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel seaworthy |
6806.70 | 2000 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Aluminium |
6807.30 | 2040 x 60 x 2 mm / D = pin Ø 6mm / E=30/ F=35/ G=60/ Ø S= 4 | Stainless steel untreated |
Serie 6808
rolled, 63 mm, undrilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6808.30 | 1800 x 63 x 1,5 mm / D = pin Ø 4mm / E=15 | Stainless steel untreated |
Serie 6810-6812
rolled, 70 mm, undrilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6810.30 | 1800 x 70 x 1,5 mm / D = pin Ø 4mm / E=15 | Stainless steel untreated |
6811.00 | 2040 x 70 x 2 mm / D = pin Ø 6mm / E=30 | Steel untreated |
6812.30 | 2040 x 70 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel untreated |
Serie 6817-6818
rolled, 76 mm, undrilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6817.04 | 2160 x 76 x 1,5 mm / D = pin Ø 4mm / E=15 | galvanised steel |
6818.30 | 2160 x 76 x 1,5 mm / D = pin Ø 4mm / E=15 | Stainless steel untreated |
Serie 6813-6829
rolled, 80 mm, undrilled/drilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6813.00 | 2000 x 80 x 2 mm / D = pin Ø 7,6mm / E=40 | Steel untreated |
6814.30 | 1000 x 80 x 3 mm / D = pin Ø 6mm / E=40 | Stainless steel untreated |
6815.00 | 2000 x 80 x 3 mm / D = pin Ø 6mm / E=40 | Steel untreated |
6816.30 | 2000 x 80 x 3 mm / D = pin Ø 6mm / E=40 | Stainless steel untreated |
6819.00 | 1950 x 80 x 1,5 mm / D = pin Ø 3mm / E=12,5 | Steel untreated |
6819.30 | 1950 x 80 x 1,5 mm / D = pin Ø 3mm / E=12,5 | Stainless steel untreated |
6820.70 | 2000 x 80 x 3 mm / D = pin Ø 6mm / E=40 | Aluminium |
6828.30 | 2000 x 80 x 3 mm / D = pin Ø 6mm / E=40/ F=35/ G=60/ SØ = 5,2 | Stainless steel untreated |
6829.30 | 1980 x 80 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel seaworthy |
Serie 6830-6838
rolled, 100 mm, undrilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6830.00 | 2000 x 100 x 3 mm / D = pin Ø 10mm / E=40 | Steel untreated |
6830.30 | 2000 x 100 x 3 mm / D = pin Ø 10mm / E=40 | Stainless steel untreated |
6836.00 | 1000 x 100 x 4 mm / D = pin Ø 10mm / E=40 | Steel untreated |
6836.70 | 1000 x 100 x 4 mm / D = pin Ø 10mm / E=40 | Aluminium |
6838.30 | 2000 x 100 x 3 mm / D = pin Ø 6mm / E=40 | Stainless steel untreated |
Serie 6831-6840
rolled, 120 mm, undrilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6831.30 | 2100 x 120 x 2 mm / D = pin Ø 6mm / E=30 | Stainless steel untreated |
6840.00 | 1000 x 120 x 5 mm / D = pin Ø 10mm / E=40 | Steel untreated |
Serie 6833
rolled, 127 mm, undrilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6833.04 | 2160 x 127 x 3 mm / D = pin Ø 6mm / E=40 | Steel galvanisiert |
Serie 6837-6839
1 angulated leaf, undrilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6837.04 | 2000 x 44 x 1,5 mm / D = pin Ø 3mm | Steel galvanised |
6837.30 | 2000 x 44 x 1,5 mm / D = pin Ø 3mm | Stainless steel untreated |
6839.30 | 1600 x 44 x 1,5 mm / D = pin Ø 3mm | Stainless steel untreated |
Serie 6844-6846
2 angulated leafs, undrilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6844.04 | 2000 x 46 x 1,5 mm / D = pin Ø 3mm / E=25 | Steel galvanised |
6846.30 | 2000 x 46 x 1,5 mm / D = pin Ø 3mm / E=25 | Stainless steel untreated |
Serie 6848
rolled, undrilled
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6848.70 | 2000 x 50 x 3 mm / D = pin Ø 5,2mm / E=35,5 | Aluminium 6060 T5 |
Serie 6850-6852
with double articulation, undrilled
Opening angle of 180° without sealing (ordered separately)
Art.-No. | Dimensions | Material |
---|---|---|
6850.70 | 2000 x 65 mm / D pin Ø = 5 | Aluminium 6060 T5 |
6851.70 | 2500 x 15 / D pin Ø = 5 | Aluminium 6060 T5 |
6852.70 | 3000 x 115 / D pin Ø = 5 | Aluminium 6060 T5 |
Serie 6853-6855
for hinge with double articulation, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6853.D | 2000 mm | Rubber black |
6854.D | 2500 mm | Rubber black |
6855.D | 3000 mm | Rubber black |
Serie 6832-6835
1 angulated leaf, drilled and countersunk
Hinges can be delivered in other lengths, according to enquiry
Other perforations/perforation distances are possible, according to enquiry.
Art.-No. | Dimensions | Material |
---|---|---|
6832.04 | 1000 x 31,5 x 1mm/ D= pin 2mm | galvanised |
6834.04 | 1000 x 31,5 x 1mm/ D= pin 2mm | galvanised |
6835.04 | 1000 x 31,5 x 1mm/ D= pin 2mm | Stainless steel |
Serie 6521-6524
temperature: - 40° C up to + 80°C
Fixation with rivets, pins, nails and bars
Chemical resistance: oil, seawater, solvents and most chemical substances
Art.-No. | Dimensions | Material |
---|---|---|
6521.01 | 15250 x 28,6 x 3,2mm | Polypropylene white |
6521.02 | 15250 x 28,6 x 3,2mm | Polypropylene grey |
6521.03 | 15250 x 28,6 x 3,2mm | Polypropylene black |
6522.01 | 15250 x 38,1 x 3,2mm | Polypropylene white |
6522.02 | 15250 x 38,1 x 3,2mm | Polypropylene grey |
6522.03 | 15250 x 38,1 x 3,2mm | Polypropylene black |
6523.01 | 15250 x 50,8 x 3,2mm | Polypropylene white |
6523.02 | 15250 x 50,8 x 3,2mm | Polypropylene grey |
6523.03 | 15250 x 50,8 x 3,2mm | Polypropylene black |
6524.01 | 15250 x 76,2 x 3,2mm | Polypropylene white |
6524.02 | 15250 x 76,2 x 3,2mm | Polypropylene grey |
6524.03 | 15250 x 76,2 x 3,2mm | Polypropylene black |
Serie MS6841-MS6849
comparable Military Standard (MS)
Art.-No. | Dimensions | Material |
---|---|---|
MS-6841.71 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6841.72 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6841.73 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6841.74 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6841.75 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6842.70 | 1830 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6844.71 | 915 x 38,1 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6846.70 | 1830 x 38,1 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6845.70 | 1830 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6847.71 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6847.72 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6847.73 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6847.74 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6847.75 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6843.71 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6843.72 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6843.73 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6843.74 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6843.75 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
MS-6849.70 | 1830 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |

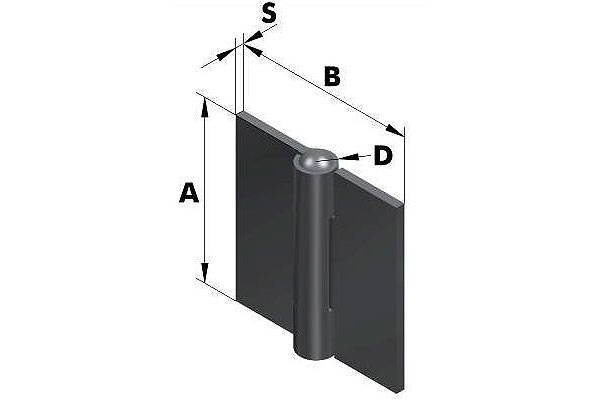

Serie 6001
with extractable pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6001.01.00 | 40 x 40 x 2 mm / pin Ø = 4/ D= 8 | Steel untreated |
6001.02.00 | 50 x 50 x 2 mm / pin Ø = 6/ D= 10 | Steel untreated |
6001.03.00 | 60 x 60 x 2 mm / pin Ø = 6/ D= 10 | Steel untreated |
6001.04.00 | 70 x 70 x 2 mm / pin Ø = 6/ D= 10 | Steel untreated |
Serie 6002
with riveted pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6002.01.00 | 40 x 40 x 2 mm / pin Ø = 4 / D= 8/ E= 4 | Steel untreated |
6002.02.00 | 50 x 50 x 2 mm / pin Ø = 6 / D= 10/ E= 5 | Steel untreated |
6002.03.00 | 60 x 60 x 2 mm / pin Ø = 6 / D= 10/ E= 5 | Steel untreated |
6002.04.00 | 70 x 70 x 2 mm / pin Ø = 6 / D= 10/ E= 5 | Steel untreated |
6002.05.00 | 80 x 80 x 2,5 mm / pin Ø = 6 / D= 11/ E= 5,5 | Steel untreated |
6002.06.00 | 100 x 100 x 2,5 mm / pin Ø = 6 / D= 11/ E= 5,5 | Steel untreated |
6002.01.30 | 40 x 40 x 2 mm / pin Ø = 4 / D= 8/ E= 4 | Stainless steel untreated |
6002.02.30 | 50 x 50 x 2 mm / pin Ø = 6 / D= 10/ E= 5 | Stainless steel untreated |
6002.03.30 | 60 x 60 x 2 mm / pin Ø = 6 / D= 10/ E= 5 | Stainless steel untreated |
6002.04.30 | 70 x 70 x 2 mm / pin Ø = 6 / D= 10/ E= 5 | Stainless steel untreated |
6002.05.30 | 80 x 80 x 2,5 mm / pin Ø = 6 / D= 11/ E= 5,5 | Stainless steel untreated |
6002.06.30 | 100 x 100 x 2,5 mm / pin Ø = 6 / D= 11/ E= 5,5 | Stainless steel untreated |
6002.01.35 | 40 x 40 x 2 mm / pin Ø = 4 / D= 8/ E= 4 | Stainless steel untreated |
6002.02.35 | 50 x 50 x 2 mm / pin Ø = 6 / D= 10/ E= 5 | Stainless steel untreated |
6002.03.35 | 60 x 60 x 2 mm / pin Ø = 6 / D= 10/ E= 5 | Stainless steel untreated |

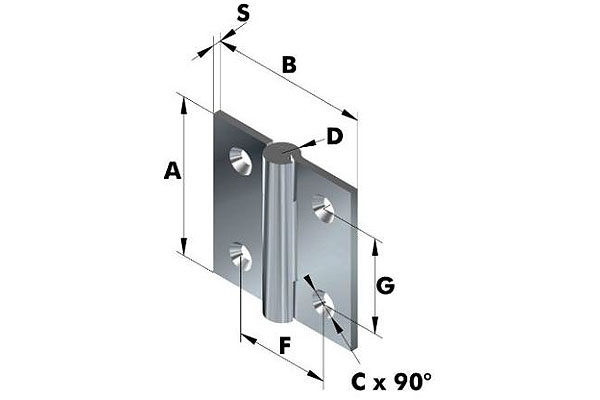

Serie 6002
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|

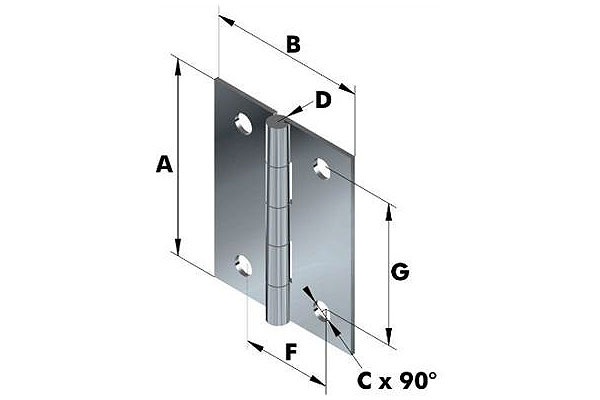

6002.07.30 | 40 x 40 x 2 mm / C Ø= 4/ D= 8/ F=24/ G= 24/ pin Ø= 4 | Stainless steel untreated |
6002.08.30 | 50 x 50 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 4 | Stainless steel untreated |
6002.09.30 | 60 x 60 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 4 | Stainless steel untreated |
6002.07.35 | 40 x 40 x 2 mm / C Ø= 4/ D= 8/ F=24/ G= 24/ pin Ø= 4 | Stainless steel untreated |
6002.08.35 | 50 x 50 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 4 | Stainless steel untreated |
6002.09.35 | 60 x 60 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 4 | Stainless steel untreated |
Serie 6002
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6002.10.30 | 70 x 70 x 2 mm / C Ø= 4,5/ D= 10/ F=54/ f= 34/ G= 50/ pin Ø= 6 | Stainless steel untreated |

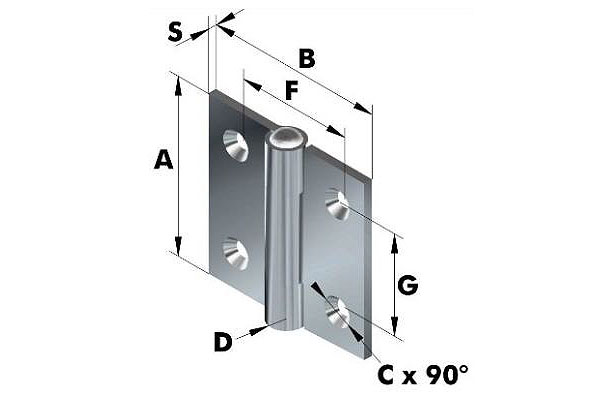

Serie 6003
with extractable pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6003.01.04 | 40 x 40 x 2 mm / C Ø= 4/ D= 8/ F=26/ G= 24/ pin Ø= 4 | Steel galvanised |
6003.02.04 | 50 x 50 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 6 | Steel galvanised |
6003.03.04 | 60 x 60 x 2 mm / C Ø= 4,5/ D= 10/ F=44/ G= 40/ pin Ø= 6 | Steel galvanised |
6003.01.30 | 40 x 40 x 2 mm / C Ø= 4/ D= 8/ F=26/ G= 24/ pin Ø= 4 | Stainless steel untreated |
6003.02.30 | 50 x 50 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 6 | Stainless steel untreated |
6003.03.30 | 60 x 60 x 2 mm / C Ø= 4,5/ D= 10/ F=44/ G= 40/ pin Ø= 6 | Stainless steel untreated |

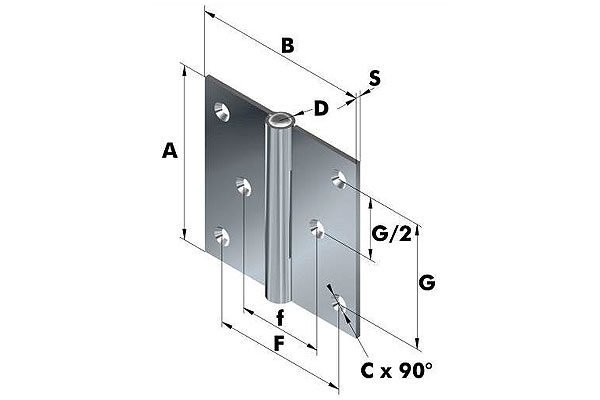

Serie 6004
with extractable pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6004.01.04 | 70 x 70 x 2 mm / C Ø= 4/ D= 10/ F=54/ f= 34/ G= 50/ pin Ø= 6 | Steel galvanised |
6004.01.30 | 70 x 70 x 2 mm / C Ø= 4/ D= 10/ F=54/ f= 34/ G= 50/ pin Ø= 6 | Stainless steel untreated |
6004.02.04 | 80 x 80 x 2,5 mm / C Ø= 4,5/ D= 11/ F=64/ f= 39/ G= 60/ pin Ø= 6 | Steel galvanised |
6004.02.30 | 80 x 80 x 2,5 mm / C Ø= 4,5/ D= 11/ F=64/ f= 39/ G= 60/ pin Ø= 6 | Stainless steel untreated |
Serie 6005
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6005.01.30 | 40 x 40 x 2 mm / C Ø= 4/ D= 8/ F=24/ G= 24/ pin Ø= 4 | Stainless steel untreated |
6005.02.30 | 50 x 50 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 6 | Stainless steel untreated |
6005.03.30 | 60 x 60 x 2 mm / C Ø= 4,5/ D= 10/ F=44/ G= 40/ pin Ø= 6 | Stainless steel untreated |
6005.01.35 | 40 x 40 x 2 mm / C Ø= 4/ D= 8/ F=24/ G= 24/ pin Ø= 4 | 1.4404 Stainless steel untreated |
6005.02.35 | 50 x 50 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 6 | 1.4404 Stainless steel untreated |
6005.03.35 | 60 x 60 x 2 mm / C Ø= 4,5/ D= 10/ F=44/ G= 40/ pin Ø= 6 | 1.4404 Stainless steel untreated |

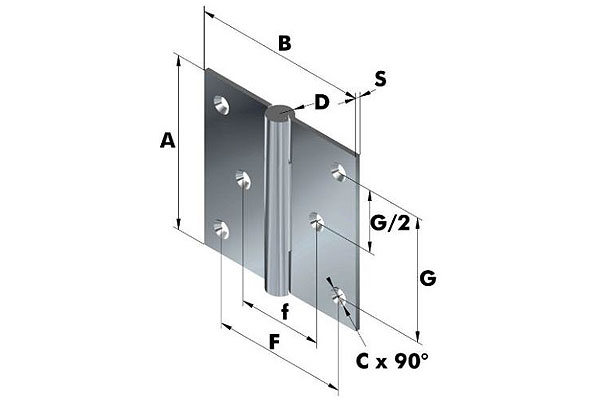

Serie 6006
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6006.01.30 | 70 x 70 x 2 mm / C Ø= 4,5/ D= 10/ F=54/ f= 34/ G= 60/ pin Ø= 6 | Stainless steel untreated |
6006.02.30 | 80 x 80 x 2,5 mm / C Ø= 4,5/ D= 11/ F=64/ f= 39/ G= 60/ pin Ø= 6 | Stainless steel untreated |
6006.04.04 | 100 x 84 x 3 mm / C Ø= 5,5/ F=55/ f= 42/ G= 79/ pin Ø= 6 | Steel galvanised |

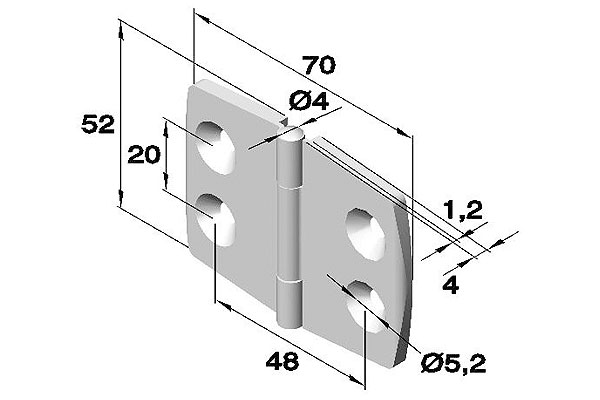

Serie 6007
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6007.01-gelocht.04 | 50 x 40 x 1,2 mm / C Ø= 5/ D= 5,2/ F=23/ G= 36/ pin Ø= 3 | Steel galvanised |
6007.02-gesenkt.04 | 50 x 40 x 1,2 mm / C Ø= 5/ D= 5,2/ F=23/ G= 36/ pin Ø= 2,7 | Steel galvanised |
6007.01-gelocht.30 | 50 x 40 x 1,2 mm / C Ø= 5/ D= 5,2/ F=23/ G= 36/ pin Ø= 3 | Stainless steel untreated |
6007.02-gesenkt.30 | 50 x 40 x 1,2 mm / C Ø= 5/ D= 5,2/ F=23/ G= 36/ pin Ø= 2,7 | Stainless steel untreated |
6007.03-gesenkt.30 | 60 x 35 x 1 mm / C Ø= 4/ D= 4/ F=19,5/ G= 40/ pin Ø= 2 | Stainless steel untreated |
6007.04-gesenkt.30 | 60 x 35 x 1 mm / C Ø= 4/ D= 4/ F=19,5/ G= 40/ pin Ø= 2 | Stainless steel untreated |

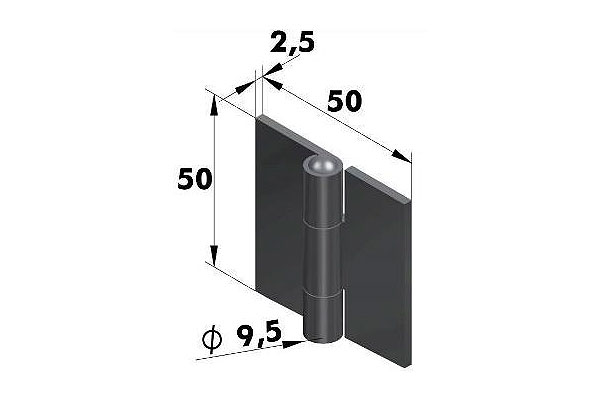

Serie 6008
with riveted pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6008.01.00 | 50 x 50 x 2,5 mm | Steel untreated |

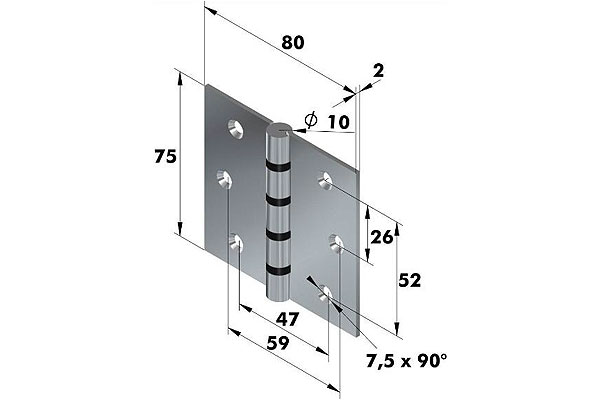

Serie 6009
with fixed pin and nylon intermediate ring, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6009.01.30 | 80 x 75 x 2 mm | Stainless steel untreated |
Serie 6010
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6010.01.00 | 30 x 19 x 0,8 mm / C Ø= 3,3/ D= 4/ F=11/ G= 19/ pin Ø= 2,4 | Steel untreated |
6010.02.00 | 35 x 22 x 0,8 mm / C Ø= 3,5/ D= 4/ F=14/ G= 22/ pin Ø= 2,4 | Steel untreated |
6010.03.00 | 40 x 25 x 0,9 mm / C Ø= 3,2/ D= 4,5/ F=15/ G= 27/ pin Ø= 2,7 | Steel untreated |
6010.04.30 | 50 x 30 x 1 mm / C Ø= 3,5/ D= 5/ F=17/ G= 35/ pin Ø= 3 | Stainless steel untreated |
6010.05.00 | 50 x 29 x 1 mm / C Ø= 3,9/ D= 4,4/ F=15,4/ G= 35,2/ pin Ø= 2,4 | Steell untreated |
Serie 6010
with fixed pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6010.06.00 | 30 x 19 x 0,8 mm / D= 4/ pin Ø= 2,4 | Steel untreated |
6010.07.00 | 35 x 22 x 0,8 mm / D= 4/ pin Ø= 2,4 | Steel untreated |
6010.08.00 | 40 x 25 x 0,9 mm / D= 4,5/ pin Ø= 2,7 | Steel untreated |
6010.10.00 | 50,3 x 29,8 x 1 mm / D= 4,4/ pin Ø= 2,4 | Steel untreated |
Serie 6011
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6011.01.00 | 60 x 35 x 1 mm / C Ø= 3,9/ D= 5,5/ F=19/ G= 44/ pin Ø= 3,5 | Steel untreated |
6011.02.00 | 70 x 41,5 x 1 mm / C Ø= 3/ D= 5,5/ F=24,1/ G= 52/ pin Ø= 3,5 | Steel untreated |
6011.03.00 | 80,5 x 45,4 x 1 mm / C Ø= 4/ D= 5,5/ F=26,2/ G= 59,3/ pin Ø= 3,5 | Steel untreated |
6011.04.00 | 100 x 50 x 1,5 mm / C Ø= 4,5/ D= 8/ F=30/ G= 77/ pin Ø= 5 | Steel untreated |
Serie 6011
with fixed pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6011.05.00 | 60 x 35 x 1 mm / pin Ø = 3/ D= 5 | Steel untreated |
6011.06.00 | 70 x 41,5 x 1 mm / pin Ø = 4/ D= 6 | Steel untreated |
6011.07.00 | 80 x 45 x 1,2 mm / pin Ø = 4/ D= 6,5 | Steel untreated |
6011.08.00 | 100 x 50 x 1,5 mm / pin Ø = 5/ D= 8 | Steel untreated |

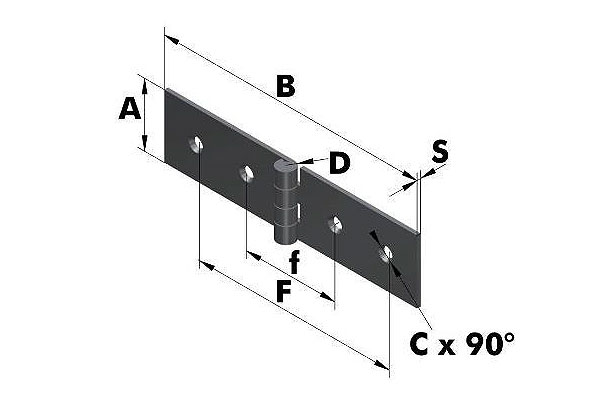

Serie 6013
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6013.01.00 | 20 x 77 x 1,2 mm / C Ø= 3/ D= 5,6/ F=60/ f= 28/ pin Ø= 3 | Steel untreated |
6013.02.00 | 22 x 120 x 1,5 mm / C Ø= 4/ D= 8/ F=93/ f= 33/ pin Ø= 4,9 | Steel untreated |

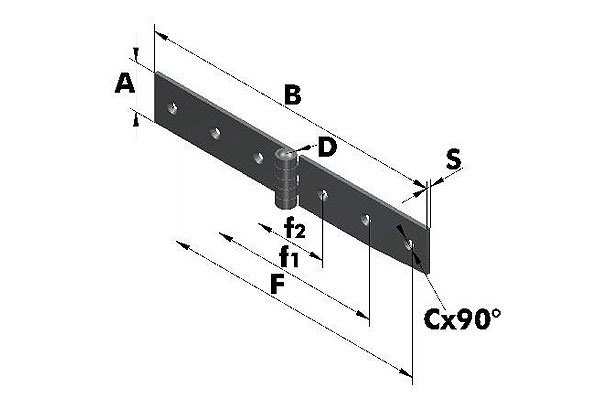

Serie 6015
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6015.01.00 | 30 x 190 x 2,5 mm / C Ø= 4/ D= 11/ F=165/ f1= 105/ f2= 45/ pin Ø= 6 | Steel untreated |
6015.02.00 | 30 x 220 x 2,5 mm / C Ø= 4/ D= 11/ F=193/ f1= 118/ f2= 43/ pin Ø= 6 | Steel untreated |

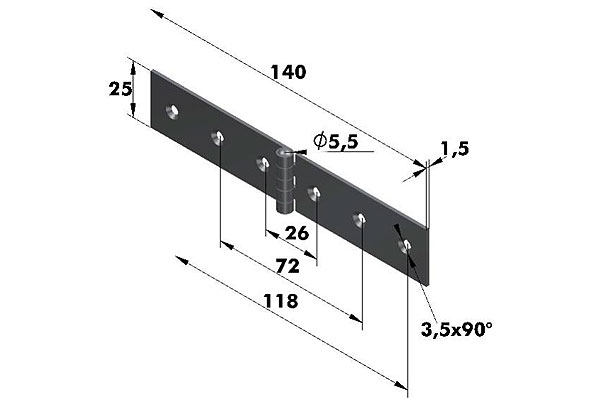

Serie 6016
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6016.01.00 | 140 x 25 x 1,5 mm/ C Ø= 3,5/ D= 5,5/ F=118/ f1= 72/ f2= 26 | Steel untreated |

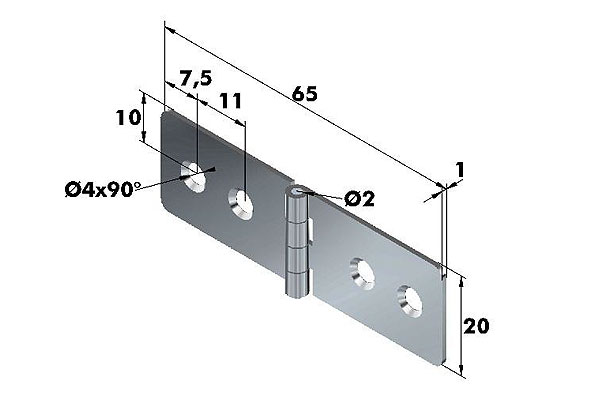

Serie 6017
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6017.01.30 | 65 x 20 x 1 mm | Stainless steel untreated |
Serie 6018
with fixed stainless steel pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6018.03.20 | 30 x 20 x 2 mm / C Ø= 2,5/ D= 5/ F=12,5/ G=17/ pin Ø= 3 | Brass untreated |
6018.04.20 | 30 x 30 x 2 mm / C Ø= 2,5/ D= 5/ F=19/ G=17/ pin Ø= 3 | Brass untreated |

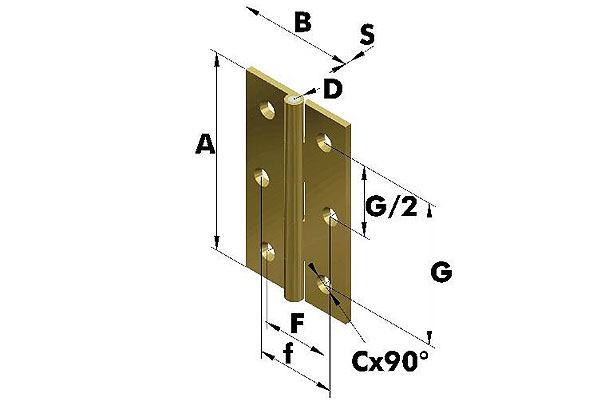

Serie 6019
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6019.03.20 | 40 x 35 x 2 mm / C Ø= 3/ D= 5/ F=21/ G= 28/ pin Ø= 3 | Brass untreated |
6019.04.20 | 40 x 40 x 2 mm / C Ø= 3/ D= 5/ F=23/ G= 28/ pin Ø= 3 | Brass untreated |
6019.05.20 | 50 x 30 x 2 mm / C Ø= 3/ D= 5/ F=17,5/ G= 35/ pin Ø= 3 | Brass untreated |
6019.06.20 | 60 x 35 x 2 mm / C Ø= 3,5/ D= 5/ F=20/ f=24/ G= 43/ pin Ø= 3 | Brass untreated |
6019.07.20 | 60 x 40 x 2 mm / C Ø= 3,5/ D= 4,5/ F=21,5/ f=26/ G= 43/ pin Ø= 3 | Brass untreated |

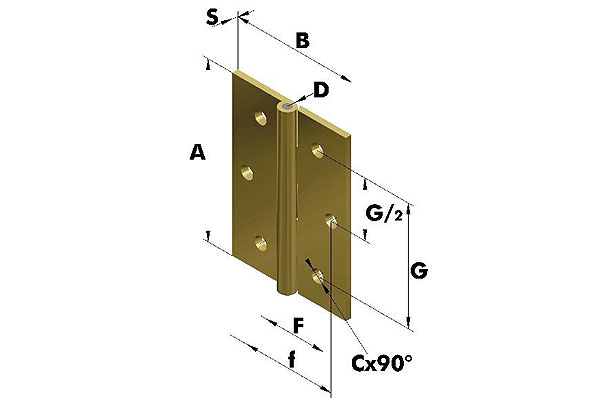

Serie 6020
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6020.01.20 | 70 x 40 x 2 mm / C Ø= 3,5/ D= 5,5/ F=23/ f=27/ G=48/ pin Ø= 3 | Brass untreated |
6020.02.20 | 70 x 50 x 2,5 mm / C Ø= 3,5/ D= 6,5/ F=25/ f=37/ G=48/ pin Ø= 3,5 | Brass untreated |
6020.03.20 | 80 x 45 x 2,2 mm / C Ø= 3,5/ D= 5,5/ F=22,5/ f=30,5/ G=58/ pin Ø= 3 | Brass untreated |
6020.04.20 | 80 x 60 x 3 mm / C Ø= 4/ D= 7/ F=28/ f=45/ G=57/ pin Ø= 4 | Brass untreated |

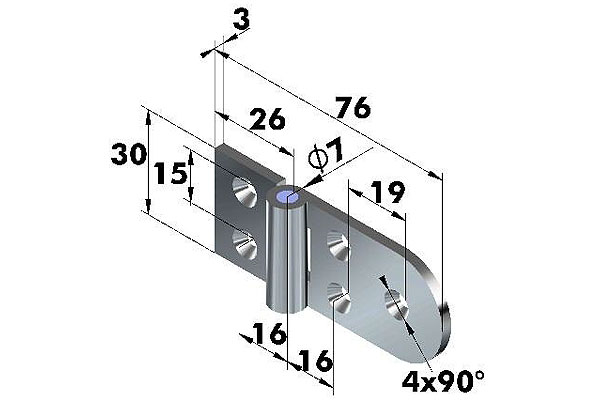

Serie 6025
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6025.01.23 | 30 x 76 x 3 mm | Brass chrome-plated |

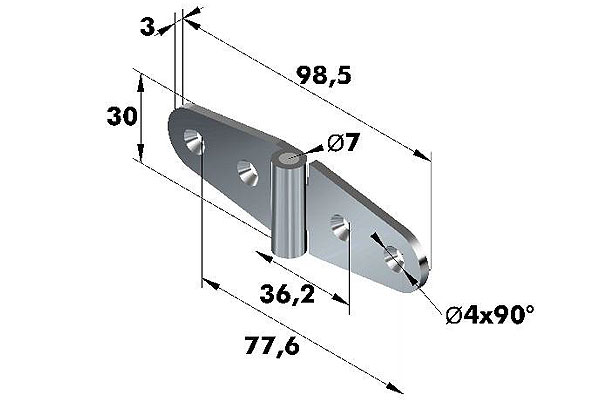

Serie 6027
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6027.01.23 | 30 x 98,5 x 3 mm | Brass chrome-plated |

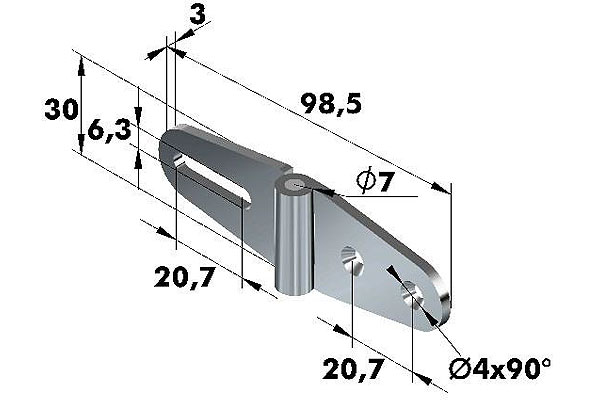

Serie 6028
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6028.01.23 | 30 x 98,5 x 3 mm | Brass chrome-plated |

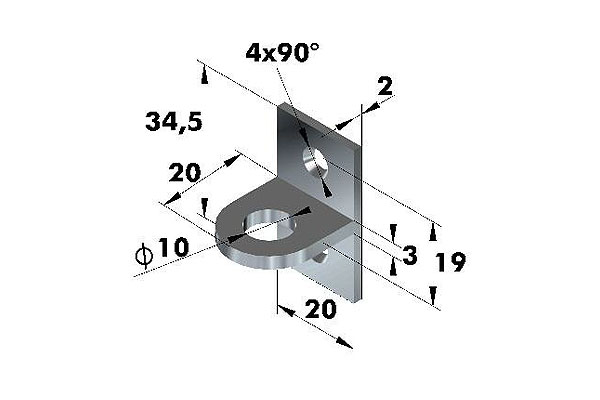

Serie 6029
drilled and countersunk
Suitable for Art.No.: 6026/6028
Art.-No. | Dimensions | Material |
---|---|---|
6029.01.23 | 20 x 34 x 2 mm | Brass chrome-plated |
Serie 6044
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6044.01.04 | 65 x 70 x 2 mm | Steel galvanised |

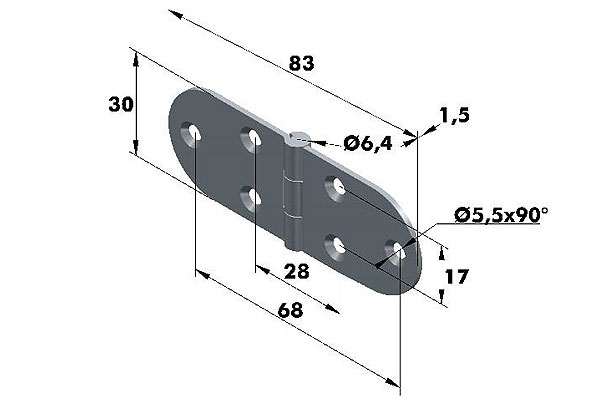

Serie 6046
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6046.01.01 | 30 x 83 x 1,5 mm | Steel nickel-plated |

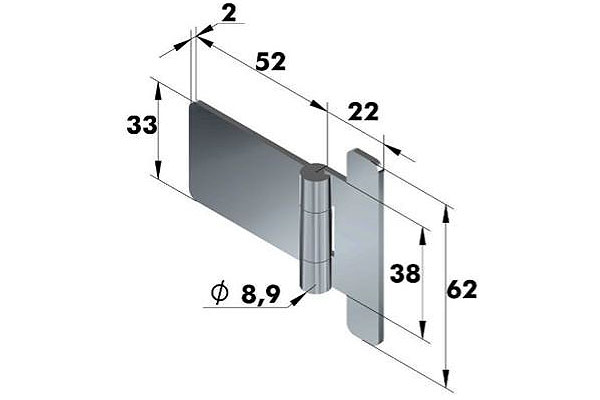

Serie 6047
with fixed pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6047.01.00 | 62 x 74 x 2 mm | Steel untreated |
6047.01.30 | 62 x 74 x 2 mm | Stainless steel untreated |

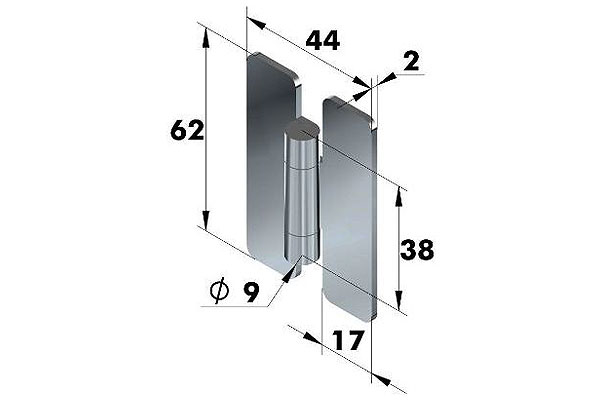

Serie 6048
with fixed pin, undrilled
Stainless steel (1.4301) on request
Art.-No. | Dimensions | Material |
---|---|---|
6048.01.00 | 62 x 44 x 2 mm | Steel untreated |
6048.01.30 | 62 x 44 x 2 mm | Stainless steel untreated |

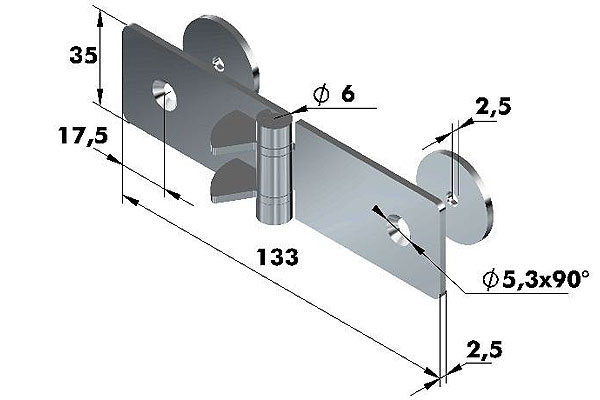

Serie 6052
with fixed pin, drilled and countersunk
Stop at 60°. Suitable for the installation of glass doors.
Art.-No. | Dimensions | Material |
---|---|---|
6052.01.33 | 35 x 133 x 2,5 mm | Stainless steel polished |

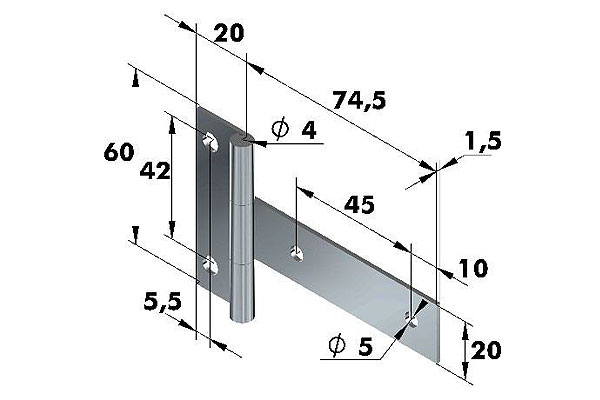

Serie 6106
with extractable pin, drilled
Art.-No. | Dimensions | Material |
---|---|---|
6106.30 | 60 x 94,5 x 1,5 mm | Stainless steel polished |

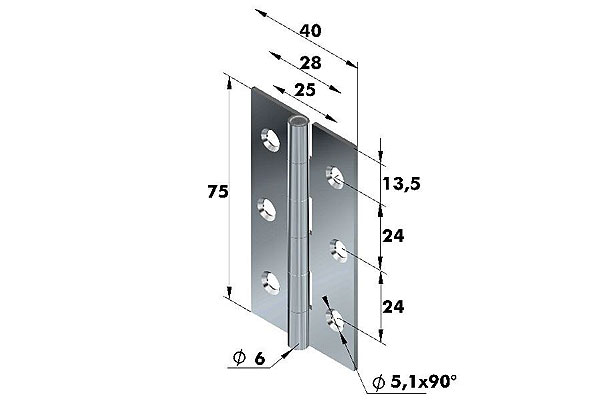

Serie 6109
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6109.30 | 75 x 40 x 1,5 mm | Stainless steel untreated |

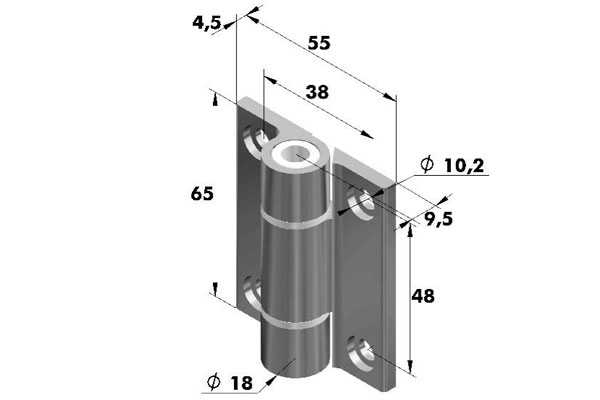

Serie 6540
drilled and countersunk
.01 without stopper
.02 with stopper
Art.-No. | Dimensions | Material |
---|---|---|
6540.01.70 | 65 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6540.01.77 | 65 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6540.02.70 | 65 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6540.02.77 | 65 x 55 x 4,5 mm | Aluminium 6060 T5 black |

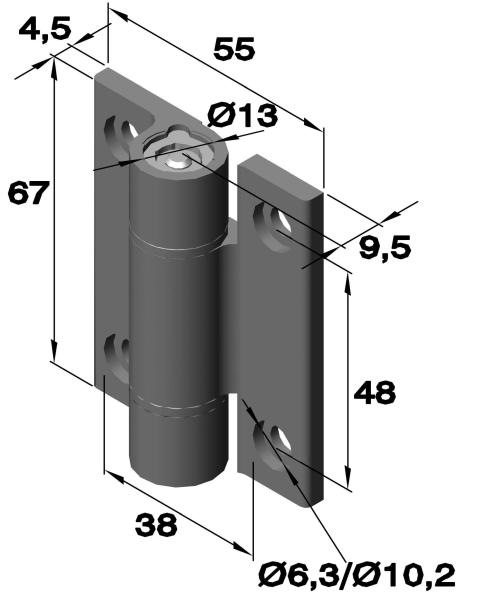

Serie 6876
drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6876.08.71 | 100 x 82,5 x 5,5 mm | Aluminium 6060 T5 silver |
6876.09.77 | 100 x 82,5 x 5,5 mm | Aluminium 6060 T5 black |
Serie 99.7651
with fixed pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
99.7651.30 | 76,5 x 51 x 3 mm | Stainless steel untreated |
Serie 196.5.F37.001.001
with fixed pin, drilled
Art.-No. | Dimensions | Material |
---|---|---|
196.5.F37.001.001.04 | 145 x 70 x 2 mm | Steel galvanised |
Serie 196.5.F37.001.002
with fixed pin, drilled
Art.-No. | Dimensions | Material |
---|---|---|
196.5.F37.001.002.04 | 145 x 88 x 2 mm | Steel galvanised |
Serie 6058
with riveted pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6058.03.08 | Ø17,5 x 144 mm | Steel galvanised yellow chromatised |
Serie 6058
with fixed pin, drilled
Stop hinge with locking at 105°
with fixed pin (Ø5)
Art.-No. | Dimensions | Material |
---|---|---|
6058.04.30 | 54 x 65 | Stainless steel untreated |
Serie 6176
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6176.01.33 | 52 x 70 x 1,2 mm | Stainless steel 1.4404 polished |

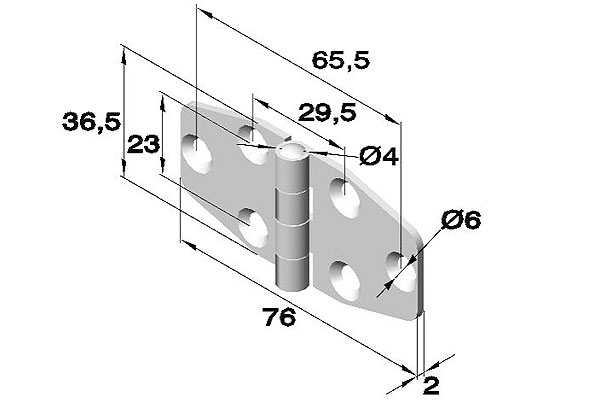

Serie 6177
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6177.01.33 | 36,5 x 65,5 x 2 mm | Stainless steel 1.4404 polished |

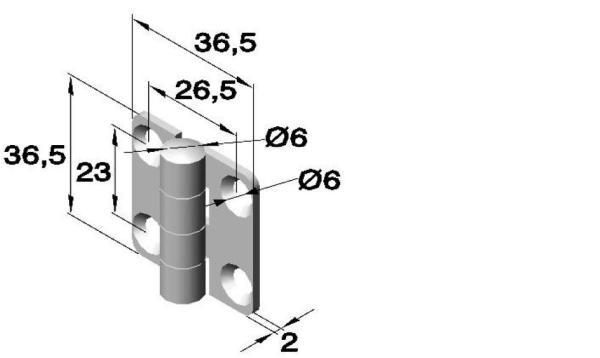

Serie 6178
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6178.01.33 | 36,5 x 36,5 x 2 mm | Stainless steel 1.4404 polished |
Serie 6179
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6179.01.33 | 36,5 x 56,5 x 2 mm | Stainless steel 1.4404 polished |

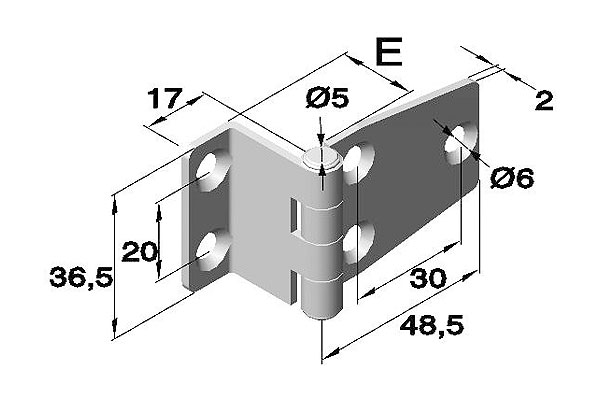

Serie 6180
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6180.01.33 | 36,5 x 58,5 x 2 mm /E= 10 | Stainless steel 1.4404 polished |
6180.02.33 | 36,5 x 64,4 x 2 mm/ 15,9 | Stainless steel 1.4404 polished |
6180.03.33 | 36,5 x 67,7 x 2 mm/ 19,2 | Stainless steel 1.4404 polished |

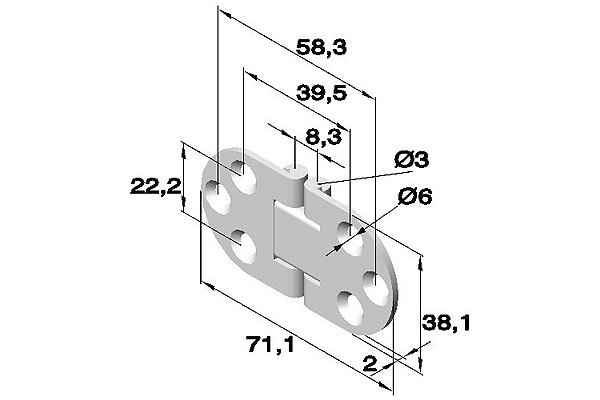

Serie 6181
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6181.33 | 38,1 x 71,1 x 2 mm | Stainless steel 1.4404 polished |

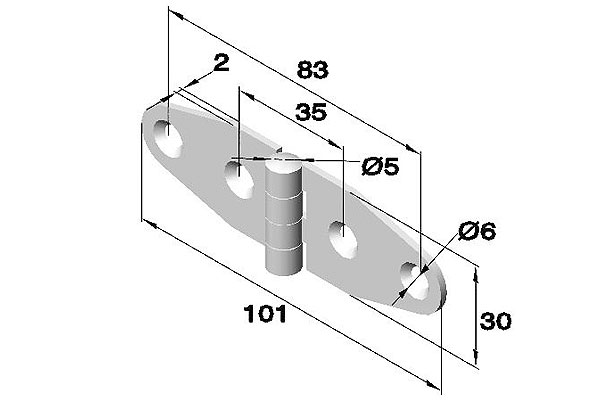

Serie 6182
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6182.33 | 30 x 101 x 2 mm | Stainless steel 1.4404 polished |

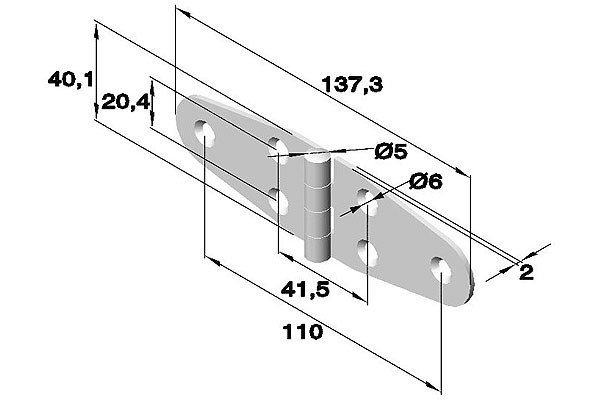

Serie 6183
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6183.01.33 | 40,1 x 137,3 x 2 mm | Stainless steel 1.4404 polished |

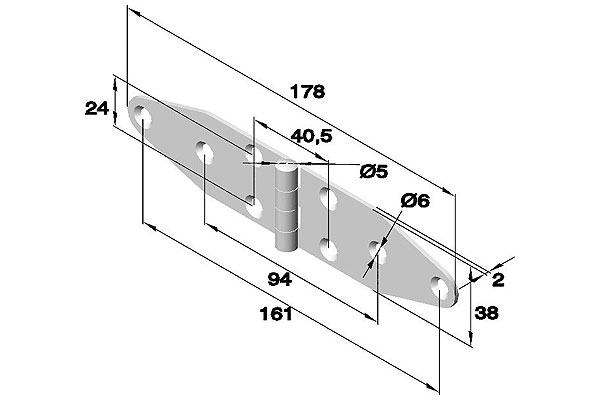

Serie 6184
with riveted pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6184.01.33 | 38 x 178 x 2 mm | Stainless steel 1.4404 polished |
Serie 6215
drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6215.01.71 | 38 x 31,75 x 1,3 mm /D= 5/ E=2,29/ F=20/ G= 22/ pin Ø= 4,3 | Aluminium 6082 T5 anodised |
6215.02.71 | 50 x 44,45 x 1,3 mm /D= 5/ E=2,29/ F=30/ G= 34/ pin Ø= 4,3 | Aluminium 6082 T5 anodised |
6215.03.71 | 63,5 x 63,5 x 1,3 mm /D= 2,29/ E=2,29/ F=40/ G= 40/ pin Ø= 6 | Aluminium 6082 T5 anodised |
Serie 6216
drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6216.01.77 | 30 x 35 x 3,3 mm / pin Ø= 8 | Aluminium 6060 T5 black |
6216.01.71 | 30 x 35 x 3,3 mm / pin Ø= 8 | Aluminium 6060 T5 silver |
Serie 150.MH-30
Double pivot hinge, drilled and countersunk
Opening angle 180 °
Art.-No. | Dimensions | Material |
---|---|---|
150.MH-30M.22 | 30 x 70 x 2 mm | Brass polished |
150.MH-30WB.25 | 31 x 70 x 2 mm | Brass white-bronze |
150.MH-30CR.23 | 32 x 70 x 2 mm | Brass chrome-plated |
Serie 150.MH-40
Double pivot hinge, drilled and countersunk
Opening angle 180 °
Art.-No. | Dimensions | Material |
---|---|---|
150.MH-40M.22 | 40 x 70 x 2 mm | Brass polished |
150.MH-40WB.25 | 41 x 70 x 2 mm | Brass white-bronze |
150.MH-40CR.23 | 42 x 70 x 2 mm | Brass chrome-plated |
Serie 6216
drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6216.02.71 | 60 x 35 x 3,3 mm /pin Ø= 8 | Aluminium 6060 T5 anodised / colourless |
6216.02.77 | 60 x 35 x 3,3 mm /pin Ø= 8 | Aluminium 6060 T5 anodised / black |
Serie 6216
drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6216.03.71 | 90 x 35 x 3,3 mm /pin Ø= 8 | Aluminium 6060 T5 anodised / colourless |
6216.03.77 | 90 x 35 x 3,3 mm /pin Ø= 8 | Aluminium 6060 T5 anodised / black |
Serie 6216
drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6216.04.71 | 120 x 35 x 3,3 mm /pin Ø= 8 | Aluminium 6060 T5 anodised / colourless |
6216.04.77 | 120 x 35 x 3,3 mm /pin Ø= 8 | Aluminium 6060 T5 anodised / black |
Serie 6218
with steel pin, drilled
Art.-No. | Dimensions | Material |
---|---|---|
6218.01.02 | 15 x 9 x 0,4 mm /pin Ø= 1,1 | Steel brass plated |
Serie 6218
with steel pin, drilled
Art.-No. | Dimensions | Material |
---|---|---|
6218.02.02 | 16 x 12 x 0,4 mm /pin Ø= 1,1 | Steel brass plated |
Serie 6218
with steel pin, drilled
Art.-No. | Dimensions | Material |
---|---|---|
6218.03.02 | 25 x 12 x 0,4 mm /pin Ø= 1,1 | Steel brass plated |
Serie 6218
with steel pin, drilled
Art.-No. | Dimensions | Material |
---|---|---|
6218.04.02 | 20 x 14 x 0,4 mm /pin Ø= 1,1 | Steel brass plated |
Serie 99.10080
with fixed stainless steel pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
99.10080.30 | 100 x 80 x 4 mm | Stainless steel untreated |
Serie 99.1001003
with fixed stainless steel pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
99.1001003.30 | 100 x 100 x 3 mm | Stainless steel untreated |
Serie 6054
with riveted stainless steel pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6054.03.00 | 130 x 95 x 4 mm | Steel untreated |
Serie 99.2453
Knuckle and pin welded, drilled
Art.-No. | Dimensions | Material |
---|---|---|
99.2453.04 | 130 x 84,5 x 4 mm | Steel galvanised |
Serie 2003278
drilled
Knuckle and pin welded
Art.-No. | Dimensions | Material |
---|---|---|
2003278 | 100 x 100 x 3 mm | Stainless steel polished |
Serie 6012
undrilled
with fixed steel pin, drilling on request
Art.-No. | Dimensions | Material |
---|---|---|
6012.01.00 | 30 x 140 x 2,5 mm / D= 11 / pin Ø= 6 | Steel untreated |
6012.03.00 | 30 x 190 x 3 mm / D= 12 / pin Ø= 6 | Steel untreated |
Serie 6014
drilled
with fixed pin
Art.-No. | Dimensions | Material |
---|---|---|
6014.01.04 | 30 x 140 x 2,5 mm / CØ= 4/ D= 11/ F= 115/ f= 45/ pin Ø= 6 | Steel galvanised |
Serie 6050
undrilled
with extractable pin and nylon intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
6050.01.30 | 112 x 136 x 2,5 mm | Stainless steel untreated |
6050.01.00 | 112 x 136 x 2,5 mm | Steel untreated |
Serie 6050
drilled
with extractable pin and nylon intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
6050.02.30 | 112 x 136 x 2,5 mm | Stainless steel untreated |
Serie 6054
undrilled
with fixed pin
Art.-No. | Dimensions | Material |
---|---|---|
6054.01.33 | 65 x 230 x 4 mm | Stainless steel polished |
6054.01.00 | 65 x 230 x 4 mm | Steel untreated |
Serie 6054
drilled
with fixed pin
Art.-No. | Dimensions | Material |
---|---|---|
6054.02.33 | 65 x 230 x 4 mm | Stainless steel polished |
Serie 6158
drilled
with fixed pin (10mm),
Stainless steel (1.4301) on request
Art.-No. | Dimensions | Material |
---|---|---|
6158.01.04 | 66 x 230 x 5 mm | Steel galvanised |
6158.01 .33 | 66 x 230 x 5 mm | Stainless steel polished |
Serie 99.12637
with fixed pin (10mm), drilled
Art.-No. | Dimensions | Material |
---|---|---|
99.12637.33 | 75 x 300 x 5 mm | Stainless steel polished |
99.12637.04 | 75 x 300 x 5 mm | Steel galvanised |
Serie 6158
drilled
with fixed pin (10mm),
Stainless steel (1.4301) on request
Art.-No. | Dimensions | Material |
---|---|---|
6158.02.04 | 66 x 215 x 5 mm | Steel galvanised |
6158.02.33 | 66 x 215 x 5 mm | Stainless steel polished |
Serie 99.40800B004
drilled
with rammed Stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
99.40800B004.04/C | 80 x 224 x 5 mm | Steel feuergalvanised |
Serie 196.3.ST35.001
drilled
Art.-No. | Dimensions | Material |
---|---|---|
196.3.ST35.001.30 | 65 x 191 x 3 mm | Stainless steel polished |
196.3.ST35.001.04 | 65 x 191 x 3 mm | Steel galvanised |
Serie 99.1001404.00
drilled
with fixed steel pin
Art.-No. | Dimensions | Material |
---|---|---|
99.1001404.00 | 100 x 140 x 4 mm | Steel untreated |
Serie 196.3.ST56.002
drilled
Art.-No. | Dimensions | Material |
---|---|---|
196.3.ST56.001.07 | 60 x 135 x 4 mm | Steel black |
196.3.ST56.002SN.30 | 60 x 135 x 4 mm | Stainless steel untreated |
Serie 196.3.ST56.100
drilled
Art.-No. | Dimensions | Material |
---|---|---|
196.3.ST56.100.07 | 63 x 140 x 4 mm | Steel black |
196.3.ST56.100SN.30 | 63 x 140 x 4 mm | Stainless steel untreated |
Serie 6877
drilled
Soft-closing hinge
Opens and closes damped,
Function until 115° guaranteed, torque per pair: 2,2 up to 3,0 N.m
Art.-No. | Dimensions | Material |
---|---|---|
6877.01.30 | 80 x 80 x 3 mm | Stainless steel untreated |
Serie AG
Welded joints
with fixed steel pin
FES on self-lubrificating bushes, with brass intermediate ring.
Art.-No. | Dimensions | Material |
---|---|---|
AG60FES.00 | 60 x 50 x 20 mm / DØ= 10 | Steel untreated |
AG70FES.00 | 70 x 60 x 25 mm / DØ= 12 | Steel untreated |
AG80FES.00 | 80 x 60 x 30 mm / DØ= 15 | Steel untreated |
AG100FES.00 | 100 x 80 x 40 mm / DØ= 20 | Steel untreated |
AG120FES.00 | 120 x 100 x 50 mm / DØ= 25 | Steel untreated |
AG140FES.00 | 140 x 120 x 60 mm / DØ= 30 | Steel untreated |
AG60FES.30 | 60 x 50 x 20 mm / DØ= 10 | Stainless steel untreated |
AG70FES.30 | 70 x 60 x 25 mm / DØ= 12 | Stainless steel untreated |
AG80FES.30 | 80 x 60 x 30 mm / DØ= 15 | Stainless steel untreated |
AG100FES.30 | 100 x 80 x 40 mm / DØ= 20 | Stainless steel untreated |
AG120FES.30 | 120 x 100 x 50 mm / DØ= 25 | Stainless steel untreated |
AG140FES.30 | 140 x 120 x 60 mm / DØ= 30 | Stainless steel untreated |
Serie AB
3-part
AES with extractable steel pin and brass intermediate ring
AMS with extractable brass pin and brass intermediate ring.
Art.-No. | Dimensions | Material |
---|---|---|
AB135/3AES.00 | 135/3 x 22,5 mm / D=18/ pin Ø= 12 | Steel untreated |
AB150/3AES.00 | 150/3 x 25,5 mm / D=20/ pin Ø= 13 | Steel untreated |
AB180/3AES.00 | 180/3 x 25,5 mm / D=20/ pin Ø= 13 | Steel untreated |
AB200/3AES.00 | 200/3 x 29 mm / D=23/ pin Ø= 16 | Steel untreated |
AB135/3AMS.00 | 135/3 x 22,5 mm / D=18/ pin Ø= 12 | Steel untreated |
AB150/3AMS.00 | 150/3 x 25,5 mm / D=20/ pin Ø= 13 | Steel untreated |
AB180/3AMS.00 | 180/3 x 25,5 mm / D=20/ pin Ø= 13 | Steel untreated |
AB200/3AMS.00 | 200/3 x 29 mm / D=23/ pin Ø= 16 | Steel untreated |
AB135/3AVS.30 | 135/3 x 22,5 mm / D=18/ pin Ø= 12 | Stainless steel untreated |
AB150/3AVS.30 | 150/3 x 25,5 mm / D=20/ pin Ø= 13 | Stainless steel untreated |
AB180/3AVS.30 | 180/3 x 25,5 mm / D=20/ pin Ø= 13 | Stainless steel untreated |
Serie ABN
3-part with lubrication nipple
AMS with extractable brass pin and brass intermediate ring.
Art.-No. | Dimensions | Material |
---|---|---|
ABN135/3AMS.00 | 135/3 x 22,5 mm / D=18/ pin Ø= 12 | Steel untreated |
ABN150/3AMS.00 | 150/3 x 25,5 mm / D=20/ pin Ø= 13 | Steel untreated |
ABN180/3AMS.00 | 180/3 x 25,5 mm / D=20/ pin Ø= 13 | Steel untreated |
ABN200/3AMS.00 | 200/3 x 29 mm / D=23/ pin Ø= 16 | Steel untreated |
Serie AB
3-part with 2 ball bearings
AES with extractable steel pin and 2 ball bearingn
AMS with extractable brass pin and 2 ball bearings
Art.-No. | Dimensions | Material |
---|---|---|
AB90/3AMS.00 | 90/3 x 25,5 mm / D= 20/ pin Ø= 12 | Steel untreated |
AB110/3AES.00 | 110/3 x 29 mm / D= 23/ pin Ø= 13 | Steel untreated |
AB90/3AES.00 | 90/3 x 25,5 mm / D= 20/ pin Ø= 12 | Steel untreated |
AB110/3AMS.00 | 110/3 x 29 mm / D= 23/ pin Ø= 13 | Steel untreated |
Serie 150.HG-KM
drilled
Ultra thick „lift-off“ hinge for heavy doors.
The load capacity is the value when using two hinges.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-KM12-268.32 | 268 x 350 x 12 mm | Stainless steel satinised |
150.HG-KM19-275.32 | 275 x 350 x 19 mm | Stainless steel satinised |
150.HG-KM20-250.32 | 250 x 350 x 20 mm | Stainless steel satinised |
Serie 150.HG-KH
drilled
Ultra thick „lift-off“ hinge for heavy doors
The load capacity is the value when using two hinges.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-KH12-268.32 | 268 x 300 x 12 mm | Stainless steel satinised |
150.HG-KH19-275.32 | 275 x 300 x 19 mm | Stainless steel satinised |
150.HG-KH20-250.32 | 250 x 300 x 20 mm | Stainless steel satinised |
Serie 86.1000-1009
according to DIN 31211-N1, with riveted pin
FES = with fixed steel pin
FMS = with fixed brass pin
Art.-No. | Dimensions | Material |
---|---|---|
86.1000.FES.00 | 40 x 40 x 3 mm / pin Ø = 4mm | Steel untreated |
86.1000.FMS.00 | 40 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1001.FES.00 | 60 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1001.FMS.00 | 60 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1002.FES.00 | 80 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1002.FMS.00 | 80 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1003.FES.00 | 60 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1003.FMS.00 | 60 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1004.FES.00 | 90 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1004.FMS.00 | 90 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1005.FES.00 | 120 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1005.FMS.00 | 120 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1006.FES.00 | 80 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1006.FMS.00 | 80 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1007.FES.00 | 120 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1007.FMS.00 | 120 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1008.FES.00 | 160 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1008.FMS.00 | 160 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1009.FES.00 | 220 x 100 x 10 mm/ pin Ø = 13mm | Steel untreated |
86.1009.FMS.00 | 220 x 100 x 10 mm/ pin Ø = 13mm | Steel untreated |
Serie 86.1010-1019
according to DIN 31211-N2, mounted offset with riveted pin
FES = with fixed steel pin
FMS = with fixed brass pin
Art.-No. | Dimensions | Material |
---|---|---|
86.1010.FES.00 | 40 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1010.FMS.00 | 40 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1011.FES.00 | 60 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1011.FMS.00 | 60 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1012.FES.00 | 80 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1012.FMS.00 | 80 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1013.FES.00 | 60 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1013.FMS.00 | 60 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1014.FES.00 | 90 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1014.FMS.00 | 90 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1015.FES.00 | 120 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1015.FMS.00 | 120 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1016.FES.00 | 80 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1016.FMS.00 | 80 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1017.FES.00 | 120 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1017.FMS.00 | 120 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1018.FES.00 | 160 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1018.FMS.00 | 160 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1019.FES.00 | 220 x 100 x 10 mm/ pin Ø = 13mm | Steel untreated |
86.1019.FMS.00 | 220 x 100 x 10 mm/ pin Ø = 13mm | Steel untreated |
Serie 86.1020-1029
according to DIN 31211-B1, with extractable pin incl. disc and split pin
AES = with extractable steel pin
AMS = with extractable brass pin
Art.-No. | Dimensions | Material |
---|---|---|
86.1020.AES.00 | 40 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1020.AMS.00 | 40 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1021.AES.00 | 60 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1021.AMS.00 | 60 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1022.AES.00 | 80 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1022.AMS.00 | 80 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1023.AES.00 | 60 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1023.AMS.00 | 60 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1024.AES.00 | 90 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1024.AMS.00 | 90 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1025.AES.00 | 120 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1025.AMS.00 | 120 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1026.AES.00 | 80 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1026.AMS.00 | 80 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1027.AES.00 | 120 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1027.AMS.00 | 120 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1028.AES.00 | 160 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1028.AMS.00 | 160 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1029.AES.00 | 220 x 100 x 10 mm/ pin Ø = 13mm | Steel untreated |
86.1029.AMS.00 | 220 x 100 x 10 mm/ pin Ø = 13mm | Steel untreated |
Serie 86.1030-1039
according to DIN 31211-B2, mounted offset with extractable pin, incl. disc and split pin
AES = with extractable steel pin
AMS = with extractable brass pin
Art.-No. | Dimensions | Material |
---|---|---|
86.1030.AES.00 | 40 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1030.AMS.00 | 40 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1031.AES.00 | 60 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1031.AMS.00 | 60 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1032.AES.00 | 80 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1032.AMS.00 | 80 x 40 x 3 mm/ pin Ø = 4mm | Steel untreated |
86.1033.AES.00 | 60 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1033.AMS.00 | 60 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1034.AES.00 | 90 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1034.AMS.00 | 90 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1035.AES.00 | 120 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1035.AMS.00 | 120 x 60 x 5 mm/ pin Ø = 6mm | Steel untreated |
86.1036.AES.00 | 80 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1036.AMS.00 | 80 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1037.AES.00 | 120 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1037.AMS.00 | 120 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1038.AES.00 | 160 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1038.AMS.00 | 160 x 80 x 7 mm/ pin Ø = 8mm | Steel untreated |
86.1039.AES.00 | 220 x 100 x 10 mm/ pin Ø = 13mm | Steel untreated |
86.1039.AMS.00 | 220 x 100 x 10 mm/ pin Ø = 13mm | Steel untreated |
Serie 86.1040-1048
with Halbroandkopfstift / pin Ø = 4mm
FES = with fixed steel pin
FMS = with fixed brass pin
Art.-No. | Dimensions | Material |
---|---|---|
86.1040.FES.00 | 80 x 30 x 3 mm | Steel untreated |
86.1041.FES.00 | 120 x 30 x 3 mm | Steel untreated |
86.1042.FES.00 | 40 x 40 x 3 mm | Steel untreated |
86.1042.FMS.00 | 40 x 40 x 3 mm | Steel untreated |
86.1043.FES.00 | 80 x 40 x 3 mm | Steel untreated |
86.1043.FMS.00 | 80 x 40 x 3 mm | Steel untreated |
86.1044.FES.00 | 120 x 40 x 3 mm | Steel untreated |
86.1044.FMS.00 | 120 x 40 x 3 mm | Steel untreated |
86.1045.FES.00 | 80 x 50 x 3 mm | Steel untreated |
86.1046.FES.00 | 120 x 50 x 3 mm | Steel untreated |
86.1047.FES.00 | 80 x 60 x 3 mm | Steel untreated |
86.1048.FES.00 | 120 x 60 x 3 mm | Steel untreated |
Serie 86.1050-1078
with Halbroandkopfstift/ pin Ø = 6mm
FES = with fixed steel pin
FMS = with fixed brass pin
Art.-No. | Dimensions | Material |
---|---|---|
86.1050.FES.00 | 60 x 30 x 5 mm | Steel untreated |
86.1050.FMS.00 | 60 x 30 x 5 mm | Steel untreated |
86.1051.FES.00 | 120 x 30 x 5 mm | Steel untreated |
86.1051.FMS.00 | 120 x 30 x 5 mm | Steel untreated |
86.1052.FES.00 | 160 x 30 x 5 mm | Steel untreated |
86.1052.FMS.00 | 160 x 30 x 5 mm | Steel untreated |
86.1053.FES.00 | 200 x 30 x 5 mm | Steel untreated |
86.1053.FMS.00 | 200 x 30 x 5 mm | Steel untreated |
86.1054.FES.00 | 60 x 40 x 5 mm | Steel untreated |
86.1054.FMS.00 | 60 x 40 x 5 mm | Steel untreated |
86.1055.FES.00 | 120 x 40 x 5 mm | Steel untreated |
86.1055.FMS.00 | 120 x 40 x 5 mm | Steel untreated |
86.1056.FES.00 | 160 x 40 x 5 mm | Steel untreated |
86.1056.FMS.00 | 160 x 40 x 5 mm | Steel untreated |
86.1057.FES.00 | 200 x 40 x 5 mm | Steel untreated |
86.1057.FMS.00 | 200 x 40 x 5 mm | Steel untreated |
86.1058.FES.00 | 240 x 40 x 5 mm | Steel untreated |
86.1059.FES.00 | 30 x 45 x 5 mm | Steel untreated |
86.1060.FES.00 | 60 x 45 x 5 mm | Steel untreated |
86.1061.FES.00 | 160 x 45 x 5 mm | Steel untreated |
86.1062.FES.00 | 200 x 45 x 5 mm | Steel untreated |
86.1063.FES.00 | 240 x 45 x 5 mm | Steel untreated |
86.1064.FES.00 | 60 x 50 x 5 mm | Steel untreated |
86.1064.FMS.00 | 60 x 50 x 5 mm | Steel untreated |
86.1065.FES.00 | 120 x 50 x 5 mm | Steel untreated |
86.1065.FMS.00 | 120 x 50 x 5 mm | Steel untreated |
86.1066.FES.00 | 160 x 50 x 5 mm | Steel untreated |
86.1066.FMS.00 | 160 x 50 x 5 mm | Steel untreated |
86.1067.FES.00 | 200 x 50 x 5 mm | Steel untreated |
86.1067.FMS.00 | 200 x 50 x 5 mm | Steel untreated |
86.1068.FES.00 | 240 x 50 x 5 mm | Steel untreated |
86.1069.FES.00 | 60 x 60 x 5 mm | Steel untreated |
86.1069.FMS.00 | 60 x 60 x 5 mm | Steel untreated |
86.1070.FES.00 | 120 x 60 x 5 mm | Steel untreated |
86.1070.FMS.00 | 120 x 60 x 5 mm | Steel untreated |
86.1071.FES.00 | 160 x 60 x 5 mm | Steel untreated |
86.1071.FMS.00 | 160 x 60 x 5 mm | Steel untreated |
86.1072.FES.00 | 200 x 60 x 5 mm | Steel untreated |
86.1072.FMS.00 | 200 x 60 x 5 mm | Steel untreated |
86.1073.FES.00 | 60 x 80 x 5 mm | Steel untreated |
86.1074.FES.00 | 120 x 80 x 5 mm | Steel untreated |
86.1075.FES.00 | 160 x 80 x 5 mm | Steel untreated |
86.1076.FES.00 | 60 x 100 x 5 mm | Steel untreated |
86.1077.FES.00 | 120 x 100 x 5 mm | Steel untreated |
86.1078.FES.00 | 160 x 100 x 5 mm | Steel untreated |
Serie 86.1168-1169
with Halbroandkopfstift/ pin Ø = 6mm
FVS = with fixed stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
86.1168.FVS.30 | 60 x 50 x 5 mm | Stainless steel untreated |
86.1169.FVS.30 | 100 x 50 x 5 mm | Stainless steel untreated |
Serie 86.1079-1098
with Halbroandkopfstift/ pin Ø = 8mm
FES = with fixed stainless steel pin
FMS = with fixed brass pin
Art.-No. | Dimensions | Material |
---|---|---|
86.1079.FES.00 | 160 x 40 x 6 mm | Steel untreated |
86.1080.FES.00 | 160 x 45 x 6 mm | Steel untreated |
86.1081.FES.00 | 200 x 45 x 6 mm | Steel untreated |
86.1082.FES.00 | 240 x 45 x 6 mm | Steel untreated |
86.1083.FES.00 | 160 x 50 x 6 mm | Steel untreated |
86.1083.FMS.00 | 160 x 50 x 6 mm | Steel untreated |
86.1084.FES.00 | 200 x 50 x 6 mm | Steel untreated |
86.1084.FMS.00 | 200 x 50 x 6 mm | Steel untreated |
86.1085.FES.00 | 240 x 50 x 6 mm | Steel untreated |
86.1085.FMS.00 | 240 x 50 x 6 mm | Steel untreated |
86.1086.FES.00 | 160 x 60 x 6 mm | Steel untreated |
86.1086.FMS.00 | 160 x 60 x 6 mm | Steel untreated |
86.1087.FES.00 | 200 x 60 x 6 mm | Steel untreated |
86.1087.FMS.00 | 200 x 60 x 6 mm | Steel untreated |
86.1088.FMS.00 | 240 x 60 x 6 mm | Steel untreated |
86.1089.FES.00 | 160 x 70 x 6 mm | Steel untreated |
86.1089.FMS.00 | 160 x 70 x 6 mm | Steel untreated |
86.1090.FES.00 | 200 x 70 x 6 mm | Steel untreated |
86.1090.FMS.00 | 200 x 70 x 6 mm | Steel untreated |
86.1091.FES.00 | 240 x 70 x 6 mm | Steel untreated |
86.1091.FMS.00 | 240 x 70 x 6 mm | Steel untreated |
86.1092.FES.00 | 160 x 80 x 6 mm | Steel untreated |
86.1092.FMS.00 | 160 x 80 x 6 mm | Steel untreated |
86.1093.FES.00 | 200 x 80 x 6 mm | Steel untreated |
86.1093.FMS.00 | 200 x 80 x 6 mm | Steel untreated |
86.1094.FES.00 | 240 x 80 x 6 mm | Steel untreated |
86.1094.FMS.00 | 240 x 80 x 6 mm | Steel untreated |
86.1095.FES.00 | 300 x 80 x 6 mm | Steel untreated |
86.1096.FES.00 | 160 x 100 x 6 mm | Steel untreated |
86.1096.FMS.00 | 160 x 100 x 6 mm | Steel untreated |
86.1097.FES.00 | 200 x 100 x 6 mm | Steel untreated |
86.1097.FMS.00 | 200 x 100 x 6 mm | Steel untreated |
86.1098.FES.00 | 240 x 100 x 6 mm | Steel untreated |
86.1098.FMS.00 | 240 x 100 x 6 mm | Steel untreated |
Serie 86.1099-1116
with Halbroandkopfstift/ pin Ø = 8mm
FES = with fixed stainless steel pin
FMS = with fixed brass pin
Art.-No. | Dimensions | Material |
---|---|---|
86.1099.FES.00 | 80 x 60 x 7 mm | Steel untreated |
86.1099.FMS.00 | 80 x 60 x 7 mm | Steel untreated |
86.1100.FES.00 | 160 x 60 x 7 mm | Steel untreated |
86.1100.FMS.00 | 160 x 60 x 7 mm | Steel untreated |
86.1101.FES.00 | 200 x 60 x 7 mm | Steel untreated |
86.1101.FMS.00 | 200 x 60 x 7 mm | Steel untreated |
86.1102.FES.00 | 240 x 60 x 7 mm | Steel untreated |
86.1102.FMS.00 | 240 x 60 x 7 mm | Steel untreated |
86.1103.FES.00 | 300 x 60 x 7 mm | Steel untreated |
86.1103.FMS.00 | 300 x 60 x 7 mm | Steel untreated |
86.1104.FES.00 | 160 x 70 x 7 mm | Steel untreated |
86.1104.FMS.00 | 160 x 70 x 7 mm | Steel untreated |
86.1105.FES.00 | 200 x 70 x 7 mm | Steel untreated |
86.1105.FMS.00 | 200 x 70 x 7 mm | Steel untreated |
86.1106.FES.00 | 240 x 70 x 7 mm | Steel untreated |
86.1106.FMS.00 | 240 x 70 x 7 mm | Steel untreated |
86.1107.FES.00 | 300 x 70 x 7 mm | Steel untreated |
86.1107.FMS.00 | 300 x 70 x 7 mm | Steel untreated |
86.1108.FES.00 | 80 x 80 x 7 mm | Steel untreated |
86.1108.FMS.00 | 80 x 80 x 7 mm | Steel untreated |
86.1109.FES.00 | 160 x 80 x 7 mm | Steel untreated |
86.1109.FMS.00 | 160 x 80 x 7 mm | Steel untreated |
86.1110.FES.00 | 200 x 80 x 7 mm | Steel untreated |
86.1110.FMS.00 | 200 x 80 x 7 mm | Steel untreated |
86.1111.FES.00 | 240 x 80 x 7 mm | Steel untreated |
86.1111.FMS.00 | 240 x 80 x 7 mm | Steel untreated |
86.1112.FES.00 | 300 x 80 x 7 mm | Steel untreated |
86.1112.FMS.00 | 300 x 80 x 7 mm | Steel untreated |
86.1113.FES.00 | 160 x 100 x 7 mm | Steel untreated |
86.1113.FMS.00 | 160 x 100 x 7 mm | Steel untreated |
86.1114.FES.00 | 200 x 100 x 7 mm | Steel untreated |
86.1114.FMS.00 | 200 x 100 x 7 mm | Steel untreated |
86.1115.FES.00 | 240 x 100 x 7 mm | Steel untreated |
86.1115.FMS.00 | 240 x 100 x 7 mm | Steel untreated |
86.1116.FES.00 | 300 x 100 x 7 mm | Steel untreated |
86.1116.FMS.00 | 300 x 100 x 7 mm | Steel untreated |
Serie 86.1117
with Halbroandkopfstift/ pin Ø = 13mm
FES = with fixed stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
86.1117.FES.00 | 220 x 100 x 10 mm | Steel untreated |
Serie 86.1118-1132
with Band-Schmierstift and Schmiernippel with Halbroandkopfstift / pin Ø = 6mm
Art.-No. | Dimensions | Material |
---|---|---|
86.1118.SN.00 | 60 x 40 x 5 mm | Steel untreated |
86.1119.SN.00 | 120 x 40 x 5 mm | Steel untreated |
86.1120.SN.00 | 160 x 40 x 5 mm | Steel untreated |
86.1121.SN.00 | 200 x 40 x 5 mm | Steel untreated |
86.1122.SN.00 | 240 x 40 x 5 mm | Steel untreated |
86.1123.SN.00 | 60 x 50 x 5 mm | Steel untreated |
86.1124.SN.00 | 120 x 50 x 5 mm | Steel untreated |
86.1125.SN.00 | 160 x 50 x 5 mm | Steel untreated |
86.1126.SN.00 | 200 x 50 x 5 mm | Steel untreated |
86.1127.SN.00 | 240 x 50 x 5 mm | Steel untreated |
86.1128.SN.00 | 60 x 60 x 5 mm | Steel untreated |
86.1129.SN.00 | 120 x 60 x 5 mm | Steel untreated |
86.1130.SN.00 | 160 x 60 x 5 mm | Steel untreated |
86.1131.SN.00 | 200 x 60 x 5 mm | Steel untreated |
86.1132.SN.00 | 240 x 60 x 5 mm | Steel untreated |
Serie 86.1133-1148
with Schmierstift and Schmiernippel with Halbroandkopfstift / pin Ø = 8mm
Art.-No. | Dimensions | Material |
---|---|---|
86.1133.SN.00 | 160 x 40 x 6 mm | Steel untreated |
86.1134.SN.00 | 160 x 50 x 6 mm | Steel untreated |
86.1135.SN.00 | 200 x 50 x 6 mm | Steel untreated |
86.1136.SN.00 | 240 x 50 x 6 mm | Steel untreated |
86.1137.SN.00 | 160 x 60 x 6 mm | Steel untreated |
86.1138.SN.00 | 200 x 60 x 6 mm | Steel untreated |
86.1139.SN.00 | 240 x 60 x 6 mm | Steel untreated |
86.1140.SN.00 | 160 x 70 x 6 mm | Steel untreated |
86.1141.SN.00 | 200 x 70 x 6 mm | Steel untreated |
86.1142.SN.00 | 240 x 70 x 6 mm | Steel untreated |
86.1143.SN.00 | 160 x 80 x 6 mm | Steel untreated |
86.1144.SN.00 | 200 x 80 x 6 mm | Steel untreated |
86.1145.SN.00 | 240 x 80 x 6 mm | Steel untreated |
86.1146.SN.00 | 160 x 100 x 6 mm | Steel untreated |
86.1147.SN.00 | 200 x 100 x 6 mm | Steel untreated |
86.1148.SN.00 | 240 x 100 x 6 mm | Steel untreated |
Serie 86.1149-1166
with Schmierstift and Schmiernippel with Halbroandkopfstift / pin Ø = 8mm
Art.-No. | Dimensions | Material |
---|---|---|
86.1149.SN.00 | 80 x 60 x 7 mm | Steel untreated |
86.1150.SN.00 | 160 x 60 x 7 mm | Steel untreated |
86.1151.SN.00 | 200 x 60 x 7 mm | Steel untreated |
86.1152.SN.00 | 240 x 60 x 7 mm | Steel untreated |
86.1153.SN.00 | 300 x 60 x 7 mm | Steel untreated |
86.1154.SN.00 | 160 x 70 x 7 mm | Steel untreated |
86.1155.SN.00 | 200 x 70 x 7 mm | Steel untreated |
86.1156.SN.00 | 240 x 70 x 7 mm | Steel untreated |
86.1157.SN.00 | 300 x 70 x 7 mm | Steel untreated |
86.1158.SN.00 | 80 x 80 x 7 mm | Steel untreated |
86.1159.SN.00 | 160 x 80 x 7 mm | Steel untreated |
86.1160.SN.00 | 200 x 80 x 7 mm | Steel untreated |
86.1161.SN.00 | 240 x 80 x 7 mm | Steel untreated |
86.1162.SN.00 | 300 x 80 x 7 mm | Steel untreated |
86.1163.SN.00 | 160 x 100 x 7 mm | Steel untreated |
86.1164.SN.00 | 200 x 100 x 7 mm | Steel untreated |
86.1165.SN.00 | 240 x 100 x 7 mm | Steel untreated |
86.1166.SN.00 | 300 x 100 x 7 mm | Steel untreated |
Serie 86.1167
with Schmierstift and Schmiernippelwith Halbroandkopfstift/ pin Ø = 13mm
Art.-No. | Dimensions | Material |
---|---|---|
86.1167.SN.00 | 240 x 100 x 10 mm | Steel untreated |
Serie 6059
with riveted pin
Art.-No. | Dimensions | Material |
---|---|---|
6059.01.00 | 32 x 32 x 3 mm/ pin Ø= 4mm | Steel untreated |
6059.02.00 | 50 x 32 x 3 mm/ pin Ø= 4mm | Steel untreated |
6059.03.00 | 50 x 50 x 3 mm/ pin Ø= 4mm | Steel untreated |
6059.03.30 | 50 x 50 x 3 mm/ pin Ø= 4mm | Stainless steel untreated |
6059.04.00 | 80 x 50 x 3 mm/ pin Ø= 4mm | Steel untreated |
6059.05.00 | 50 x 50 x 5 mm/ pin Ø= 6mm | Steel untreated |
6059.06.00 | 80 x 50 x 5 mm/ pin Ø= 6mm | Steel untreated |
6059.06.30 | 80 x 50 x 5 mm/ pin Ø= 6mm | Stainless steel untreated |
6059.07.00 | 100 x 50 x 3 mm/ pin Ø= 4mm | Steel untreated |
Serie 6060
with riveted pin
Art.-No. | Dimensions | Material |
---|---|---|
6060.02.00 | 32 x 50 x 3 mm/ pin Ø= 4mm | Steel untreated |
6060.03.00 | 50 x 50 x 3 mm/ pin Ø= 4mm | Steel untreated |
6060.03.30 | 50 x 50 x 3 mm/ pin Ø= 4mm | Stainless steel untreated |
6060.04.30 | 80 x 50 x 3 mm/ pin Ø= 4mm | Stainless steel untreated |
6060.05.00 | 50 x 50 x 5 mm/ pin Ø= 6mm | Steel untreated |
6060.06.00 | 80 x 50 x 5 mm/ pin Ø= 6mm | Steel untreated |
Serie 6061
with riveted pin
Art.-No. | Dimensions | Material |
---|---|---|
6061.01.00 | 80 x 80 x 5 mm/ pin Ø= 6mm | Steel untreated |
6061.01.30 | 80 x 80 x 5 mm/ pin Ø= 6mm | Stainless steel untreated |
6061.02.00 | 130 x 80 x 5 mm/ pin Ø= 6mm | Steel untreated |
6061.03.00 | 80 x 125 x 5 mm/ pin Ø= 6mm | Steel untreated |
6061.04.00 | 80 x 80 x 8 mm/ pin Ø= 10mm | Steel untreated |
6061.05.00 | 130 x 80 x 8 mm/ pin Ø= 10mm | Steel untreated |
6061.06.00 | 130 x 125 x 8 mm/ pin Ø= 10mm | Steel untreated |
Serie 6110-6119
3 mm
Art.-No. | Dimensions | Material |
---|---|---|
6110.00 | 80 x 30 x 3 mm | Steel untreated |
6111.30 | 80 x 30 x 3 mm | Stainless steel untreated |
6112.00 | 80 x 40 x 3 mm | Steel untreated |
6113.30 | 80 x 40 x 3 mm | Stainless steel untreated |
6114.00 | 80 x 50 x 3 mm | Steel untreated |
6115.30 | 80 x 50 x 3 mm | Stainless steel untreated |
6116.00 | 80 x 60 x 3 mm | Steel untreated |
6117.30 | 80 x 60 x 3 mm | Stainless steel untreated |
6118.00 | 80 x 80 x 3 mm | Steel untreated |
6119.30 | 80 x 80 x 3 mm | Stainless steel untreated |
Serie 6130-6139
4 mm
Art.-No. | Dimensions | Material |
---|---|---|
6130.00 | 100 x 30 x 4 mm | Steel untreated |
6131.30 | 100 x 30 x 4 mm | Stainless steel untreated |
6132.00 | 100 x 40 x 4 mm | Steel untreated |
6133.30 | 100 x 40 x 4 mm | Stainless steel untreated |
6134.00 | 100 x 50 x 4 mm | Steel untreated |
6135.30 | 100 x 50 x 4 mm | Stainless steel untreated |
6136.00 | 100 x 60 x 4 mm | Steel untreated |
6137.30 | 100 x 60 x 4 mm | Stainless steel untreated |
6138.00 | 100 x 80 x 4 mm | Steel untreated |
6139.30 | 100 x 80 x 4 mm | Stainless steel untreated |
Serie 6210
3 mm
Art.-No. | Dimensions | Material |
---|---|---|
6210.01.00 | 40 x 20 x 3 mm | Steel untreated |
6210.03.00 | 40 x 20 x 3 mm | Stainless steel untreated |
6210.05.00 | 40 x 30 x 3 mm | Steel untreated |
6210.07.00 | 40 x 30 x 3 mm | Stainless steel untreated |
6210.09.00 | 40 x 50 x 3 mm | Steel untreated |
Serie 6210
4 mm
Art.-No. | Dimensions | Material |
---|---|---|
6210.21.00 | 50 x 30 x 4 mm | Steel untreated |
6210.23.00 | 50 x 30 x 4 mm | Steel untreated |
6210.24.00 | 50 x 50 x 4 mm | Steel untreated |
6210.21.30 | 50 x 30 x 4 mm | Stainless steel 1.4301 |
6210.23.30 | 50 x 30 x 4 mm | Stainless steel 1.4301 |
6210.24.30 | 50 x 50 x 4 mm | Stainless steel 1.4301 |
Serie 6210
5 mm
Art.-No. | Dimensions | Material |
---|---|---|
6210.31.00 | 60 x 40 x 5 mm | Steel untreated |
6210.33.00 | 60 x 40 x 5 mm | Steel untreated |
6210.35.00 | 60 x 60 x 5 mm | Steel untreated |
6210.31.30 | 60 x 60 x 5 mm | Stainless steel untreated |
6210.33.30 | 60 x 80 x 5 mm | Stainless steel untreated |
6210.35.30 | 60 x 80 x 5 mm | Stainless steel untreated |
Serie 6150-6155
Pin "BG" compressed
Art.-No. | Dimensions | Material |
---|---|---|
6150.04 | 80 x Ø6 | Steel galvanised |
6151.30 | 80 x Ø6 | Stainless steel untreated |
6152.04 | 100 x Ø8 | Steel galvanised |
6153.30 | 100 x Ø8 | Stainless steel untreated |
6154.04 | 120 x Ø10 | Steel galvanised |
6155.30 | 120 x Ø10 | Stainless steel untreated |
Serie 6160-6165
Pin "BT" with head
Art.-No. | Dimensions | Material |
---|---|---|
6160.04 | 66 x Ø6 | Steel galvanised |
6161.30 | 66 x Ø6 | Stainless steel untreated |
6162.04 | 86 x Ø8 | Steel galvanised |
6163.30 | 86 x Ø8 | Stainless steel untreated |
6164.04 | 106 x Ø10 | Steel galvanised |
6165.30 | 106 x Ø10 | Stainless steel untreated |
Serie 6170-6175
Pin "BT" with head
Art.-No. | Dimensions | Material |
---|---|---|
6170.04 | 12 x Ø6 | Steel galvanised |
6171.30 | 12 x Ø6 | Stainless steel untreated |
6172.04 | 12 x Ø8 | Steel galvanised |
6173.30 | 12 x Ø8 | Stainless steel untreated |
6174.04 | 12 x Ø10 | Steel galvanised |
6175.30 | 12 x Ø10 | Stainless steel untreated |
Serie 6140-6149
Pin "BT" with head
Art.-No. | Dimensions | Material |
---|---|---|
6141.00 | 120 x 40 x 5 mm | Stainless steel 1.4301 |
6140.30 | 120 x 30 x 5 mm | Stainless steel 1.4301 |
6142.30 | 120 x 40 x 5 mm | Stainless steel 1.4301 |
6143.00 | 120 x 50 x 5 mm | Stainless steel 1.4301 |
6144.30 | 120 x 50 x 5 mm | Stainless steel 1.4301 |
6145.00 | 120 x 60 x 5 mm | Stainless steel 1.4301 |
6146.30 | 120 x 60 x 5 mm | Stainless steel 1.4301 |
6147.00 | 120 x 80 x 5 mm | Stainless steel 1.4301 |
6148.30 | 120 x 80 x 5 mm | Stainless steel 1.4301 |
6149.30 | 120 x 30 x 5 mm | Stainless steel 1.4301 |
Serie 6062
drilled and countersunk
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6062.01.00 | 75 x 20 x 0,8 mm | Steel untreated |
6062.02.00 | 75 x 20 x 0,8 mm | Steel untreated |
6062.01.30 | 75 x 20 x 0,8 mm | Stainless steel untreated |
6062.02.30 | 75 x 20 x 0,8 mm | Stainless steel untreated |
Serie 6063
undrilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6063.01.00 | 75 x 30 x 0,8 mm | Steel untreated |
6063.01.30 | 75 x 30 x 0,8 mm | Stainless steel untreated |
6063.02.00 | 75 x 30 x 0,8 mm | Steel untreated |
6063.02.30 | 75 x 30 x 0,8 mm | Stainless steel untreated |
Serie 6064
drilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6064.01.00 | 60 x 35 x 1 mm | Steel untreated |
6064.02.00 | 60 x 35 x 1 mm | Steel untreated |
6064.03.00 | 60 x 35 x 1 mm | Steel untreated |
6064.04.00 | 60 x 35 x 1 mm | Steel untreated |
Serie 6065
drilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6065.01.30 | 60 x 35 x 1 mm | Stainless steel untreated |
6065.02.30 | 60 x 35 x 1 mm | Stainless steel untreated |
Serie 6066
drilled
Hammered Hinge, Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6066.01.00 | 160 x 46 x 1,5 mm | Steel untreated |
6066.01.30 | 160 x 46 x 1,5 mm | Stainless steel untreated |
6066.02.00 | 160 x 46 x 1,5 mm | Steel untreated |
6066.02.30 | 160 x 46 x 1,5 mm | Stainless steel untreated |
Serie 6067
undrilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6067.01.00 | 170 x 30 x 0,8 mm | Steel untreated |
6067.01.30 | 170 x 30 x 0,8 mm | Stainless steel untreated |
6067.02.00 | 170 x 30 x 0,8 mm | Steel untreated |
6067.02.30 | 170 x 30 x 0,8 mm | Stainless steel untreated |
Serie 6068
drilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6068.01.08 | 50 x 50 x 2 mm | Steel galvanised |
6068.01.30 | 50 x 50 x 2 mm | Stainless steel untreated |
6068.02.08 | 50 x 50 x 2 mm | Steel galvanised |
6068.02.30 | 50 x 50 x 2 mm | Stainless steel untreated |
6068.01.08.F08 | 50 x 50 x 2 mm | Steel galvanised |
6068.01.30.F08 | 50 x 50 x 2 mm | Stainless steel untreated |
6068.02.08.F08 | 50 x 50 x 2 mm | Steel galvanised |
6068.02.30.F08 | 50 x 50 x 2 mm | Stainless steel untreated |
6068.01.08.F10 | 50 x 50 x 2 mm | Steel galvanised |
6068.01.30.F10 | 50 x 50 x 2 mm | Stainless steel untreated |
6068.02.08.F10 | 50 x 50 x 2 mm | Steel galvanised |
6068.02.30.F10 | 50 x 50 x 2 mm | Stainless steel untreated |
6068.01.08.F1,25 | 50 x 50 x 2 mm | Steel galvanised |
6068.01.30.F1,25 | 50 x 50 x 2 mm | Stainless steel untreated |
6068.02.08.F1,25 | 50 x 50 x 2 mm | Steel galvanised |
6068.02.30.F1,25 | 50 x 50 x 2 mm | Stainless steel untreated |
Serie 6107
drilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6107.01.04.F18 | 60 x 50 x 2 mm | Steel galvanised |
6107.02.04.F18 | 60 x 50 x 2 mm | Steel galvanised |
6107.01.30.F18 | 60 x 50 x 2 mm | Stainless steel untreated |
6107.02.30.F18 | 60 x 50 x 2 mm | Stainless steel untreated |
Serie 6108
drilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6108.01.30.F05 | 50 x 50 x 0,8 mm | Stainless steel untreated |
6108.02.30.F05 | 50 x 50 x 0,8 mm | Stainless steel untreated |
6108.01.30.F06 | 50 x 50 x 0,8 mm | Stainless steel untreated |
6108.02.30.F06 | 50 x 50 x 0,8 mm | Stainless steel untreated |
6108.01.30.F08 | 50 x 50 x 0,8 mm | Stainless steel untreated |
6108.02.30.F08 | 50 x 50 x 0,8 mm | Stainless steel untreated |
Serie 99.A100
drilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
99.A100.01.04 | 100 x 50 x 0,8 mm | Steel galvanised |
99.A100.02.04 | 100 x 50 x 0,8 mm | Steel galvanised |
99.A100.01.30.F08 | 100 x 50 x 0,8 mm | Stainless steel untreated |
99.A100.02.30.F08 | 100 x 50 x 0,8 mm | Stainless steel untreated |
99.A100.01.04.F08 | 100 x 50 x 0,8 mm | Steel galvanised |
99.A100.02.04.F08 | 100 x 50 x 0,8 mm | Steel galvanised |
99.A100.01.30.F08 | 100 x 50 x 0,8 mm | Stainless steel untreated |
99.A100.02.30.F08 | 100 x 50 x 0,8 mm | Stainless steel untreated |
Serie 6164
undrilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6164.01.00 | 120 x 40 x 1,5 mm | Steel untreated |
6164.02.00 | 120 x 40 x 1,5 mm | Steel untreated |
6164.01.30 | 120 x 40 x 1,5 mm | Stainless steel untreated |
6164.02.30 | 120 x 40 x 1,5 mm | Stainless steel untreated |
6164.01.70 | 120 x 40 x 1,5 mm | Aluminium 5754 |
6164.02.70 | 120 x 40 x 1,5 mm | Aluminium 5754 |
Serie 6164
drilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6164.01.04/G | 120 x 40 x 1,5 mm | Steel galvanised |
6164.02.04/G | 120 x 40 x 1,5 mm | Steel galvanised |
6164.01.30/G | 120 x 40 x 1,5 mm | Stainless steel untreated |
6164.02.30/G | 120 x 40 x 1,5 mm | Stainless steel untreated |
6164.01.70/G | 120 x 40 x 1,5 mm | Aluminium 5754 |
6164.02.70/G | 120 x 40 x 1,5 mm | Aluminium 5754 |
Serie 6165
undrilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6165.01.00 | 180 x 40 x 1,5 mm | Steel untreated |
6165.02.00 | 180 x 40 x 1,5 mm | Steel untreated |
6165.01.30 | 180 x 40 x 1,5 mm | Stainless steel untreated |
6165.02.30 | 180 x 40 x 1,5 mm | Stainless steel untreated |
Serie 6165
drilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6165.01.04/G | 180 x 40 x 1,5 mm | Steel galvanised |
6165.02.04/G | 180 x 40 x 1,5 mm | Steel galvanised |
6165.01.30/G | 180 x 40 x 1,5 mm | Stainless steel untreated |
6165.02.30/G | 180 x 40 x 1,5 mm | Stainless steel untreated |
Serie 6166
undrilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6166.01.00 | 240 x 40 x 1,5 mm | Steel untreated |
6166.02.00 | 240 x 40 x 1,5 mm | Steel untreated |
6166.01.30 | 240 x 40 x 1,5 mm | Stainless steel untreated |
6166.02.30 | 240 x 40 x 1,5 mm | Stainless steel untreated |
Serie 6166
drilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6166.01.04/G | 240 x 40 x 1,5 mm | Steel galvanised |
6166.02.04/G | 240 x 40 x 1,5 mm | Steel galvanised |
6166.01.30/G | 240 x 40 x 1,5 mm | Stainless steel untreated |
6166.02.30/G | 240 x 40 x 1,5 mm | Stainless steel untreated |
Serie 6169
drilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6169.01.30 | 80 x 23,5 x 1 mm | Stainless steel 1.4016 |
Serie 64080
drilled and countersunk
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
64080.01.30.F15 | 40 x 80 x 3 mm | Stainless steel untreated |
64080.02.30.F15 | 40 x 80 x 3 mm | Stainless steel untreated |
Serie 6941
drilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6941.01.30.F28 | 120 x 60 x 2,5 mm | Stainless steel untreated |
6941.02.30.F28 | 120 x 60 x 2,5 mm | Stainless steel untreated |
Serie 6167
drilled
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6167.01.35 | 66 x 22,5 x 1,5 mm | Stainless steel polished |
Serie 6486
drilled
Art.-No. | Dimensions | Material |
---|---|---|
6486.01.35 | 60 x 30 x 1,5 mm | Stainless steel 1.4401 |
Serie 6872
self-opening, drilled and countersunk
with integrated spring
Also available as free-running hinge, torque hinge and detend hinge.
Art.-No. | Dimensions | Material |
---|---|---|
6872.01.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6872.02.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6872.01.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6872.02.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6872.01.30 | 67 x 55 x 4,5 mm | Stainless steel |
6872.02.30 | 67 x 55 x 4,5 mm | Stainless steel |
6872.01.72 | 67 x 55 x 4,5 mm | anodised blue |
6872.01.73 | 67 x 55 x 4,5 mm | anodised red |
6872.01.74 | 67 x 55 x 4,5 mm | anodised bronze |
6872.01.75 | 67 x 55 x 4,5 mm | anodised gold |
6872.01.70-AG | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6872.01.77-AG | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6872.02.72 | 67 x 55 x 4,5 mm | anodised blue |
6872.02.73 | 67 x 55 x 4,5 mm | anodised red |
6872.02.74 | 67 x 55 x 4,5 mm | anodised bronze |
6872.02.75 | 67 x 55 x 4,5 mm | anodised gold |
6872.02.70-AG | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6872.02.77-AG | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
Serie 6872
self-closing, drilled and countersunk
with integrated spring
Also available as free-running hinge, torque hinge and detend hinge.
Art.-No. | Dimensions | Material |
---|---|---|
6872.03.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6872.04.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6872.03.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6872.04.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6872.03.30 | 67 x 55 x 4,5 mm | Stainless steel |
6872.04.30 | 67 x 55 x 4,5 mm | Stainless steel |
6872.03.72 | 67 x 55 x 4,5 mm | anodised blue |
6872.03.73 | 67 x 55 x 4,5 mm | anodised red |
6872.03.74 | 67 x 55 x 4,5 mm | anodised bronze |
6872.03.75 | 67 x 55 x 4,5 mm | anodised gold |
6872.04.72 | 67 x 55 x 4,5 mm | anodised blue |
6872.04.73 | 67 x 55 x 4,5 mm | anodised red |
6872.04.74 | 67 x 55 x 4,5 mm | anodised bronze |
6872.04.75 | 67 x 55 x 4,5 mm | anodised gold |
Serie 6873
self-closing, drilled and countersunk
with integrated spring
Also available as free-running hinge, torque hinge and detend hinge.
Art.-No. | Dimensions | Material |
---|---|---|
6873.02.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6873.02.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6873.01.30 | 67 x 55 x 4,5 mm | Stainless steel |
6873.02.30 | 67 x 55 x 4,5 mm | Stainless steel |
6873.01.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6873.01.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6873.01.72 | 67 x 55 x 4,5 mm | anodised blue |
6873.01.73 | 67 x 55 x 4,5 mm | anodised red |
6873.01.74 | 67 x 55 x 4,5 mm | anodised bronze |
6873.01.75 | 67 x 55 x 4,5 mm | anodised gold |
6873.01.70-AG | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6873.01.77-AG | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6873.02.72 | 67 x 55 x 4,5 mm | anodised blue |
6873.02.73 | 67 x 55 x 4,5 mm | anodised red |
6873.02.74 | 67 x 55 x 4,5 mm | anodised bronze |
6873.02.75 | 67 x 55 x 4,5 mm | anodised gold |
Serie 6876
drilled and countersunk
with integrated spring
Also available as free-running hinge, soft-closing hinge or detend hinge.
Art.-No. | Dimensions | Material |
---|---|---|
6876.01.70 | 100 x 82,5 x 5,5 mm | Aluminium 6060 T5 silver |
6876.02.77 | 100 x 82,5 x 5,5 mm | Aluminium 6060 T5 black |
6876.01.77 | 100 x 82,5 x 5,5 mm | Aluminium 6060 T5 silver |
6876.02.70 | 100 x 82,5 x 5,5 mm | Aluminium 6060 T5 black |
Serie 6960
drilled and countersunk
with integrated spring
Also available as torque hinge or detend hinge
Art.-No. | Dimensions | Material |
---|---|---|
6960.01.71 | 30 x 35 x 3 mm | Aluminium 6060 T5 colourless |
6960.02.77 | 30 x 35 x 3 mm | Aluminium 6060 T5 black |
6960.01.77 | 30 x 35 x 3 mm | Aluminium 6060 T5 colourless |
6960.02.71 | 30 x 35 x 3 mm | Aluminium 6060 T5 black |
Serie 158.5314
spring force adjustable, Material thickness 2,5 mm, drilled
with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.5314.08.04 | 120 x 80 x 2,5 mm | Steel galvanised |
158.5314.05.30 | 120 x 80 x 2,5 mm | Stainless steel brushed |
Serie 158.5814
spring force adjustable, Material thickness 3 mm, drilled
with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.5814.08.04 | 180 x 80 x 3 mm | Steel galvanised |
158.5814.05.30 | 180 x 80 x 3 mm | Stainless steel brushed |
Serie 158.5414
spring force adjustable, Material thickness 2,5 mm, drilled
Double joint hinge/Swing door hinge with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.5414.08.04 | 120 x 133 x 2,5 mm | Steel galvanised |
158.5414.05.30 | 120 x 133 x 2,5 mm | Stainless steel brushed |
Serie 158.5914
spring force adjustable, Material thickness 2,5 mm, drilled
Double joint hinge/Swing door hinge with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.5914.08.04 | 180 x 133 x 3 mm | Steel galvanised |
158.5914.05.30 | 180 x 133 x 3 mm | Stainless steel brushed |
Serie 158.5314
spring force adjustable, Material thickness 4 mm, drilled
with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.5314.01.71 | 120 x 80 x 4 mm | Aluminium anodised silver |
158.5314.02.72 | 120 x 80 x 4 mm | Aluminium anodised gold |
158.5314.03.73 | 120 x 80 x 4 mm | Aluminium anodised bronze |
158.5314.06.76 | 120 x 80 x 4 mm | Aluminium anodised Weiss |
158.5314.09.77 | 120 x 80 x 4 mm | Aluminium anodised black |
Serie 158.5814
spring force adjustable, Material thickness 4 mm, drilled
with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.5814.01.71 | 120 x 80 x 4 mm | Aluminium anodised silver |
158.5814.02.72 | 120 x 80 x 4 mm | Aluminium anodised gold |
158.5814.03.73 | 120 x 80 x 4 mm | Aluminium anodised bronze |
158.5814.06.76 | 120 x 80 x 4 mm | Aluminium anodised Weiss |
158.5814.09.77 | 120 x 80 x 4 mm | Aluminium anodised black |
Serie 158.5414
spring force adjustable, Material thickness 4 mm, drilled
Double joint hinge/Swing door hinge with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.5414.01.71 | 120 x 133 x 4 mm | Aluminium anodised silver |
158.5414.02.72 | 120 x 133 x 4 mm | Aluminium anodised gold |
158.5414.03.73 | 120 x 133 x 4 mm | Aluminium anodised bronze |
158.5414.06.76 | 120 x 133 x 4 mm | Aluminium anodised Weiss |
158.5414.09.77 | 120 x 133 x 4 mm | Aluminium anodised black |
Serie 158.5914
spring force adjustable, Material thickness 4 mm, drilled
Double joint hinge/Swing door hinge with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.5914.01.71 | 120 x 133 x 4 mm | Aluminium anodised silver |
158.5914.02.72 | 120 x 133 x 4 mm | Aluminium anodised gold |
158.5914.03.73 | 120 x 133 x 4 mm | Aluminium anodised bronze |
158.5914.06.76 | 120 x 133 x 4 mm | Aluminium anodised Weiss |
158.5914.09.77 | 120 x 133 x 4 mm | Aluminium anodised black |
Serie 158.6314
drilled
with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.6314.01.71 | 153 x 76 x 2,5 mm | Aluminium anodised silver |
158.6314.02.72 | 153 x 76 x 2,5 mm | Aluminium anodised gold |
158.6314.03.73 | 153 x 76 x 2,5 mm | Aluminium anodised bronze |
158.6314.06.76 | 153 x 76 x 2,5 mm | Aluminium anodised Weiss |
158.6314.09.77 | 153 x 76 x 2,5 mm | Aluminium anodised black |
Serie 158.6717
drilled
with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.6717.01.71 | 149 x 80 x 4 mm | Aluminium anodised silver |
158.6717.02.72 | 149 x 80 x 4 mm | Aluminium anodised gold |
158.6717.03.73 | 149 x 80 x 4 mm | Aluminium anodised bronze |
158.6717.06.76 | 149 x 80 x 4 mm | Aluminium anodised Weiss |
158.6717.09.77 | 149 x 80 x 4 mm | Aluminium anodised black |
Serie 158.I
drilled
with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.I-5524.00 | 120 x 21 | Steel untreated |
158.I-5324.00 | 180 x 21 | Steel untreated |
158.I-5124.00 | 235 x 26 | Steel untreated |
158.I-5524.05.30 | 120 x 21 | Stainless steel V2A untreated |
158.I-5324.05.30 | 180 x 21 | Stainless steel V2A untreated |
158.I-5124.05.30 | 235 x 26 | Stainless steel V2A untreated |
Serie 158.I
drilled
with integrated spring and ball bearing
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.I-5334.00 | 180 x 21 | Steel untreated |
158.I-5134.00 | 235 x 26 | Steel untreated |
158.I-5334.05.30 | 180 x 21 | Stainless steel V2A untreated |
158.I-5134.05.30 | 235 x 26 | Stainless steel V2A untreated |
Serie 158.I
for Brandschutztüren, drilled
with integrated spring and ball bearing
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
158.I-5224.00 | 250 x 77,5 x 3 mm | Steel untreated |
Serie 6896
self-opening, drilled and countersunk
with integrated spring
Art.-No. | Dimensions | Material |
---|---|---|
6896.01.71 | 60 x 35 x 3,3 mm | Aluminium 6060 T5 colourless |
6896.01.77 | 60 x 35 x 3,3 mm | Aluminium 6060 T5 black |
Serie 6897
self-opening, drilled and countersunk
with integrated spring
Art.-No. | Dimensions | Material |
---|---|---|
6897.01.71 | 90 x 35 x 3,3 mm | Aluminium 6060 T5 colourless |
6897.01.77 | 90 x 35 x 3,3 mm | Aluminium 6060 T5 black |
Serie 6898
self-opening, drilled and countersunk
with integrated spring
Art.-No. | Dimensions | Material |
---|---|---|
6898.01.71 | 120 x 35 x 3,3 mm | Aluminium 6060 T5 colourless |
6898.01.77 | 120 x 35 x 3,3 mm | Aluminium 6060 T5 black |
Serie 6164
with threaded bolt M5, with grub screw
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6164.03.04 | 120 x 20 x 1,5 mm | Steel galvanised |
6164.04.04 | 120 x 20 x 1,5 mm | Steel galvanised |
6164.03.30 | 120 x 20 x 1,5 mm | Stainless steel untreated |
6164.04.30 | 120 x 20 x 1,5 mm | Stainless steel untreated |
6164.03.70 | 120 x 20 x 1,5 mm | Alu5754 |
6164.04.70 | 120 x 20 x 1,5 mm | Alu5754 |
Serie 6165
with threaded bolt M5, with grub screw
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6165.03.04 | 180 x 20 x 1,5 mm | Steel galvanised |
6165.04.04 | 180 x 20 x 1,5 mm | Steel galvanised |
6165.03.30 | 180 x 20 x 1,5 mm | Stainless steel untreated |
6165.04.30 | 180 x 20 x 1,5 mm | Stainless steel untreated |
Serie 6166
with threaded bolt M5, with grub screw
Tension spring made of stainless steel
Art.-No. | Dimensions | Material |
---|---|---|
6166.03.04 | 240x20x1,5mm | Steel galvanised |
6166.03.30 | 240x20x1,5mm | Stainless steel untreated |
6166.04.04 | 240x20x1,5mm | Steel galvanised |
6166.04.30 | 240x20x1,5mm | Stainless steel untreated |
Serie 6269
Edelstahl pin riveted , drilled
Art.-No. | Dimensions | Material |
---|---|---|
6269.01.04 | 105 x 80 x 3 mm | Steel galvanised |
Serie 6960
with threaded bolt M3, with grub screw
with integrated spring
Art.-No. | Dimensions | Material |
---|---|---|
6960.03.71 | 30 x 35 x 3 mm | Aluminium 6060 T5 colourless |
6960.04.71 | 30 x 35 x 3 mm | Aluminium 6060 T5 colourless |
6960.03.77 | 30 x 35 x 3 mm | Aluminium 6060 T5 black |
6960.04.77 | 30 x 35 x 3 mm | Aluminium 6060 T5 black |
Serie 6873
with threaded bolt M6, with grub screw
with integrated spring
Available as: free-running hinge, torque hinge, detend hinge
Art.-No. | Dimensions | Material |
---|---|---|
6873.04.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6873.05.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6873.06.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6873.07.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6873.08.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6873.09.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
6873.04.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6873.05.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6873.06.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6873.07.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6873.08.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
6873.09.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
Serie 6550
with stainless steel pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6550.01 | 40 x 40 x 5 mm | Polyamide |
Serie 6551
with stainless steel pin and threaded bolt, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6551.01 | 40 x 40 x 5 mm | Polyamide |
Serie 6552
with stainless steel pin and threaded bolt, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6552.01 | 40 x 40 x 5 mm | Polyamide |
Serie 6530
with stainless steel pin, drilled and countersunk
material and surface: 30 % Glas fibre polyamide, UL 94 V-0 classification
Art.-No. | Dimensions | Material |
---|---|---|
6530.01.80 | 30 x 30 x 3 mm | Polyamide black |
Serie 6530
with stainless steel pin, drilled and countersunk
material and surface: 30 % Glas fibre polyamide, UL 94 V-0 classification
Art.-No. | Dimensions | Material |
---|---|---|
6530.02.80 | 40 x 40 x 5,7 mm | Polyamide black |
Serie 6530
with stainless steel pin, drilled and countersunk
material and surface: 30 % Glas fibre polyamide, UL 94 V-0 classification
Art.-No. | Dimensions | Material |
---|---|---|
6530.03.80 | 50 x 50 x 6,4 mm | Polyamide black |
Serie 6530
with stainless steel pin, drilled and countersunk
material and surface: 30 % Glas fibre polyamide, UL 94 V-0 classification
Art.-No. | Dimensions | Material |
---|---|---|
6530.04.80 | 60 x 60 x 7 mm | Polyamide black |
Serie 6560
with stainless steel pin and threaded bolt, undrilled
material and surface: 30 % Glas fibre polyamide, UL 94 V-0 classification
Art.-No. | Dimensions | Material |
---|---|---|
6560.01.80 | 60 x 60 x 7 mm | Polyamide black |
Serie 6521-6524
in rolls of 15,25 m, undrilled
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
Art.-No. | Dimensions | Material |
---|---|---|
6521.01 | 15250 x 28,6 x 3,2 mm | Polypropylene white |
6522.01 | 15250 x 38,1 x 3,2 mm | Polypropylene white |
6523.01 | 15250 x 50,8 x 3,2 mm | Polypropylene white |
6524.01 | 15250 x 76,2 x 3,2 mm | Polypropylene white |
6521.02 | 15250 x 28,6 x 3,2 mm | Polypropylene grey |
6522.02 | 15250 x 38,1 x 3,2 mm | Polypropylene grey |
6523.02 | 15250 x 50,8 x 3,2 mm | Polypropylene grey |
6524.02 | 15250 x 76,2 x 3,2 mm | Polypropylene grey |
6521.03 | 15250 x 28,6 x 3,2 mm | Polypropylene black |
6522.03 | 15250 x 38,1 x 3,2 mm | Polypropylene black |
6523.03 | 15250 x 50,8 x 3,2 mm | Polypropylene black |
6524.03 | 15250 x 76,2 x 3,2 mm | Polypropylene black |
Serie 6525
drilled and countersunk
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
Art.-No. | Dimensions | Material |
---|---|---|
6525.01 | 25,4 x 76,2 x 3,2 mm | Polypropylene white |
6525.03 | 25,4 x 76,2 x 3,2 mm | Polypropylene black |
Serie 6526
drilled and countersunk
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
Art.-No. | Dimensions | Material |
---|---|---|
6526.01 | 50,8 x 38,1 x 3,17 mm | Polypropylene white |
6526.03 | 50,8 x 38,1 x 3,17 mm | Polypropylene black |
Serie 6527
drilled and countersunk
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
Art.-No. | Dimensions | Material |
---|---|---|
6527.01 | 38,1 x 25,4 x 2 mm | Polypropylene white |
6527.03 | 38,1 x 25,4 x 2 mm | Polypropylene black |
Serie 6528
drilled and countersunk
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
Art.-No. | Dimensions | Material |
---|---|---|
6528.01 | 76,2 x 63,5 x 4,76 mm | Polypropylene white |
6528.03 | 76,2 x 63,5 x 4,76 mm | Polypropylene black |
Serie 6529
drilled and countersunk
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
Art.-No. | Dimensions | Material |
---|---|---|
6529.01 | 88,9 x 88,9 x 6,35 mm | Polypropylene white |
6529.03 | 88,9 x 88,9 x 6,35 mm | Polypropylene black |
Serie 6531
drilled and countersunk
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
Art.-No. | Dimensions | Material |
---|---|---|
6531.01 | 101,6 x 101,6 x 6,35 mm | Polypropylene white |
6531.03 | 101,6 x 101,6 x 6,35 mm | Polypropylene black |
Serie 6532
undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6532.01 | 63,5 x 54 x 5 mm | Polypropylene white |
6532.05 | 63,5 x 54 x 5 mm | Polypropylene transparent |
6532.02 | 63,5 x 54 x 5 mm | Polypropylene black |
Serie 6534
undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6534.01 | 63,5 x 54 x 5 mm | Polypropylene white |
6534.02 | 63,5 x 54 x 5 mm | Polypropylene transparent |
6534.05 | 63,5 x 54 x 5 mm | Polypropylene black |
Serie 6535
drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6535 | 63,5 x 54 x 5 mm | Polyethylene natural |
Serie 6124
left, drilled and countersunk
with stainless steel pin without intermediate ring,
Left completion (.01) is inverse to right completion (.02). Maximum load: 40kg.
Art.-No. | Dimensions | Material |
---|---|---|
6124.01.80 | 74 x 60 x 7 mm | Polyamide |
6124.02.80 | 74 x 60 x 7 mm | Polyamide |
Serie 6550
with stainless steel pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6550.02 | 50 x 50 x 6 mm | Polyamide |
Serie 6551
with stainless steel pin and threaded bolt
Art.-No. | Dimensions | Material |
---|---|---|
6551.02 | 50 x 50 x 6 mm | Polyamide |
Serie 6871
drilled and countersunk
Holding torque: 0 – 1 Nm. max., Adjusting screw: internal hex 2,5, temperaturee stability: -20 °C up to + 80 °C
max. tensile strength: 2240 N, max. shear strength: 1050 N
Art.-No. | Dimensions | Material |
---|---|---|
6871.01.70 | 30 x 35 x 3 mm | Alu 6060 T5 untreated |
6871.01.77 | 30 x 35 x 3 mm | Alu 6060 T5 black |
6871.02.70 | 30 x 35 x 3 mm | Alu 6060 T5 anodised |
Serie 6871
drilled and countersunk
Holding torque: 0 - 5 Nm, max. Adjusting screw: internal hex 4, temperaturee stability: -20 °C up to +80 °C.
max. tensile strength: 6000 N, max. shear strength: 5000 N
Art.-No. | Dimensions | Material |
---|---|---|
6871.04.70 | 65 x 55 x 4,5 mm | Alu 6060 T5 colourless |
6871.04.77 | 65 x 55 x 4,5 mm | Alu 6060 T5 black |
Serie 6871
drilled and countersunk
Holding torque: 0 - 5 Nm, max. Adjusting screw: internal hex 4, temperaturee stability: -20 °C up to +80 °C.
max. tensile strength: 6000 N, max. shear strength: 5000 N
Art.-No. | Dimensions | Material |
---|---|---|
6871.05.70 | 65 x 55 x 4,5 mm | Alu 6060 T5 colourless |
6871.05.77 | 65 x 55 x 4,5 mm | Alu 6060 T5 black |
Serie 6876
drilled and countersunk
Soft-Close Hinge
Opens and closes damped Function until 115° guaranteed, torque: 2,5 up to 4,5 Nm
Art.-No. | Dimensions | Material |
---|---|---|
6876.05.71 | 100 x 82,5 x 5,5 mm | Alu 6060 T5 colourless |
6876.06.71 | 100 x 82,5 x 5,5 mm | Alu 6060 T5 colourless |
6876.07.71 | 100 x 82,5 x 5,5 mm | Alu 6060 T5 colourless |
Serie 6877
drilled
Soft-Close Hinge with built-in damper and constant torque
Function until 115° guaranteed, torque pro Paar: 2,2 up to 3,0 Nm, temperaturee resistance: 0 °C- 40 °C
Art.-No. | Dimensions | Material |
---|---|---|
6877.01.30 | 80 x 80 x 3 mm | Stainless steel untreated |
Serie 150.SK-T-ZA
drilled and countersunk
With constant torque.
Cover made of chrome plated plastic
Art.-No. | Dimensions | Material |
---|---|---|
150.SK-T-ZA1CR.03 | 61 x 50 x 4,5 mm | Zamak chrome-plated |
150.SK-T-ZA2CR.03 | 61 x 50 x 4,5 mm | Zamak chrome-plated |
150.SK-T-ZA3CR.03 | 61 x 50 x 4,5 mm | Zamak chrome-plated |
Serie 150.HG-TS
drilled
With constant torque.
temperaturee resistance: -10 °C ~ 50 °C, Operating humidity: ~ 90% RH (or less)
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TS03.30 | 36 x 32 x 1,2 mm | Stainless steel polished |
Serie 150.SFTH
drilled
With constant torque.
temperaturee resistance: -20 °C ~ 60 °C
Art.-No. | Dimensions | Material |
---|---|---|
150.SFTH-02-5.30 | 40 x 35 x 1,2 mm | Stainless steel polished |
Serie 150.SFTH
drilled
With constant torque.
temperaturee resistance: -20 °C ~ 60 °C
Art.-No. | Dimensions | Material |
---|---|---|
150.SFTH-03-9.30 | 50 x 42,5 x 2 mm | Stainless steel polished |
150.SFTH-03-19.30 | 50 x 42,5 x 2 mm | Stainless steel polished |
Serie 150.SFTH
drilled
With constant torque.
temperaturee resistance: -20 °C ~ 60 °C
Art.-No. | Dimensions | Material |
---|---|---|
150.SFTH-05-35.30 | 90 x 82,5 x 2,5 mm | Stainless steel polished |
150.SFTH-05-58.30 | 90 x 82,5 x 2,5 mm | Stainless steel polished |
Serie 150.HG-TA
drilled
With constant torque.
temperaturee resistance: 0 °C ~ 40° C
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TA20L.30 | 18,5 x 66 x 2 mm | Stainless steel polished |
150.HG-TA20R.30 | 18,5 x 66 x 2 mm | Stainless steel polished |
150.HG-TA30L.30 | 18,5 x 66 x 2 mm | Stainless steel polished |
150.HG-TA30R.30 | 18,5 x 66 x 2 mm | Stainless steel polished |
Serie 150.HG-TB
drilled and countersunk
With constant torque.
temperaturee resistance: 0 °C ~ 40° C
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TB7L.30 | 52,5 x 76 x 2 mm | Stainless steel polished |
150.HG-TB7R.30 | 52,5 x 76 x 2 mm | Stainless steel polished |
150.HG-TB20R.30 | 52,5 x 76 x 2 mm | Stainless steel polished |
150.HG-TB30L.30 | 52,5 x 76 x 2 mm | Stainless steel polished |
150.HG-TB30R.30 | 52,5 x 76 x 2 mm | Stainless steel polished |
Serie 150.HG-TB
drilled and countersunk
With constant torque.
temperaturee resistance: 0 °C ~ 40° C
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TB45L.30 | 61 x 88 x 3 mm | Stainless steel untreated |
150.HG-TB45R.30 | 61 x 88 x 3 mm | Stainless steel untreated |
Serie 150.HG-IT
drilled
With constant torque.
temperaturee resistance: -10 °C ~ 50 °C, aperture angle: approx.190°
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-ITS25.30 | 54 x 44 x 2 mm | Stainless steel polished |
150.HG-ITS35.30 | 54 x 44 x 2 mm | Stainless steel polished |
150.HG-ITSF.30 | 54 x 44 x 2 mm | Stainless steel polished |
Serie 150.HG-IT
Cover for Art. No. 150.HG-IT
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-ITSC.30 | / | ABS silver-metallic |
150.HG-ITMC.30 | / | ABS silver-metallic |
Serie 6493
drilled
Hinge for invisible fence with constant torque
Only for indoor applications. Can be used horizontally or vertically.
Art.-No. | Dimensions | Material |
---|---|---|
6493.01.33 | 40 x 67 x 1,5 mm | Stainless steel polished |
Serie 150.HG-T30
drilled
2-axis hinge with constant torque.
temperaturee resistance: 0 °C ~ 40 °C, Provides torque stability in both directions, Tilting: 2,9 Nm, Swivelling: 1,4 Nm. Suitable for monitor screens.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-T30.S15.30 | 60 x 51,5 x 2 mm | Stainless steel 1.4016 polished |
Serie 150.HG-T70
drilled and countersunk
2-axis hinge with constant torque.
temperaturee resistance: 0 °C ~ 40 °C, Provides torque stability in both directions. Tilting: 7 Nm, Swivelling: 3 Nm. Suitable for monitor screens.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-T70.S30.30 | 50 x 76 mm | Stainless steel 1.4016 polished |
Serie 150.KA-T100S50
drilled
Monitor bracket with constant torque and Zusatzsperre
Swivelling 180°, Tilting 40°. Applicable monitor size: 12 ~ 22,9 inch (up to approx. 10,0 kg)
Art.-No. | Dimensions | Material |
---|---|---|
150.KA-T100S50 | 112 x 112 mm | Stainless steel 1.4016 |
Serie 150.KA-150
drilled
including hex key (for fixing the mounting base)
Monitor mount is used for moving and adjusting monitor position.
Art.-No. | Dimensions | Material |
---|---|---|
150.KA-150 | 90 x 90 x 150 mm | / |
Serie 150.TV
drilled
Monitor bracket for wall mounting.
Used to fix a small display on the wall (max. 8 kg).
Art.-No. | Dimensions | Material |
---|---|---|
150.TV-400SK | 195 x 134 x 40 mm | / |
Serie 150.HG-TQJ100
drilled
Adjustable one way torque hinge.
temperaturee resistance: 0 ~ 40 °C, aperture angle approx. (248°). Allows for frictionless handling of the door in the opposite direction.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TQJ100-A.53 | 55 x 60 x 7,5 mm | Zamak matt chrome-plated |
150.HG-TQJ100-B.53 | 55 x 60 x 7,5 mm | Zamak matt chrome-plated |
Serie 150.HG-TUWA
drilled
Concealed hinge with fence and constant torque
aperture angle (130°). Can be used horizontally or vertically.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TUWA07.33 | 50 x 61 x 1,5 mm | Stainless steel polished |
150.HG-TUWA15.33 | 50 x 61 x 1,5 mm | Stainless steel polished |
Serie 150.HG-ITJ4080
drilled
with adjustable torque
temperaturee resistance: 0 ~ 40 °C, aperture angle (265°).
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-ITJ4080.30 | 43 x 80 x 2,5 mm | Stainless steel trowalised |
Serie 150.HG-ITHP
drilled
With constant torque.
temperaturee resistance: 0 ~ 100 ° C, aperture angle approx. (269°).
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-ITHP07.30 | 60 x 44 | Stainless steel trowalised |
150.HG-ITHP15.30 | 60 x 44 | Stainless steel trowalised |
150.HG-ITHP30.30 | 60 x 44 | Stainless steel trowalised |
Serie 150.HG-TLS30
drilled
Stangenscharnier with constant torque.
aperture angle approx. 295°.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TLS30-50-300.30 | 50 x 300 x 1,5 mm | Stainless steel untreated |
Serie 150.HG-DTB
drilled and countersunk
Hinge mit konstantemDrehmoment and with adjustable torque.
temperaturee resistance: 0 ~ 40 °C, aperture angle approx. 168°.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-DTB4-R.33 | 33 x 51,5 x 2,5 mm | Stainless steel polished |
150.HG-DTB4-L.33 | 33 x 51,5 x 2,5 mm | Stainless steel polished |
150.HG-DTB8-R.33 | 33 x 51,5 x 2,5 mm | Stainless steel polished |
150.HG-DTB8-L.33 | 33 x 51,5 x 2,5 mm | Stainless steel polished |
Serie 150.HG-TASJ40
drilled
With adjustable torque.
temperaturee resistance: 0 ~ 40 °C, aperture angle approx. 269°.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TASJ40R.33 | 80 x 18,5 x 2 mm | Stainless steel polished |
150.HG-TASJ40L.33 | 80 x 18,5 x 2 mm | Stainless steel polished |
Serie 150.HG-TBSJ40
drilled and countersunk
With adjustable torque.
temperaturee resistance: 0 ~ 40 °C, aperture angle approx. 270°.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TBSJ40R.33 | 40 x 61 x 2 mm | Stainless steel polished |
150.HG-TBSJ40L.33 | 40 x 61 x 2 mm | Stainless steel polished |
Serie 150.HG-RT
drilled and countersunk
Concealed hinge with decreasing torque.
temperaturee resistance: 0 ~ 40 °C, aperture angle 0 ° ~ 100°
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-RT30.53 | 52,6 x 70 x 6,5 mm | Zamak chrome-plated |
150.HG-RT50.53 | 52,6 x 70 x 6,5 mm | Zamak chrome-plated |
Serie 150.HG-KNT
drilled
With constant torque, lift-off type.
Can be used vertically and horizontally.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-KNT3L.33 | 50 x 35 x 2 mm | Stainless steel polished |
150.HG-KNT3R.33 | 50 x 35 x 2 mm | Stainless steel polished |
Serie 150.HG-TMH
drilled and countersunk
2-axis torque hinge.
180° swivelling. Suitable for folding table of shop and train.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TMH1530.53 | 43,5 x 55 x 16,75 mm | Zamak Nickel satinised |
150.HG-TMH2030.53 | 43,5 x 55 x 16,75 mm | Zamak Nickel satinised |
150.HG-TMH1530-SN.51 | 43,5 x 55 x 16,75 mm | Zamak black |
150.HG-TMH2030-SN.51 | 43,5 x 55 x 16,75 mm | Zamak black |
150.HG-TMH1530-BL.57 | 43,5 x 55 x 16,75 mm | Zamak chrome-plated |
150.HG-TMH2030-BL.57 | 43,5 x 55 x 16,75 mm | Zamak chrome-plated |
Serie 150.HG-JHW
self-closing, drilled and countersunk
With constant torque.
aperture angle approx. 115°. Hinge with built-in dampers.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-JHW16S-34.85 | 85 x 59 x 12,5 mm | PBT dunkelgrey |
150.HG-JHW16S-50.85 | 85 x 59 x 12,5 mm | PBT dunkelgrey |
150.HG-JHW16S-00.85 | 85 x 59 x 12,5 mm | PBT dunkelgrey |
150.HG-JHW16S-34G.85 | 85 x 59 x 12,5 mm | PBT dunkelgrey |
150.HG-JHW16S-50G.85 | 85 x 59 x 12,5 mm | PBT dunkelgrey |
Serie 150.HG-JHWG
self-opening, drilled and countersunk
With constant torque.
aperture angle approx. 115°. Hinge with built-in dampers.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-JHW50G.85 | 115 x 72 x 26,5 mm | PBT dunkelgrey |
150.HG-JHW70G.85 | 115 x 72 x 26,5 mm | PBT dunkelgrey |
Serie 6879
drilled
With constant torque.
aperture angle approx. 115°, Hinge with built-in damper. Smooth movement in the opening direction.
Art.-No. | Dimensions | Material |
---|---|---|
6879.01.02 | 75 x 60 x 26,5 mm | PBT dunkelgrey |
6879.02.85 | 75 x 60 x 26,5 mm | PBT dunkelgrey |
Serie 6198
drilled
With constant torque.
Friction in one direction only. Torque per pair: 9 N/m. Initial torque can vary between -20% and +40%.
Art.-No. | Dimensions | Material |
---|---|---|
6198.01.70 | 77,5 x 60 x 16 mm | Aluminium anodised |
6198.02.70 | 77,5 x 60 x 16 mm | Aluminium anodised |
Serie 150.HG-JHM
drilled
With constant torque. Mortise mount type.
Hinge with built-in dampers. Smooth movement in the opening direction. Minimum door thickness 8mm. Damper mechanism works when opening the lid by about 60°.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-JHM20-80BL.87 | 54 x 66 x 21,9 mm | POM black |
150.HG-JHM20-80WT.81 | 54 x 66 x 21,9 mm | POM white |
Serie 150.HG-JHM
drilled
Hinge with built-in damper and constant torque for side mounting.
temperaturee resistance: 0 ~ 40 °C, aperture angle 105°, minimum lid thickness 8 mm, Damper mechanism works when opening the lid by about 60°.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-JHM14-S-8BL.87 | 48 x 48 | POM black |
150.HG-JHM14-S-15BL.87 | 48 x 48 | POM black |
150.HG-JHM14-S-20BL.87 | 48 x 48 | POM black |
150.HG-JHM14-S-8WT.81 | 48 x 48 | POM white |
150.HG-JHM14-S-15WT.81 | 48 x 48 | POM white |
150.HG-JHM14-S-20WT.81 | 48 x 48 | POM white |
Serie 150.HG-JH
drilled and countersunk
Soft-Close Hinge with built-in damper and constant torque.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-JH14-50.33 | 46 x 100 x 21 | Stainless steel hochglanzpolished |
Serie 150.HG-JHM9-S
drilled and countersunk
Hinge with built-in damper and constant torque for side mounting.
temperaturee resistance: 0 ~ 40 °C, aperture angle 105°
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-JHM9-SBL.87 | 43 x 32 x 13,2 mm | POM black |
150.HG-JHM9-S4BL.87 | 43 x 32 x 13,2 mm | POM black |
150.HG-JHM9-SWT.81 | 43 x 32 x 13,2 mm | POM white |
150.HG-JHM9-S4WT.81 | 43 x 32 x 13,2 mm | POM white |
Serie 150.HG-JHM9-U
drilled and countersunk
Hinge with built-in damper and constant torque for die Montage from unten.
temperaturee resistance: 0 ~ 40 °C, aperture angle 105°
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-JHM9-UBL.87 | 43 x 32 x 13,2 mm | POM black |
150.HG-JHM9-H4BL.87 | 43 x 32 x 13,2 mm | POM black |
150.HG-JHM9-UWT.81 | 43 x 32 x 13,2 mm | POM white |
150.HG-JHM9-H4WT.81 | 43 x 32 x 13,2 mm | POM white |
Serie 150.HG-JHS9-S
drilled and countersunk
Small damper hinge with self-opening function built-in damper, adjustable torque for side mounting.
temperaturee resistance: 0 ~ 40 °C, aperture angle 105°
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-JHS9-SBL.87 | 43 x 32 x 13,2 mm | POM black |
150.HG-JHS9-SWT.81 | 43 x 32 x 13,2 mm | POM white |
Serie 150.HG-JHS9-U
drilled and countersunk
Small damper hinge with self-opening function built-in damper and adjustable torque for die Montage from unten.
temperaturee resistance: 0 ~ 40 °C, aperture angle 105°.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-JHS9-UBL.87 | 43 x 32 x 13,2 mm | POM black |
150.HG-JHS9-UWT.81 | 43 x 32 x 13,2 mm | POM white |
Serie 150.HG-CSH63
drilled
Hinge with constant torque and with adjustable torque.
Detent at both 0° and 100°. Torque not adjustable.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-CSH631.71 | 63 x 80 x 5 mm | Aluminium anodised |
150.HG-CSH63AM2.71 | 63 x 80 x 5 mm | Aluminium anodised |
150.HG-CSH63AH2.71 | 63 x 80 x 5 mm | Aluminium anodised |
150.HG-CSH63BM3.71 | 63 x 80 x 5 mm | Aluminium anodised |
150.HG-CSH63BH3.71 | 63 x 80 x 5 mm | Aluminium anodised |
Serie 150.HG-PA
drilled
Lift Assist with adjustable torque.
Easy to lift heavy top-opening lid with spring tension. Smooth and soft-closing movement at the end, preventing Lid from slamming shut.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-PA180-9.30 | 100 x 178 x 40 mm | Stainless steel |
Serie 150.HG-PA
drilled
Lift Assist with adjustable torque and plastic cover (PBT light grey).
Easy to lift heavy top-opening lid with spring tension. Smooth and soft-closing movement at the end, preventing Lid from slamming shut. Adjustable torque (± 5%).
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-PA200-15.30 | 150 x 201 x 42 mm | Stainless steel |
150.HG-PA200-20.30 | 150 x 201 x 42 mm | Stainless steel |
150.HG-PA200-25.30 | 150 x 201 x 42 mm | Stainless steel |
150.HG-PA201-15.30 | 150 x 201 x 42 mm | Stainless steel |
150.HG-PA201-20.30 | 150 x 201 x 42 mm | Stainless steel |
150.HG-PA201-25.30 | 150 x 201 x 42 mm | Stainless steel |
Serie 150.HG-PA
drilled
Lift Assist with adjustable torque and plastic cover (PBT light grey).
Easy to lift heavy top-opening lid with spring tension. Smooth and soft-closing movement at the end, preventing Lid from slamming shut. Adjustable torque (± 5%).
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-PA270-35.30 | 182 x 274 x 56 mm | Stainless steel |
150.HG-PA270-45.30 | 182 x 274 x 56 mm | Stainless steel |
Serie 150.HG-PA
drilled
Lift Assist with adjustable torque mit Stopperplatte and plastic cover (PBT light grey).
Able to limit the 140° opening angle to 55° or 80° with use of the included stopper plate. Easy to lift heavy top-opening lid with spring tension. Smooth and soft-closing movement at the end, preventing Lid from slamming shut.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-PA210-9.30 | 100 x 205 x 43,5 mm | Stainless steel |
Serie 150.HG-PA
drilled
Lift Assist detend function with plastic cover (PBT light grey).
Easy to lift heavy top-opening lid with spring tension. Smooth and soft-closing movement at the end, preventing Lid from slamming shut. Adjustable torque (± 5%).
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-PA230-15.30 | 152 x 231 x 43,5 mm | Stainless steel |
150.HG-PA230-20.30 | 152 x 231 x 43,5 mm | Stainless steel |
150.HG-PA230-25.30 | 152 x 231 x 43,5 mm | Stainless steel |
150.HG-PA231-15.30 | 152 x 231 x 43,5 mm | Stainless steel |
150.HG-PA231-20.30 | 152 x 231 x 43,5 mm | Stainless steel |
150.HG-PA231-25.30 | 152 x 231 x 43,5 mm | Stainless steel |
Serie 6874
with constant torque, drilled and countersunk
Locking position every 30° from 0° to 270°. With 4 different available locking moments.
Art.-No. | Dimensions | Material |
---|---|---|
6874.01.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 anodised black |
6874.02.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 anodised black |
6874.03.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 anodised black |
6874.04.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 anodised black |
Serie 6875
with stainless steel pin, drilled and countersunk
Locking position every 90°
Maximum weight of the door: 1.2 kg for 2 hinges
Art.-No. | Dimensions | Material |
---|---|---|
6875.01.80 | 50 x 60 x 9 mm | Plastic-Polyacetal ivory |
6875.02.80 | 50 x 60 x 9 mm | Plastic-Polyacetal black |
Serie 6871
drilled and countersunk
Locking position every 30° from 0° up to 270°
Drag moment is not adjustable
Art.-No. | Dimensions | Material |
---|---|---|
6871.06.71 | 30 x 35 x 3 | Aluminium 6060 T5 anodised / colourless |
6871.06.77 | 30 x 35 x 3 | Aluminium 6060 T5 anodised / colourless |
Serie 150.HG-MPS2
drilled
Locking positions: -10°, 120° and 170°,
can be used horizontally or vertically
Additional stopper is recommended at 0° (fully closed) and 170° (fully opened)
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-MPS2-BL.87 | 30 x 30 x 4,75 mm | PBT black |
150.HG-MPS2-WT.81 | 30 x 30 x 4,75 mm | PBT white |
Serie 150.HG-FH128
Locking positions: at 60 ° and 120 °, drilled and countersunk
Depth and horizontal adjustment can also made after installation.
Fluororesin washer at redation part ensures smooth operation
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-FH128.51 | 128 x 128,6 mm | Zamak nickel-plated |
Serie 150.CH-75
Locking positions: 0°, 90° and 180°, drilled and countersunk
Cushion funtion absorbs impact at full opening and unexpected external force.
Cushion function absorbs impact at full opening and unexpected external force
Art.-No. | Dimensions | Material |
---|---|---|
150.CH-75-NI.51 | 75 x 60 | Zamak nickel-plated |
150.CH-75-GB.55 | 75 x 60 | Zamak bronzed |
Serie 150.HG-RCT15-C
use in pairs, drilled and countersunk
Ratchet mechanism holds at angels in 5° increment from closed to opened position, the friction (resistance) function works even when release the ratchet mechanism.
When the mounting width of hinge is more than 400mm, the ratchet mechanism may not work simultaneously on the left and right.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-RCT15-C.01 | 111,5 x 79 mm | Steel nickel-plated |
Serie 150_HG-TS
drilled
With constant torque
temperaturee resistance: -10 °C ~ 50 °C, Operating humidity: ~ 90% RH (or less)
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TS07.30 | 48 x 40 x 1,2 mm | Stainless steel polished |
Serie 150_HG-TS
drilled
With constant torque
temperaturee resistance: -10 °C ~ 50 °C, Operating humidity: ~ 90% RH (or less)
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TS15.30 | 48 x 50 x 2 mm | Stainless steel polished |
Serie 150.HG-TA
drilled
With constant torque.
temperaturee resistance: 0 °C ~ 40° C
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-TA45L.30 | 23,5 x 80 x 2 mm | Stainless steel polished |
150.HG-TA45R.30 | 23,5 x 80 x 2 mm | Stainless steel polished |
Serie 150.HG-IT
drilled
With constant torque.
temperaturee resistance: -10 °C ~ 50 °C, aperture angle: approx.190°
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-ITM50.30 | 54 x 80 x 2 mm | Stainless steel polished |
150.HG-ITM70.30 | 54 x 80 x 2 mm | Stainless steel polished |
150.HG-ITMF.30 | 54 x 80 x 2 mm | Stainless steel polished |
Serie 150_TV
drilled
Monitor bracket for wall mounting.
Used to fix a small display on the wall (max. 8 kg).
Der einstellbare Typ (150.TV-410SK)
kann den Winkel des Monitors approx. 20 °
aus dem senkrechten Zustand nach vorne kippen.
Art.-No. | Dimensions | Material |
---|---|---|
150.TV-410SK | 195 x 134 x 60 mm | / |
Serie 150_HG-KNT
drilled
With constant torque, lift-off type.
Can be used vertically and horizontally.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-KNT7L.33 | 65 x 50 x 2 mm | Stainless steel polished |
150.HG-KNT7R.33 | 65 x 50 x 2 mm | Stainless steel polished |
Serie 150_HG-KNT
drilled
With constant torque, lift-off type
Can be used vertically and horizontally.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-KNT16L.33 | 75 x 50 x 2mm | Stainless steel polished |
150.HG-KNT16R.33 | 75 x 50 x 2mm | Stainless steel polished |
Serie 150_HG-JHW
aperture angle approx. (115°), drilled and countersunk
Hinge with built-in dampers.
Install a stopper such as a stay at the lid opening. Closing position (0 ~ 115 degree) for not exceeding the specified swivelling range.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-JHW50.85 | 115 x 72 x 12,5mm | PBT dunkelgrey |
150.HG-JHW70.85 | 115 x 72 x 12,5mm | PBT dunkelgrey |
Serie 6870
drilled
Stable torque: -40°C - +80°C,
3 Nm
Polyethylenee cover
Art.-No. | Dimensions | Material |
---|---|---|
6870.01.30 | 85 x 55 x 2mm | Stainless steel 1.4310 untreated |
Serie 6870
drilled
Stable torque: -40°C - +80°C,
5 Nm
Polyethylenee cover.
Art.-No. | Dimensions | Material |
---|---|---|
6870.03.30 | 85 x 55 x 2 mm | Stainless steel 1.4310 untreated |
Serie 6870
drilled
Stable torque: -40°C - +80°C,
8 Nm
Polyethylenee cover.
Art.-No. | Dimensions | Material |
---|---|---|
6870.05.30 | 85 x 65 x 3mm | Stainless steel 1.4310 untreated |
Serie 6870
drilled
Stable torque: -40°C - 80°C,
free running
Polyethylenee cover
Art.-No. | Dimensions | Material |
---|---|---|
6870.02.30 | 85 x 55 x 2mm | Stainless steel 1.4301 untreated |
Serie 6870
drilled
Stable torque: -40°C - +80°C,
free running
Polyethylenee cover
Art.-No. | Dimensions | Material |
---|---|---|
6870.04.30 | 85 x 55 x 2 mm | Stainless steel 1.4301 untreated |
Serie 6870
drilled
Stable torque -40°C- +80°C,
free running
Polyethylenee cover
Art.-No. | Dimensions | Material |
---|---|---|
6870.06.30 | 85 x 65 x 3mm | Stainless steel 1.4301 untreated |
Serie 6870
drilled
Stable torque: -40°C - +80°C,
4,5 Nm
Polyethylenee cover
Art.-No. | Dimensions | Material |
---|---|---|
6870.07.30 | 115 x 55 x 2mm | Stainless steel 1.4310 untreated |
Serie 6874
drilled and countersunk
With constant torque.
Locking position every 30° from 0° to 270°. With 4 different available locking moments.
Art.-No. | Dimensions | Material |
---|---|---|
6874.01.77 | 67 x 55 x 4,5 mm | Alu 6060 T5 anodised black |
6874.02.77 | 67 x 55 x 4,5 mm | Alu 6060 T5 anodised black |
6874.03.77 | 67 x 55 x 4,5 mm | Alu 6060 T5 anodised black |
6874.04.77 | 67 x 55 x 4,5 mm | Alu 6060 T5 anodised black |
Serie 6875
with stainless steel pin (1.4305), drilled and countersunk
Locking positions every 90°. Maximum weight of the door: 1.2 kg for 2 hinges.
Art.-No. | Dimensions | Material |
---|---|---|
6875.01.80 | 50 x 60 x 8 mm | Polyacetal ivory |
6875.02.80 | 50 x 60 x 8 mm | Polyacetal black |
Serie 6871
drilled and countersunk
All catch positions 30° from 0° to 270°. Drag moment is not adjustable.
Art.-No. | Dimensions | Material |
---|---|---|
6871.06.71 | 30 x 35 x 3 mm | Alu 6060 T5 anodised |
6871.06.77 | 30 x 35 x 3 mm | Alu 6060 T5 anodised black |
Serie 150.HG-MPS2
drilled
Detent positions: -10°, 120° and 170°. Can be used horizontally or vertically.
Additional stopper is recommended at 0° (fully closed) and 170° (fully opened).
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-MPS2-WT.81 | 30 x 30 x 4,75 mm | PBT white |
150.HG-MPS2-BL.87 | 30 x 30 x 4,75 mm | PBT black |
Serie 150.HG-FH128
drilled and countersunk
Detent positions: at 60° and 120°.
Depth and horizontal adjustment can also made after installation. Fluororesin washer at redation part ensures smooth operation.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-FH128.51 | 128 x 124,5 x 17 mm | Zamak nickel-plated |
Serie 150.CH-75
drilled and countersunk
Detent positions: at 0°, 90° and 180°.
Cushion function absorbs impact at full opening and unexpected external force. Removable hinge pin allows easy installation.
Art.-No. | Dimensions | Material |
---|---|---|
150.CH-75-NI.51 | 75 x 60 x 13 mm | Zamak nickel-plated |
150.CH-75-GB.55 | 75 x 60 x 13 mm | Zamak bronzed |
Serie 91.1071
drilled
Hinge for invisible fence. Opening angle approx.110°.
Art.-No. | Dimensions | Material |
---|---|---|
91.1071.03.04 | 60 x 80 x 3 mm | Steel galvanised |
91.1071.03.30 | 60 x 80 x 3 mm | Stainless steel untreated |
Serie 6069
undrilled
Hinge for invisible fence with an extractable steel pin. Opening angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
6069.00.00 | 100 x 50,5 x 1,2 mm | Steel untreated |
Serie 6069
drilled
Hinge for invisible fence with opening angle 90°.
Art.-No. | Dimensions | Material |
---|---|---|
6069.05.04 | 58,6 x 126,5 x 2 mm | Steel galvanised |
Serie 6069
drilled
Hinge for invisible fence with opening angle 90°.
Art.-No. | Dimensions | Material |
---|---|---|
6069.06.04 | 30,2 x 126,5 x 2 mm | Steel galvanised |
6069.08.04 | 30,2 x 126,5 x 2 mm | Steel galvanised |
Serie 6069
drilled
Hinge for invisible fence with opening angle 90°.
Art.-No. | Dimensions | Material |
---|---|---|
6069.04.04 | 44 x 29 x 32 mm | Steel galvanised |
6069.04.35 | 44 x 29 x 32 mm | Stainless steel 1.4404 untreated |
Serie 6069
drilled
Hinge for invisible fence with opening angle 125°.
Art.-No. | Dimensions | Material |
---|---|---|
6069.18.04 | 44 x 29 x 32 mm | Steel galvanised |
6069.18.35 | 44 x 29 x 32 mm | Stainless steel 1.4404 untreated |
Serie 6069
drilled
Hinge for invisible fence with opening angle 125°.
Art.-No. | Dimensions | Material |
---|---|---|
6069.19.04 | 77 x 55,2 x 54 mm | Steel galvanised |
6069.19.35 | 77 x 55,2 x 54 mm | Stainless steel 1.4404 untreated |
Serie 6589
drilled
Hinge for invisible fence with opening angle 110°.
Reinforced design; in the test, 2 hinges open and close a door (1m x 1m) weighing 25 kg 10,000 times. Hinges made of anodised aluminium.
Art.-No. | Dimensions | Material |
---|---|---|
6589.04 | 102 x 80,5 x 76 mm | Steel galvanised |
Serie 6069
drilled
with stop with opening angle 180°. Articulation made of stainless steel.
Art.-No. | Dimensions | Material |
---|---|---|
6069.09.53 | 43 x 13 mm | Zamak chrome-plated |
6069.10.53 | 45 x 32 mm | Zamak chrome-plated |
6069.11.53 | 60 x 47 mm | Zamak chrome-plated |
6069.12.53 | 70 x 53 mm | Zamak chrome-plated |
6069.13.53 | 100 x 80 mm | Zamak chrome-plated |
Serie 6069
drilled
Hinge for invisible fence with opening angle 180°.
Art.-No. | Dimensions | Material |
---|---|---|
6069.14.30 | 50 x 14 | Stainless steel satinised |
Serie 6491
drilled
Hinge for invisible fence with opening angle 90°.
Art.-No. | Dimensions | Material |
---|---|---|
6491.01.01 | 44 x 104,5 x 1,2 mm | Steel nickel-plated |
6491.01.35 | 44 x 104,5 x 1,2 mm | Stainless steel 1.4404 untreated |
Serie 6492
drilled
Hinge for invisible fence with opening angle 150°.
Art.-No. | Dimensions | Material |
---|---|---|
6492.01.01 | 52 x 112 x 2 mm | Steel nickel-plated |
6492.01.33 | 52 x 112 x 2 mm | Stainless steel untreated |
Serie 6493
drilled
Hinge for invisible fence, with constant torque.
Art.-No. | Dimensions | Material |
---|---|---|
6493.01.33 | 40 x 67 x 29,5 mm | Stainless steel polished |
Serie 6127
drilled
Hinge for invisible fence with opening angle 120°, with pull out pin.
Hinge can be assembled at left or right direction.
Art.-No. | Dimensions | Material |
---|---|---|
6127.01.00 | 80 x 24 x 3 mm | Steel untreated |
6127.01.30 | 80 x 24 x 3 mm | Stainless steel untreated |
Serie 6127
drilled
Hinge for invisible fence with opening angle 100°, with pull out pin.
Hinge can be assembled at left or right direction.
Art.-No. | Dimensions | Material |
---|---|---|
6127.02.00 | 80 x 16 x 2 mm | Steel untreated |
6127.02.30 | 80 x 16 x 2 mm | Stainless steel untreated |
Serie 6128
drilled
Hinge for invisible fence with opening angle 90°, with pull out pin.
Hinge can be assembled at left or right direction.
Art.-No. | Dimensions | Material |
---|---|---|
6128.01.30 | 80 x 62 x 4 mm | Steel untreated |
6128.01.00 | 80 x 62 x 4 mm | Stainless steel untreated |
Serie 6128
drilled
Hinge for invisible fence with opening angle 90°, with pull out pin.
Hinge can be assembled at left or right direction.
Art.-No. | Dimensions | Material |
---|---|---|
6128.02.00 | 80 x 61 x 4 mm | Steel untreated |
6128.02.30 | 80 x 61 x 4 mm | Stainless steel untreated |
Serie 6103
drilled
Hinge for invisible fence with opening angle 120°, with pull out pin.
Available in two additional versions.
Art.-No. | Dimensions | Material |
---|---|---|
6103.01.04 | 60 x 75 x 2,5 mm | Steel galvanised |
6103.01.30 | 60 x 75 x 2,5 mm | Stainless steel untreated |
Serie 6104
drilled
Hinge for invisible fence with opening angle 120°, with pull out pin.
Available in two additional versions.
Art.-No. | Dimensions | Material |
---|---|---|
6104.01.04 | 60 x 75 x 2,5 mm | Steel galvanised |
6104.01.30 | 60 x 75 x 2,5 mm | Stainless steel untreated |
Serie 6100
right, drilled
Hinges with spring-loaded pins for assembly/disassembly of doors and flaps.
Art.-No. | Dimensions | Material |
---|---|---|
6100.01.04 | 82 x 18,2 x 2,8 mm | Steel galvanised |
6100.05.30 | 82 x 18,2 x 2,8 mm | Stainless steel untreated |
6100.04.00 | 82 x 18,2 x 2,8 mm | Steel untreated |
Serie 6100
left, drilled
Hinges with spring-loaded pins for assembly/disassembly of doors and flaps.
Art.-No. | Dimensions | Material |
---|---|---|
6100.03.00 | 82 x 18,2 x 2,8 mm | Steel untreated |
6100.02.04 | 82 x 18,2 x 2,8 mm | Steel galvanised |
6100.06.30 | 82 x 18,2 x 2,8 mm | Stainless steel untreated |
Serie 6102
right, drilled
Hinges with spring-loaded pins for assembly/disassembly of doors and flaps.
Art.-No. | Dimensions | Material |
---|---|---|
6102.01.00 | 82 x 21 x 2 mm | Steel untreated |
6102.03.04 | 82 x 21 x 2 mm | Steel galvanised |
6102.06.30 | 82 x 21 x 2 mm | Stainless steel untreated |
Serie 6102
left, drilled
Hinges with spring-loaded pins for assembly/disassembly of doors and flaps.
Art.-No. | Dimensions | Material |
---|---|---|
6102.05.30 | 82 x 21 x 2 mm | Stainless steel untreated |
6102.02.00 | 82 x 21 x 2 mm | Steel untreated |
6102.04.04 | 82 x 21 x 2 mm | Steel galvanised |
Serie 6588
drilled
Two-part hinge for the invisible fence, with spring-loaded pin for assembly/disassembly of doors and flaps.
Art.-No. | Dimensions | Material |
---|---|---|
6588.01.30 | 126 x 17,5 x 1,5 mm | Stainless steel untreated |
6588.02.30 | 126 x 20,5 x 1,5 mm | Stainless steel untreated |
6588.03.30 | 126 x 23,5 x 1,5 mm | Stainless steel untreated |
Serie 6214
drilled
For horizontal application only. Steel retaining plate.
Art.-No. | Dimensions | Material |
---|---|---|
6214.01.04 | 50 x 166 x 74,7 mm | Steel galvanised |
Serie 6214
with spring, drilled
For horizontal application only. Steel retaining plate.
Torque of the spring „opening“: 1 N.m / hinge. Torque of the spring „closing“: 3 N.m/hinge.
Art.-No. | Dimensions | Material |
---|---|---|
6214.02.04 | 50 x 166 x 74,7 mm | Steel galvanised |
Serie 6214
with spring, drilled
For horizontal application only. Polymer retaining plate.
Art.-No. | Dimensions | Material |
---|---|---|
6214.03.04 | 50 x 166 x 74,7 mm | Steel galvanised |
Serie 4002
with grub screw
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4002.01.53 | 40 x 40 x 5 mm | Zamak chrome-plated |
4002.01.57 | 40 x 40 x 5 mm | Zamak black |
Serie 4002
with grub screw
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4002.03.53 | 50 x 50 x 6 mm | Zamak chrome-plated |
4002.03.57 | 50 x 50 x 6 mm | Zamak black |
Serie 4002
with grub screw
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4002.04.53 | 60 x 60 x 8 mm | Zamak chrome-plated |
4002.04.57 | 60 x 60 x 8 mm | Zamak black |
Serie 4012
with grub screw
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4012.01.57 | 50 x 76 x 6 mm | Zamak black |
4012.01.53 | 50 x 76 x 6 mm | Zamak chrome-plated |
Serie 4014
with grub screw
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4014.01.57 | 60 x 90 x 8 mm | Zamak black |
4014.01.53 | 60 x 90 x 8 mm | Zamak chrome-plated |
Serie 4001
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4001.01.57 | 30 x 30 x 4 mm | Zamak black |
4001.01.53 | 30 x 30 x 4 mm | Zamak chrome-plated |
Serie 4001
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4001.02.87 | 40 x 40 x 5 mm | Polyamide black |
4001.02.35 | 40 x 40 x 5 mm | Stainless steel 1.4404 satinised |
4001.02.57 | 40 x 40 x 5 mm | Zamak black |
4001.02.53 | 40 x 40 x 5 mm | Zamak chrome-plated |
Serie 4001
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4001.03.87 | 50 x 50 x 6 mm | Polyamide black |
4001.03.35 | 50 x 50 x 6 mm | Stainless steel 1.4404 satinised |
4001.03.57 | 50 x 50 x 6 mm | Zamak black |
4001.03.53 | 50 x 50 x 6 mm | Zamak chrome-plated |
Serie 4001
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4001.04.35 | 60 x 60 x 8 mm | Stainless steel 1.4404 satinised |
4001.04.57 | 60 x 60 x 8 mm | Zamak black |
4001.04.53 | 60 x 60 x 8 mm | Zamak chrome-plated |
Serie 4011
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4011.01.35 | 50 x 76 x 6 mm | Stainless steel 1.4404 satinised |
4011.01.57 | 50 x 76 x 6 mm | Zamak black |
4011.01.53 | 50 x 76 x 6 mm | Zamak chrome-plated |
Serie HF50EH
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
HF50EH-T10-1 | 60 x 76 x 8 mm | Zamak black |
Serie HF50EH
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
HF50EH-T13-1 | 60 x 76 x 8 mm | Zamak black |
Serie 4013
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4013.01.35 | 50 x 63 x 6 mm | Zamak black |
4013.01.57 | 50 x 63 x 6 mm | Stainless steel 1.4404 satinised |
Serie 4101
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4101.01.57 | 40 x 40 x 5 mm | Zamak black |
4101.02.35 | 40 x 40 x 5 mm | Stainless steel 1.4404 satinised |
4101.01.35 | 40 x 40 x 5 mm | Stainless steel 1.4404 satinised |
4101.02.57 | 40 x 40 x 5 mm | Zamak black |
Serie 4102
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4102.01.35 | 50 x 50 x 6 mm | Stainless steel 1.4404 satinised |
4102.02.35 | 50 x 50 x 6 mm | Stainless steel 1.4404 satinised |
4102.01.57 | 50 x 50 x 6 mm | Zamak black |
4102.02.57 | 50 x 50 x 6 mm | Zamak black |
Serie 4103
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
4103.01.57 | 60 x 60 x 8 mm | Zamak black |
4103.02.57 | 60 x 60 x 8 mm | Zamak black |
4103.01.35 | 60 x 60 x 8 mm | Stainless steel 1.4404 satinised |
4103.02.35 | 60 x 60 x 8 mm | Stainless steel 1.4404 satinised |
Serie HC90
drilled and countersunk
pin in hardened steel
Art.-No. | Dimensions | Material |
---|---|---|
HC90ED-T-0 | 60 x 47/ H 0 mm | Zamak chrome-plated |
HC90ED-T-4 | 60 x 47/ H 4 mm | Zamak chrome-plated |
HC90ED-T-6 | 60 x 47/ H 6 mm | Zamak chrome-plated |
HC90ED-T-10 | 60 x 47/ H 10 mm | Zamak chrome-plated |
HC90EH-T-0 | 60 x 47/ H 0 mm | Zamak black |
HC90EH-T-4-4 | 60 x 47/ H 4 mm | Zamak black |
HC90EH-T-6-6 | 60 x 47/ H 6 mm | Zamak black |
HC90EH-T-10 | 60 x 47/ H 10 mm | Zamak black |
HC90ES-T-0 0 | 60 x 47/ H 0 mm | Stainless steel satinised |
Serie HF59
with grub screw
zinc plated pin
Art.-No. | Dimensions | Material |
---|---|---|
HF59EH-1 | 64 x 50 x 11 mm | Zamak black |
HF59EH-2 | 64 x 50 x 11 mm | Zamak black |
Serie HS40
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
HS40ED-19 | 60 x 66 x 5 mm | Zamak chrome-plated |
HS40EH-19 | 60 x 66 x 5 mm | Zamak black |
Serie HS40
drilled and countersunk
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
HS40EH-25 | 60 x 66 x 5 mm | Zamak black |
HS40ED-25 | 60 x 66 x 5 mm | Zamak chrome-plated |
Serie HS50
with internal thread
stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
HS50EH-1 | 45 x 12 (bis Mitte pin) | Zamak black |
HS50ED-1 | 45 x 12 (bis Mitte pin) | Zamak chrome-plated |
Serie 6030
with internal thread
Art.-No. | Dimensions | Material |
---|---|---|
6030.01.23 | 38 x 18,5 x 1,5 mm | Brass chrome-plated |
Serie 6031
with fixed stainless steel pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6031.01.23 | 38 x 18,5 x 1,5 mm | Brass chrome-plated |
Serie 6031
with fixed stainless steel pin, drilled
Art.-No. | Dimensions | Material |
---|---|---|
6031.02.35 | 60 x (21,5+30) x 1,5 mm | Stainless steel 1.4401 shiny |
Serie 6032
drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6032.01.30 | 50 x (20,3+24,5) x 1,2 mm | Stainless steel 1.4401 shiny |
Serie 6033
with fixed stainless steel pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6033.01.30 | 50 x (13,5+15) x 1 mm | Stainless steel 1.4016 shiny |
Serie 6034
with extractable stainless steel pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6034.01.03 | 38 x (22,5+19) x 1,5 mm | Stainless steel 1.4016 chrome-plated |
6034.02.03 | 38 x (23+19) x 1,5 mm | Stainless steel 1.4016 chrome-plated |
6034.03.03 | 38 x (24,5+19) x 1,5 mm | Stainless steel 1.4016 chrome-plated |
6034.01.07 | 38 x (22,5+19) x 1,5 mm | Stainless steel 1.4016 bronzed |
Serie 6035
with extractable pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6035.02.03 | 55 x (16,5+37,5) x 1,5 mm | Steel chrome-plated |
Serie 6037
with extractable pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6037.01.03 | 55 x 38 x 1,5 mm | Steel brass plated |
6037.01.02 | 55 x 38 x 1,5 mm | Steel nickel-plated |
Serie 6037
with extractable pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6037.03.04 | 60 x 65 x 1,5 mm | Steel galvanised |
Serie 6038
with extractable pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6038.01.01 | 38 x (17+27) x 1,5 mm | Steel nickel-plated |
6038.02.03 | 38 x (17+27) x 1,5 mm | Steel chrome-plated |
6038.01.03 | 39 x (17+27) x 1,5 mm | Steel chrome-plated |
Serie 6041
with extractable pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6041.01.03 | 38 x 70 x 1,5 mm | Steel chrome-plated |
6041.01.07 | 38 x 70 x 1,5 mm | Steel bronzed |
Serie 6072
with fixed steel pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6072.01.00 | 60 x 40 x 1,5 mm | Steel untreated |
6072.02.00 | 80 x 50 x 2 mm | Steel untreated |
6072.05.00 | 80 x 40 x 1,5 mm | Steel untreated |
6072.01.30 | 60 x 40 x 1,5 mm | Stainless steel untreated |
6072.02.30 | 80 x 50 x 2 mm | Stainless steel untreated |
6072.05.00 | 80 x 40 x 1,5 mm | Stainless steel untreated |
Serie 6072
with fixed steel pin and brass intermediate ring, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6072.03.00 | 61,5 x 40 x 1,5 mm | Steel untreated |
6072.04.00 | 81,5 x 50 x 2 mm | Steel untreated |
6072.03.30 | 61,5 x 40 x 1,5 mm | Stainless steel untreated |
6072.04.30 | 81,5 x 50 x 2 mm | Stainless steel untreated |
Serie 6073
with extractable steel pin and brass intermediate ring, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6073.01.00 | 62 x 62 x 2,5 mm | Steel untreated |
6073.02.00 | 62 x 62 x 2,5 mm | Steel untreated |
Serie 6098
with fixed steel pin and Messing-intermediate ring, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6098.01.00 | 63 x 80 x 4,2 mm | Steel untreated |
6098.02.00 | 83,5 x 80 x 5,1 mm | Steel untreated |
6098.03.00 | 104 x 92 x 5,5 mm | Steel untreated |
6098.04.00 | 124 x 108 x 6,5 mm | Steel untreated |
6098.05.00 | 144 x 108 x 6,5 mm | Steel untreated |
Serie 6099
with fixed steel pin and Messing-intermediate ring, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6099.02.00 | 83,5 x 80 x 5,1 mm | Steel untreated |
6099.03.00 | 104 x 92 x 5,5 mm | Steel untreated |
6099.07.00 | 83,5 x 80 x 5,1 mm | Steel untreated |
6099.08.00 | 104 x 92 x 5,5 mm | Steel untreated |
Serie 6120
with fixed steel pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6120.01.00 | 60 x 40 x 1,5 mm | Steel untreated |
6120.03.00 | 80 x 48 x 2 mm | Steel untreated |
6120.02.00 | 60 x 40 x 1,5 mm | Steel untreated |
6120.04.00 | 80 x 48 x 2 mm | Steel untreated |
Serie 6120
with fixed steel pin and brass intermediate ring, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6120.05.00 | 61,5 x 40 x 1,5 mm | Steel untreated |
6120.07.00 | 81,5 x 50 x 2 mm | Steel untreated |
6120.06.00 | 61,5 x 40 x 1,5 mm | Steel untreated |
6120.08.00 | 81,5 x 50 x 2 mm | Steel untreated |
Serie 10010048
with stainless steel pin, drilled
Art.-No. | Dimensions | Material |
---|---|---|
10010048.01.30 | 100 x 100 x 4 mm | Stainless steel untreated |
10010048.02.30 | 100 x 100 x 4 mm | Stainless steel untreated |
Serie 6076
with fixed steel pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6076.02.00 | 50 x 30 x 1,2 mm | Steel untreated |
6076.03.00 | 60 x 40 x 1,5 mm | Steel untreated |
6076.01.00 | 50 x 30 x 1,2 mm | Steel untreated |
6076.04.00 | 60 x 40 x 1,5 mm | Steel untreated |
Serie 6077
with fixed steel pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6077.01.01 | 30 x 40 x 1,2 mm | Steel nickel-plated |
6077.02.01 | 30 x 40 x 1,2 mm | Steel nickel-plated |
Serie 6078
with fixed steel pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6078.02.01 | 40 x 50 x 1,5 mm | Steel nickel-plated |
6078.01.01 | 40 x 50 x 1,5 mm | Steel nickel-plated |
Serie 6079
with fixed steel pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6079.01.01 | 50 x 30 x 1,3 mm | Steel nickel-plated |
6079.02.01 | 50 x 30 x 1,3 mm | Steel nickel-plated |
Serie 6080
with fixed steel pin, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6080.02.01 | 60 x 40 x 1,5 mm | Steel nickel-plated |
6080.03.01 | 70 x 45 x 1,5 mm | Steel nickel-plated |
6080.06.01 | 80 x 50 x 1,5 mm | Steel nickel-plated |
6080.01.01 | 60 x 40 x 1,5 mm | Steel nickel-plated |
6080.04.01 | 70 x 45 x 1,5 mm | Steel nickel-plated |
6080.05.01 | 80 x 50 x 1,5 mm | Steel nickel-plated |
Serie 6085
with fixed, Zinc plated steel bolt and nylon coating, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6085.02.70 | 80 x 80 x 3,5 mm | Aluminium anodised silver |
6085.01.70 | 80 x 80 x 3,5 mm | Aluminium anodised silver |
Serie 6086
with fixed, Zinc plated steel bolt and nylon coating, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6086.01.70 | 100 x 85 x 3,5 mm | Aluminium anodised silver |
6086.02.70 | 100 x 85 x 3,5 mm | Aluminium anodised silver |
Serie 6087
with fixed, Zinc plated steel bolt and nylon coating, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6087.01.70 | 100 x 100 x 4 mm | Aluminium anodised silver |
6087.02.70 | 100 x 100 x 4 mm | Aluminium anodised silver |
Serie 6088
with fixed stainless steel pin and Edelstahl intermediate ring, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6088.01.30 | 80 x 80 x 2,5 mm | Stainless steel brushed |
6088.02.30 | 80 x 80 x 2,5 mm | Stainless steel brushed |
Serie 6088
with fixed stainless steel pin and Edelstahl intermediate ring, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6088.03.30 | 80 x 80 x 2,5 mm | Stainless steel brushed |
6088.04.30 | 80 x 80 x 2,5 mm | Stainless steel brushed |
Serie 6088
with fixed stainless steel pin and Edelstahl intermediate ring, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6088.09.30 | 100 x 82 x 2,5 mm | Stainless steel brushed |
6088.10.30 | 100 x 82 x 2,5 mm | Stainless steel brushed |
Serie 6088
with fixed stainless steel pin and Edelstahl intermediate ring, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6088.11.30 | 100 x 82 x 2,5 mm | Stainless steel brushed |
6088.12.30 | 100 x 82 x 2,5 mm | Stainless steel brushed |
Serie 6125
with fixed steel pin with brass intermediate ring,, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6125.01.00 | 48 x 40 x 3 mm | Steel untreated |
6125.02.00 | 60 x 50 x 3,5 mm | Steel untreated |
6125.03.00 | 72 x 60 x 4 mm | Steel untreated |
6125.04.00 | 84 x 70 x 4,5 mm | Steel untreated |
6125.05.00 | 96 x 80 x 5 mm | Steel untreated |
6125.06.00 | 48 x 40 x 3 mm | Steel untreated |
6125.07.00 | 60 x 50 x 3,5 mm | Steel untreated |
6125.08.00 | 72 x 60 x 4 mm | Steel untreated |
6125.09.00 | 84 x 70 x 4,5 mm | Steel untreated |
6125.10.00 | 96 x 80 x 5 mm | Steel untreated |
Serie 99.40402
with stainless steel pin ohne intermediate ring, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
99.40402.33/AL | 40 x 40 x 2 mm | Stainless steel elektropolished |
99.40402.33/AR | 40 x 40 x 2 mm | Stainless steel elektropolished |
Serie 6129
with stainless steel pin with intermediate ring, drilled
Art.-No. | Dimensions | Material |
---|---|---|
6129.01.30 | 80 x 60 x 2 mm | Stainless steel untreated |
6129.02.30 | 80 x 60 x 2 mm | Stainless steel untreated |
Serie 6088
with spring and Nylon intermediate ring, drilled and countersunk
The hinge moves itself automatically back to the initial position with an opening angle of up to 80°
Above 80° the spring function is cancelled.
Art.-No. | Dimensions | Material |
---|---|---|
6088.05.77 | 65 x 55 x 4,5 mm | Aluminium anodised silver |
6088.07.77 | 65 x 55 x 4,5 mm | Aluminium anodised black |
6088.06.77 | 65 x 55 x 4,5 mm | Aluminium anodised silver |
6088.08.77 | 65 x 55 x 4,5 mm | Aluminium anodised black |
Serie 6124
with stainless steel pin, drilled and countersunk
Maximum load: 40kg
Art.-No. | Dimensions | Material |
---|---|---|
6124.01.80 | 74 x 60 x 7 mm | Polyamide untreated |
6124.02.80 | 74 x 60 x 7 mm | Polyamide untreated |
Serie 6961
with stainless steel pin 1.4301, drilled
No metal-metal contact. Polyacetal sleeves minimize penetrating particles. Adapted for Doors 600 x 800
max. door weight: 8kg per pair
Art.-No. | Dimensions | Material |
---|---|---|
6961.03.71 | 65 x 60 x 3,5 mm | Aluminium untreated |
6961.04.71 | 65 x 60 x 3,5 mm | Aluminium untreated |
Serie 6196
washer is made of Nylon, with internal thread
Art.-No. | Dimensions | Material |
---|---|---|
6196.01.56 | 64 x 50 x 17,5 mm | Zamak black |
6196.02.56 | 64 x 50 x 17,5 mm | Zamak black |
Serie 6128
reinforced hinge hook bolts ohne intermediate ring, with internal thread
Art.-No. | Dimensions | Material |
---|---|---|
6128.04.30 | 64 x 13 x 16 mm | Stainless steel brushed |
Serie 6488
hinge hook bolts ohne intermediate ring,, drilled and countersunk
Art.-No. | Dimensions | Material |
---|---|---|
6488.01.50 | 63,5 x 15,1 x 17,5 mm | Zamak black |
Serie 6101
with extractable brass bolt and zinc plated brass intermediate ring
Assembly kit with screw nuts and grommets.
Art.-No. | Dimensions | Material |
---|---|---|
6101.01.04 | 49 x 18 x 16 mm | Steel galvanised |
Serie 6101
with extractable brass bolt and zinc plated brass intermediate ring
Assembly kit with screw nuts and grommets
Art.-No. | Dimensions | Material |
---|---|---|
6101.03.04 | 33 x 18 x 16 mm | Steel galvanised |
Serie 6101
with extractable steel pin
Assembly kit with screw nuts and grommets
Art.-No. | Dimensions | Material |
---|---|---|
6101.04.00 | 36 x 12,5 x 12 mm | Steel untreated |
Serie 6101
with extractable steel pin
Without screw nuts and grommets
Art.-No. | Dimensions | Material |
---|---|---|
6101.05.00 | 36 x 18,5 x 12 mm | Steel untreated |
Serie 6121
with fixed pin, drilled
Art.-No. | Dimensions | Material |
---|---|---|
6121.01.30 | 60 x 72 x 2 mm | Stainless steel untreated |
6121.02.30 | 60 x 72 x 2 mm | Stainless steel untreated |
Serie 6198
with fixed pin, drilled
Body in aluminium, shaft in stainless steel. Covers in Polyacetal (POM)
Friction in one direction only. 30.000 load change. Torque is constant in torque direction
Torque per pair: 9 N/m. Initial torque may vary from - 20% and + 40%. Torque will be affected by temperature. Do not lubricate. Not suited for vibration enviroment. For indoor use only
Art.-No. | Dimensions | Material |
---|---|---|
6198.01.70 | 77,5 x 60 x 16 mm | Aluminium anodised |
6198.02.70 | 77,5 x 60 x 16 mm | Aluminium anodised |
Serie 6879
drilled
with constant torque. Opening angle approx. 115°. Hinge with built-in dampers. Install a stopper such as a stay at the lid opening closing position (0 ~ 115 degree) for not exceeding the specified swivelling range.
Art.-No. | Dimensions | Material |
---|---|---|
6879.01.02 | 75 x 60 mm | PBT Plastik |
Serie 6195
pin made of stainless steel
Fastening with stud bolt
Art.-No. | Dimensions | Material |
---|---|---|
6195.01.56 | 60 x 72 x 8 mm | Stainless steel untreated |
6195.02.56 | 60 x 72 x 8 mm | Stainless steel untreated |
Serie F2879
with welded stainless steel pin, drilled and countersunk
Trade welded
Art.-No. | Dimensions | Material |
---|---|---|
F28795/F28797.30 | 56 x 120 x 3 mm | Stainless steel 1.4571, untreated |
F28796/F28797.30 | 56 x 120 x 3 mm | Stainless steel 1.4571, untreated |
Serie 6120
without ring washer, drilled
Art.-No. | Dimensions | Material |
---|---|---|
6120.09.30 | 80x48mm | Stainless steel untreated |
Serie ABR
without ring washer, drilled
Art.-No. | Dimensions | Material |
---|---|---|
ABR40FES.00 | 40 x 10 mm | Steel untreated |
ABR50FES.00 | 50 x 10 mm | Steel untreated |
ABR60FES.00 | 60 x 12 mm | Steel untreated |
ABR70FES.00 | 70 x 12 mm | Steel untreated |
ABR80FES.00 | 80 x 16 mm | Steel untreated |
ABR90FES.00 | 90 x 16 mm | Steel untreated |
ABR100FES.00 | 100 x 20 mm | Steel untreated |
ABR120FES.00 | 120 x 20 mm | Steel untreated |
ABR135FES.00 | 135 x 22,5 mm | Steel untreated |
ABR150FES.00 | 150 x 25,5 mm | Steel untreated |
ABR180FES.00 | 180 x 25,5 mm | Steel untreated |
ABR200FES.00 | 200 x 29 mm | Steel untreated |
ABR40FMS.00 | 40 x 10 mm | Steel untreated |
ABR50FMS.00 | 50 x 10 mm | Steel untreated |
ABR60FMS.00 | 60 x 12 mm | Steel untreated |
ABR70FMS.00 | 70 x 12 mm | Steel untreated |
ABR80FMS.00 | 80 x 16 mm | Steel untreated |
ABR90FMS.00 | 90 x 16 mm | Steel untreated |
ABR100FMS.00 | 100 x 20 mm | Steel untreated |
ABR120FMS.00 | 120 x 20 mm | Steel untreated |
ABR135FMS.00 | 135 x 22,5 mm | Steel untreated |
ABR150FMS.00 | 150 x 25,5 mm | Steel untreated |
ABR180FMS.00 | 180 x 25,5 mm | Steel untreated |
ABR200FMS.00 | 200 x 29 mm | Steel untreated |
Serie ABR
without ring washer, drilled
FVS with fixed stainless steel pin and stainless steel intermediate ring
AVS with extractable stainless steel pin and stainless steel intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
ABR40FVS.30 | 40 x 10 mm | Stainless steel (V2A) untreated |
ABR50FVS.30 | 50 x 10 mm | Stainless steel (V2A) untreated |
ABR60FVS.30 | 60 x 12 mm | Stainless steel (V2A) untreated |
ABR80FVS.30 | 80 x 16 mm | Stainless steel (V2A) untreated |
ABR90FVS .30 | 90 x 16 mm | Stainless steel (V2A) untreated |
ABR100FVS.30 | 100 x 20 mm | Stainless steel (V2A) untreated |
ABR135FVS.30 | 135 x 22,5 mm | Stainless steel (V2A) untreated |
ABR120FVS.30 | 120 x 20 mm | Stainless steel (V2A) untreated |
ABR60FVS.35 | 60 x 12 mm | Stainless steel (V2A) untreated |
ABR80FVS.35 | 80 x 16 mm | Stainless steel (V2A) untreated |
ABR100FVS.35 | 100 x 20 mm | Stainless steel (V2A) untreated |
ABR120FVS.35 | 120 x 20 mm | Stainless steel (V2A) untreated |
ABR150FVS.35 | 150 x 25,5 mm | Stainless steel (V2A) untreated |
ABR180FVS.35 | 180 x 25,5 mm | Stainless steel (V2A) untreated |
Serie ABR
without ring washer, drilled
FVS with fixed stainless steel pin and brass intermediate ring
AVS with extractable stainless steel pin and brass intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
ABR60FVS.70 | 60 x 12 mm | Aluminium untreated |
ABR80FVS.70 | 80 x 16 mm | Aluminium untreated |
ABR100FVS.70 | 100 x 20 mm | Aluminium untreated |
ABR120FVS.70 | 120 x 20 mm | Aluminium untreated |
ABR150FVS.70 | 150 x 25,5 mm | Aluminium untreated |
ABR180FVS.70 | 180 x 25,5 mm | Aluminium untreated |
ABR60AVS.70 | 60 x 12 mm | Aluminium untreated |
ABR80AVS.70 | 80 x 16 mm | Aluminium untreated |
ABR100AVS.70 | 100 x 20 mm | Aluminium untreated |
ABR120AVS.70 | 120 x 20 mm | Aluminium untreated |
ABR150AVS.70 | 150 x 25,5 mm | Aluminium untreated |
ABR180AVS.70 | 180 x 25,5 mm | Aluminium untreated |
Serie ABR
without ring washer, drilled
FES with fixed steel pin and ball bearing
Art.-No. | Dimensions | Material |
---|---|---|
ABR141FES.00 | 141 x 22,5 mm | Steel untreated |
ABR155,5FES.00 | 155 x 25,5 mm | Steel untreated |
ABR206FES.00 | 206 x 29 mm | Steel untreated |
Serie ABN
without ring washer, drilled
FES with fixed steel pin and brass intermediate ring
FMS with fixed brass pin and brass intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
ABN60FES.00 | 60 x 12 mm | Steel untreated |
ABN80FES.00 | 80 x 16 mm | Steel untreated |
ABN100FES.00 | 100 x 20 mm | Steel untreated |
ABN120FES.00 | 120 x 20 mm | Steel untreated |
ABN135FES.00 | 135 x 22,5 mm | Steel untreated |
ABN150FES.00 | 150 x 25,5 mm | Steel untreated |
ABN180FES.00 | 180 x 25,5 mm | Steel untreated |
ABN200FES.00 | 200 x 29 mm | Steel untreated |
ABN60FMS.00 | 60 x 12 mm | Steel untreated |
ABN80FMS.00 | 80 x 16 mm | Steel untreated |
ABN100FMS.00 | 100 x 20 mm | Steel untreated |
ABN120FMS.00 | 120 x 20 mm | Steel untreated |
ABN135FMS.00 | 135 x 22,5 mm | Steel untreated |
ABN150FMS.00 | 150 x 25,5 mm | Steel untreated |
ABN180FMS.00 | 180 x 25,5 mm | Steel untreated |
ABN200FMS.00 | 200 x 29 mm | Steel untreated |
Serie ABN
without ring washer, drilled
Art.-No. | Dimensions | Material |
---|---|---|
ABN60FVS.30 | 60 x 12 mm | Stainless steel (V2A) untreated |
ABN80FVS.30 | 80 x 16 mm | Stainless steel (V2A) untreated |
ABN100FVS.30 | 100 x 20 mm | Stainless steel (V2A) untreated |
ABN120FVS.30 | 120 x 20 mm | Stainless steel (V2A) untreated |
ABN135FVS.30 | 135 x 25,5 mm | Stainless steel (V2A) untreated |
ABN150FVS.30 | 150 x 25,5 mm | Stainless steel (V2A) untreated |
ABN180FVS.30 | 180 x 25,5 mm | Stainless steel (V2A) untreated |
Serie ABF
without ring washer, drilled
FES with fixed steel pin and brass intermediate ring
FMS with fixed brass pin and brass intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
ABF45FMS.00 | 45 x 10 mm | Steel untreated |
ABF60FMS.00 | 60 x 12 mm | Steel untreated |
ABF80FMS.00 | 80 x 16 mm | Steel untreated |
ABF100FMS.00 | 100 x 20 mm | Steel untreated |
ABF120FMS.00 | 120 x 20 mm | Steel untreated |
ABF140FMS.00 | 140 x 25,5 mm | Steel untreated |
ABF45FMS.00 | 45 x 10 mm | Steel untreated |
ABF60FMS.00 | 60 x 12 mm | Steel untreated |
ABF80FMS.00 | 80 x 16 mm | Steel untreated |
ABF100FMS.00 | 100 x 20 mm | Steel untreated |
ABF120FMS.00 | 120 x 20 mm | Steel untreated |
ABF140FMS.00 | 140 x 25,5 mm | Steel untreated |
Serie ABF
without ring washer, drilled
FES with fixed steel pin and ball bearing
Art.-No. | Dimensions | Material |
---|---|---|
ABF200FES.00 | 200 x 29 mm | Steel untreated |
ABF200FES.00 | 200 x 29 mm | Steel untreated |
ABF84FES.00 | 84 x 16 mm | Steel untreated |
ABF104FES.00 | 104 x 20 mm | Steel untreated |
Serie ABF
without ring washer, drilled
FVS with fixed stainless steel pin and brass intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
ABF60FVS.30 | 60 x 12 mm | Stainless steel (V2A) untreated |
ABF80FVS.30 | 80 x 16 mm | Stainless steel (V2A) untreated |
ABF100FVS.30 | 100 x 20 mm | Stainless steel (V2A) untreated |
ABF120FVS.30 | 120 x 20 mm | Stainless steel (V2A) untreated |
Serie AG
with fixed steel pin
FES on self-lubrificating bushes and brass intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
AG60FES.00 | 60 x 50 x 20 mm | Steel untreated |
AG70FES.00 | 70 x 60 x 25 mm | Steel untreated |
AG80FES.00 | 80 x 60 x 30 mm | Steel untreated |
AG100FES.00 | 100 x 80 x 40 mm | Steel untreated |
AG120FES.00 | 120 x 100 x 50 mm | Steel untreated |
AG140FES.00 | 140 x 120 x 60 mm | Steel untreated |
AG60FES.30 | 60 x 50 x 20 mm | Stainless steel (V2A) untreated |
AG70FES.30 | 70 x 60 x 25 mm | Stainless steel (V2A) untreated |
AG80FES.30 | 80 x 60 x 30 mm | Stainless steel (V2A) untreated |
AG100FES.30 | 100 x 80 x 40 mm | Stainless steel (V2A) untreated |
AG120FES.30 | 120 x 100 x 50 mm | Stainless steel (V2A) untreated |
AG140FES.30 | 140 x 120 x 60 mm | Stainless steel (V2A) untreated |
Serie AK
with fixed steel pin
Art.-No. | Dimensions | Material |
---|---|---|
AK115AES.00 | 115 x 30 x 63 mm | Steel untreated |
Serie AB
Adjustable heights and sides
AES with extractable steel pin
AMS with extractable brass pin, AVS with extractable stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
AB118AES-3D.00 | 118 x 25,5 mm | Steel untreated |
AB147AES-3D.00 | 147 x 28,5 mm | Steel untreated |
AB118AVS-3D.30 | 118 x 25,5 mm | Stainless steel (V2A) untreated |
Serie 158.I
Adjustable heights and sides
Art.-No. | Dimensions | Material |
---|---|---|
158.I-5524.05.30 | 120 x 21 mm | Stainless steel (V2A) untreated |
158.I-5324.05.30 | 180 x 21 mm | Stainless steel (V2A) untreated |
158.I-5124.05.30 | 235 x 26 mm | Stainless steel (V2A) untreated |
158.I-5524.05.00 | 120 x 21 mm | Steel untreated |
158.I-5324.05.00 | 180 x 21 mm | Steel untreated |
158.I-5124.05.00 | 235 x 26 mm | Steel untreated |
Serie 158.I
Adjustable heights and sides
Art.-No. | Dimensions | Material |
---|---|---|
158.I-5334.00 | 180 x 21 mm | Steel untreated |
158.I-5134.00 | 235 x 26 mm | Steel untreated |
158.I-5334.05.30 | 180 x 21 mm | Stainless steel (V2A) untreated |
158.I-5134.05.30 | 235 x 26 mm | Stainless steel (V2A) untreated |
Serie 158.I
spring force adjustable
with integrated spring
This product will be delivered only in pairs; Schließt die Tür automatisch,
eingebaute Mechanik ist sehr widerstandsfähig and einstellbar, max. aperture angle 180°
Art.-No. | Dimensions | Material |
---|---|---|
158.I-5224.00 | 250 x 77,5 x 3 mm | Steel untreated |
Serie ABR
spring force adjustable
AES with extractable steel pin and brass intermediate ring
AMS with extractable brass pin and brass intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
ABR40AES.00 | 40 x 10 mm | Steel untreated |
ABR50AES.00 | 50 x 10 mm | Steel untreated |
ABR60AES.00 | 60 x 12 mm | Steel untreated |
ABR80AES.00 | 80 x 16 mm | Steel untreated |
ABR100AES.00 | 100 x 20 mm | Steel untreated |
ABR120AES.00 | 120 x 20 mm | Steel untreated |
ABR135AES.00 | 135 x 22,5 mm | Steel untreated |
ABR150AES.00 | 150 x 25,5 mm | Steel untreated |
ABR180AES.00 | 180 x 25,5 mm | Steel untreated |
ABR200AES.00 | 200 x 29 mm | Steel untreated |
ABR40AMS.00 | 40 x 10 mm | Steel untreated |
ABR50AMS.00 | 50 x 10 mm | Steel untreated |
ABR60AMS.00 | 60 x 12 mm | Steel untreated |
ABR80AMS.00 | 80 x 12 mm | Steel untreated |
ABR100AMS.00 | 100 x 16 mm | Steel untreated |
ABR120AMS.00 | 120 x 20 mm | Steel untreated |
ABR135AMS.00 | 135 x 22.5 mm | Steel untreated |
ABR150AMS.00 | 150 x 25.5 mm | Steel untreated |
ABR180AMS.00 | 180 x 25.5 mm | Steel untreated |
ABR200AMS.00 | 200 x 29 mm | Steel untreated |
Serie ABS
spring force adjustable
AES with extractable steel pin and brass intermediate ring
AMS with extractable brass pin and brass intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
ABS40AES.00 | 40 x 10 mm | Steel untreated |
ABS50AES.00 | 50 x 10 mm | Steel untreated |
ABS60AES.00 | 60 x 12 mm | Steel untreated |
ABS80AES.00 | 80 x 16 mm | Steel untreated |
ABS100AES.00 | 100 x 20 mm | Steel untreated |
ABS120AES.00 | 120 x 20 mm | Steel untreated |
ABS135AES.00 | 135 x 22,5 mm | Steel untreated |
ABS150AES.00 | 150 x 25,5 mm | Steel untreated |
ABS180AES.00 | 150 x 25,5 mm | Steel untreated |
ABS200AES.00 | 200 x 29 mm | Steel untreated |
ABS40AMS.00 | 40 x 10 mm | Steel untreated |
ABS50AMS.00 | 50 x 10 mm | Steel untreated |
ABS60AMS.00 | 60 x 12 mm | Steel untreated |
ABS80AMS.00 | 80 x 16 mm | Steel untreated |
ABS100AMS.00 | 100 x 20 mm | Steel untreated |
ABS120AMS.00 | 120 x 20 mm | Steel untreated |
ABS135AMS.00 | 135 x 22,5 mm | Steel untreated |
ABS150AMS.00 | 150 x 25,5 mm | Steel untreated |
ABS180AMS.00 | 150 x 25,5 mm | Steel untreated |
ABS200AMS.00 | 200 x 29 mm | Steel untreated |
Serie ABS
spring force adjustable
AVS with extractable stainless steel pin and stainless steel intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
ABS60AVS.30 | 60 x 16 mm | Stainless steel ( V2A ) |
ABS80AVS.30 | 80 x 16 mm | Stainless steel ( V2A ) |
ABS100AVS.30 | 100 x 20 mm | Stainless steel ( V2A ) |
ABS120AVS.30 | 120 x 20 mm | Stainless steel ( V2A ) |
ABS150AVS.30 | 150 x 25,5 mm | Stainless steel ( V2A ) |
ABS180AVS.30 | 180 x 25,5 mm | Stainless steel ( V2A ) |
Serie AB
spring force adjustable
AES with extractable steel pin and brass intermediate ring
AMS with extractable brass pin and brass intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
AB135/3AES.00 | 135/3 x 22,5 mm | Steel untreated |
AB150/3AES.00 | 150/3 x 25,5 mm | Steel untreated |
AB180/3AES.00 | 180/3 x 25,5 mm | Steel untreated |
AB200/3AES.00 | 180/3 x 29 mm | Steel untreated |
AB135/3AMS.00 | 135/3 x 22,5 mm | Steel untreated |
AB150/3AMS.00 | 150/3 x 25,5 mm | Steel untreated |
AB180/3AMS.00 | 180/3 x 25,5 mm | Steel untreated |
AB200/3AMS.00 | 180/3 x 29 mm | Steel untreated |
Serie AB
spring force adjustable
AVS with extractable stainless steel pin and brass intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
AB135/3AVS.30 | 135/3 x 22,5 mm | Stainless steel untreated (V2A) |
AB150/3AVS.30 | 150/3 x 25,5 mm | Stainless steel untreated (V2A) |
AB180/3AVS.30 | 180/3 x 25,5 mm | Stainless steel untreated (V2A) |
Serie ABN
3-part with lubrication nipple
AMS with extractable brass pin and brass intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
ABN135/3AMS.00 | 135/3 x 22,5 mm | Steel untreated |
ABN150/3AMS.00 | 150/3 x 25,5 mm | Steel untreated |
ABN180/3AMS.00 | 180/3 x 25,5 mm | Steel untreated |
ABN200/3AMS.00 | 200/3 x 29 mm | Steel untreated |
Serie AB
3-part with 2 ball bearings
AES with extractable steel pin and 2 ball bearingn
AMS with extractable brass pin and 2 ball bearings
Art.-No. | Dimensions | Material |
---|---|---|
AB90/3AES.00 | 90/3 x 25,5 mm | Steel untreated |
AB110/3AES.00 | 110/3 x 29 mm | Steel untreated |
AB90/3AMS.00 | 90/3 x 25,5 mm | Steel untreated |
AB110/3AMS.00 | 110/3 x 29 mm | Steel untreated |
