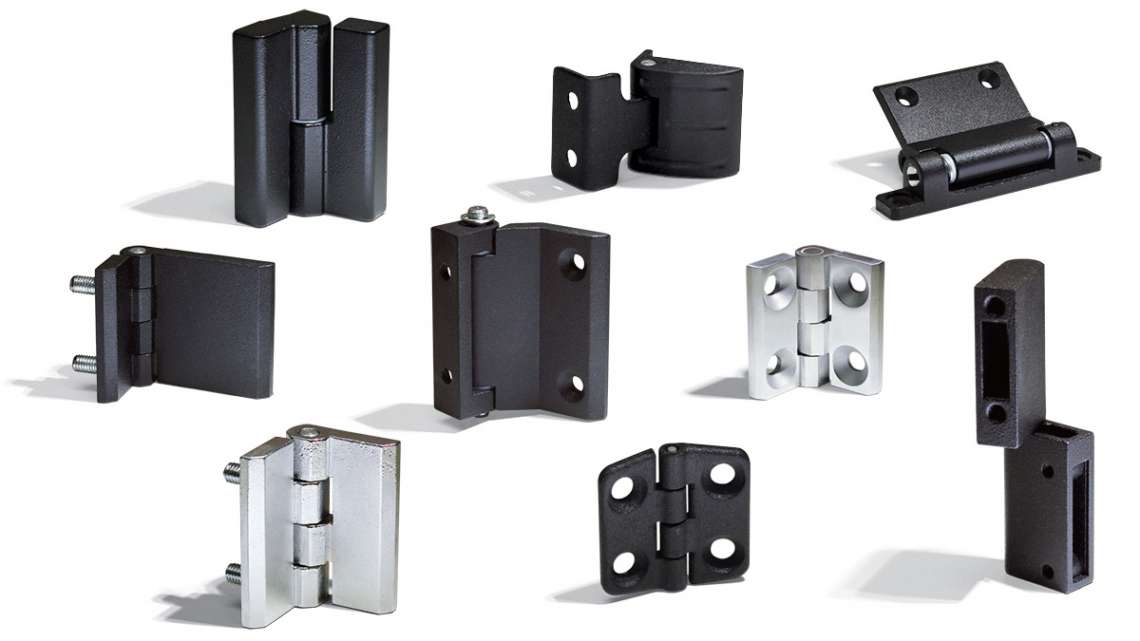

You may choose from our very large assortment of plastic hinges according to different lengths, bracket width and form, bolt aperture, perforations and surface finishes.
In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to produce a multiplicity of different components with little effort, even in small quantities.
Our offer includes plastic hinges:
- made of raw steel
- made of stainless steel
- with steel pin
- with steel pin made of raw steel
- yellow chromated
- with further surface treatments (on enquiry)
More details can be found in this PDF data file:
Design your individual Hinges, Piano Hinges and weld-on Hinges:
Additional Hinges:

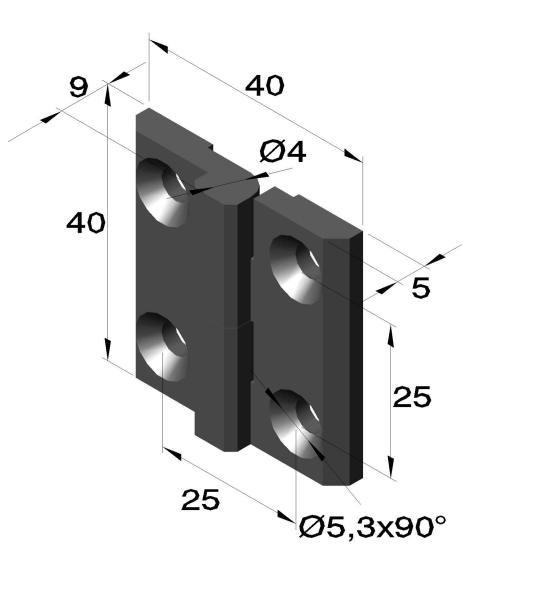

Serie 6550
with stainless steel pin, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6550.01 | 40 x 40 x 5 mm | Polyamide |

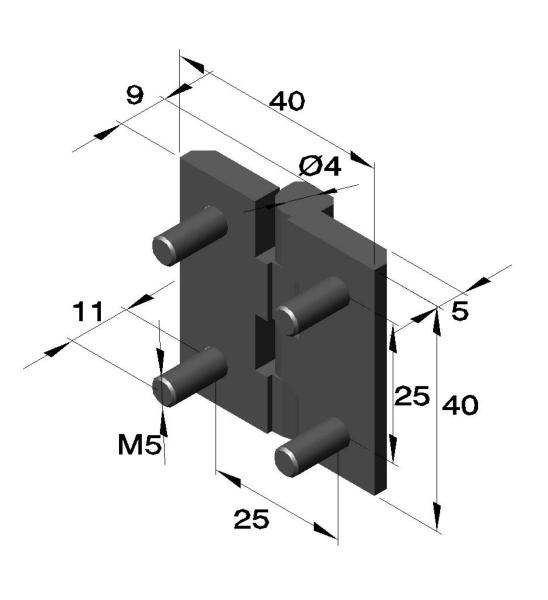

Serie 6551
with stainless steel pin and threaded bolt, undrilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6551.01 | 40 x 40 x 5 mm | Polyamide |

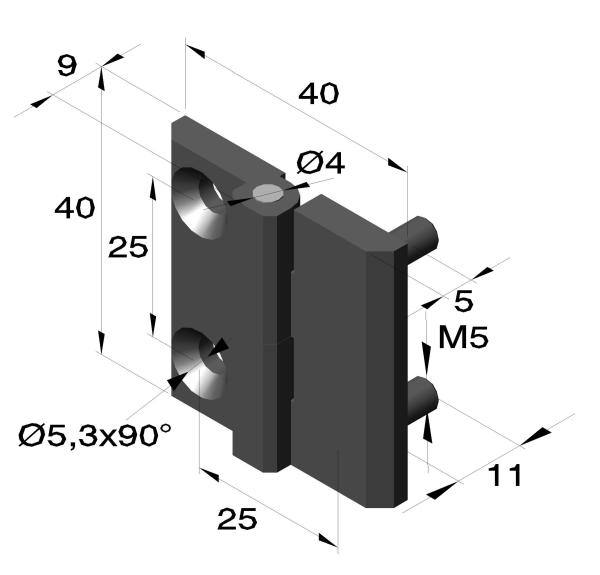

Serie 6552
with stainless steel pin and threaded bolt, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6552.01 | 40 x 40 x 5 mm | Polyamide |
Serie 6550
with stainless steel pin, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6550.02 | 50 x 50 x 6 mm | Polyamide |
Serie 6551
with stainless steel pin and threaded bolt
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6551.02 | 50 x 50 x 6 mm | Polyamide |
Serie 6552
with stainless steel pin and threaded bolt, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6552.02 | 50 x 50 x 6 mm | Polyamide |
Serie 6530
with stainless steel pin, drilled and countersunk
Executions
material and surface: 30 % Glas fibre polyamide, UL 94 V-0 classification
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6530.01.80 | 30 x 30 x 3 mm | Polyamide black |
Serie 6530
with stainless steel pin, drilled and countersunk
Executions
material and surface: 30 % Glas fibre polyamide, UL 94 V-0 classification
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6530.02.80 | 40 x 40 x 5,7 mm | Polyamide black |
Serie 6530
with stainless steel pin, drilled and countersunk
Executions
material and surface: 30 % Glas fibre polyamide, UL 94 V-0 classification
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6530.03.80 | 50 x 50 x 6,4 mm | Polyamide black |
Serie 6530
with stainless steel pin, drilled and countersunk
Executions
material and surface: 30 % Glas fibre polyamide, UL 94 V-0 classification
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6530.04.80 | 60 x 60 x 7 mm | Polyamide black |

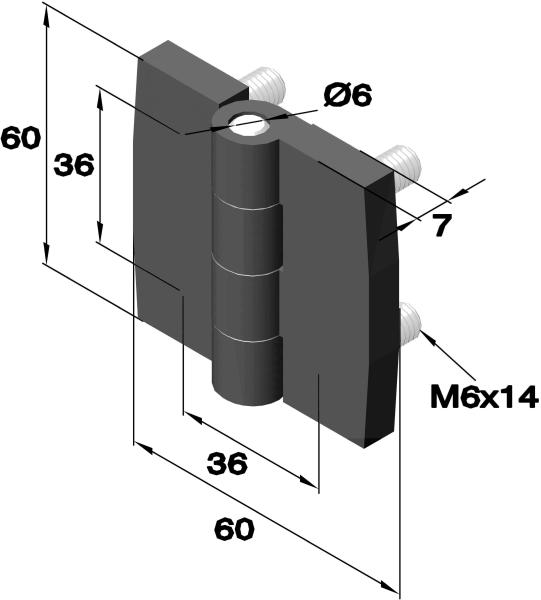

Serie 6560
with stainless steel pin and threaded bolt, undrilled
Executions
material and surface: 30 % Glas fibre polyamide, UL 94 V-0 classification
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6560.01.80 | 60 x 60 x 7 mm | Polyamide black |

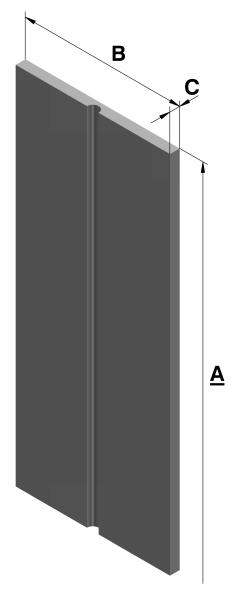

Serie 6521-6524
in rolls of 15,25 m, undrilled
Executions
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6521.01 | 15250 x 28,6 x 3,2 mm | Polypropylene white |
| 6522.01 | 15250 x 38,1 x 3,2 mm | Polypropylene white |
| 6523.01 | 15250 x 50,8 x 3,2 mm | Polypropylene white |
| 6524.01 | 15250 x 76,2 x 3,2 mm | Polypropylene white |
| 6521.02 | 15250 x 28,6 x 3,2 mm | Polypropylene grey |
| 6522.02 | 15250 x 38,1 x 3,2 mm | Polypropylene grey |
| 6523.02 | 15250 x 50,8 x 3,2 mm | Polypropylene grey |
| 6524.02 | 15250 x 76,2 x 3,2 mm | Polypropylene grey |
| 6521.03 | 15250 x 28,6 x 3,2 mm | Polypropylene black |
| 6522.03 | 15250 x 38,1 x 3,2 mm | Polypropylene black |
| 6523.03 | 15250 x 50,8 x 3,2 mm | Polypropylene black |
| 6524.03 | 15250 x 76,2 x 3,2 mm | Polypropylene black |

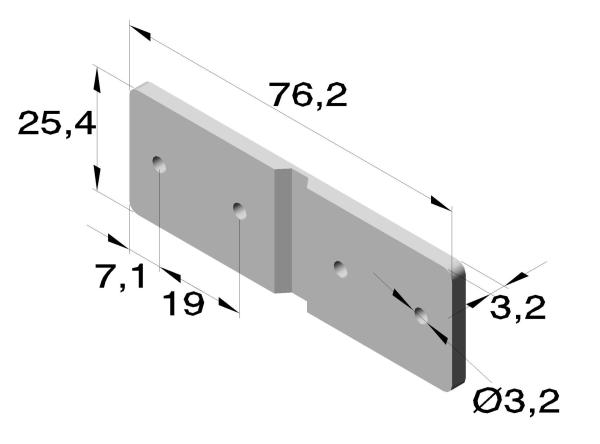

Serie 6525
drilled and countersunk
Executions
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6525.01 | 25,4 x 76,2 x 3,2 mm | Polypropylene white |
| 6525.03 | 25,4 x 76,2 x 3,2 mm | Polypropylene black |

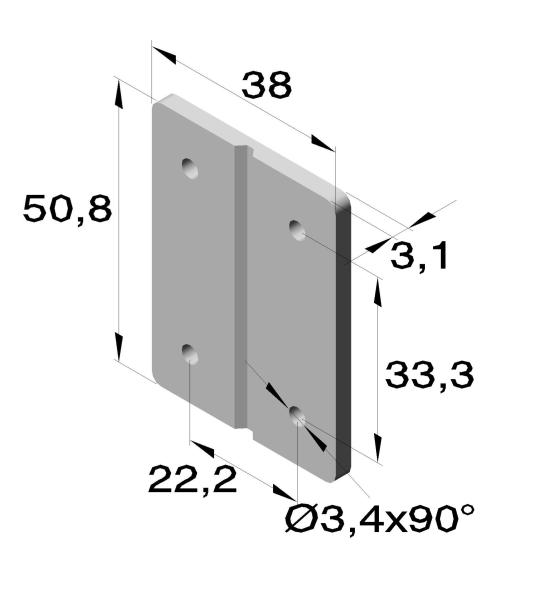

Serie 6526
drilled and countersunk
Executions
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6526.01 | 50,8 x 38,1 x 3,17 mm | Polypropylene white |
| 6526.03 | 50,8 x 38,1 x 3,17 mm | Polypropylene black |

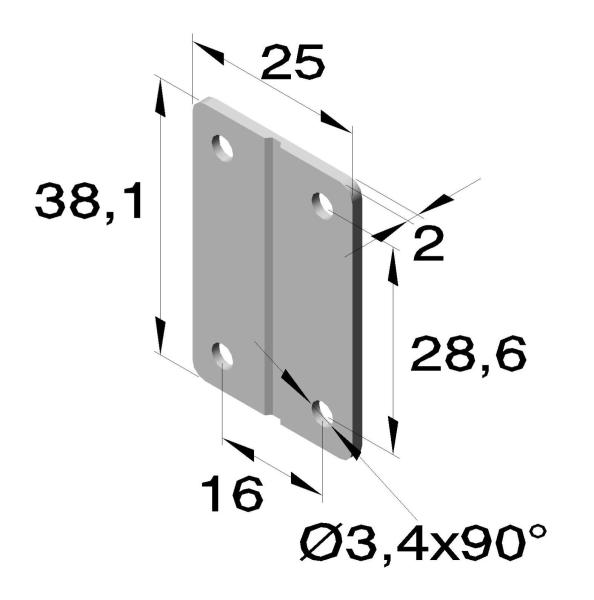

Serie 6527
drilled and countersunk
Executions
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6527.01 | 38,1 x 25,4 x 2 mm | Polypropylene white |
| 6527.03 | 38,1 x 25,4 x 2 mm | Polypropylene black |

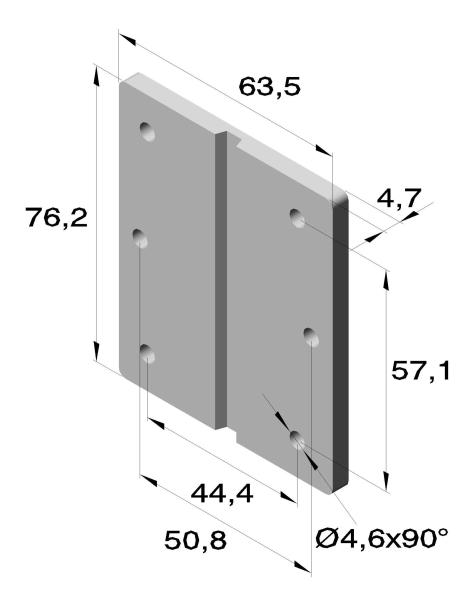

Serie 6528
drilled and countersunk
Executions
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6528.01 | 76,2 x 63,5 x 4,76 mm | Polypropylene white |
| 6528.03 | 76,2 x 63,5 x 4,76 mm | Polypropylene black |

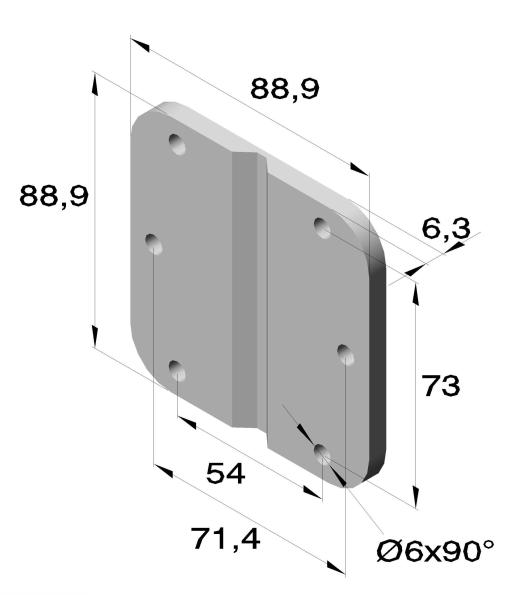

Serie 6529
drilled and countersunk
Executions
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6529.01 | 88,9 x 88,9 x 6,35 mm | Polypropylene white |
| 6529.03 | 88,9 x 88,9 x 6,35 mm | Polypropylene black |

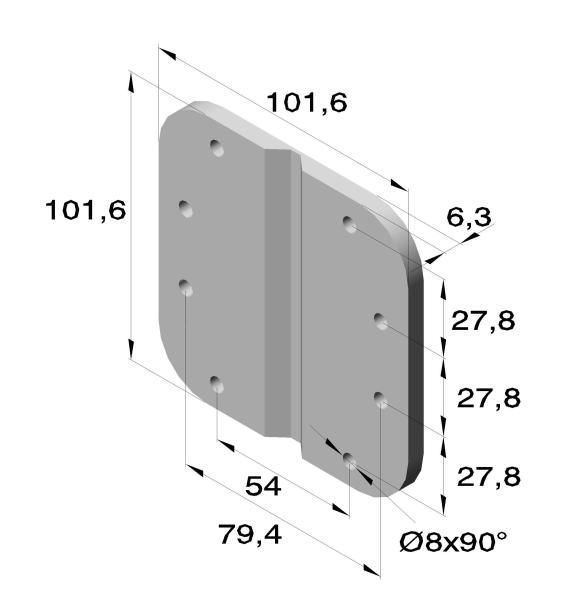

Serie 6531
drilled and countersunk
Executions
temperaturee: -40°C up to +80°C.
Fixing with rivets, bolts, nails, bars. Chemical resistance: oil, seawater, solvents and most chemical substances
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6531.01 | 101,6 x 101,6 x 6,35 mm | Polypropylene white |
| 6531.03 | 101,6 x 101,6 x 6,35 mm | Polypropylene black |

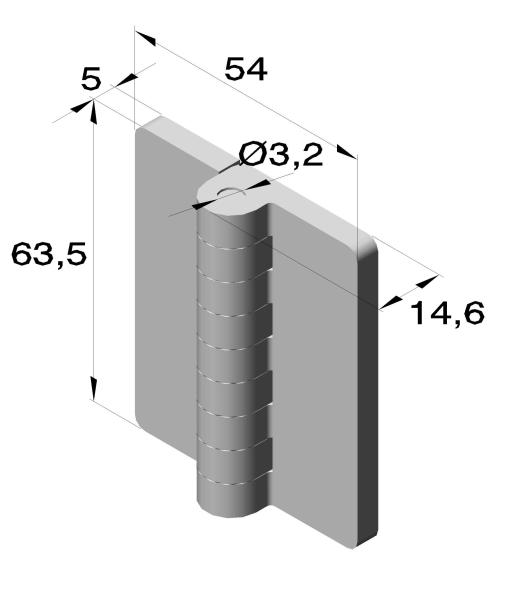

Serie 6532
undrilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6532.01 | 63,5 x 54 x 5 mm | Polypropylene white |
| 6532.05 | 63,5 x 54 x 5 mm | Polypropylene transparent |
| 6532.02 | 63,5 x 54 x 5 mm | Polypropylene black |

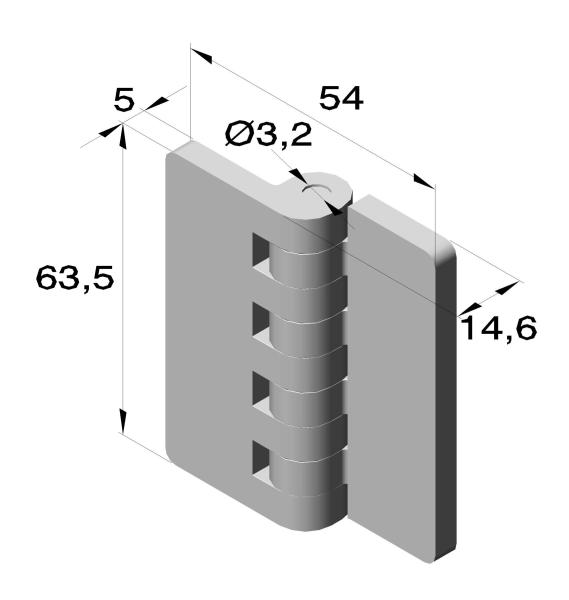

Serie 6534
undrilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6534.01 | 63,5 x 54 x 5 mm | Polypropylene white |
| 6534.02 | 63,5 x 54 x 5 mm | Polypropylene transparent |
| 6534.05 | 63,5 x 54 x 5 mm | Polypropylene black |
