Spannverschlüsse mit Drahtbügel:

Art.-Nr.MaßeMaterialMenge
1001.00/566 x 27 mmStahl unbehandelt

1001.01/566 x 27 mmStahl vernickelt




Kapitel-PDF


  Hinges

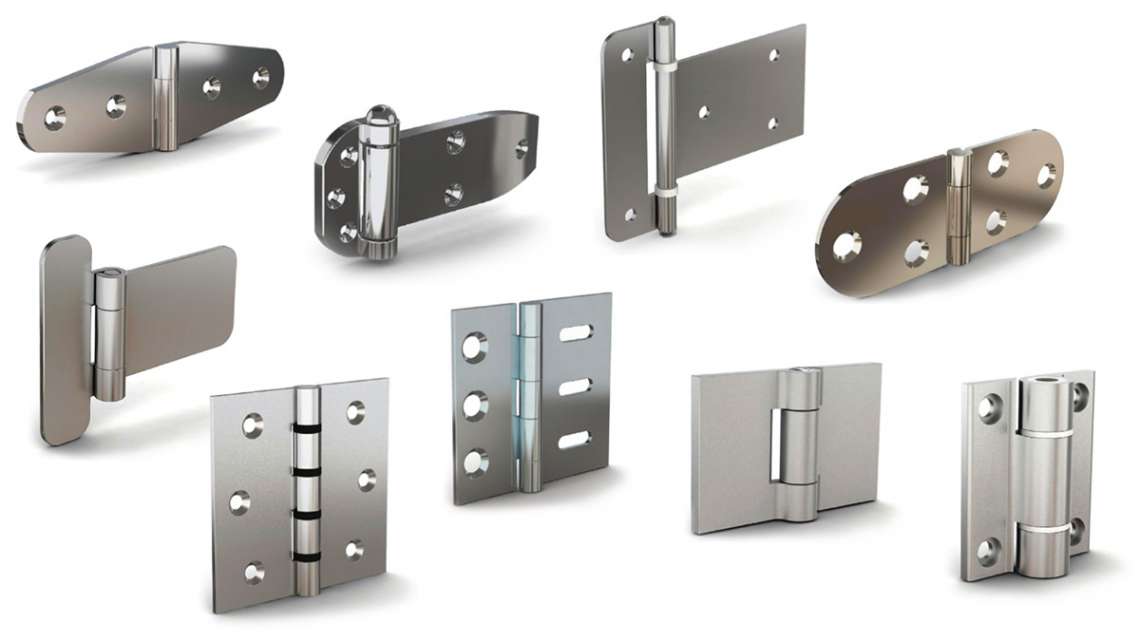

Various Hinges

verschiedene Scharniere

HoKon provies you with a large varitey of hinges with all kind of dimensions, thicknesses, widths and lengths, materials, surface treatments and divisions as well as with different dimension drillings and holes.

In case you can not find the required product in our standard product portfolio please get in contact with us. We provide you with solutions.

We have the possibility to produce special constructions also in low quanitity yet according to the customers reuqirements.

Should either a sample nor a drawing be provided our constructions departments likes to solve problems and show you solutions.


We offer various kinds of hinges:

  • from untreated steel or stainless-steel
  • from steel zinc-plated or nickel-plated
  • from polished aluminium or nickel-plated brass
  • in strengthened finish
  • with various surface treatments (on request)

More details:

  Download



Design your individual Hinges, Piano Hinges and weld-on Hinges:

Hinge Configurator



Additional Hinges:



PDF

Serie 6001
with extractable pin, undrilled

Executions


Art.-No.DimensionsMaterial
6001.01.0040 x 40 x 2 mm / pin Ø = 4/ D= 8Steel untreated
6001.02.0050 x 50 x 2 mm / pin Ø = 6/ D= 10Steel untreated
6001.03.0060 x 60 x 2 mm / pin Ø = 6/ D= 10Steel untreated
6001.04.0070 x 70 x 2 mm / pin Ø = 6/ D= 10Steel untreated

PDF

Serie 6002
with riveted pin, undrilled

Executions


Art.-No.DimensionsMaterial
6002.01.0040 x 40 x 2 mm / pin Ø = 4 / D= 8/ E= 4 Steel untreated
6002.02.0050 x 50 x 2 mm / pin Ø = 6 / D= 10/ E= 5 Steel untreated
6002.03.0060 x 60 x 2 mm / pin Ø = 6 / D= 10/ E= 5 Steel untreated
6002.04.0070 x 70 x 2 mm / pin Ø = 6 / D= 10/ E= 5 Steel untreated
6002.05.0080 x 80 x 2,5 mm / pin Ø = 6 / D= 11/ E= 5,5Steel untreated
6002.06.00100 x 100 x 2,5 mm / pin Ø = 6 / D= 11/ E= 5,5Steel untreated
6002.01.3040 x 40 x 2 mm / pin Ø = 4 / D= 8/ E= 4Stainless steel untreated
6002.02.3050 x 50 x 2 mm / pin Ø = 6 / D= 10/ E= 5 Stainless steel untreated
6002.03.3060 x 60 x 2 mm / pin Ø = 6 / D= 10/ E= 5 Stainless steel untreated
6002.04.3070 x 70 x 2 mm / pin Ø = 6 / D= 10/ E= 5 Stainless steel untreated
6002.05.3080 x 80 x 2,5 mm / pin Ø = 6 / D= 11/ E= 5,5Stainless steel untreated
6002.06.30100 x 100 x 2,5 mm / pin Ø = 6 / D= 11/ E= 5,5Stainless steel untreated
6002.01.3540 x 40 x 2 mm / pin Ø = 4 / D= 8/ E= 4Stainless steel untreated
6002.02.3550 x 50 x 2 mm / pin Ø = 6 / D= 10/ E= 5 Stainless steel untreated
6002.03.3560 x 60 x 2 mm / pin Ø = 6 / D= 10/ E= 5 Stainless steel untreated

PDF

Serie 6002
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6002.07.3040 x 40 x 2 mm / C Ø= 4/ D= 8/ F=24/ G= 24/ pin Ø= 4 Stainless steel untreated
6002.08.3050 x 50 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 4 Stainless steel untreated
6002.09.3060 x 60 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 4 Stainless steel untreated
6002.07.3540 x 40 x 2 mm / C Ø= 4/ D= 8/ F=24/ G= 24/ pin Ø= 4 Stainless steel untreated
6002.08.3550 x 50 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 4 Stainless steel untreated
6002.09.3560 x 60 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 4 Stainless steel untreated

3D PDF

Serie 6002
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6002.10.3070 x 70 x 2 mm / C Ø= 4,5/ D= 10/ F=54/ f= 34/ G= 50/ pin Ø= 6Stainless steel untreated

PDF

Serie 6003
with extractable pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6003.01.0440 x 40 x 2 mm / C Ø= 4/ D= 8/ F=26/ G= 24/ pin Ø= 4Steel galvanised
6003.02.0450 x 50 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 6Steel galvanised
6003.03.0460 x 60 x 2 mm / C Ø= 4,5/ D= 10/ F=44/ G= 40/ pin Ø= 6Steel galvanised
6003.01.3040 x 40 x 2 mm / C Ø= 4/ D= 8/ F=26/ G= 24/ pin Ø= 4Stainless steel untreated
6003.02.3050 x 50 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 6Stainless steel untreated
6003.03.3060 x 60 x 2 mm / C Ø= 4,5/ D= 10/ F=44/ G= 40/ pin Ø= 6Stainless steel untreated

PDF

Serie 6004
with extractable pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6004.01.0470 x 70 x 2 mm / C Ø= 4/ D= 10/ F=54/ f= 34/ G= 50/ pin Ø= 6Steel galvanised
6004.01.3070 x 70 x 2 mm / C Ø= 4/ D= 10/ F=54/ f= 34/ G= 50/ pin Ø= 6Stainless steel untreated
6004.02.0480 x 80 x 2,5 mm / C Ø= 4,5/ D= 11/ F=64/ f= 39/ G= 60/ pin Ø= 6Steel galvanised
6004.02.3080 x 80 x 2,5 mm / C Ø= 4,5/ D= 11/ F=64/ f= 39/ G= 60/ pin Ø= 6Stainless steel untreated

PDF

Serie 6005
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6005.01.3040 x 40 x 2 mm / C Ø= 4/ D= 8/ F=24/ G= 24/ pin Ø= 4Stainless steel untreated
6005.02.3050 x 50 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 6Stainless steel untreated
6005.03.3060 x 60 x 2 mm / C Ø= 4,5/ D= 10/ F=44/ G= 40/ pin Ø= 6Stainless steel untreated
6005.01.3540 x 40 x 2 mm / C Ø= 4/ D= 8/ F=24/ G= 24/ pin Ø= 41.4404 Stainless steel untreated
6005.02.3550 x 50 x 2 mm / C Ø= 4,5/ D= 10/ F=34/ G= 34/ pin Ø= 61.4404 Stainless steel untreated
6005.03.3560 x 60 x 2 mm / C Ø= 4,5/ D= 10/ F=44/ G= 40/ pin Ø= 61.4404 Stainless steel untreated

PDF

Serie 6006
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6006.01.3070 x 70 x 2 mm / C Ø= 4,5/ D= 10/ F=54/ f= 34/ G= 60/ pin Ø= 6Stainless steel untreated
6006.02.3080 x 80 x 2,5 mm / C Ø= 4,5/ D= 11/ F=64/ f= 39/ G= 60/ pin Ø= 6Stainless steel untreated
6006.04.04100 x 84 x 3 mm / C Ø= 5,5/ F=55/ f= 42/ G= 79/ pin Ø= 6Steel galvanised

PDF

Serie 6007
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6007.01-gelocht.0450 x 40 x 1,2 mm / C Ø= 5/ D= 5,2/ F=23/ G= 36/ pin Ø= 3Steel galvanised
6007.02-gesenkt.0450 x 40 x 1,2 mm / C Ø= 5/ D= 5,2/ F=23/ G= 36/ pin Ø= 2,7Steel galvanised
6007.01-gelocht.3050 x 40 x 1,2 mm / C Ø= 5/ D= 5,2/ F=23/ G= 36/ pin Ø= 3Stainless steel untreated
6007.02-gesenkt.3050 x 40 x 1,2 mm / C Ø= 5/ D= 5,2/ F=23/ G= 36/ pin Ø= 2,7Stainless steel untreated
6007.03-gesenkt.3060 x 35 x 1 mm / C Ø= 4/ D= 4/ F=19,5/ G= 40/ pin Ø= 2Stainless steel untreated
6007.04-gesenkt.3060 x 35 x 1 mm / C Ø= 4/ D= 4/ F=19,5/ G= 40/ pin Ø= 2Stainless steel untreated

3D PDF

Serie 6008
with riveted pin, undrilled

Executions


Art.-No.DimensionsMaterial
6008.01.0050 x 50 x 2,5 mmSteel untreated

3D PDF

Serie 6009
with fixed pin and nylon intermediate ring, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6009.01.3080 x 75 x 2 mmStainless steel untreated

PDF

Serie 6010
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6010.01.0030 x 19 x 0,8 mm / C Ø= 3,3/ D= 4/ F=11/ G= 19/ pin Ø= 2,4Steel untreated
6010.02.0035 x 22 x 0,8 mm / C Ø= 3,5/ D= 4/ F=14/ G= 22/ pin Ø= 2,4Steel untreated
6010.03.0040 x 25 x 0,9 mm / C Ø= 3,2/ D= 4,5/ F=15/ G= 27/ pin Ø= 2,7Steel untreated
6010.04.3050 x 30 x 1 mm / C Ø= 3,5/ D= 5/ F=17/ G= 35/ pin Ø= 3Stainless steel untreated
6010.05.0050 x 29 x 1 mm / C Ø= 3,9/ D= 4,4/ F=15,4/ G= 35,2/ pin Ø= 2,4Steell untreated

PDF

Serie 6010
with fixed pin, undrilled

Executions


Art.-No.DimensionsMaterial
6010.06.0030 x 19 x 0,8 mm / D= 4/ pin Ø= 2,4 Steel untreated
6010.07.0035 x 22 x 0,8 mm / D= 4/ pin Ø= 2,4Steel untreated
6010.08.0040 x 25 x 0,9 mm / D= 4,5/ pin Ø= 2,7Steel untreated
6010.10.0050,3 x 29,8 x 1 mm / D= 4,4/ pin Ø= 2,4Steel untreated

PDF

Serie 6011
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6011.01.0060 x 35 x 1 mm / C Ø= 3,9/ D= 5,5/ F=19/ G= 44/ pin Ø= 3,5Steel untreated
6011.02.0070 x 41,5 x 1 mm / C Ø= 3/ D= 5,5/ F=24,1/ G= 52/ pin Ø= 3,5Steel untreated
6011.03.0080,5 x 45,4 x 1 mm / C Ø= 4/ D= 5,5/ F=26,2/ G= 59,3/ pin Ø= 3,5Steel untreated
6011.04.00100 x 50 x 1,5 mm / C Ø= 4,5/ D= 8/ F=30/ G= 77/ pin Ø= 5Steel untreated

PDF

Serie 6011
with fixed pin, undrilled

Executions


Art.-No.DimensionsMaterial
6011.05.0060 x 35 x 1 mm / pin Ø = 3/ D= 5Steel untreated
6011.06.0070 x 41,5 x 1 mm / pin Ø = 4/ D= 6Steel untreated
6011.07.0080 x 45 x 1,2 mm / pin Ø = 4/ D= 6,5Steel untreated
6011.08.00100 x 50 x 1,5 mm / pin Ø = 5/ D= 8Steel untreated

PDF

Serie 6013
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6013.01.0020 x 77 x 1,2 mm / C Ø= 3/ D= 5,6/ F=60/ f= 28/ pin Ø= 3Steel untreated
6013.02.0022 x 120 x 1,5 mm / C Ø= 4/ D= 8/ F=93/ f= 33/ pin Ø= 4,9Steel untreated

PDF

Serie 6015
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6015.01.0030 x 190 x 2,5 mm / C Ø= 4/ D= 11/ F=165/ f1= 105/ f2= 45/ pin Ø= 6Steel untreated
6015.02.0030 x 220 x 2,5 mm / C Ø= 4/ D= 11/ F=193/ f1= 118/ f2= 43/ pin Ø= 6Steel untreated

3D PDF

Serie 6016
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6016.01.00140 x 25 x 1,5 mm/ C Ø= 3,5/ D= 5,5/ F=118/ f1= 72/ f2= 26Steel untreated

3D PDF

Serie 6017
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6017.01.3065 x 20 x 1 mmStainless steel untreated

PDF

Serie 6018
with fixed stainless steel pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6018.03.2030 x 20 x 2 mm / C Ø= 2,5/ D= 5/ F=12,5/ G=17/ pin Ø= 3Brass untreated
6018.04.2030 x 30 x 2 mm / C Ø= 2,5/ D= 5/ F=19/ G=17/ pin Ø= 3Brass untreated

PDF

Serie 6019
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6019.03.2040 x 35 x 2 mm / C Ø= 3/ D= 5/ F=21/ G= 28/ pin Ø= 3Brass untreated
6019.04.2040 x 40 x 2 mm / C Ø= 3/ D= 5/ F=23/ G= 28/ pin Ø= 3Brass untreated
6019.05.2050 x 30 x 2 mm / C Ø= 3/ D= 5/ F=17,5/ G= 35/ pin Ø= 3Brass untreated
6019.06.2060 x 35 x 2 mm / C Ø= 3,5/ D= 5/ F=20/ f=24/ G= 43/ pin Ø= 3Brass untreated
6019.07.2060 x 40 x 2 mm / C Ø= 3,5/ D= 4,5/ F=21,5/ f=26/ G= 43/ pin Ø= 3Brass untreated

PDF

Serie 6020
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6020.01.2070 x 40 x 2 mm / C Ø= 3,5/ D= 5,5/ F=23/ f=27/ G=48/ pin Ø= 3Brass untreated
6020.02.2070 x 50 x 2,5 mm / C Ø= 3,5/ D= 6,5/ F=25/ f=37/ G=48/ pin Ø= 3,5Brass untreated
6020.03.2080 x 45 x 2,2 mm / C Ø= 3,5/ D= 5,5/ F=22,5/ f=30,5/ G=58/ pin Ø= 3Brass untreated
6020.04.2080 x 60 x 3 mm / C Ø= 4/ D= 7/ F=28/ f=45/ G=57/ pin Ø= 4Brass untreated

3D PDF

Serie 6025
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6025.01.2330 x 76 x 3 mmBrass chrome-plated

3D PDF

Serie 6027
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6027.01.2330 x 98,5 x 3 mmBrass chrome-plated

3D PDF

Serie 6028
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6028.01.2330 x 98,5 x 3 mmBrass chrome-plated

3D PDF

Serie 6029
drilled and countersunk

Executions


Suitable for Art.No.: 6026/6028

Art.-No.DimensionsMaterial
6029.01.2320 x 34 x 2 mmBrass chrome-plated

3D PDF

Serie 6044
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6044.01.0465 x 70 x 2 mmSteel galvanised

3D PDF

Serie 6046
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6046.01.0130 x 83 x 1,5 mmSteel nickel-plated

3D PDF

Serie 6047
with fixed pin, undrilled

Executions


Art.-No.DimensionsMaterial
6047.01.0062 x 74 x 2 mm Steel untreated
6047.01.3062 x 74 x 2 mm Stainless steel untreated

3D PDF

Serie 6048
with fixed pin, undrilled

Executions


Stainless steel (1.4301) on request

Art.-No.DimensionsMaterial
6048.01.00 62 x 44 x 2 mmSteel untreated
6048.01.30 62 x 44 x 2 mmStainless steel untreated

3D PDF

Serie 6052
with fixed pin, drilled and countersunk

Executions



Stop at 60°. Suitable for the installation of glass doors.

Art.-No.DimensionsMaterial
6052.01.33 35 x 133 x 2,5 mmStainless steel polished

3D PDF

Serie 6106
with extractable pin, drilled

Executions


Art.-No.DimensionsMaterial
6106.3060 x 94,5 x 1,5 mmStainless steel polished

3D PDF

Serie 6109
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6109.30 75 x 40 x 1,5 mmStainless steel untreated

3D PDF

Serie 6540
drilled and countersunk

Executions


.01 without stopper
.02 with stopper

Art.-No.DimensionsMaterial
6540.01.70 65 x 55 x 4,5 mmAluminium 6060 T5 silver
6540.01.77 65 x 55 x 4,5 mmAluminium 6060 T5 black
6540.02.70 65 x 55 x 4,5 mmAluminium 6060 T5 silver
6540.02.77 65 x 55 x 4,5 mmAluminium 6060 T5 black

3D PDF

Serie 6876
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6876.08.71100 x 82,5 x 5,5 mmAluminium 6060 T5 silver
6876.09.77 100 x 82,5 x 5,5 mmAluminium 6060 T5 black

3D PDF

Serie 99.7651
with fixed pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
99.7651.3076,5 x 51 x 3 mmStainless steel untreated

3D PDF

Serie 196.5.F37.001.001
with fixed pin, drilled

Executions


Art.-No.DimensionsMaterial
196.5.F37.001.001.04 145 x 70 x 2 mmSteel galvanised

3D PDF

Serie 196.5.F37.001.002
with fixed pin, drilled

Executions


Art.-No.DimensionsMaterial
196.5.F37.001.002.04 145 x 88 x 2 mmSteel galvanised

3D PDF

Serie 6058
with riveted pin, undrilled

Executions


Art.-No.DimensionsMaterial
6058.03.08Ø17,5 x 144 mmSteel galvanised yellow chromatised

3D PDF

Serie 6058
with fixed pin, drilled

Executions


Stop hinge with locking at 105°
with fixed pin (Ø5)

Art.-No.DimensionsMaterial
6058.04.30 54 x 65 Stainless steel untreated

3D PDF

Serie 6176
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6176.01.3352 x 70 x 1,2 mmStainless steel 1.4404 polished

3D PDF

Serie 6177
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6177.01.3336,5 x 65,5 x 2 mmStainless steel 1.4404 polished

3D PDF

Serie 6178
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6178.01.3336,5 x 36,5 x 2 mmStainless steel 1.4404 polished

3D PDF

Serie 6179
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6179.01.3336,5 x 56,5 x 2 mmStainless steel 1.4404 polished

PDF

Serie 6180
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6180.01.33 36,5 x 58,5 x 2 mm /E= 10Stainless steel 1.4404 polished
6180.02.33 36,5 x 64,4 x 2 mm/ 15,9Stainless steel 1.4404 polished
6180.03.3336,5 x 67,7 x 2 mm/ 19,2Stainless steel 1.4404 polished

3D PDF

Serie 6181
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6181.3338,1 x 71,1 x 2 mmStainless steel 1.4404 polished

3D PDF

Serie 6182
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6182.3330 x 101 x 2 mmStainless steel 1.4404 polished

3D PDF

Serie 6183
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6183.01.3340,1 x 137,3 x 2 mmStainless steel 1.4404 polished

3D PDF

Serie 6184
with riveted pin, drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6184.01.3338 x 178 x 2 mmStainless steel 1.4404 polished

PDF

Serie 6215
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6215.01.71 38 x 31,75 x 1,3 mm /D= 5/ E=2,29/ F=20/ G= 22/ pin Ø= 4,3Aluminium 6082 T5 anodised
6215.02.71 50 x 44,45 x 1,3 mm /D= 5/ E=2,29/ F=30/ G= 34/ pin Ø= 4,3Aluminium 6082 T5 anodised
6215.03.7163,5 x 63,5 x 1,3 mm /D= 2,29/ E=2,29/ F=40/ G= 40/ pin Ø= 6Aluminium 6082 T5 anodised

3D PDF

Serie 6216
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6216.01.7730 x 35 x 3,3 mm / pin Ø= 8Aluminium 6060 T5 black
6216.01.71 30 x 35 x 3,3 mm / pin Ø= 8Aluminium 6060 T5 silver

3D PDF

Serie 6216
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6216.02.7160 x 35 x 3,3 mm /pin Ø= 8Aluminium 6060 T5 anodised / colourless
6216.02.7760 x 35 x 3,3 mm /pin Ø= 8Aluminium 6060 T5 anodised / black

3D PDF

Serie 6216
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6216.03.7190 x 35 x 3,3 mm /pin Ø= 8Aluminium 6060 T5 anodised / colourless
6216.03.7790 x 35 x 3,3 mm /pin Ø= 8Aluminium 6060 T5 anodised / black

3D PDF

Serie 6216
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6216.04.71120 x 35 x 3,3 mm /pin Ø= 8Aluminium 6060 T5 anodised / colourless
6216.04.77120 x 35 x 3,3 mm /pin Ø= 8Aluminium 6060 T5 anodised / black

PDF

Serie 150.MH-30
Double pivot hinge, drilled and countersunk

Executions


Opening angle 180 °

Art.-No.DimensionsMaterial
150.MH-30M.22 30 x 70 x 2 mmBrass polished
150.MH-30WB.25 31 x 70 x 2 mmBrass white-bronze
150.MH-30CR.2332 x 70 x 2 mmBrass chrome-plated

PDF

Serie 150.MH-40
Double pivot hinge, drilled and countersunk

Executions


Opening angle 180 °

Art.-No.DimensionsMaterial
150.MH-40M.22 40 x 70 x 2 mmBrass polished
150.MH-40WB.25 41 x 70 x 2 mmBrass white-bronze
150.MH-40CR.23 42 x 70 x 2 mmBrass chrome-plated

3D PDF

Serie 6218
with steel pin, drilled

Executions


Art.-No.DimensionsMaterial
6218.01.0215 x 9 x 0,4 mm /pin Ø= 1,1Steel brass plated

3D PDF

Serie 6218
with steel pin, drilled

Executions


Art.-No.DimensionsMaterial
6218.02.0216 x 12 x 0,4 mm /pin Ø= 1,1Steel brass plated

3D PDF

Serie 6218
with steel pin, drilled

Executions


Art.-No.DimensionsMaterial
6218.03.0225 x 12 x 0,4 mm /pin Ø= 1,1Steel brass plated

3D PDF

Serie 6218
with steel pin, drilled

Executions


Art.-No.DimensionsMaterial
6218.04.0220 x 14 x 0,4 mm /pin Ø= 1,1Steel brass plated

PDF

Serie 6218
with steel pin, drilled

Executions


Art.-No.DimensionsMaterial
6218.05.0225 x 16 x 0,5 mm /pin Ø= 1,1Steel brass plated



Browse website ...
