  Handles

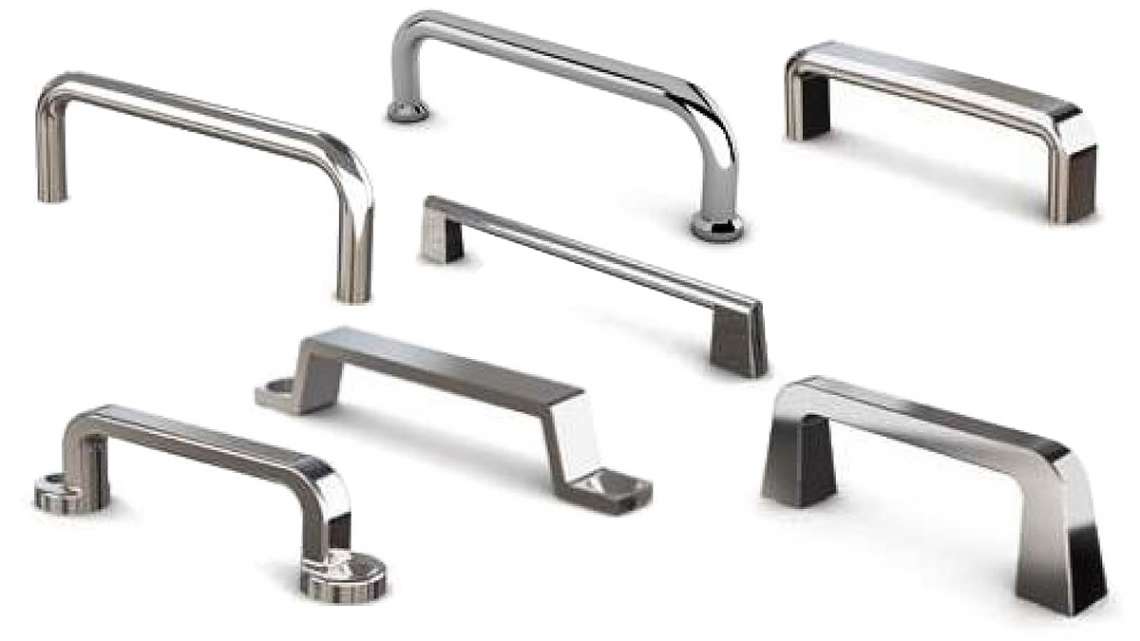

Pull Handles

You may choose from our very large assortment of pull handles according to different forms, materials and damping characteristics.

In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to prduce a multiplicity of different components with little effort, even in small quantities.



Our offer includes pull handles:

  • with back fortification (inner thread) made of steel, stainless steel, aluminium and Zamak.
  • with front fortification (perforated and counter sank) made of steel, stainless steel, aluminium and Zamak
  • with back fortification (outer thread) made of steel, stainless steel, aluminum and Zamak

More details can be found in this PDF data file:

Download



Additional Handles:



PDF

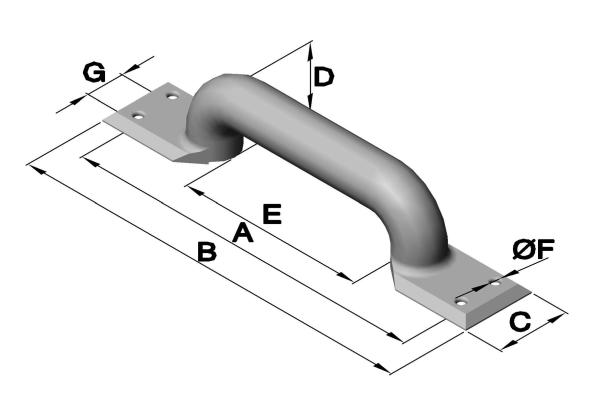

Serie 1053

Executions


Art.-No.DimensionsMaterial
1053.08.0180 x 18,5 Steel nickel-plated
1053.10.01100 x 21,5 Steel nickel-plated
1053.12.01120 x 24,5 Steel nickel-plated
1053.14.01140 x 28,5 Steel nickel-plated
1053.16.01160 x 29,5 Steel nickel-plated

3D PDF

Serie 3104

Executions


Art.-No.DimensionsMaterial
3104.00120 x 29Steel untreated
3104.04120 x 29Steel galvanised
3104.30 120 x 29Stainless steel untreated

3D PDF

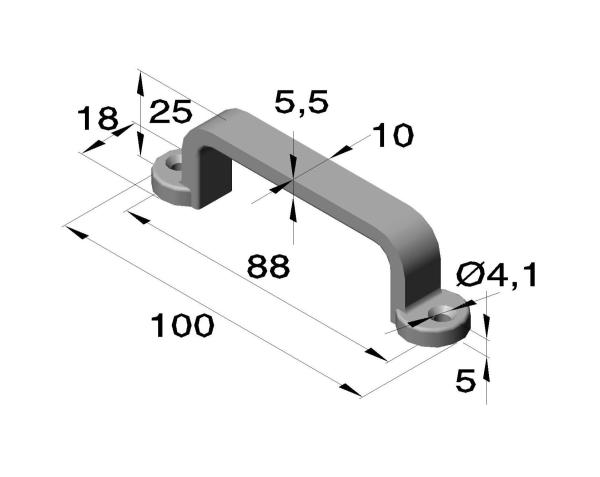

Serie 6408

Executions


Art.-No.DimensionsMaterial
6408.33 100 x 18 x 5 Stainless steel polished

3D PDF

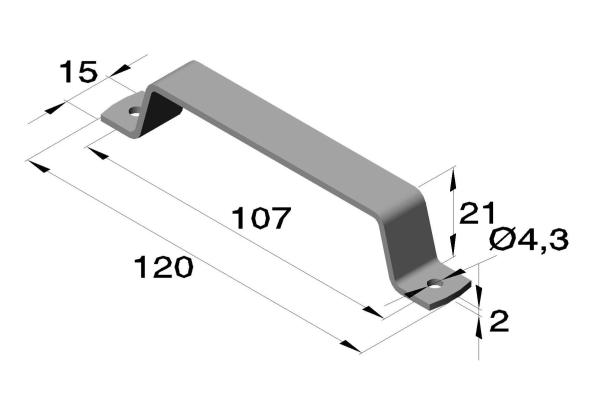

Serie 6409

Executions


Art.-No.DimensionsMaterial
6409.04 120 x 15 x 2 mmSteel galvanised
6409.30120 x 15 x 2 mmStainless steel deburred

3D PDF

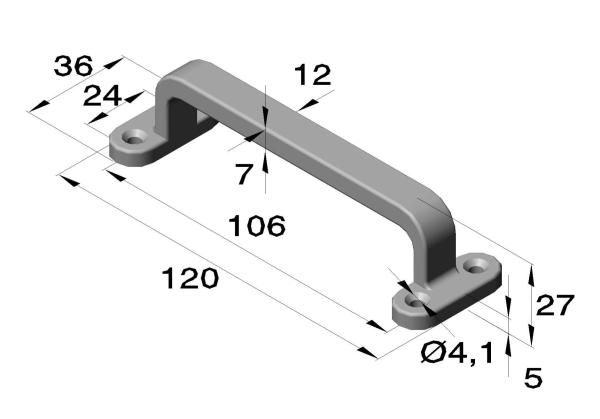

Serie 6410

Executions


Art.-No.DimensionsMaterial
6410.01.33 120 x 24 x 5 mmStainless steel polished

PDF

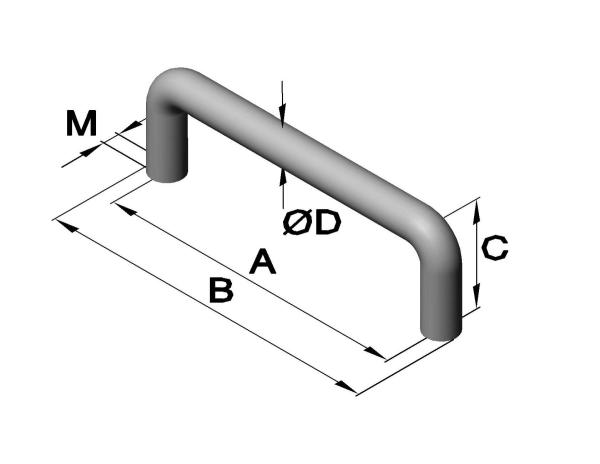

Serie 6411
with internal thread

Executions


Art.-No.DimensionsMaterial
6411.01.70 60 x 34 x 8 / M4Aluminium anodised
6411.01.21108 x 30 x 7 / M4Brass nickel-plated
6411.01.23108 x 30 x 7 / M4Brass chrome-plated
6411.02.70 88 x 34 x 8 / M4Aluminium anodised
6411.03.70 108 x 34 x 8 / M4Aluminium anodised
6411.04.70128 x 34 x 8 / M4Aluminium anodised
6411.05.70 108 x 30 x 7 / M4Aluminium anodised

PDF

Serie 6412
with internal thread

Executions


Art.-No.DimensionsMaterial
6412.01.3599,8 x 32 x 7,8 / M5Stainless steel polished
6412.02.35117,8 x 32 x 7,8 / M5Stainless steel polished
6412.04.30108 x 40 x 8 / M5Stainless steel polished
6412.05.30158 x 50 x 8 / M5Stainless steel polished
6412.06.30208 x 50 x 8 / M5Stainless steel polished

PDF

Serie 6412
with internal thread

Executions


Art.-No.DimensionsMaterial
6412.01.30159 x 28 x 9 / M4Stainless steel untreated
6412.01.03110 x 38 x 8 / M5Steel chrome-plated
6412.02.03161 x 38 x 8 / M5Steel chrome-plated
6412.02.30 129 x 28 x 9 / M4Stainless steel untreated
6412.03.03212 x 38 x 8 / M5Steel chrome-plated
6412.03.30104 x 28 x 9 / M4Stainless steel untreated

3D PDF

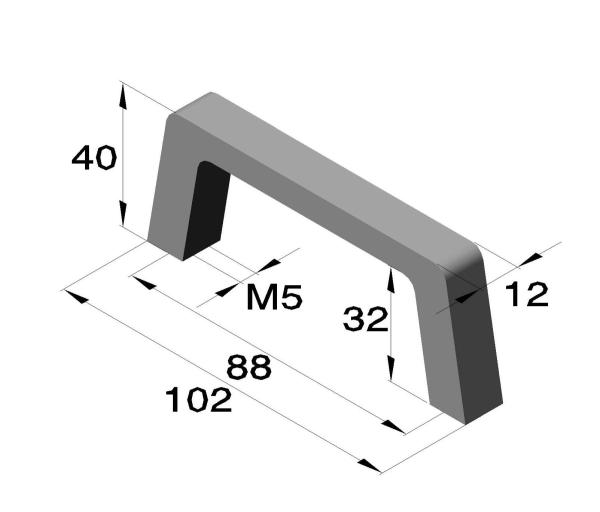

Serie 6416
with internal thread

Executions


Art.-No.DimensionsMaterial
6416.01.70102 x 12,2 x 40 / M5Aluminium black

3D PDF

Serie 6417
with internal thread

Executions


Art.-No.DimensionsMaterial
6417.01.5399 x 8 x 33 / M4Zamak chrome-plated

3D PDF

Serie 6417
with internal thread

Executions


Art.-No.DimensionsMaterial
6417.01.70 102 x 32 x 10 / M5Aluminium polished

3D PDF

Serie 6418
with internal thread

Executions


Art.-No.DimensionsMaterial
6418.01.30122 x 12 x 35 / M5Stainless steel polished

3D PDF

Serie 6412
with internal thread

Executions


Art.-No.DimensionsMaterial
6412.01.2316 x 8 mmBrass chrome-plated

3D PDF

Serie 6418
with internal thread

Executions


Art.-No.DimensionsMaterial
6418.01.53 145 x 8 x 29 / M4Zamak chrome-plated

3D PDF

Serie 6418
with internal thread

Executions


Art.-No.DimensionsMaterial
6418.01.50174 x 10 x 26 / M4Zamak black
6418.02.53 174 x 10 x 26 / M4Zamak chrome-plated

3D PDF

Serie 6420
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6420.03120 x 14 x 22 x 4Zamak chrome-plated

PDF

Serie 6418
with external thread

Executions


Art.-No.DimensionsMaterial
6418.01.23160 x 16 x 50 mm / M8Brass chrome-plated

3D PDF

Serie 6420
drilled

Executions


Art.-No.DimensionsMaterial
6420.10.02140 x 16 x 3 mmSteel galvanised

3D PDF

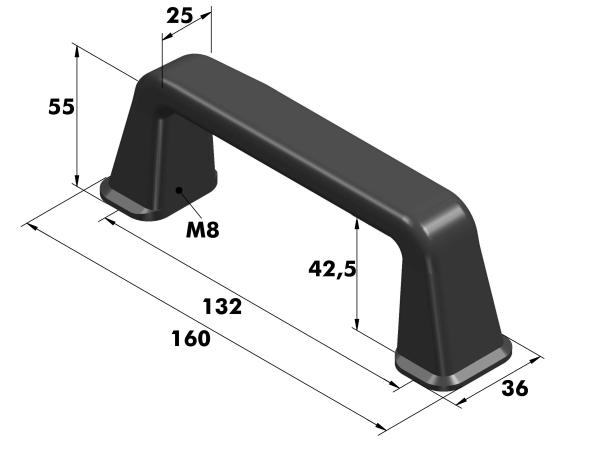

Serie 6422
with internal thread

Executions


Art.-No.DimensionsMaterial
6422.03 160 x 36 x 55 / M8Plastic black

PDF

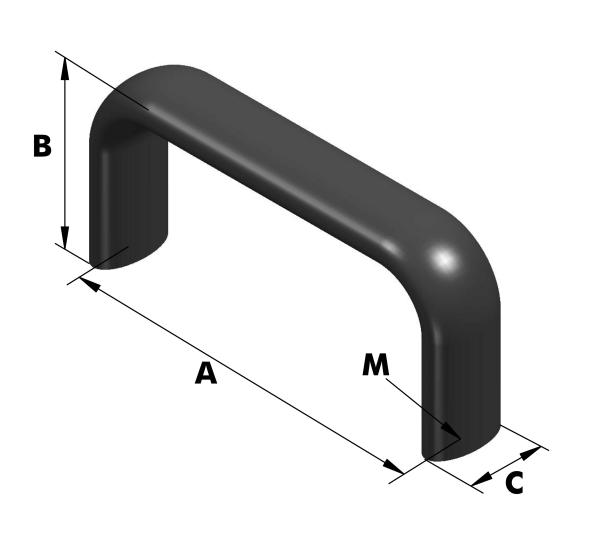

Serie 6424
with internal thread

Executions


Art.-No.DimensionsMaterial
6424.0175 x 38 x 16 / M5Aluminium black
6424.02100 x 38 x 16 / M5Aluminium black
6424.03150 x 38 x 16 / M5Aluminium black

3D PDF

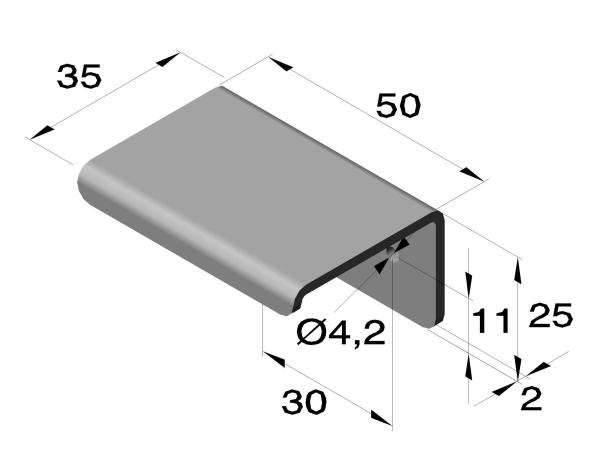

Serie 6445
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6445.03 50 x 25 x 35 x 2 mmchrome-plated

3D PDF

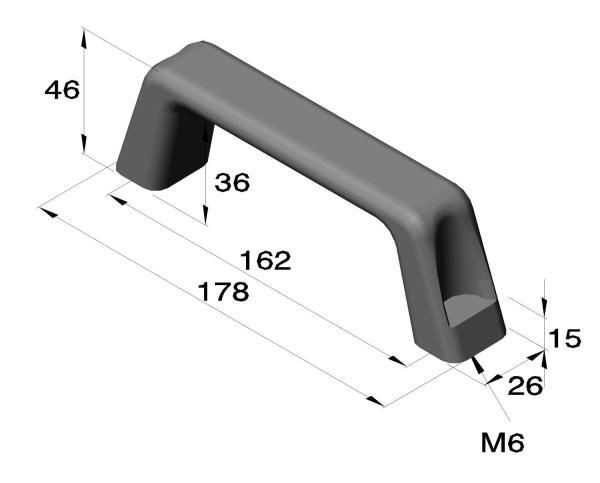

Serie 7038
with internal thread

Executions


Art.-No.DimensionsMaterial
7038178 x 26 x 46 x 15 mmPA black

3D PDF

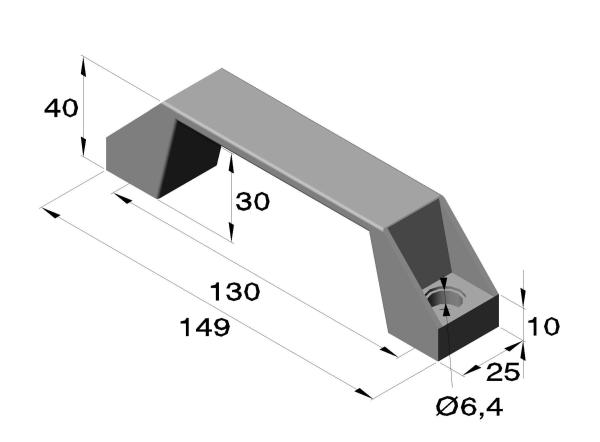

Serie 7039
with internal thread

Executions


Art.-No.DimensionsMaterial
7039149 x 25 x 40 x 10 mmPA black

3D PDF

Serie 6420
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6420.04142 x 26 x 40 mmPA black
