  Latches

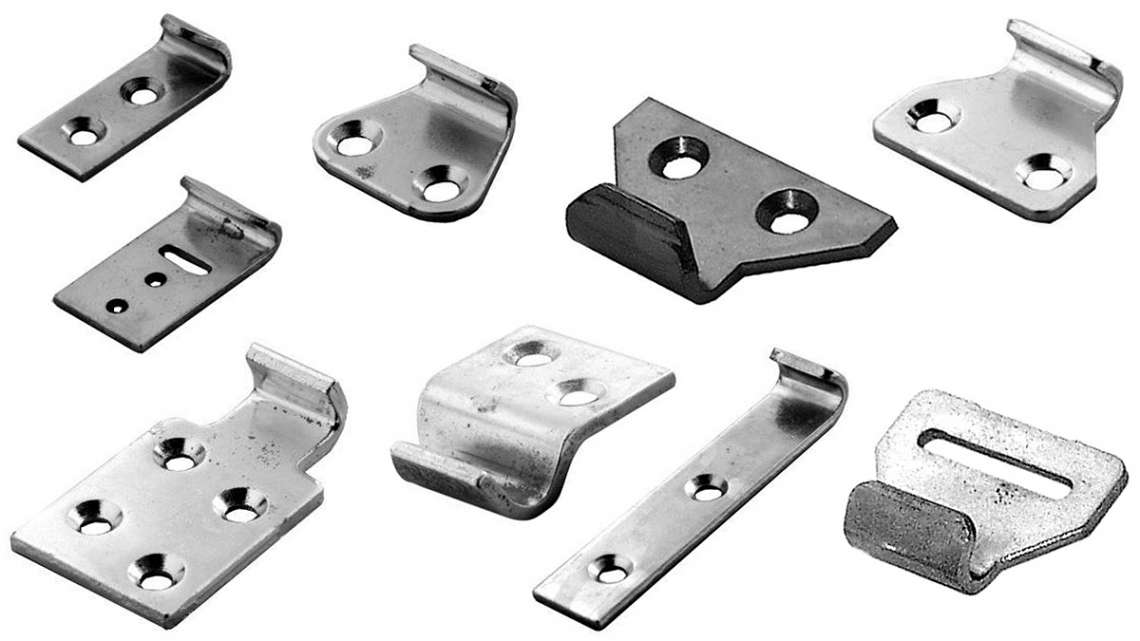

Strikes

You may choose from our very large assortment of strikes according to different materials and surface finishes.

In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to prduce a multiplicity of different components with little effort, even in small quantities.



Our offer includes strikes:

  • galvanized or made of stainless steel
  • straight
  • bent
  • angulated
  • with drills
  • without drills
  • with lug

More details can be found in this PDF data file:

  Download



Additional Latches:



3D PDF

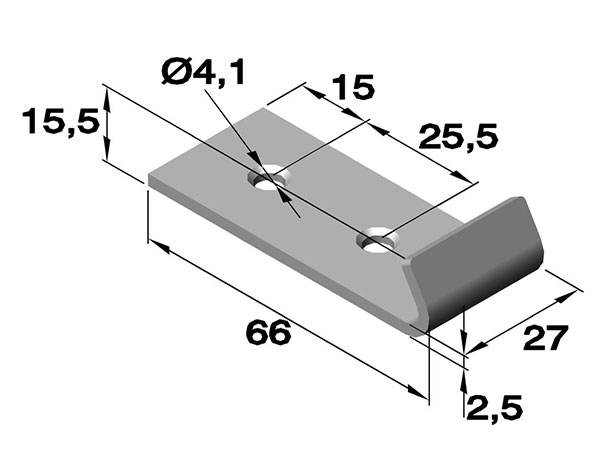

Serie 1001
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
1001.00/566 x 27 mmSteel untreated
1001.01/566 x 27 mmSteel nickel-plated
1001.04/566 x 27 mmSteel galvanised
1001.30/566 x 27 mmStainless steel

3D PDF

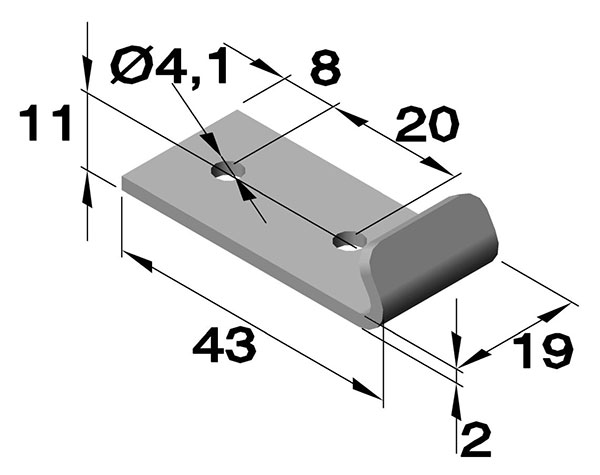

Serie 1006
drilled

Executions


Art.-No.DimensionsMaterial
1006.00/543 x19 mmSteel untreated
1006.01/543 x19 mmSteel nickel-plated
1006.04/543 x19 mmSteel galvanised
1006.30/543 x19 mmStainless steel

3D PDF

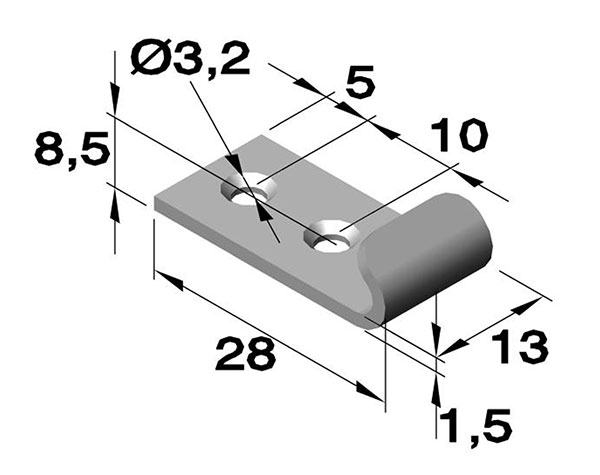

Serie 1008
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
1008.00/528 x 13 mmSteel untreated
1008.01/528 x 13 mmSteel nickel-plated
1008.04/528 x 13 mmSteel galvanised
1008.30/528 x 13 mmStainless steel

3D PDF

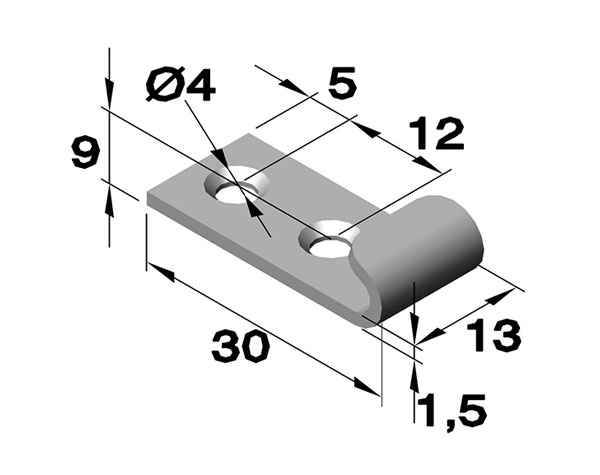

Serie 1009
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
1009.00/530 x 13 mmSteel untreated
1009.01/530 x 13 mmSteel nickel-plated
1009.04/530 x 13 mmSteel galvanised
1009.30/530 x 13 mmStainless steel

3D PDF

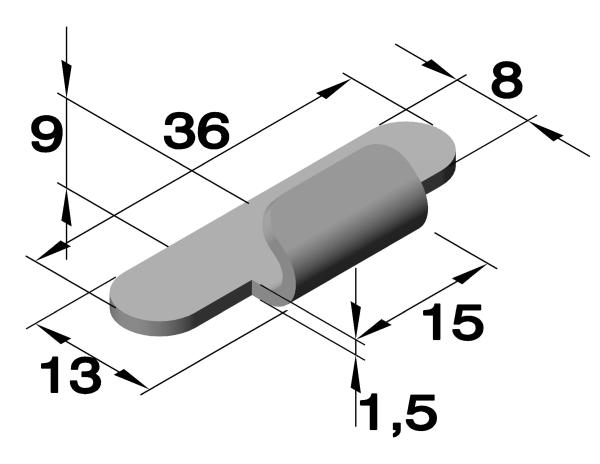

Serie 1013
undrilled

Executions


Art.-No.DimensionsMaterial
1013.00/5-1013 x 36 mmSteel untreated

3D PDF

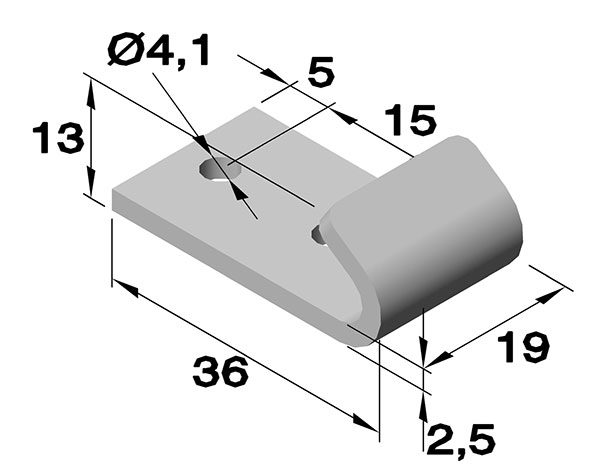

Serie 1015
drilled

Executions


Art.-No.DimensionsMaterial
1015.00/536 x 19 mmSteel untreated
1015.01/536 x 19 mmSteel nickel-plated
1015.04/536 x 19 mmSteel galvanised
1015.30/536 x 19 mmStainless steel

3D PDF

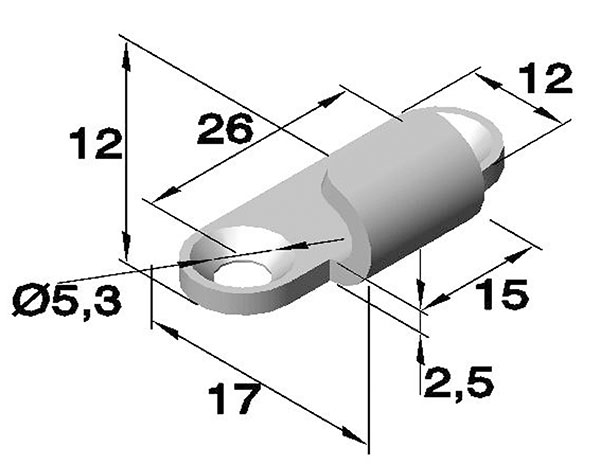

Serie 1024
drilled

Executions


Art.-No.DimensionsMaterial
1024.04/517x 26 mmSteel galvanised
1024.30/517x 26 mmStainless steel

3D PDF

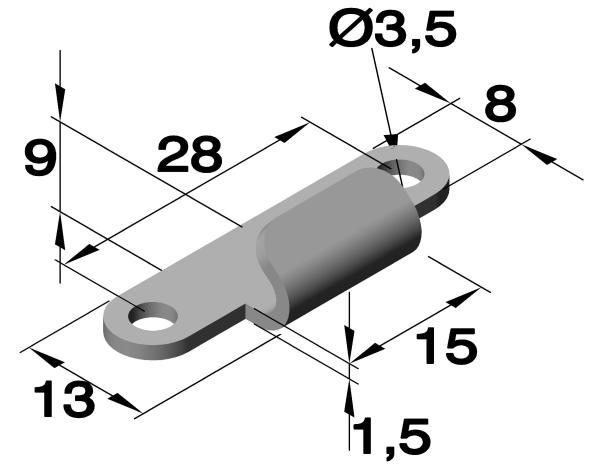

Serie 1013
undrilled

Executions


Art.-No.DimensionsMaterial
1013.00/528 x 13 x 1,5 mmSteel untreated
1013.01/528 x 13 x 1,5 mmSteel nickel-plated
1013.04/528 x 13 x 1,5 mmSteel galvanised
1013.30/528 x 13 x 1,5 mmStainless steel untreated

3D PDF

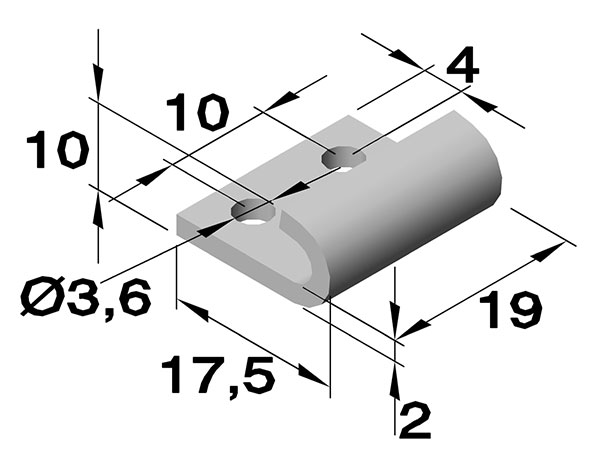

Serie 1027
drilled

Executions


Art.-No.DimensionsMaterial
1027.01/517,5 x 10 mmSteel nickel-plated
1027.04/517,5 x 10 mmSteel galvanised

3D PDF

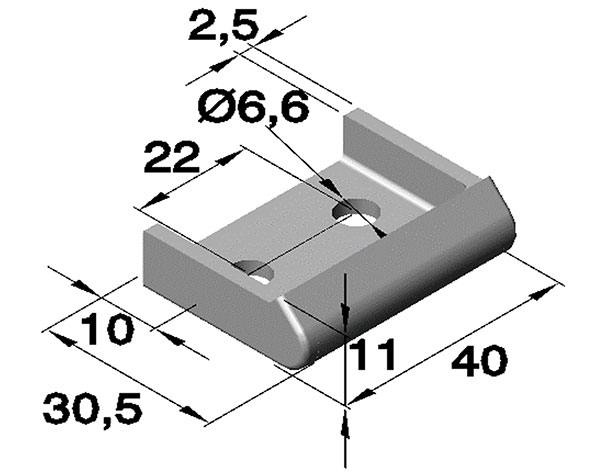

Serie 1029
drilled

Executions


Art.-No.DimensionsMaterial
1029.04/530,5 x 40 mmSteel galvanised

3D PDF

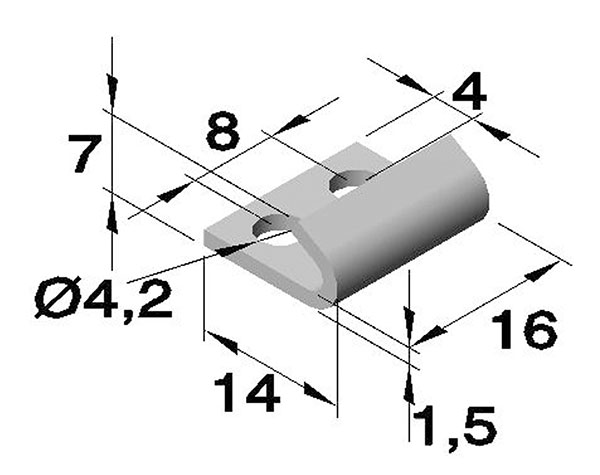

Serie 1031
drilled

Executions


Art.-No.DimensionsMaterial
1031.04/514 x 16 mmSteel galvanised
1031.30/514 x 16 mmStainless steel

3D PDF

Serie 1034
drilled

Executions


Art.-No.DimensionsMaterial
1034.04/515 x 15 mmSteel galvanised
1034.30/515 x 15 mmStainless steel

3D PDF

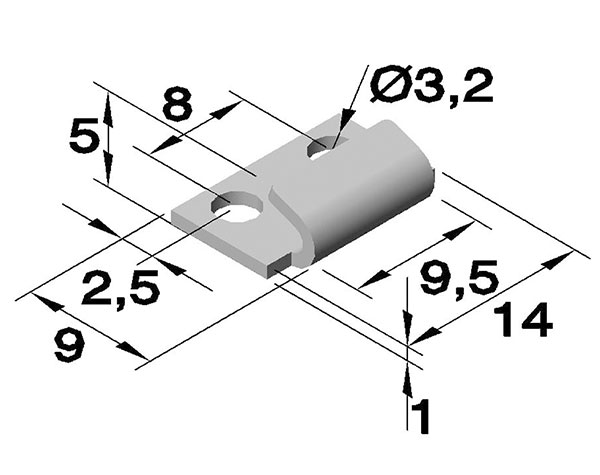

Serie 1036
drilled

Executions


Art.-No.DimensionsMaterial
1036.04/59x 14 mmSteel galvanised

3D PDF

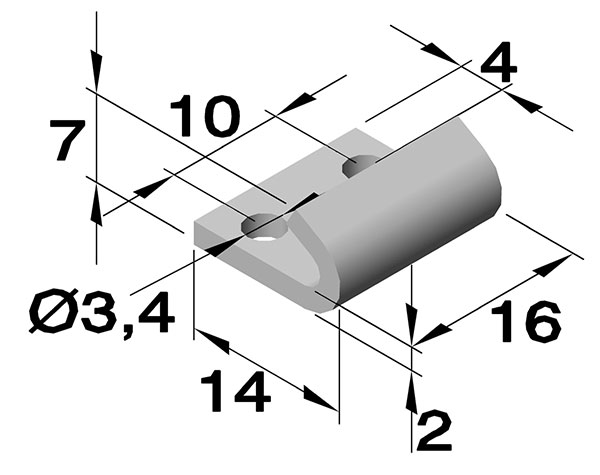

Serie 1038
drilled

Executions


Art.-No.DimensionsMaterial
1038.04/514 x 16 mmSteel galvanised

3D PDF

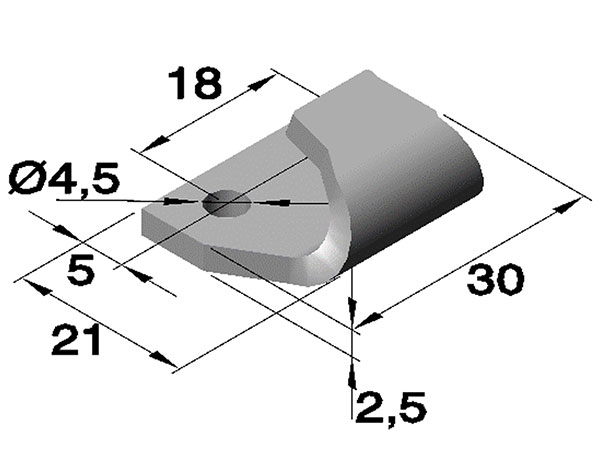

Serie 1039
drilled

Executions


Art.-No.DimensionsMaterial
1039.04/521 x 30 mmSteel galvanised
1039.05/521 x 30 mmSteel bronzed

3D PDF

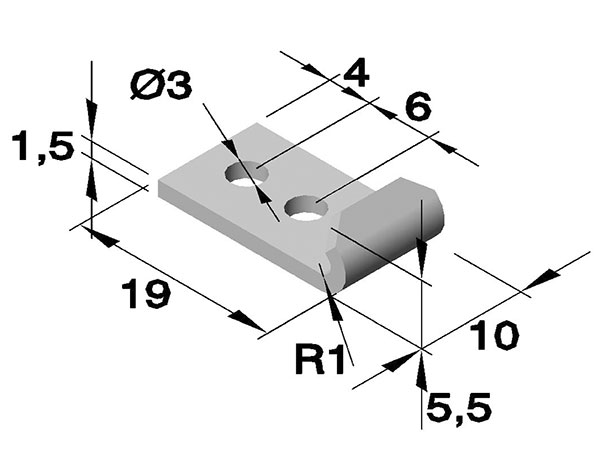

Serie 3601
drilled

Executions


Art.-No.DimensionsMaterial
3601.0419 x 10 mmSteel galvanised

3D PDF

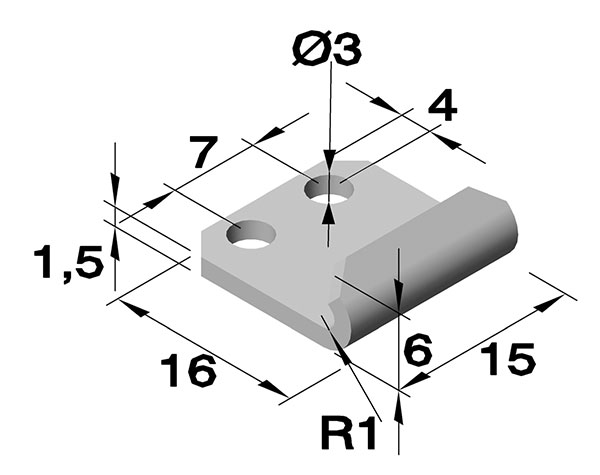

Serie 3602
drilled

Executions


Art.-No.DimensionsMaterial
3602.04 16 x 15 mmSteel galvanised

3D PDF

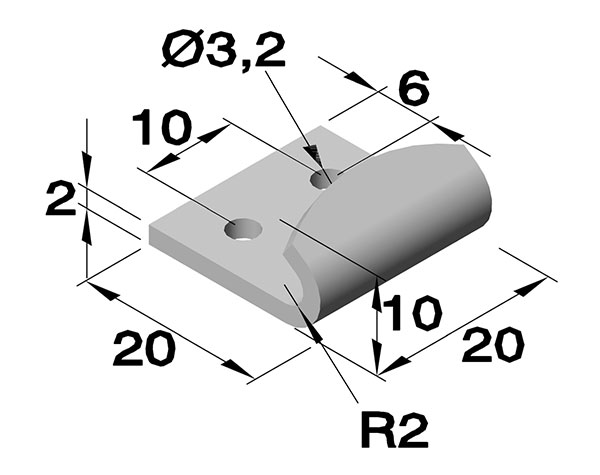

Serie 3603
drilled

Executions


Art.-No.DimensionsMaterial
3603.0420 x 20 mmSteel galvanised

3D PDF

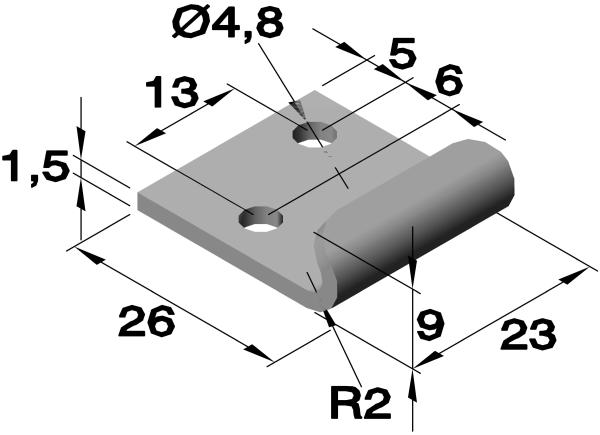

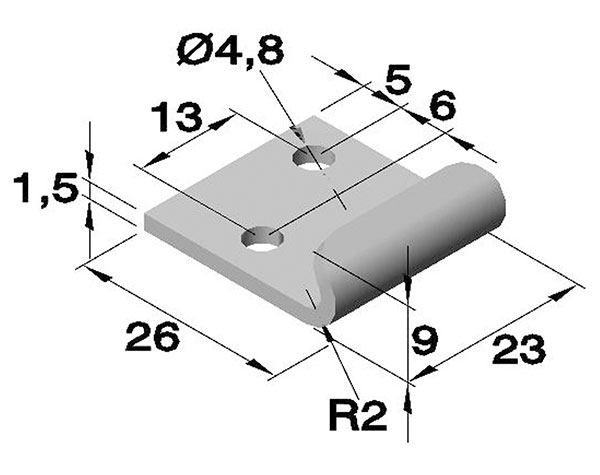

Serie 3604
drilled

Executions


Art.-No.DimensionsMaterial
3604.0426 x 23 mmSteel galvanised

3D PDF

Serie 3604
undrilled

Executions


Art.-No.DimensionsMaterial
3604.00-U126 x 23Steel untreated

3D PDF

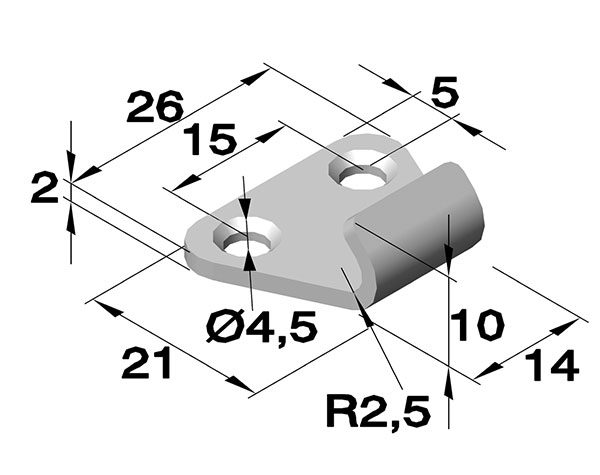

Serie 3605
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3605.04 21 x 26 mmSteel galvanised
3605.30 21 x 26 mmStainless steel

3D PDF

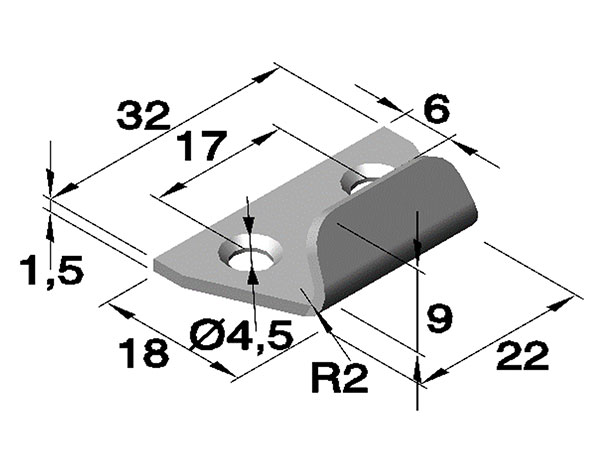

Serie 3606
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3606.04 18 x 32 mmSteel galvanised

3D PDF

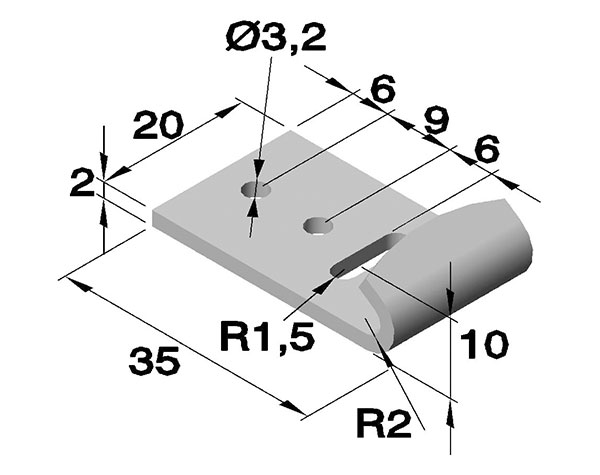

Serie 3607
drilled

Executions


Art.-No.DimensionsMaterial
3607.0435 x 20 mmSteel galvanised
3607.3035 x 20 mmStainless steel

3D PDF

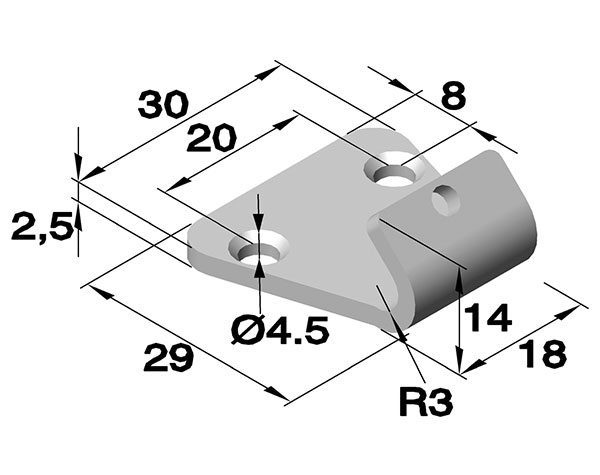

Serie 3608
drilled

Executions


Art.-No.DimensionsMaterial
3608.0429 x 30 mmSteel galvanised
3608.3029 x 30 mmStainless steel
3608.3329 x 30 mmpolished stainless steel

3D PDF

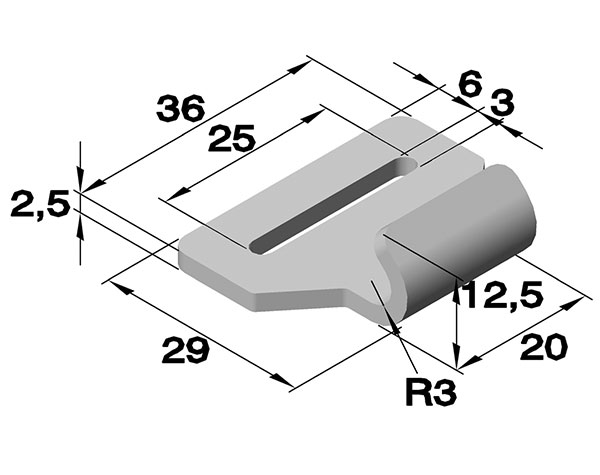

Serie 3609
drilled

Executions


Art.-No.DimensionsMaterial
3609.04 29 x 36 mmSteel galvanised
3609.3029 x 36 mmStainless steel

3D PDF

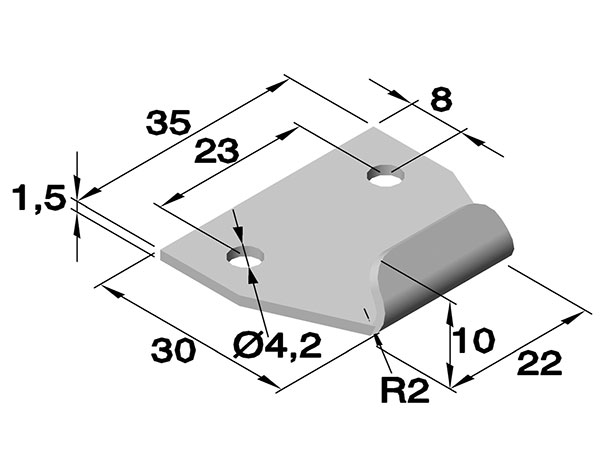

Serie 3610
drilled

Executions


Art.-No.DimensionsMaterial
3610.0430 x 35 mmSteel galvanised
3610.3030 x 35 mmStainless steel

3D PDF

Serie 3608
undrilled

Executions


Art.-No.DimensionsMaterial
3608.00-U129x30x2,5mmSteel untreated
3608.04-U129x30x2,5mmSteel galvanised
3608.30-U129x30x2,5mmStainless steel untreated

3D PDF

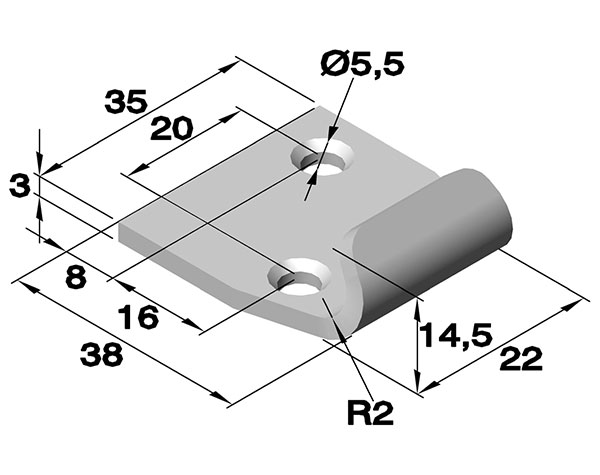

Serie 3611
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3611.0438 x 35 mmSteel galvanised
3611.30 38 x 35 mmStainless steel
3611.33 38 x 35 mmpolished stainless steel

3D PDF

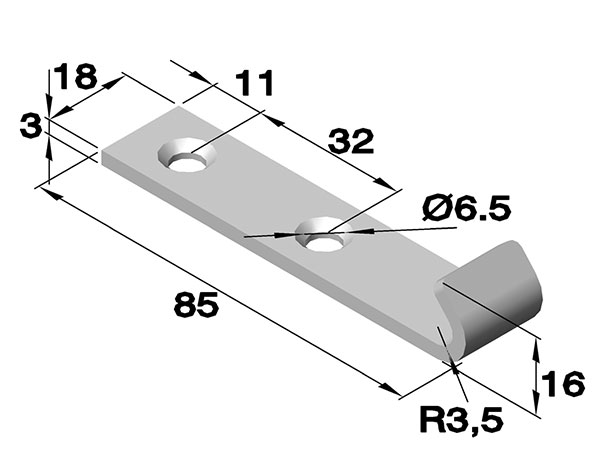

Serie 3612
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3612.00 85 x 18 mmSteel untreated
3612.0485 x 18 mmSteel galvanised
3612.30 85 x 18 mmStainless steel
3612.3385 x 18 mmpolished stainless steel

3D PDF

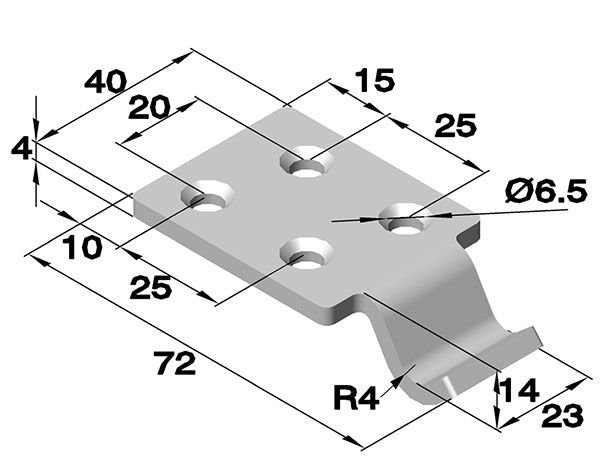

Serie 3615
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3615.04 72 x 40 mm Steel galvanised

3D PDF

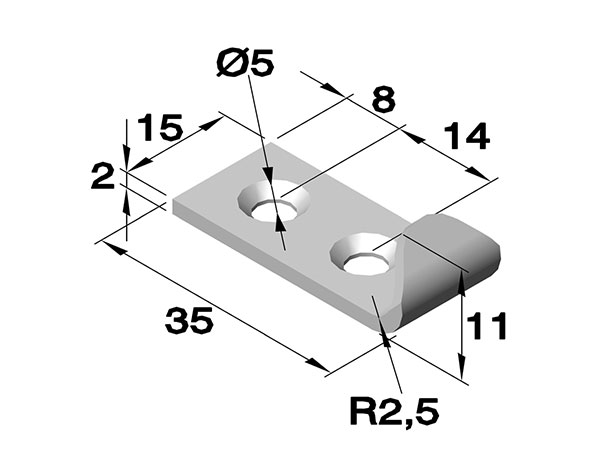

Serie 3616
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3616.0435 x 15 mmSteel galvanised

3D

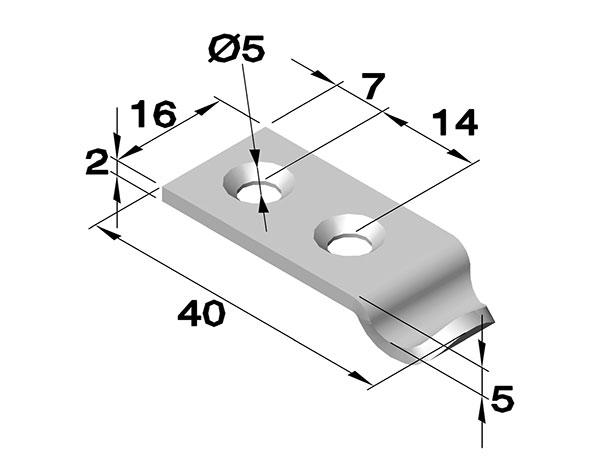

Serie 3618
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3618.04 40 x 16 mmSteel galvanised
3618.3040 x 16 mmStainless steel

3D

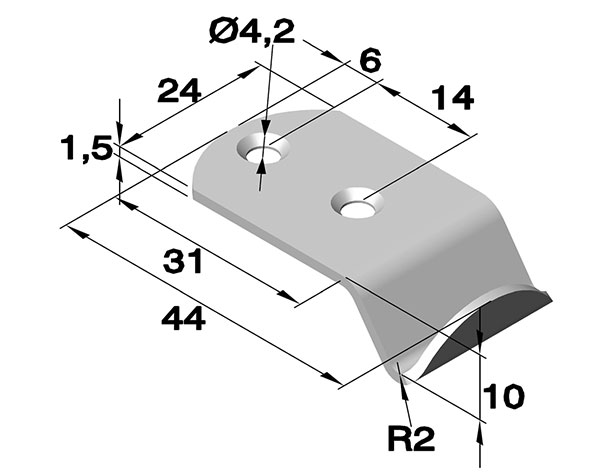

Serie 3619
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3619.0444 x 24 mmSteel galvanised

3D

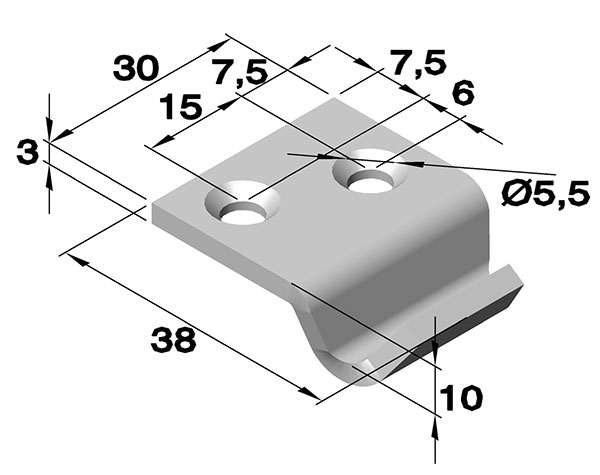

Serie 3620
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3620.04 38 x 30 mmSteel galvanised

3D

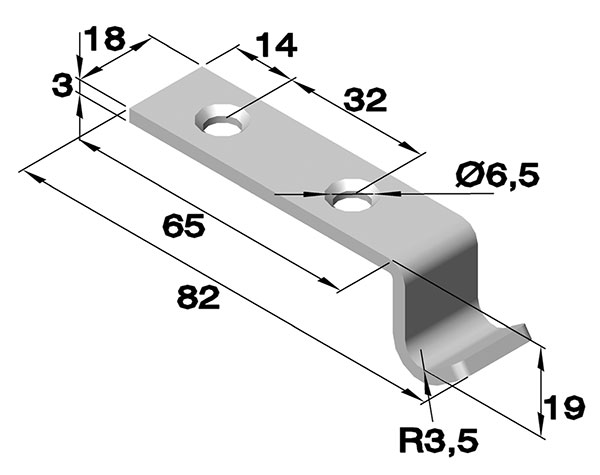

Serie 3622
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3622.0482 x 18 mmSteel galvanised

3D

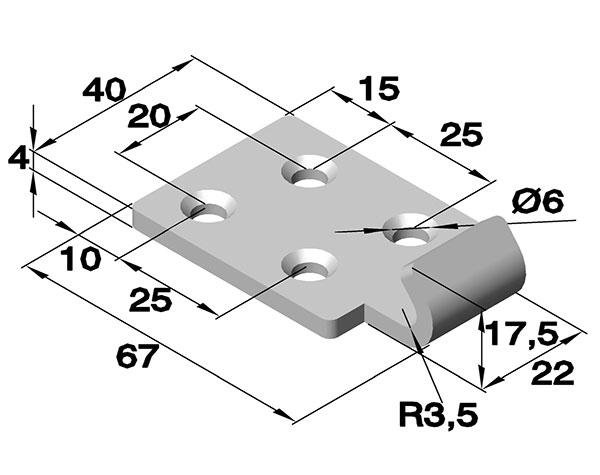

Serie 3623
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3623.0467 x 40 mmSteel galvanised

3D

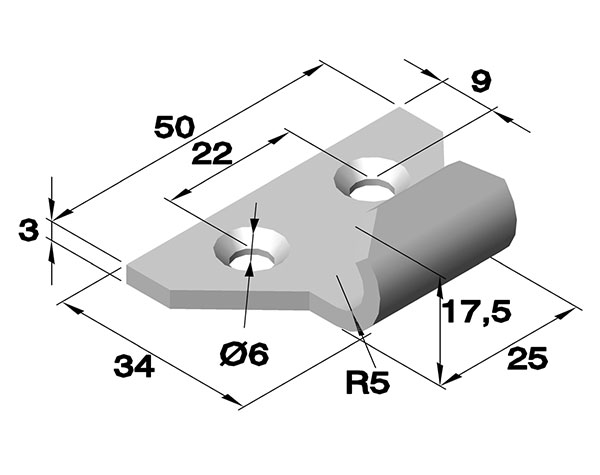

Serie 3624
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3624.3034 x 50 mmStainless steel

3D

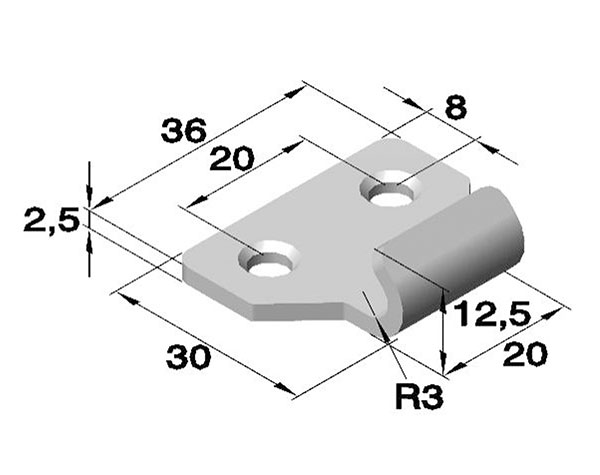

Serie 3625
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3625.04 30 x 36 mmSteel galvanised
3625.30 30 x 36 mmStainless steel

3D

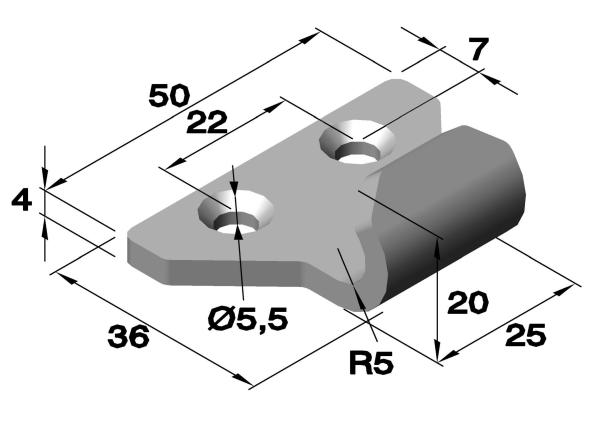

Serie 3624
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3624.30RF-336 x 50Stainless steel untreated

3D

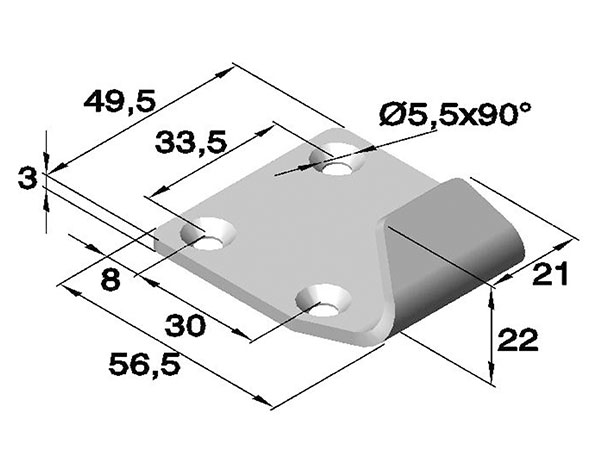

Serie 3626
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3626.30 56,5 x 49,5 mmStainless steel

3D

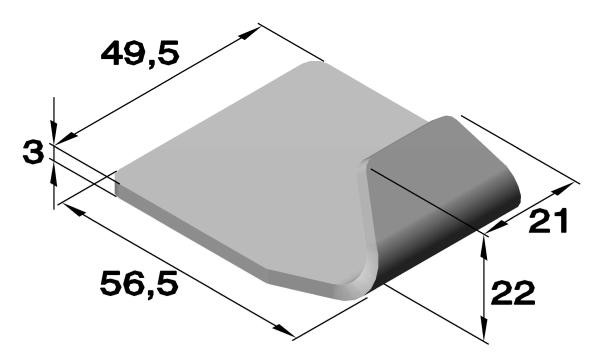

Serie 3626
undrilled

Executions


Art.-No.DimensionsMaterial
3626.30-U156,5 x 49,5 mmStainless steel

3D

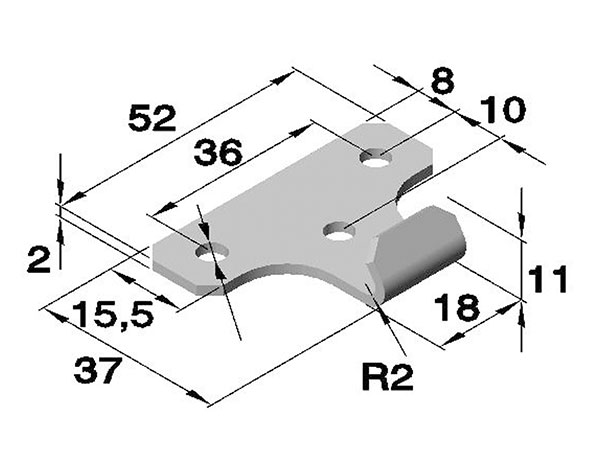

Serie 3627
drilled

Executions


Art.-No.DimensionsMaterial
3627.0137 x 52 mmSteel nickel-plated

3D

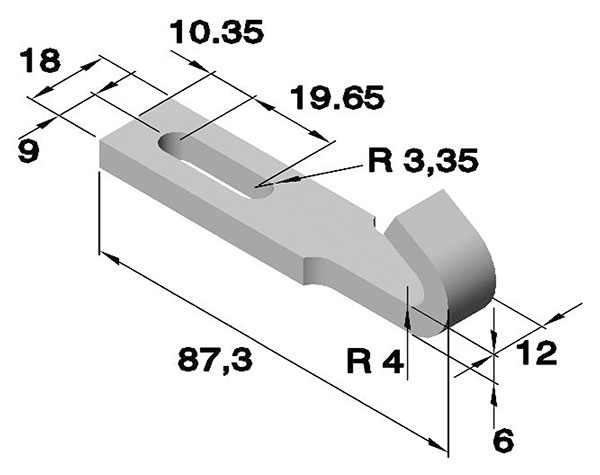

Serie 3633
drilled

Executions


Art.-No.DimensionsMaterial
3633.04 87,3 x 18 mmSteel galvanised

3D

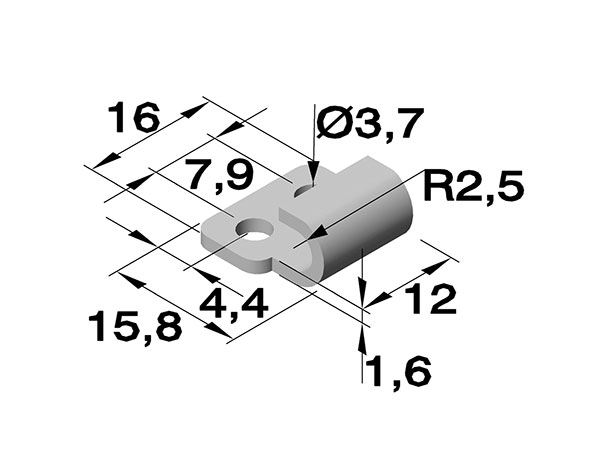

Serie 6200
drilled

Executions


Art.-No.DimensionsMaterial
6200.0415,8 x 16 mmSteel galvanised
6200.3015,8 x 16 mmStainless steel

3D

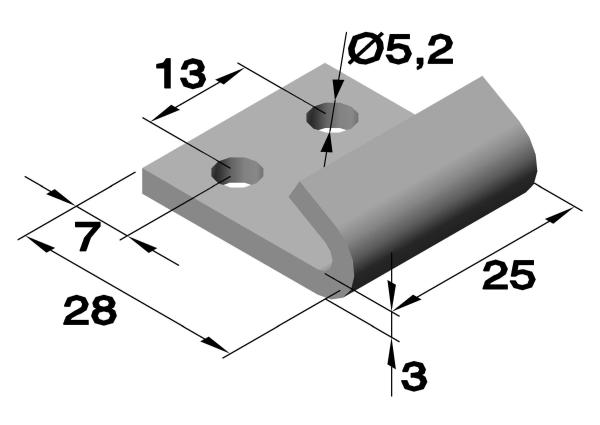

Serie 6375.02
drilled

Executions


Art.-No.DimensionsMaterial
6375.02.0428 x 25 mm Steel galvanised
6375.02.3028 x 25 mm Stainless steel

3D

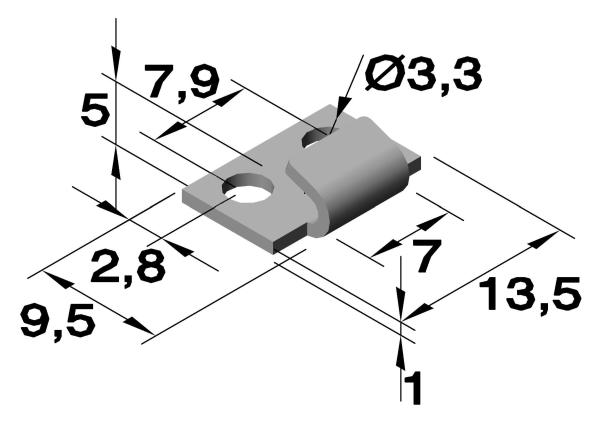

Serie 6379.01
drilled

Executions


Art.-No.DimensionsMaterial
6379.01.309,5 x 13,5 mmStainless steel

3D

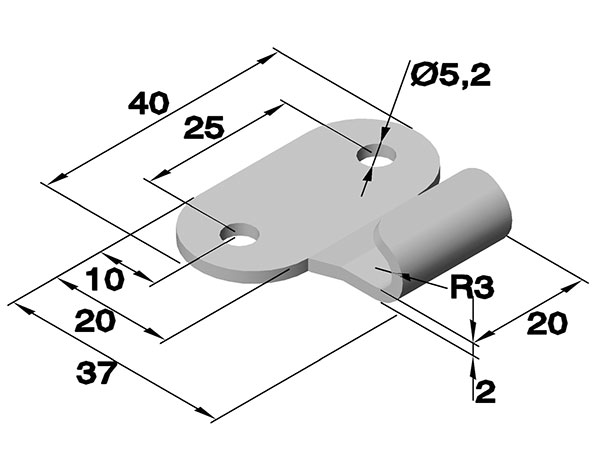

Serie 6603
drilled

Executions


Art.-No.DimensionsMaterial
6603.03.3037 x 40 mmStainless steel
6603.05.0437 x 40 mmSteel galvanised
6603.06.3037 x 40 mmStainless steel

3D

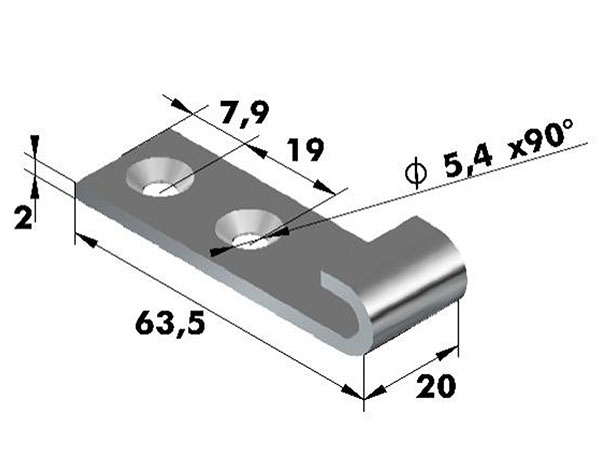

Serie 6373
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6373.02.0463,5 x 20 mmSteel galvanised

3D

Serie 6377
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
6377.01.0485 x 25 mmSteel galvanised

3D

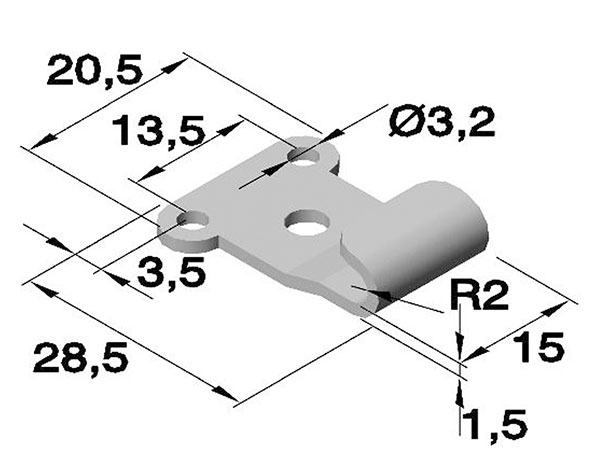

Serie 6605
drilled

Executions


Art.-No.DimensionsMaterial
6605.05.0428,5 x 20,5 mmSteel galvanised
6605.06.3028,5 x 20,5 mmStainless steel

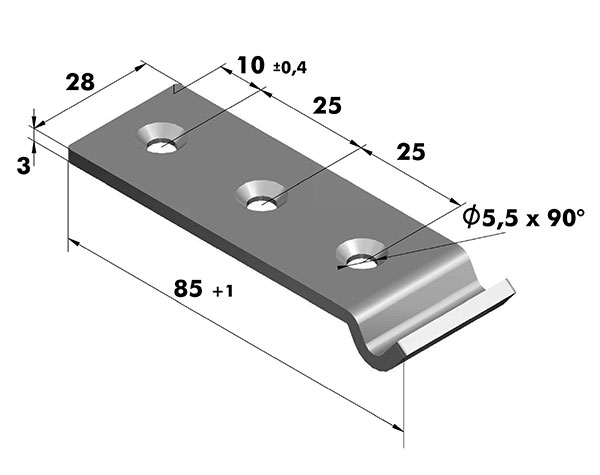

Serie 99.D28-02
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
99.D28-02.0485 x 28Steel galvanised

3D PDF

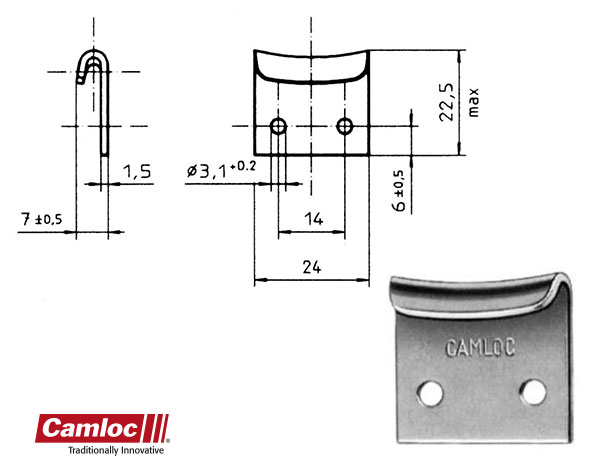

Serie 1429L9
drilled

Executions


Art.-No.DimensionsMaterial
1429L9-1AG 22,5 x 24 mmSteel galvanised
1429L9-1BP22,5 x 24 mmStainless steel

PDF

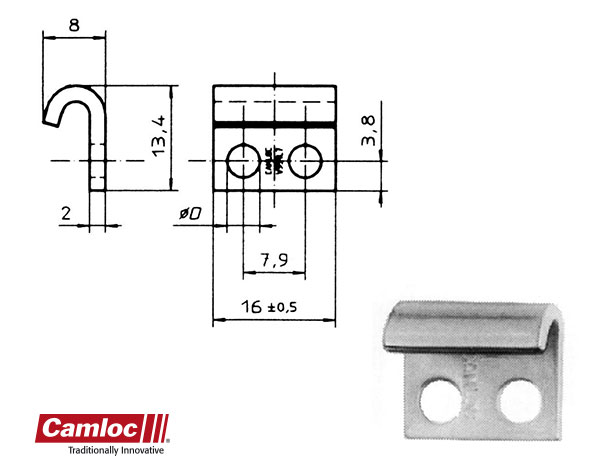

Serie V951L7
drilled

Executions


Art.-No.DimensionsMaterial
V951L7-1AD13,4 x 16 mmSteel chrome-plated
V951L7-1AGV13,4 x 16 mmSteel galvanised
V951L7-1BP13,4 x 16 mmStainless steel
V951L7-2AZ13,4 x 16 mmSteel galvanised
V951L7-2BP13,4 x 16 mmStainless steel
V951L7-5AGV13,4 x 16 mmSteel galvanised
V951L7-5BP13,4 x 16 mmStainless steel

3D PDF

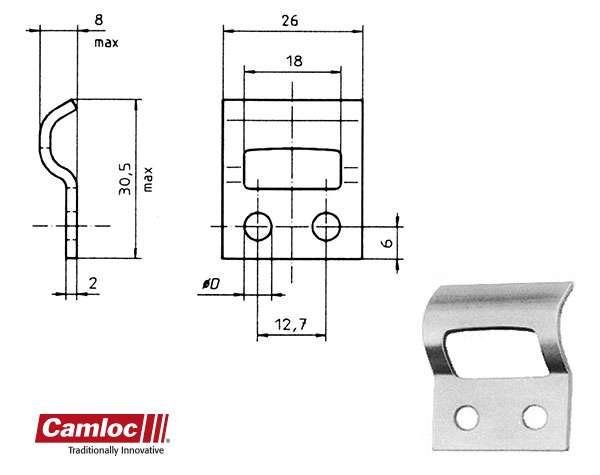

Serie V951L50
drilled

Executions


Art.-No.DimensionsMaterial
V951L50-1AGV30,5 x 26 mmSteel galvanised
V951L50-1BP30,5 x 26 mmStainless steel
V951L50-2BP30,5 x 26 mmStainless steel
V951L50-3BP30,5 x 26 mmStainless steel
V951L50-1AGV30,5 x 26 mmSteel galvanised
V951L50-1BP30,5 x 26 mmStainless steel
V951L50-3BP30,5 x 26 mmStainless steel
V951L50-5AGV30,5 x 26 mmSteel galvanised

3D PDF

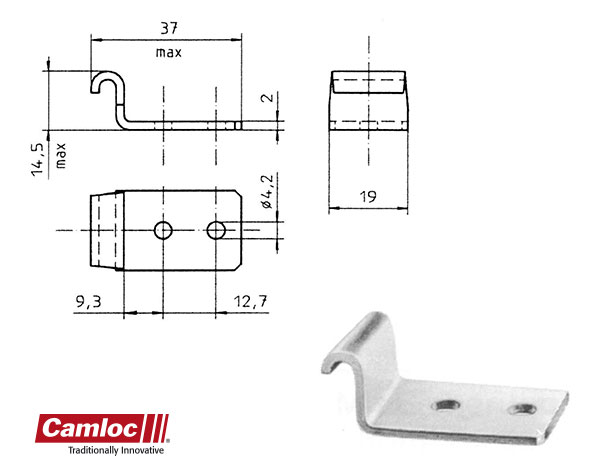

Serie V951L52
drilled

Executions


Art.-No.DimensionsMaterial
V951L52-1AGV37 x 19 mmSteel galvanised
V951L52-1BP37 x 19 mmStainless steel

3D PDF

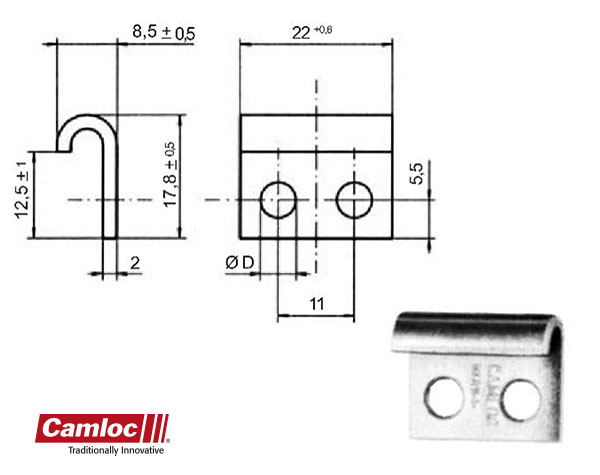

Serie V917L11
drilled

Executions


Art.-No.DimensionsMaterial
V917L11-1-1AG17,8 x 22 mmSteel galvanised
V917L11-1-1BP17,8 x 22 mmStainless steel
V917L11-1-3AG17,8 x 22 mmSteel galvanised

3D PDF

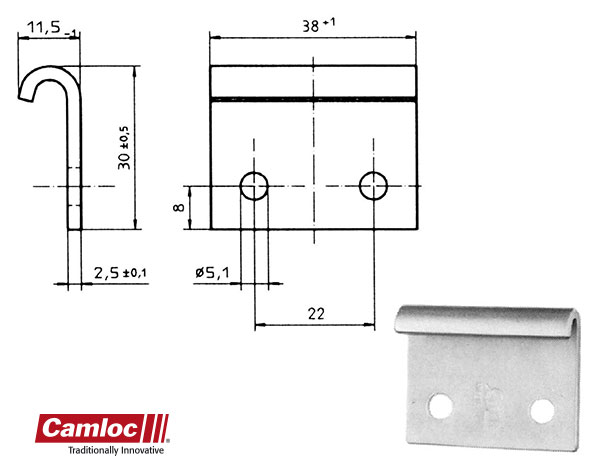

Serie V18L13
drilled

Executions


Art.-No.DimensionsMaterial
V18L13-1-1AA30 x 38 mmSteel galvanised
V18L13-1-1BF30 x 38 mmStainless steel
V18L13-1-2BF30 x 38 mmStainless steel
V18L13-1-1AC30 x 38 mmSteel galvanised

3D PDF

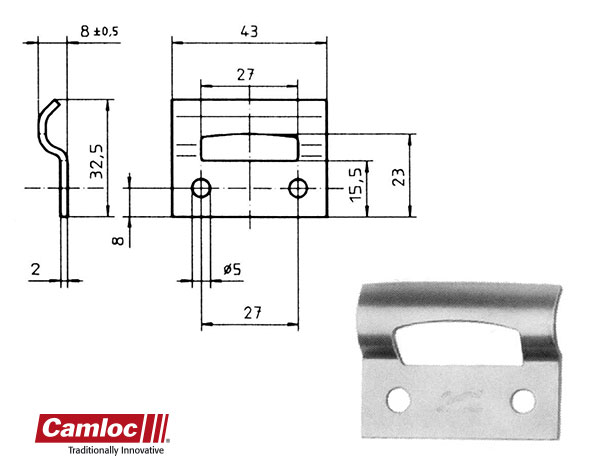

Serie 1449L07
drilled

Executions


Art.-No.DimensionsMaterial
1449L07-1BP 32,5 x 43 mmStainless steel

PDF

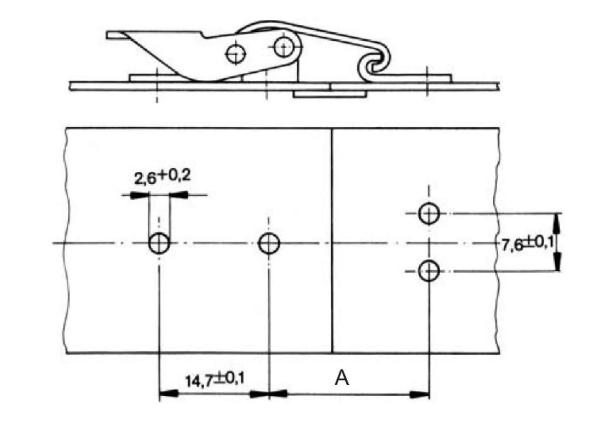

Serie V934L02
drilled

Executions


Art.-No.DimensionsMaterial
V934L02-1AGV12,7 x 12,7 mmSteel galvanised
V934L02-1BP12,7 x 12,7 mmStainless steel

3D PDF

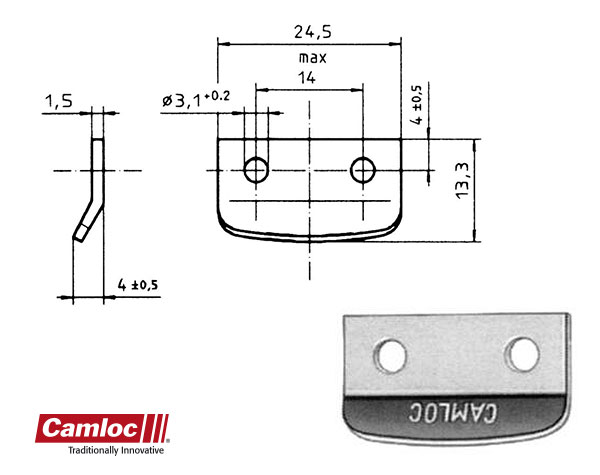

Serie 1429L8-1
drilled

Executions


Art.-No.DimensionsMaterial
1429L8-1-AG13,3 x 24,5 mm Steel galvanised
1429L8-1-BP13,3 x 24,5 mm Stainless steel

PDF

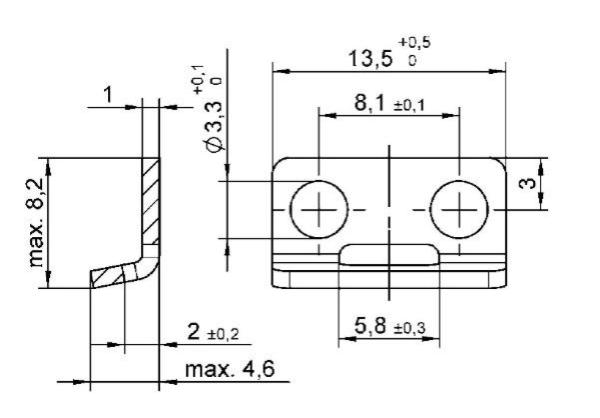

Serie V95H07
drilled

Executions


Art.-No.DimensionsMaterial
V95H07-1-1BC8,2 x 13,5 mmStainless steel

3D PDF

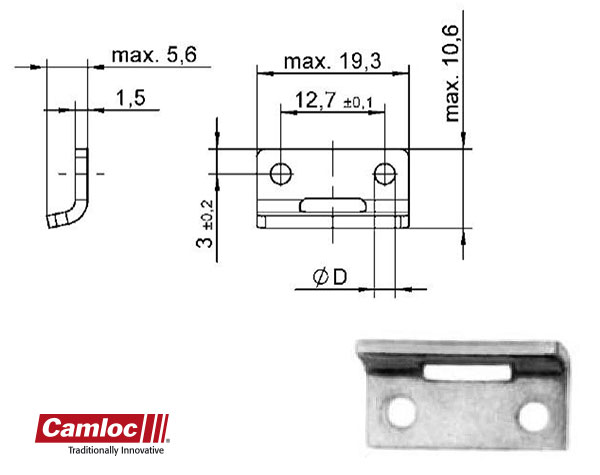

Serie V96H01
drilled

Executions


Art.-No.DimensionsMaterial
V96H01-1-1AO10,6 x 19,3 mmSteel galvanised
V96H01-1-2AO10,6 x 19,3 mmSteel galvanised
