  Products

Drawer Slides

Choose your Drawer Sliedes from a very large selection of different materials and surface finishes.

If the desired component is not shown in the design, please contact us anyway.

Our range includes various Drawer Slides:

  • made of stainless steel
  • Galvanized steel
  • made of aluminum
  • with various surface treatments (on request)

More details can be found in this PDF data file:

  Download




PDF

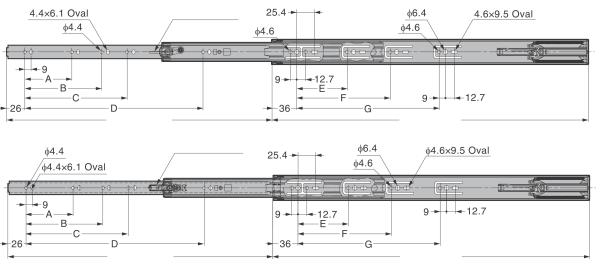

Serie 150.3670
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.3670-250.04slide length: 250 mm; travelling length: 200 mmSteel galvanised
150.3670-300.04slide length: 300 mm; travelling length: 300 mmSteel galvanised
150.3670-350.04slide length: 350 mm; travelling length: 350 mmSteel galvanised
150.3670-400.04slide length: 400 mm; travelling length: 400 mmSteel galvanised
150.3670-450.04slide length: 450 mm; travelling length: 450 mmSteel galvanised
150.3670-500.04slide length: 500 mm; travelling length: 500 mmSteel galvanised
150.3670-550.04slide length: 550 mm; travelling length: 550 mmSteel galvanised
150.3670-600.04slide length: 600 mm; travelling length: 600 mmSteel galvanised

PDF

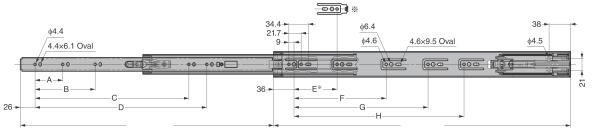

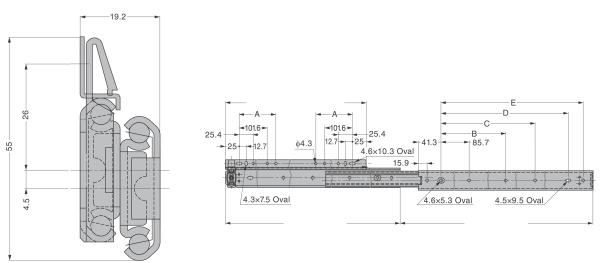

Serie 150.ESR4670
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR4670-12-300.30slide length: 300 mm; travelling length: 265 mmStainless steel
150.ESR4670-14-350.30slide length: 350 mm; travelling length: 340 mmStainless steel
150.ESR4670-16-400.30slide length: 400 mm; travelling length: 400 mmStainless steel
150.ESR4670-18-450.30slide length: 450 mm; travelling length: 450 mmStainless steel
150.ESR4670-20-500.30slide length: 500 mm; travelling length: 500 mmStainless steel
150.ESR4670-22-550.30slide length: 550 mm; travelling length: 550 mmStainless steel
150.ESR4670-24-600.30slide length: 600 mm; travelling length: 600 mmStainless steel
150.ESR4670-26-650.30slide length: 650 mm; travelling length: 650 mmStainless steel
150.ESR4670-28-700.30slide length: 700 mm; travelling length: 700 mmStainless steel

PDF

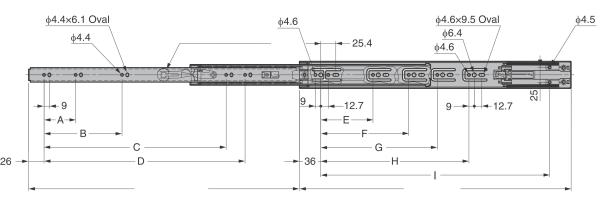

Serie 150.4670
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.4670-250.04slide length: 250 mm; travelling length: 175 mmSteel galvanised
150.4670-300.04slide length: 300 mm; travelling length: 275 mmSteel galvanised
150.4670-350.04slide length: 350 mm; travelling length: 353 mmSteel galvanised
150.4670-400.04slide length: 400 mm; travelling length: 404 mmSteel galvanised
150.4670-450.04slide length: 450 mm; travelling length: 455 mmSteel galvanised
150.4670-500.04slide length: 500 mm; travelling length: 505 mmSteel galvanised
150.4670-550.04slide length: 550 mm; travelling length: 556 mmSteel galvanised
150.4670-600.04slide length: 600 mm; travelling length: 606 mmSteel galvanised
150.4670-650.04slide length: 650 mm; travelling length: 653 mmSteel galvanised
150.4670-700.04slide length: 700 mm; travelling length: 704 mmSteel galvanised
150.4670-250BL.07slide length: 250 mm; travelling length: 175 mmSteel black chromatised
150.4670-300BL.07slide length: 300 mm; travelling length: 275 mmSteel black chromatised
150.4670-350BL.07slide length: 350 mm; travelling length: 353 mmSteel black chromatised
150.4670-400BL.07slide length: 400 mm; travelling length: 404 mmSteel black chromatised
150.4670-450BL.07slide length: 450 mm; travelling length: 455 mmSteel black chromatised
150.4670-500BL.07slide length: 500 mm; travelling length: 505 mmSteel black chromatised
150.4670-550BL.07slide length: 550 mm; travelling length: 556 mmSteel black chromatised
150.4670-600BL.07slide length: 600 mm; travelling length: 606 mmSteel black chromatised
150.4670-650BL.07slide length: 650 mm; travelling length: 653 mmSteel black chromatised
150.4670-700BL.07slide length: 700 mm; travelling length: 704 mmSteel black chromatised

PDF

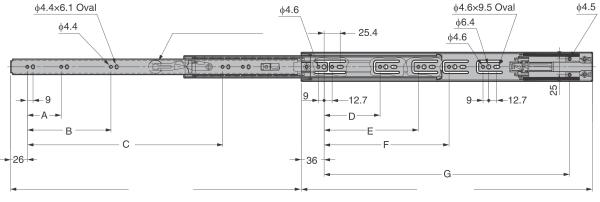

Serie 150.L52145
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.L52145-410.04slide length: 410 mm; travelling length: 360 mmSteel galvanised
150.L52145-460.04slide length: 460 mm; travelling length: 403 mmSteel galvanised
150.L52145-510.04slide length: 510 mm; travelling length: 453 mmSteel galvanised
150.L52145-560.04slide length: 560 mm; travelling length: 502 mmSteel galvanised
150.L52145-610.04slide length: 610 mm; travelling length: 552 mmSteel galvanised
150.L52145-660.04slide length: 660 mm; travelling length: 604 mmSteel galvanised
150.L52145-710.04slide length: 710 mm; travelling length: 651 mmSteel galvanised

PDF

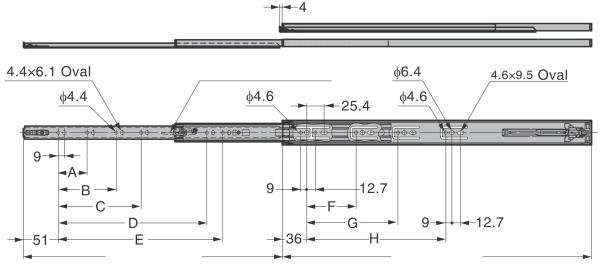

Serie 150.3660
with push to open function

Executions


Art.-No.DimensionsMaterial
150.3660-250.04slide length: 250 mm; travelling length: 250 mmSteel galvanised
150.3660-300.04slide length: 300 mm; travelling length: 300 mmSteel galvanised
150.3660-350.04slide length: 350 mm; travelling length: 350 mmSteel galvanised
150.3660-400.04slide length: 400 mm; travelling length: 400 mmSteel galvanised
150.3660-450.04slide length: 450 mm; travelling length: 450 mmSteel galvanised
150.3660-500.04slide length: 500 mm; travelling length: 500 mmSteel galvanised
150.3660-550.04slide length: 550 mm; travelling length: 550 mmSteel galvanised
150.3660-600.04slide length: 600 mm; travelling length: 600 mmSteel galvanised

PDF

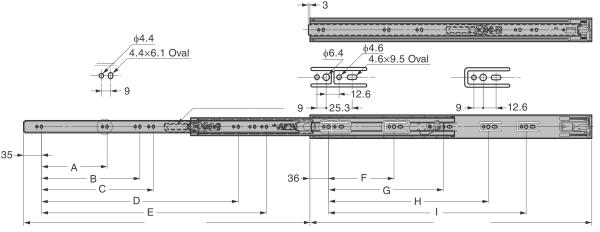

Serie 150.4638
with push to open function

Executions


Art.-No.DimensionsMaterial
150.4638-14-350.04slide length: 350 mm; travelling length: 356 mmSteel galvanised
150.4638-16-400.04slide length: 400 mm; travelling length: 406 mmSteel galvanised
150.4638-18-450.04slide length: 450 mm; travelling length: 457 mmSteel galvanised
150.4638-20-500.04slide length: 500 mm; travelling length: 508 mmSteel galvanised
150.4638-22-550.04slide length: 550 mm; travelling length: 559 mmSteel galvanised
150.4638-24-600.04slide length: 600 mm; travelling length: 610 mmSteel galvanised
150.4638-26-650.04slide length: 650 mm; travelling length: 660 mmSteel galvanised
150.4638-28-700.04slide length: 700 mm; travelling length: 711 mmSteel galvanised

PDF

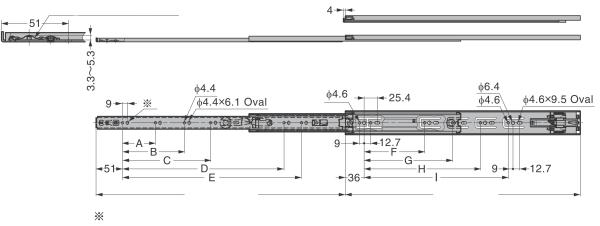

Serie 150.4660
with push to open function

Executions


Art.-No.DimensionsMaterial
150.4660-250.04slide length: 250 mm; travelling length: 200 mmSteel galvanised
150.4660-300.04slide length: 300 mm; travelling length: 296 mmSteel galvanised
150.4660-350.04slide length: 350 mm; travelling length: 348 mmSteel galvanised
150.4660-400.04slide length: 400 mm; travelling length: 406 mmSteel galvanised
150.4660-450.04slide length: 450 mm; travelling length: 458 mmSteel galvanised
150.4660-500.04slide length: 500 mm; travelling length: 509 mmSteel galvanised
150.4660-550.04slide length: 550 mm; travelling length: 560 mmSteel galvanised
150.4660-600.04slide length: 600 mm; travelling length: 611 mmSteel galvanised
150.4660-650.04slide length: 650 mm; travelling length: 661 mmSteel galvanised
150.4660-700.04slide length: 700 mm; travelling length: 712 mmSteel galvanised

PDF

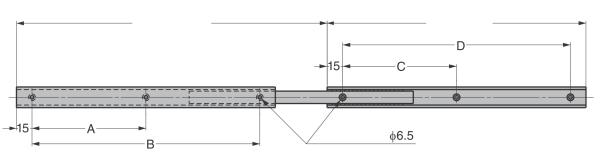

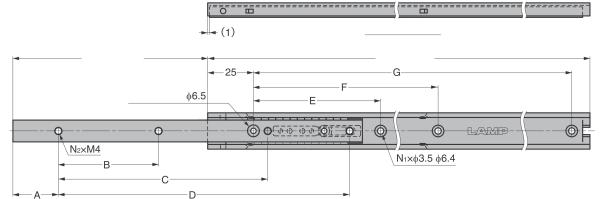

Serie 150.AR3
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.AR3-16-80.70slide length: 80 mm; travelling length: 77 mmAluminium anodised
150.AR3-16-100.70slide length: 100 mm; travelling length: 117 mmAluminium anodised
150.AR3-16-150.70slide length: 150 mm; travelling length: 151 mmAluminium anodised
150.AR3-100.70slide length: 100 mm; travelling length: 100 mmAluminium
150.AR3-200.70slide length: 200 mm; travelling length: 223 mmAluminium
150.AR3-300.70slide length: 300 mm; travelling length: 345 mmAluminium
150.AR3-400.70slide length: 400 mm; travelling length: 460 mmAluminium
150.AR3-500.70slide length: 500 mm; travelling length: 576 mmAluminium

PDF

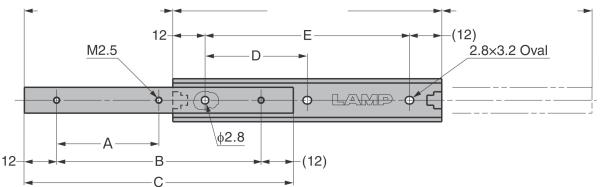

Serie 150.ARW2
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ARW2-16-70.70slide length: 70 mm; travelling length: 32 mmAluminium anodised
150.ARW2-16-100.70slide length: 100 mm; travelling length: 40 mmAluminium anodised
150.ARW2-16-150.70slide length: 150 mm; travelling length: 79 mmAluminium anodised

PDF

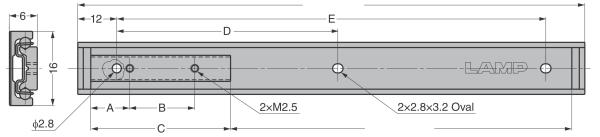

Serie 150.ARL2
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ARL2-16-70.70slide length: 70 mm; travelling length: 30 mmAluminium anodised
150.ARL2-16-100.70slide length: 100 mm; travelling length: 52 mmAluminium anodised
150.ARL2-16-150.70slide length: 150 mm; travelling length: 96 mmAluminium anodised

PDF

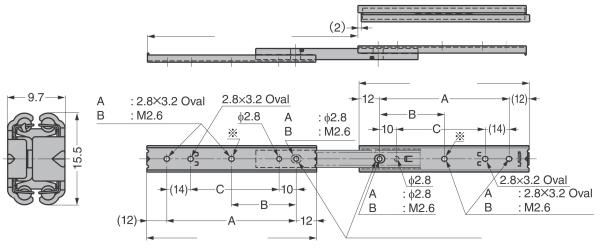

Serie 150.SCR3
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.SCR3-15-80A.30slide length: 80 mm; travelling length: 97 mmStainless steel
150.SCR3-15-100A.30slide length: 100 mm; travelling length: 125 mmStainless steel
150.SCR3-15-150A.30slide length: 150 mm; travelling length: 177 mmStainless steel
150.SCR3-15-80B.30slide length: 80 mm; travelling length: 97 mmStainless steel
150.SCR3-15-100B.30slide length: 100 mm; travelling length: 125 mmStainless steel
150.SCR3-15-150B.30slide length: 150 mm; travelling length: 177 mmStainless steel

PDF

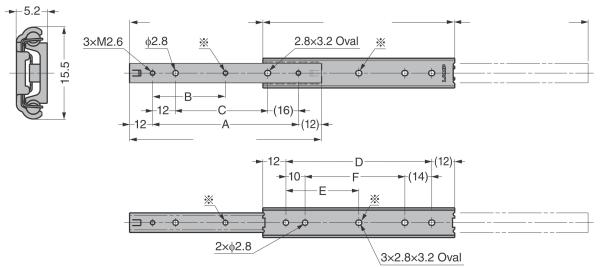

Serie 150.SCRW2
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.SCRW2-15-80A.30slide length: 80 mm; travelling length: 48,5 mmStainless steel
150.SCRW2-15-100A.30slide length: 100 mm; travelling length: 68,5 mmStainless steel
150.SCRW2-15-150A.30slide length: 150 mm; travelling length: 94,5 mmStainless steel

PDF

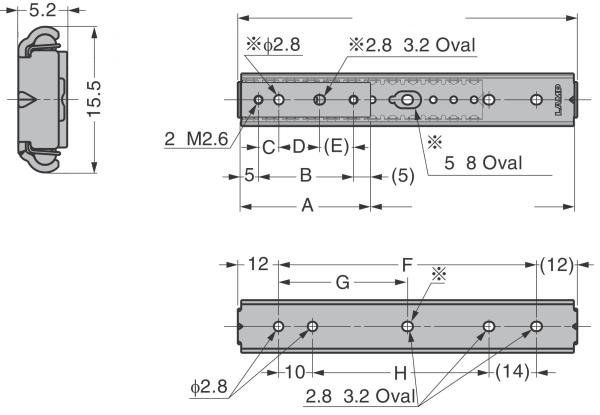

Serie 150.SCRL2
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.SCRL2-15-80A.30slide length: 80 mm; travelling length: 49 mmStainless steel
150.SCRL2-15-100A.30slide length: 100 mm; travelling length: 59 mmStainless steel
150.SCRL2-15-150A.30slide length: 150 mm; travelling length: 109 mmStainless steel
150.SCRL2-15-200A.30slide length: 200 mm; travelling length: 149 mmStainless steel

PDF

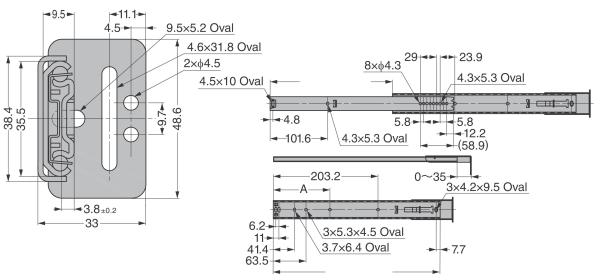

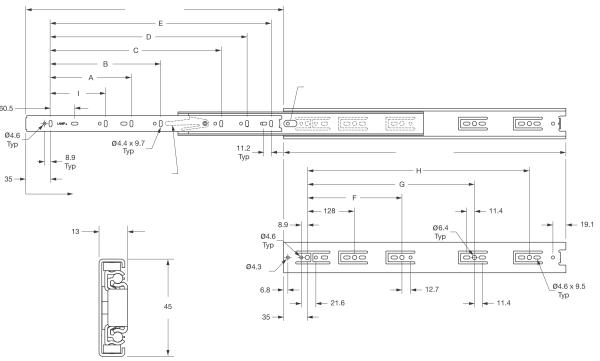

Serie 150.ESR
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR-4513-10-250.30slide length: 250 mm; travelling length: 243 mmStainless steel
150.ESR-4513-12-300.30slide length: 300 mm; travelling length: 305 mmStainless steel
150.ESR-4513-14-350.30slide length: 350 mm; travelling length: 355 mmStainless steel
150.ESR-4513-16-400.30slide length: 400 mm; travelling length: 406 mmStainless steel
150.ESR-4513-18-450.30slide length: 450 mm; travelling length: 457 mmStainless steel
150.ESR-4513-20-500.30slide length: 500 mm; travelling length: 508 mmStainless steel
150.ESR-4513-22-550.30slide length: 550 mm; travelling length: 559 mmStainless steel
150.ESR-4513-24-600.30slide length: 600 mm; travelling length: 610 mmStainless steel
150.ESR-4513-26-650.30slide length: 650 mm; travelling length: 660 mmStainless steel
150.ESR-4513-28-700.30slide length: 700 mm; travelling length: 711 mmStainless steel

PDF

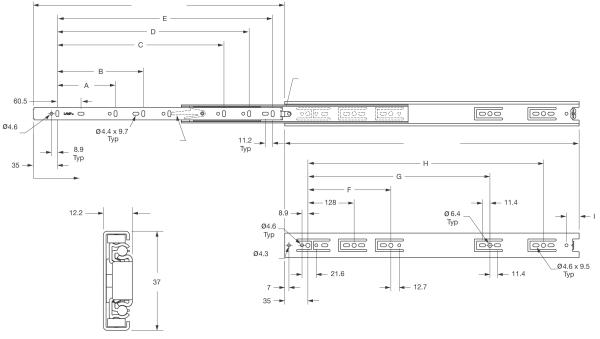

Serie 150.ESR
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR-3813-8-200.30slide length: 200 mm; travelling length: 200 mmStainless steel
150.ESR-3813-10-250.30slide length: 250 mm; travelling length: 243 mmStainless steel
150.ESR-3813-12-300.30slide length: 300 mm; travelling length: 305 mmStainless steel
150.ESR-3813-14-350.30slide length: 350 mm; travelling length: 355 mmStainless steel
150.ESR-3813-16-400.30slide length: 400 mm; travelling length: 406 mmStainless steel
150.ESR-3813-18-450.30slide length: 450 mm; travelling length: 457 mmStainless steel
150.ESR-3813-20-500.30slide length: 500 mm; travelling length: 508 mmStainless steel
150.ESR-3813-22-550.30slide length: 550 mm; travelling length: 559 mmStainless steel
150.ESR-3813-24-300.30slide length: 600 mm; travelling length: 610 mmStainless steel

PDF

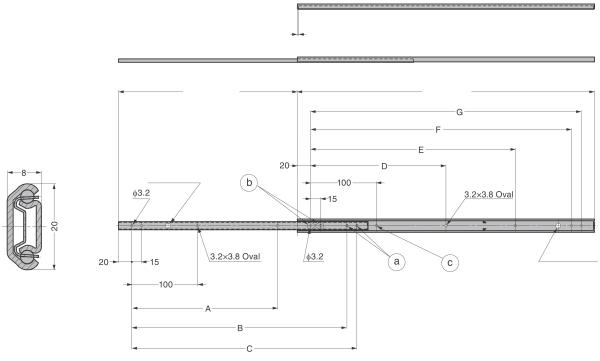

Serie 150.ESR
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR-2021-200.30slide length: 200 mm; travelling length: 134 mmStainless steel
150.ESR-2021-250.30slide length: 250 mm; travelling length: 184 mmStainless steel
150.ESR-2021-300.30slide length: 300 mm; travelling length: 224 mmStainless steel
150.ESR-2021-350.30slide length: 350 mm; travelling length: 244 mmStainless steel
150.ESR-2021-400.30slide length: 400 mm; travelling length: 294 mmStainless steel
150.ESR-2021-450.30slide length: 450 mm; travelling length: 334 mmStainless steel
150.ESR-2021-500.30slide length: 500 mm; travelling length: 384 mmStainless steel

PDF

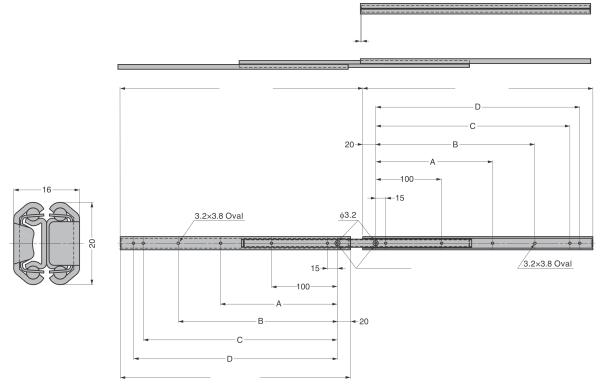

Serie 150.ESR
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR-2031-200.30slide length: 200 mm; travelling length: 229 mmStainless steel
150.ESR-2031-250.30slide length: 250 mm; travelling length: 269 mmStainless steel
150.ESR-2031-300.30slide length: 300 mm; travelling length: 329 mmStainless steel
150.ESR-2031-350.30slide length: 350 mm; travelling length: 369 mmStainless steel
150.ESR-2031-400.30slide length: 400 mm; travelling length: 429 mmStainless steel
150.ESR-2031-450.30slide length: 450 mm; travelling length: 469 mmStainless steel
150.ESR-2031-500.30slide length: 500 mm; travelling length: 529 mmStainless steel

PDF

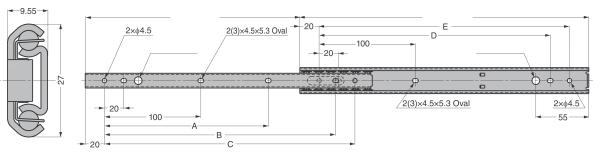

Serie 150.SNS27S
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.SNS27S-20-200.30slide length: 200 mm; travelling length: 135 mmStainless steel
150.SNS27S-25-250.30slide length: 250 mm; travelling length: 185 mmStainless steel
150.SNS27S-30-300.30slide length: 300 mm; travelling length: 222 mmStainless steel
150.SNS27S-35-350.30slide length: 350 mm; travelling length: 260 mmStainless steel
150.SNS27S-40-400.30slide length: 400 mm; travelling length: 297 mmStainless steel
150.SNS27S-45-450.30slide length: 450 mm; travelling length: 334 mmStainless steel
150.SNS27S-50-500.30slide length: 500 mm; travelling length: 371 mmStainless steel

PDF

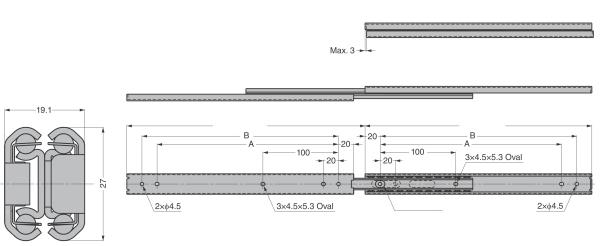

Serie 150.SNS27D
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.SNS27D-20-200.30slide length: 200 mm; travelling length: 216,8 mmStainless steel
150.SNS27D-25-250.30slide length: 250mm; travelling length: 266 mmStainless steel
150.SNS27D-30-300.30slide length: 300 mm; travelling length: 315,2 mmStainless steel
150.SNS27D-35-350.30slide length: 350 mm; travelling length: 364,4 mmStainless steel
150.SNS27D-40-400.30slide length: 400 mm; travelling length: 413,6 mmStainless steel
150.SNS27D-45-450.30slide length: 450 mm; travelling length: 462,8 mmStainless steel
150.SNS27D-50-500.30slide length: 500 mm; travelling length: 512 mmStainless steel

PDF

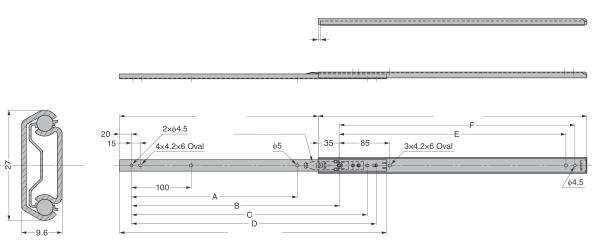

Serie 150.272SL
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.272SL-300.30slide length: 300 mm; travelling length: 220 mmStainless steel
150.272SL-350.30slide length: 350 mm; travelling length: 261 mmStainless steel
150.272SL-400.30slide length: 400 mm; travelling length: 301 mmStainless steel
150.272SL-450.30slide length: 450 mm; travelling length: 333 mmStainless steel
150.272SL-500.30slide length: 500 mm; travelling length: 373 mmStainless steel

PDF

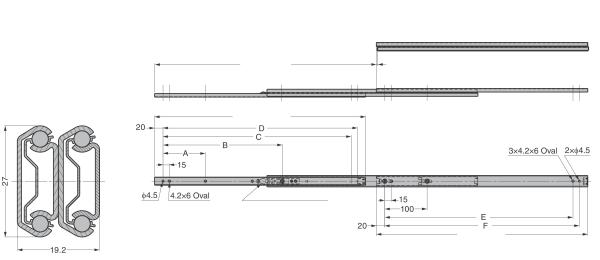

Serie 150.273SL
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.273SL-200.30slide length: 200 mm; travelling length: 221 mmStainless steel
150.273SL-250.30slide length: 250 mm; travelling length: 280 mmStainless steel
150.273SL-300.30slide length: 300 mm; travelling length: 327 mmStainless steel
150.273SL-350.30slide length: 350 mm; travelling length: 376 mmStainless steel
150.273SL-400.30slide length: 400 mm; travelling length: 426 mmStainless steel
150.273SL-450.30slide length: 450 mm; travelling length: 478 mmStainless steel
150.273SL-500.30slide length: 500 mm; travelling length: 524 mmStainless steel

PDF

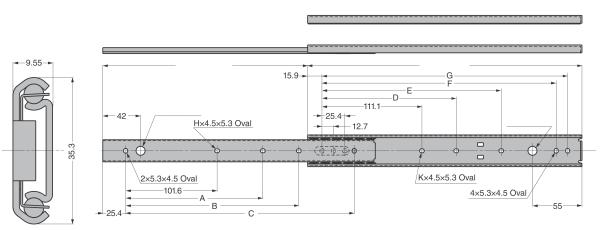

Serie 150.SNS35S
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.SNS35S-30.30slide length: 304,8 mm; travelling length: 228,6 mmStainless steel
150.SNS35S-35.30slide length: 355,6 mm; travelling length: 279,4 mmStainless steel
150.SNS35S-40.30slide length: 406,4 mm; travelling length: 304,8 mmStainless steel
150.SNS35S-45.30slide length: 457,4 mm; travelling length: 330,2 mmStainless steel
150.SNS35S-50.30slide length: 508 mm; travelling length: 381 mmStainless steel
150.SNS35S-55.30slide length: 558,8 mm; travelling length: 406,4 mmStainless steel
150.SNS35S-60.30slide length: 609,6 mm; travelling length: 431,8 mmStainless steel
150.SNS35S-65.30slide length: 660,4 mm; travelling length: 482,6 mmStainless steel
150.SNS35S-70.30slide length: 711,2 mm; travelling length: 508 mmStainless steel

PDF

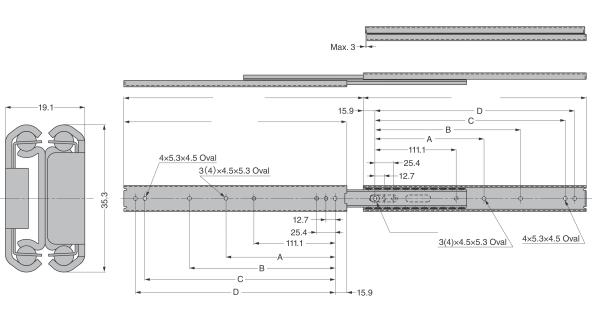

Serie 150.SNS35D
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.SNS35D-30.30slide length: 304,8 mm; travelling length: 327,2 mmStainless steel
150.SNS35D-35.30slide length: 355,6 mm; travelling length: 377,9 mmStainless steel
150.SNS35D-40.30slide length: 406,4 mm; travelling length: 428,7 mmStainless steel
150.SNS35D-45.30slide length: 457,2 mm; travelling length: 479,5 mmStainless steel
150.SNS35D-50.30slide length: 508 mm; travelling length: 530,3 mmStainless steel
150.SNS35D-55.30slide length: 558,8 mm; travelling length: 580,3 mmStainless steel
150.SNS35D-60.30slide length: 609,6 mm; travelling length: 631,9 mmStainless steel
150.SNS35D-65.30slide length: 660,4 mm; travelling length: 682,7 mmStainless steel
150.SNS35D-70.30slide length: 711,2 mm; travelling length: 733,5 mmStainless steel

PDF

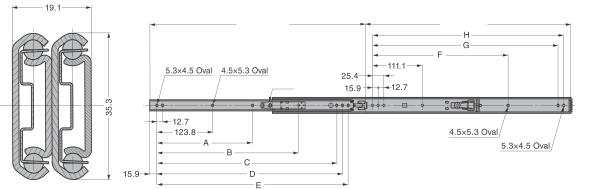

Serie 150.SNS35W
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.SNS35W-30.30slide length: 304,8 mm; travelling length: 327,2 mmStainless steel
150.SNS35W-35.30slide length: 355,6 mm; travelling length: 377,9 mmStainless steel
150.SNS35W-40.30slide length: 406,4 mm; travelling length: 428,7 mmStainless steel
150.SNS35W-45.30slide length: 457,2 mm; travelling length: 479,5 mmStainless steel
150.SNS35W-50.30slide length: 508 mm; travelling length: 530,3 mmStainless steel
150.SNS35W-55.30slide length: 558,8 mm; travelling length: 581,3 mmStainless steel
150.SNS35W-60.30slide length: 609,6 mm; travelling length: 631,9 mmStainless steel
150.SNS35W-65.30slide length: 660,4 mm; travelling length: 682,7 mmStainless steel
150.SNS35W-70.30slide length: 711,2 mm; travelling length: 733,5 mmStainless steel

PDF

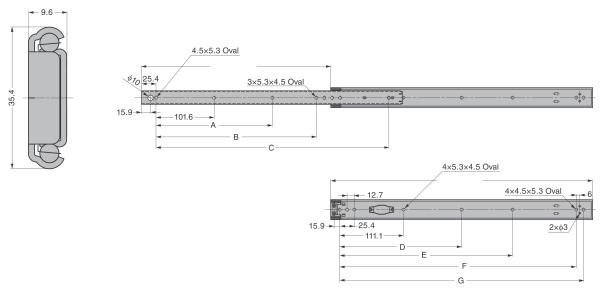

Serie 150.ESR1
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR1-12.30slide length: 304,8 mm; travelling length: 228,6 mmStainless steel
150.ESR1-14.30slide length: 355,6 mm; travelling length: 279,4 mmStainless steel
150.ESR1-16.30slide length: 406,4 mm; travelling length: 304,8 mmStainless steel
150.ESR1-18.30slide length: 457,2 mm; travelling length: 330,2 mmStainless steel
150.ESR1-20.30slide length: 508 mm; travelling length: 381 mmStainless steel
150.ESR1-22.30slide length: 558,8 mm; travelling length: 406,4 mmStainless steel
150.ESR1-24.30slide length: 609,6 mm; travelling length: 432,8 mmStainless steel
150.ESR1-26.30slide length: 660,4 mm; travelling length: 482,6 mmStainless steel
150.ESR1-28.30slide length: 711,2 mm; travelling length: 508 mmStainless steel

PDF

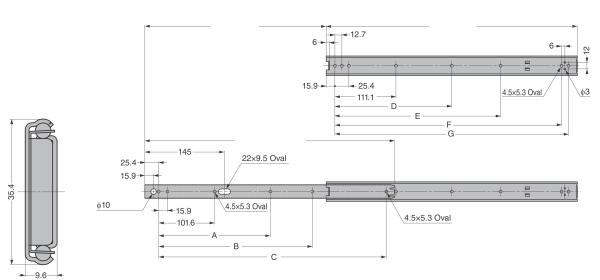

Serie 150.ESR13
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR13-12.30slide length: 304,8 mm; travelling length: 228,6 mmStainless steel
150.ESR13-14.30slide length: 355,6 mm; travelling length: 279,4 mmStainless steel
150.ESR13-16.30slide length: 406,4 mm; travelling length: 304,8 mmStainless steel
150.ESR13-18.30slide length: 457,2 mm; travelling length: 330,2 mmStainless steel
150.ESR13-20.30slide length: 508 mm; travelling length: 381 mmStainless steel
150.ESR13-22.30slide length: 558,8 mm; travelling length: 406,4 mmStainless steel
150.ESR13-24.30slide length: 609,6 mm; travelling length: 431,8 mmStainless steel
150.ESR13-26.30slide length: 660,4 mm; travelling length: 482,6 mmStainless steel
150.ESR13-28.30slide length: 711,2 mm; travelling length: 508 mmStainless steel

PDF

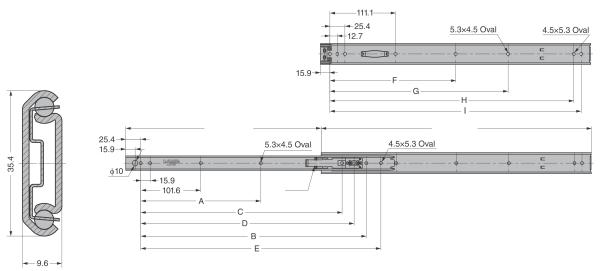

Serie 150.ESR8
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR8-12.30slide length: 304,8 mm; travelling length: 228,6 mmStainless steel
150.ESR8-14.30slide length: 355,6 mm; travelling length: 279,4 mmStainless steel
150.ESR8-16.30slide length: 406,4 mm; travelling length: 304,8 mmStainless steel
150.ESR8-18.30slide length: 457,2 mm; travelling length: 330,2 mmStainless steel
150.ESR8-20.30slide length: 508 mm; travelling length: 381 mmStainless steel
150.ESR8-22.30slide length: 558,8 mm; travelling length: 406,4 mmStainless steel
150.ESR8-24.30slide length: 609,6 mm; travelling length: 432,8 mmStainless steel
150.ESR8-26.30slide length: 660,4 mm; travelling length: 482,6 mmStainless steel
150.ESR8-28.30slide length: 711,2 mm; travelling length: 508 mmStainless steel

PDF

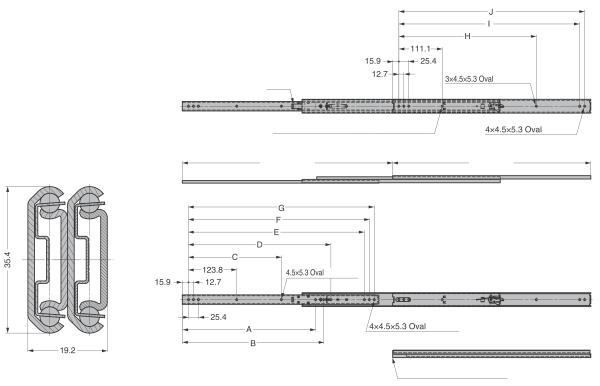

Serie 150.ESR7
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR7-12.30slide length: 304,8 mm; travelling length: 336 mmStainless steel
150.ESR7-14.30slide length: 355,6 mm; travelling length: 386,8 mmStainless steel
150.ESR7-16.30slide length: 406,4 mm; travelling length: 437,6 mmStainless steel
150.ESR7-18.30slide length: 457,2 mm; travelling length: 488,4 mmStainless steel
150.ESR7-20.30slide length: 508 mm; travelling length: 539,2 mmStainless steel
150.ESR7-22.30slide length: 558,8 mm; travelling length: 590 mmStainless steel
150.ESR7-24.30slide length: 609,6 mm; travelling length: 640,8 mmStainless steel
150.ESR7-26.30slide length: 660,4 mm; travelling length: 691,6 mmStainless steel
150.ESR7-28.30slide length: 711,2 mm; travelling length: 742,4 mmStainless steel

PDF

Serie 150.ESR3
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR3-12.30slide length: 304,8 mm; travelling length: 348,4 mmStainless steel
150.ESR3-14.30slide length: 355,6 mm; travelling length: 399,2 mmStainless steel
150.ESR3-16.30slide length: 406,4 mm; travelling length: 500,8 mmStainless steel
150.ESR3-18.30slide length: 457,2 mm; travelling length: 500,8 mmStainless steel
150.ESR3-20.30slide length: 508 mm; travelling length: 551,6 mmStainless steel
150.ESR3-22.30slide length: 558,8 mm; travelling length: 602,4 mmStainless steel
150.ESR3-24.30slide length: 609,6 mm; travelling length: 653,2 mmStainless steel
150.ESR3-26.30slide length: 660,4 mm; travelling length: 704 mmStainless steel
150.ESR3-28.30slide length: 711,2 mm; travelling length: 754,8 mmStainless steel

PDF

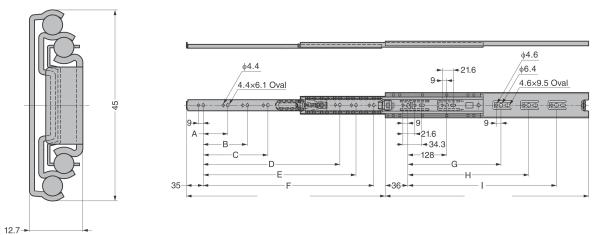

Serie 150.ESR4658
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR4658-14-350.30slide length: 350 mm; travelling length: 356 mmStainless steel
150.ESR4658-16-400.30slide length: 400 mm; travelling length: 406 mmStainless steel
150.ESR4658-18-450.30slide length: 450 mm; travelling length: 457 mmStainless steel
150.ESR4658-20-500.30slide length: 500 mm; travelling length: 508 mmStainless steel
150.ESR4658-22-550.30slide length: 550 mm; travelling length: 559 mmStainless steel
150.ESR4658-24-600.30slide length: 600mm; travelling length: 610 mmStainless steel
150.ESR4658-26-650.30slide length: 650 mm; travelling length: 660 mmStainless steel
150.ESR4658-28-700.30slide length: 700 mm; travelling length: 711 mmStainless steel

PDF

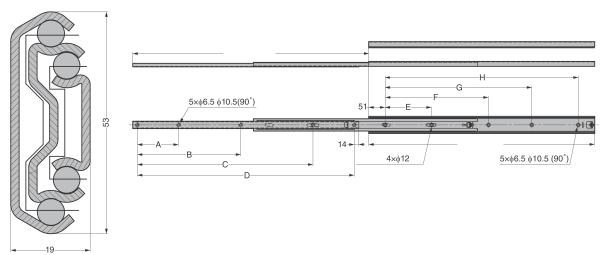

Serie 150.5302S
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.5302S-300.30slide length: 300 mm; travelling length: 334 mmStainless steel
150.5302S-350.30slide length: 350 mm; travelling length: 384 mmStainless steel
150.5302S-400.30slide length: 400 mm; travelling length: 433 mmStainless steel
150.5302S-450.30slide length: 450 mm; travelling length: 482 mmStainless steel
150.5302S-500.30slide length: 500 mm; travelling length: 532 mmStainless steel
150.5302S-550.30slide length: 550 mm; travelling length: 580 mmStainless steel
150.5302S-600.30slide length: 600 mm; travelling length: 630 mmStainless steel
150.5302S-650.30slide length: 650 mm; travelling length: 677 mmStainless steel
150.5302S-700.30slide length: 700 mm; travelling length: 728 mmStainless steel
150.5302S-750.30slide length: 750 mm; travelling length: 777 mmStainless steel
150.5302S-800.30slide length: 800 mm; travelling length: 826 mmStainless steel

PDF

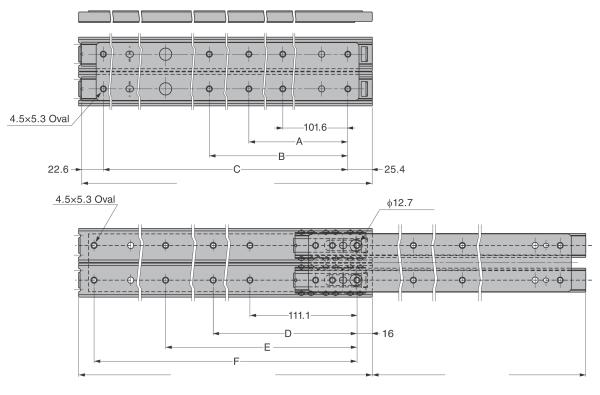

Serie 150.ESR5
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR5-12.33slide length: 305 mm; travelling length: 221,8 mmStainless steel polished
150.ESR5-14.33slide length: 355,8 mm; travelling length: 259,9 mmStainless steel polished
150.ESR5-16.33slide length: 406,6 mm; travelling length: 298 mmStainless steel polished
150.ESR5-18.33slide length: 457,4 mm; travelling length: 348,8 mmStainless steel polished
150.ESR5-20.33slide length: 508,2 mm; travelling length: 361,5 mmStainless steel polished
150.ESR5-22.33slide length: 559 mm; travelling length: 425 mmStainless steel polished
150.ESR5-24.33slide length: 609,8 mm; travelling length: 450,4 mmStainless steel polished
150.ESR5-26.33slide length: 660,6 mm; travelling length: 463,1 mmStainless steel polished
150.ESR5-28.33slide length: 711,4 mm; travelling length: 501,2 mmStainless steel polished

PDF

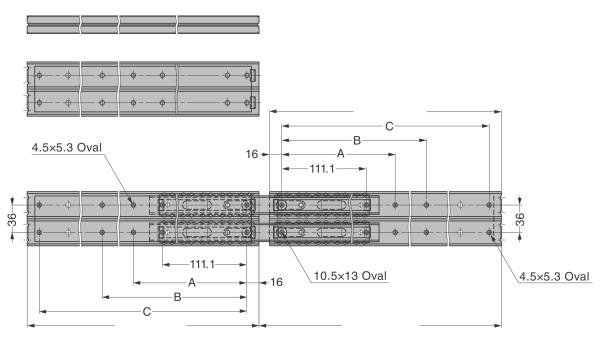

Serie 150.ESR10
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR10-12.33slide length: 305 mm; travelling length: 319 mmStainless steel polished
150.ESR10-14.33slide length: 355,8 mm; travelling length: 369,8 mmStainless steel polished
150.ESR10-16.33slide length: 406,6 mm; travelling length: 420,6 mmStainless steel polished
150.ESR10-18.33slide length: 457,4 mm; travelling length: 471,4 mmStainless steel polished
150.ESR10-20.33slide length: 508,2 mm; travelling length: 522,2 mmStainless steel polished
150.ESR10-22.33slide length: 559 mm; travelling length: 573 mmStainless steel polished
150.ESR10-24.33slide length: 609,8 mm; travelling length: 623,8 mmStainless steel polished
150.ESR10-26.33slide length: 660,6 mm; travelling length: 674,6 mmStainless steel polished
150.ESR10-28.33slide length: 711,4 mm; travelling length: 725,4 mmStainless steel polished

PDF

Serie 150.AR2
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.AR2-100.70slide length: 100 mm; travelling length: 60 mmAluminium
150.AR2-200.70slide length: 200 mm; travelling length: 120 mmAluminium
150.AR2-300.70slide length: 300 mm; travelling length: 180 mmAluminium
150.AR2-400.70slide length: 400 mm; travelling length: 240 mmAluminium
150.AR2-500.70slide length: 500 mm; travelling length: 300 mmAluminium

PDF

Serie 150.AR2
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.AR2-K200.70slide length: 200 mm; travelling length: 110 mmAluminium
150.AR2-K300.70slide length: 300 mm; travelling length: 170 mmAluminium
150.AR2-K400.70slide length: 400 mm; travelling length: 230 mmAluminium
150.AR2-K500.70slide length: 500 mm; travelling length: 290 mmAluminium

PDF

Serie 150.AR3
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.AR3-K200.70slide length: 200 mm; travelling length: 214 mmAluminium
150.AR3-K300.70slide length: 300 mm; travelling length: 314 mmAluminium
150.AR3-K400.70slide length: 400 mm; travelling length: 414 mmAluminium
150.AR3-K500.70slide length: 500 mm; travelling length: 514 mmAluminium

PDF

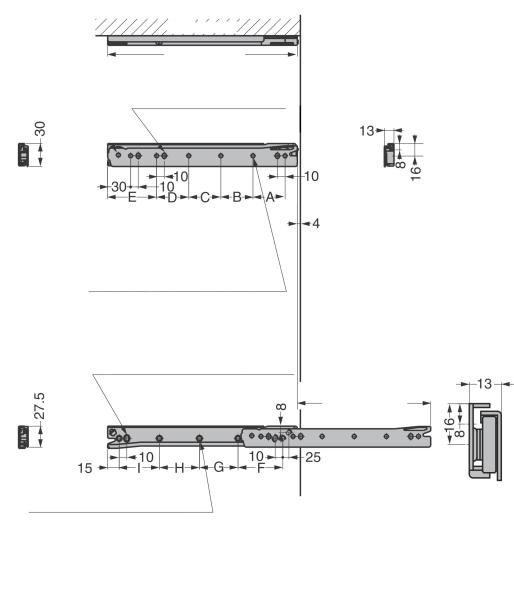

Serie 150.RKA5
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.RKA5-300.30slide length: 296 mm; travelling length: 205 mmStainless steel
150.RKA5-350.30slide length: 346 mm; travelling length: 250 mmStainless steel
150.RKA5-400.30slide length: 396 mm; travelling length: 295 mmStainless steel
150.RKA5-450.30slide length: 446 mm; travelling length: 340 mmStainless steel
150.RKA5-500.30slide length: 496 mm; travelling length: 380 mmStainless steel
150.RKA5-550.30slide length: 546 mm; travelling length: 420 mmStainless steel
150.RKA5-600.30slide length: 596 mm; travelling length: 460 mmStainless steel

PDF

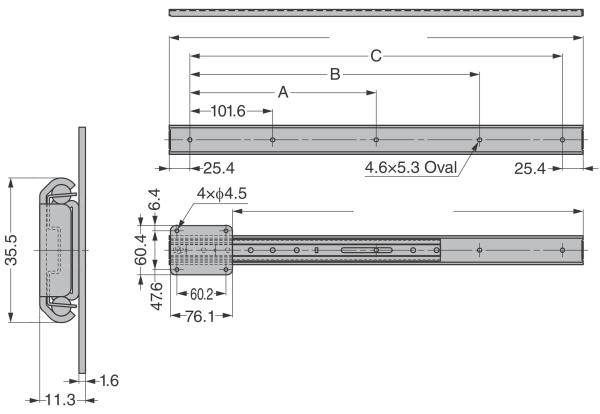

Serie 150.ESR9
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR9-12.30slide length: 304,8 mm; travelling length: 225 mmStainless steel
150.ESR9-14.30slide length: 355,6 mm; travelling length: 276 mmStainless steel
150.ESR9-16.30slide length: 406,4 mm; travelling length: 327 mmStainless steel
150.ESR9-18.30slide length: 457,4 mm; travelling length: 378 mmStainless steel
150.ESR9-20.30slide length: 508 mm; travelling length: 428 mmStainless steel
150.ESR9-22.30slide length: 558,8 mm; travelling length: 479 mmStainless steel
150.ESR9-24.30slide length: 609,6 mm; travelling length: 530 mmStainless steel
150.ESR9-26.30slide length: 660,4 mm; travelling length: 581 mmStainless steel
150.ESR9-28.30slide length: 711,2 mm; travelling length: 632 mmStainless steel

PDF

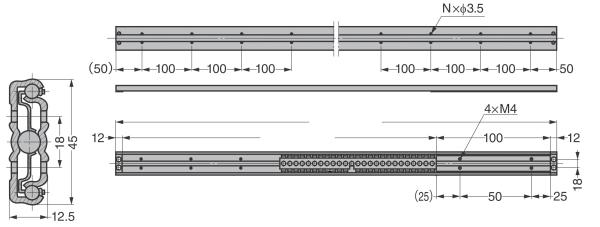

Serie 150.TSSL
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.TSSL-300-100.30slide length: 300 mm; travelling length: 176 mmStainless steel
150.TSSL-400-100.30slide length: 400 mm; travelling length: 276 mmStainless steel
150.TSSL-500-100.30slide length: 500 mm; travelling length: 376 mmStainless steel
150.TSSL-600-100.30slide length: 600 mm; travelling length: 476 mmStainless steel
150.TSSL-800-100.30slide length: 800 mm; travelling length: 676 mmStainless steel
150.TSSL-1000-100.30slide length: 1000 mm; travelling length: 876 mmStainless steel

PDF

Serie 150.ESR2
with soft-close function

Executions


Art.-No.DimensionsMaterial
150.ESR2-12.30slide length: 323,8 mm; travelling length: 215,9 mmStainless steel
150.ESR2-14.30slide length: 374,6 mm; travelling length: 266,7 mmStainless steel
150.ESR2-16.30slide length: 425,4 mm; travelling length: 304,8 mmStainless steel
150.ESR2-18.30slide length: 476,2 mm; travelling length: 317,5 mmStainless steel
150.ESR2-20.30slide length: 527 mm; travelling length: 368,3 mmStainless steel
150.ESR2-22.30slide length: 577,8 mm; travelling length: 419,1 mmStainless steel
150.ESR2-24.30slide length: 628,6 mm; travelling length: 444,5 mmStainless steel
150.ESR2-26.30slide length: 679,4 mm; travelling length: 495,3 mmStainless steel



Browse website ...
