Art.-Nr.	Maße	Material	Menge
1001.00/5	66 x 27 mm	Stahl unbehandelt
1001.01/5	66 x 27 mm	Stahl vernickelt

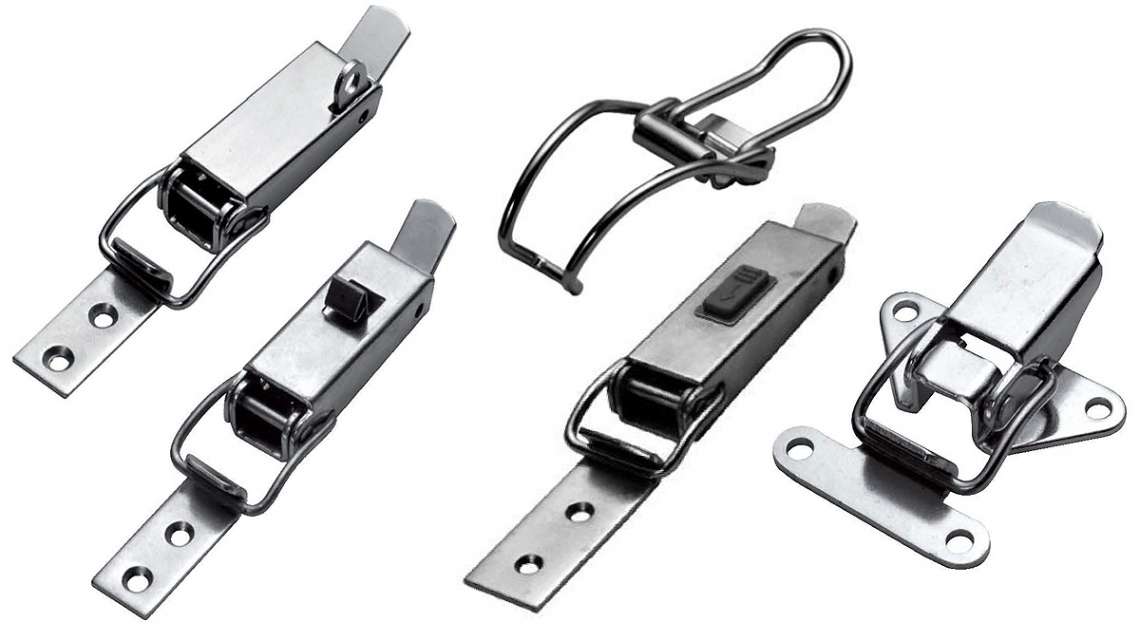

Latches with Wire Bracket

You may choose from our very large assortment of latches with wired clamps according to different materials and surface finisches.

In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to prduce a multiplicity of different components with little effort, even in small quantities.

Our offer includes latches with wired clamps:

galvanized and made of stainless steel
with eyelet
with safety interlock
with spring safety
lockable

More details can be found in this PDF data file:

Download

Additional Latches:

3D PDF

Serie 1001
drilled

Executions

Permitted tractive force: 2000 N
Breaking strength: 4000 N

Art.-No.	Dimensions	Material
1001.00/6	134 x 43 mm	Steel untreated
1001.01/6	134 x 43 mm	Steel nickel-plated
1001.04/6	134 x 43 mm	Steel galvanised
1001.30/6	134 x 43 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1001.00/5	66 x 27 mm	Steel untreated
1001.01/5	66 x 27 mm	Steel nickel-plated
1001.04/5	66 x 27 mm	Steel galvanised
1001.30/5	66 x 27 mm	Stainless steel

3D PDF

Serie 1002
with lock bracket, drilled

Executions

Permitted tractive force: 2000 N
Breaking strength: 4000 N

Art.-No.	Dimensions	Material
1002.00/6	134 x 43 mm	Steel untreated
1002.01/6	134 x 43 mm	Steel nickel-plated
1002.30/6	134 x 43 mm	Stainless steel
1002.04/6	134 x 43 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
1001.00/5	66 x 27 mm	Steel untreated
1001.01/5	66 x 27 mm	Steel nickel-plated
1001.30/5	66 x 27 mm	Stainless steel
1001.04/5	66 x 27 mm	Steel galvanised

3D PDF

Serie 1003
with safety interlock, drilled

Executions

Permitted tractive force: 2000 N
Breaking strength: 4000 N

Art.-No.	Dimensions	Material
1003.01/6	134 x 43 mm	Steel nickel-plated
1003.30/6	134 x 43 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1001.01/5	66 x 27 mm	Steel nickel-plated
1001.30/5	66 x 27 mm	Stainless steel

3D PDF

Serie 1004
with click-interlock, drilled

Executions

Permitted tractive force: 2000 N
Breaking strength: 4000 N

Art.-No.	Dimensions	Material
1004.01/6	134 x 43 mm	Steel nickel-plated
1004.04/6	134 x 43 mm	Steel galvanised
1004.30/6	134 x 43 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1001.01/5	66 x 27 mm	Steel nickel-plated
1001.04/5	66 x 27 mm	Steel galvanised
1001.30/5	66 x 27 mm	Stainless steel

3D PDF

Serie 1006
drilled

Executions

Permitted tractive force: 1500 N
Breaking strength: 3000 N

Art.-No.	Dimensions	Material
1006.00/6	102 x 34 mm	Steel untreated
1006.01/6	102 x 34 mm	Steel nickel-plated
1006.04/6	102 x 34 mm	Steel galvanised
1006.30/6	102 x 34 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1006.00/5	43 x19 mm	Steel untreated
1006.01/5	43 x19 mm	Steel nickel-plated
1006.04/5	43 x19 mm	Steel galvanised
1006.30/5	43 x19 mm	Stainless steel

3D PDF

Serie 1007
with lock bracket, drilled

Executions

Permitted tractive force: 1500 N
Breaking strength: 3000 N

Art.-No.	Dimensions	Material
1007.00/6	102 x 34 mm	Steel untreated
1007.01/6	102 x 34 mm	Steel nickel-plated
1007.04/6	102 x 34 mm	Steel galvanised
1007.30/6	102 x 34 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1006.00/5	43 x19 mm	Steel untreated
1006.01/5	43 x19 mm	Steel nickel-plated
1006.04/5	43 x19 mm	Steel galvanised
1006.30/5	43 x19 mm	Stainless steel

3D PDF

Serie 1008
drilled

Executions

Permitted tractive force: 400 N
Breaking strength: 1000 N

Art.-No.	Dimensions	Material
1008.00/6	52 x 21 mm	Steel untreated
1008.01/6	52 x 21 mm	Steel nickel-plated
1008.04/6	52 x 21 mm	Steel galvanised
1008.30/6	52 x 21 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1008.00/5	28 x 13 mm	Steel untreated
1008.01/5	28 x 13 mm	Steel nickel-plated
1008.04/5	28 x 13 mm	Steel galvanised
1008.30/5	28 x 13 mm	Stainless steel

3D PDF

Serie 1009
drilled

Executions

Permitted tractive force: 550 N
Breaking strength: 1500 N

Art.-No.	Dimensions	Material
1009.00/6	75 x 23 mm	Steel untreated
1009.01/6	75 x 23 mm	Steel nickel-plated
1009.04/6	75 x 23 mm	Steel galvanised
1009.30/6	75 x 23 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1009.00/5	30 x 13 mm	Steel untreated
1009.01/5	30 x 13 mm	Steel nickel-plated
1009.04/5	30 x 13 mm	Steel galvanised
1009.30/5	30 x 13 mm	Stainless steel

3D PDF

Serie 1010
with lock bracket, drilled

Executions

Permitted tractive force: 550 N
Breaking strength: 1500 N

Art.-No.	Dimensions	Material
1010.00/6	75 x 23 mm	Steel untreated
1010.01/6	75 x 23 mm	Steel nickel-plated
1010.04/6	75 x 23 mm	Steel galvanised
1010.30/6	75 x 23 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1009.00/5	30 x 13 mm	Steel untreated
1009.01/5	30 x 13 mm	Steel nickel-plated
1009.04/5	30 x 13 mm	Steel galvanised
1009.30/5	30 x 13 mm	Stainless steel

3D PDF

Serie 1012
with safety spring, drilled

Executions

Permitted tractive force: 550 N
Breaking strength: 1500 N

Art.-No.	Dimensions	Material
1012.04/6	75 x 23 mm	Steel galvanised
1012.30/6	75 x 23 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1009.04/5	30 x 13 mm	Steel galvanised
1009.30/5	30 x 13 mm	Stainless steel

3D PDF

Serie 1013
drilled

Executions

Permitted tractive force: 550 N
Breaking strength: 1500 N

Art.-No.	Dimensions	Material
1013.00/6	42 x 41 mm	Steel untreated
1013.01/6	42 x 41 mm	Steel nickel-plated
1013.04/6	42 x 41 mm	Steel galvanised
1013.30/6	42 x 41 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1013.00/5	28 x 13 x 1,5 mm	Steel untreated
1013.01/5	28 x 13 x 1,5 mm	Steel nickel-plated
1013.04/5	28 x 13 x 1,5 mm	Steel galvanised
1013.30/5	28 x 13 x 1,5 mm	Stainless steel untreated

3D PDF

Serie 1014
with lock bracket, drilled

Executions

Permitted tractive force: 550 N
Breaking strength: 1500 N

Art.-No.	Dimensions	Material
1014.00/6	42 x 41 mm	Steel untreated
1014.01/6	42 x 41 mm	Steel nickel-plated
1014.04/6	42 x 41 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
1013.00/5	28 x 13 x 1,5 mm	Steel untreated
1013.01/5	28 x 13 x 1,5 mm	Steel nickel-plated
1013.04/5	28 x 13 x 1,5 mm	Steel galvanised

3D PDF

Serie 1017
drilled

Executions

Permitted tractive force: 1000 N
Breaking strength: 2500 N

Art.-No.	Dimensions	Material
1017.00/6	83 x 28 mm	Steel untreated
1017.01/6	83 x 28 mm	Steel nickel-plated
1017.04/6	83 x 28 mm	Steel galvanised
1017.30/6	83 x 28 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1015.00/5	36 x 19 mm	Steel untreated
1015.01/5	36 x 19 mm	Steel nickel-plated
1015.04/5	36 x 19 mm	Steel galvanised
1015.30/5	36 x 19 mm	Stainless steel

3D PDF

Serie 1018
with lock bracket, drilled

Executions

Permitted tractive force: 1000 N
Breaking strength: 2500 N

Art.-No.	Dimensions	Material
1018.00/6	83 x 28 mm	Steel untreated
1018.01/6	83 x 28 mm	Steel nickel-plated
1018.04/6	83 x 28 mm	Steel galvanised
1018.30/6	83 x 28 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1015.00/5	36 x 19 mm	Steel untreated
1015.01/5	36 x 19 mm	Steel nickel-plated
1015.04/5	36 x 19 mm	Steel galvanised
1015.30/5	36 x 19 mm	Stainless steel

3D PDF

Serie 1019
undrilled

Executions

Permitted tractive force: 300 N
Breaking strength: 600 N

Art.-No.	Dimensions	Material
1019.04/6	81 x 30 mm	Steel galvanised

3D PDF

Serie 1021
with lock bracket, drilled

Executions

Permitted tractive force: 2000 N
Breaking strength: 3500 N

Art.-No.	Dimensions	Material
1021.04/6	128 x 41 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
1001.04/5	66 x 27 mm	Steel galvanised

3D PDF

Serie 1022
drilled

Executions

Permitted tractive force: 1500 N
Breaking strength: 3000 N

Art.-No.	Dimensions	Material
1022.04/6	73 x 43 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
1039.04/5	21 x 30 mm	Steel galvanised

3D PDF

Serie 1023
drilled

Executions

Permitted tractive force: 400 N
Breaking strength: 1000 N

Art.-No.	Dimensions	Material
1023.04/6	52 x 25 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material

3D PDF

Serie 1035
drilled

Executions

Permitted tractive force: 550 N
Breaking strength: 1000 N

Art.-No.	Dimensions	Material
1035.04/6	42 x 23 mm	Steel galvanised
1035.30/6	42 x 23 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1034.04/5	15 x 15 mm	Steel galvanised
1034.30/5	15 x 15 mm	Stainless steel

3D PDF

Serie 1037
drilled

Executions

Permitted tractive force: 150 N
Breaking strength: 300 N

Art.-No.	Dimensions	Material
1037.04/6	30 x 16 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
1036.04/5	9x 14 mm	Steel galvanised

3D PDF

Serie 1039
drilled

Executions

Permitted tractive force: 1000 N
Breaking strength: 2500 N

Art.-No.	Dimensions	Material
1039.04/6	77 x 28 mm	Steel galvanised
1039.05/6	77 x 28 mm	Steel bronzed

Zubehör: Strikes

Art.-No.	Dimensions	Material
1039.04/5	21 x 30 mm	Steel galvanised
1039.05/5	21 x 30 mm	Steel bronzed

3D PDF

Serie 1042
drilled

Executions

Permitted tractive force: 200 N
Breaking strength: 3500 N

Art.-No.	Dimensions	Material
1042.04	126 x 52 mm	Steel galvanised

3D PDF

Serie 3001
drilled

Executions

Art.-No.	Dimensions	Material
3001.04	33 x 16,5 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
3601.04	19 x 10 mm	Steel galvanised

3D PDF

Serie 3002
drilled

Executions

Art.-No.	Dimensions	Material
3002.04	58 x 23 mm	Steel galvanised
3002.30	58 x 23 mm	Stainless steel
3002.33	58 x 23 mm	polished stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
3602.04	16 x 15 mm	Steel galvanised
3602.04	16 x 15 mm	Steel galvanised
3602.04	16 x 15 mm	Steel galvanised

3D PDF

Serie 3003
drilled

Executions

Art.-No.	Dimensions	Material
3003.33	72 x 28 mm	polished stainless steel
3003.30	72 x 28 mm	Stainless steel
3003.04	72 x 28 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
3603.04	20 x 20 mm	Steel galvanised
3603.04	20 x 20 mm	Steel galvanised
3603.04	20 x 20 mm	Steel galvanised

3D PDF

Serie 3004
drilled

Executions

Art.-No.	Dimensions	Material
3004.04	47 x 45 mm	Steel galvanised
3004.30	47 x 45 mm	Stainless steel
3004.33	47 x 45 mm	polished stainless steel
3004.35	47 x 45 mm	seaworthy stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
3604.00-U1	26 x 23	Steel untreated
3604.00-U1	26 x 23	Steel untreated
3619.04	44 x 24 mm	Steel galvanised
3619.04	44 x 24 mm	Steel galvanised

3D PDF

Serie 3005
drilled and countersunk

Executions

Art.-No.	Dimensions	Material
3005.04	47 x 33 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
3604.04	26 x 23 mm	Steel galvanised

3D PDF

Serie 3006
drilled

Executions

Art.-No.	Dimensions	Material
3006.04	47 x33 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
3604.04	26 x 23 mm	Steel galvanised

3D PDF

Serie 3007
drilled

Executions

Art.-No.	Dimensions	Material
3007.04	62 x 35 mm	Steel galvanised
3007.30	62 x 35 mm	Stainless steel
3007.33	62 x 35 mm	polished stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
3604.04	26 x 23 mm	Steel galvanised
3604.04	26 x 23 mm	Steel galvanised
3604.04	26 x 23 mm	Steel galvanised

3D PDF

Serie 3008
drilled

Executions

Art.-No.	Dimensions	Material
3008.04	71 x 35 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
3604.04	26 x 23 mm	Steel galvanised

3D PDF

Serie 3009
drilled

Executions

Art.-No.	Dimensions	Material
3009.04	80 x 35 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
3604.04	26 x 23 mm	Steel galvanised

3D PDF

Serie 3011
drilled

Executions

Art.-No.	Dimensions	Material
3011.04	109 x 45 mm	Steel galvanised

3D PDF

Serie 3021
drilled

Executions

Art.-No.	Dimensions	Material
3021.04	109 x 45 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
3608.04	29 x 30 mm	Steel galvanised

3D PDF

Serie 3135
with safety spring, drilled

Executions

Art.-No.	Dimensions	Material
3135.04	80 x 32 mm	Steel galvanised

3D PDF

Serie 6370
with lock

Executions

Art.-No.	Dimensions	Material
6370.04	106x40x17 mm	Zinc plated Steel
6370.30	106x40x17 mm	Zinc plated Steel

PDF

Serie 1429L02-2
drilled

Executions

Tensile load: 1500 N
Operating load: 1000 N

Art.-No.	Dimensions	Material
1429L02-2-1AG	70 x 30 mm	Steel galvanised
1429L02-2-1BP	70 x 30 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1429L9-1AG	22,5 x 24 mm	Steel galvanised
1429L9-1BP	22,5 x 24 mm	Stainless steel

3D PDF

Serie 1429L02-2X
with safety spring, drilled

Executions

Tensile load: 1100 N
Operating load: 800 N

Art.-No.	Dimensions	Material
1429L02-2X -1BP	70 x 30 mm	Steel galvanised
1429L02-2X - 1AG	70 x 30 mm	Steel galvanised

Zubehör: Strikes

Art.-No.	Dimensions	Material
1429L9-1BP	22,5 x 24 mm	Stainless steel
1429L9-1AG	22,5 x 24 mm	Steel galvanised

3D PDF

Serie 1429L02-3
drilled

Executions

Tensile load: 1100 N
Operating load: 800 N

Art.-No.	Dimensions	Material
1429L02-3-1AG	80 x 30 mm	Steel galvanised
1429L02-3-1BP	80 x 30 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1429L9-1BP	22,5 x 24 mm	Stainless steel

3D PDF

Serie 1429L02-3X
with safety spring, drilled

Executions

Tensile load: 1100 N
Operating load: 800 N

Art.-No.	Dimensions	Material
1429L02-3X-1AG	80 x 30 mm	Steel galvanised
1429L02-3X-1BP	80 x 30 mm	Stainless steel

Zubehör: Strikes

Art.-No.	Dimensions	Material
1429L9-1AG	22,5 x 24 mm	Steel galvanised
1429L9-1BP	22,5 x 24 mm	Stainless steel

PDF

Serie 1070
with lock

Executions

Permitted tractive force: 2000 N Breaking strength: 4000 N

Art.-No.	Dimensions	Material
1070.06/6	134x43x28	Black Zinc plated

Produktsuche

Liste Produktanfrage

Latches with Wire Bracket

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Executions

Browse website ...
