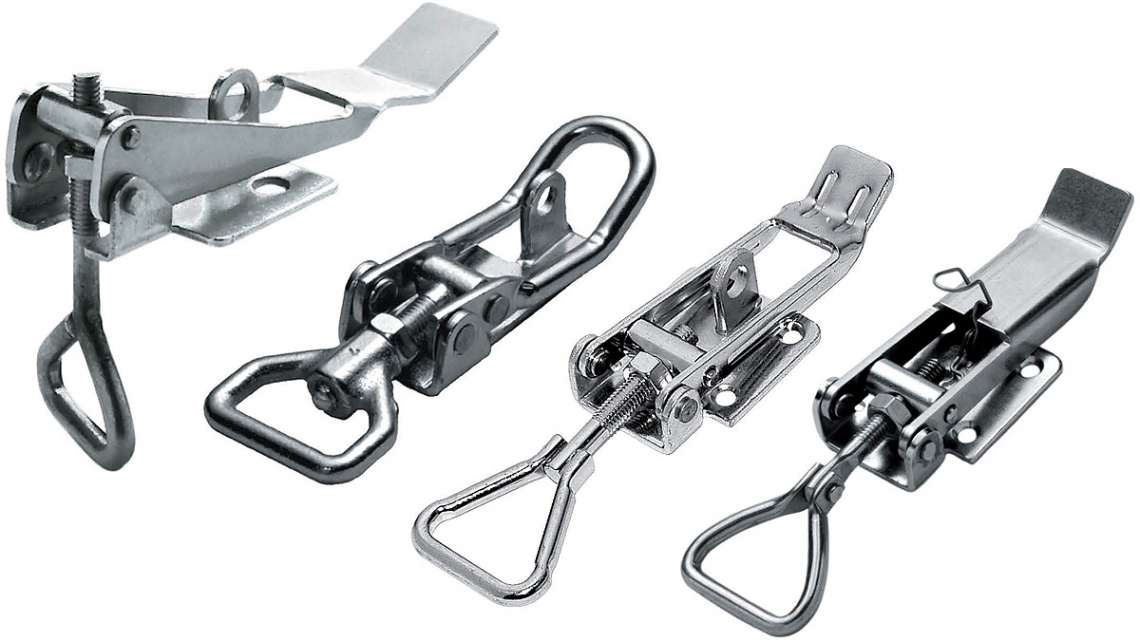

You may choose from our very large assortment of heavy latches according to different constructive solutions, materials and surface finishes.
In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to prduce a multiplicity of different components with little effort, even in small quantities.
Our offer includes heavy latches:
- made of steel and stainless steel
- adjustable
- with eyelet
- 90° locks
- with safety
More details can be found in this PDF data file:
Additional Latches:

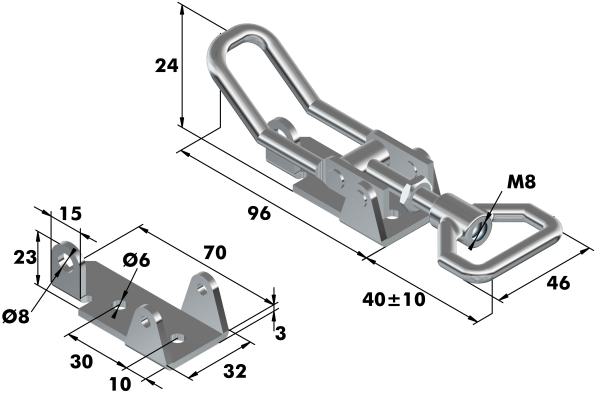

Serie 2001
with lock bracket, adjustable, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 2001.04 | 136 x 46 mm | Steel galvanised |

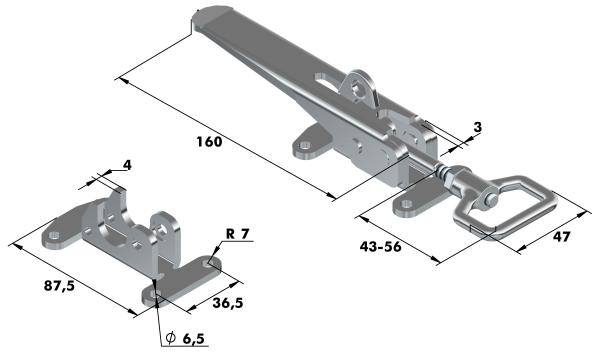

Serie 2003
with safety spring, adjustable, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 2003.04 | 203 x 47 mm | Steel galvanised |

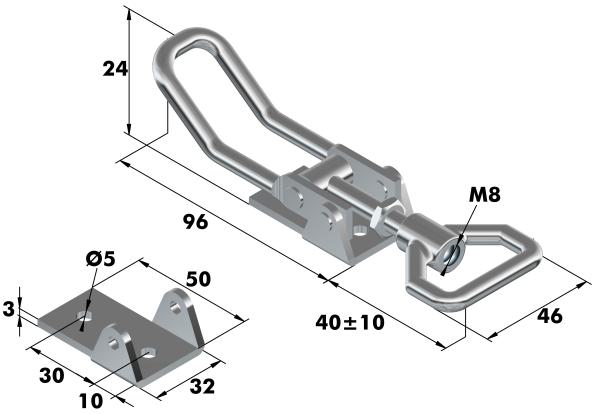

Serie 2004
adjustable, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 2004.04 | 136 x 46 mm | Steel galvanised |

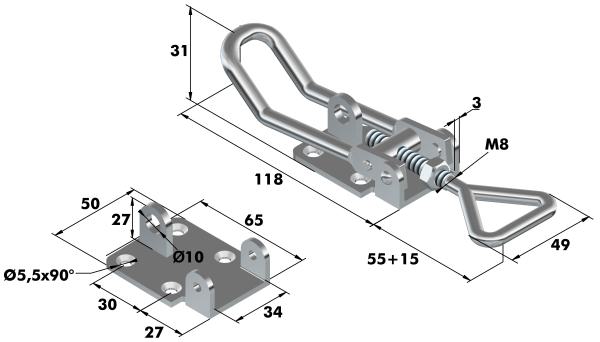

Serie 3125
with lock bracket, adjustable, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 3125.04 | 173 x 49 mm | Steel galvanised |

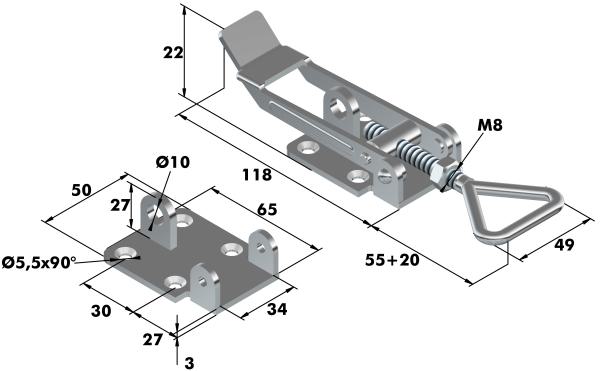

Serie 3320
with lock bracket, adjustable, drilled and countersunk
Executions
Maximum load: approx.5000N
| Art.-No. | Dimensions | Material |
|---|---|---|
| 3320.04 | 173 x 49 mm | Steel galvanised |
| 3320.33 | 173 x 49 mm | polished stainless steel |

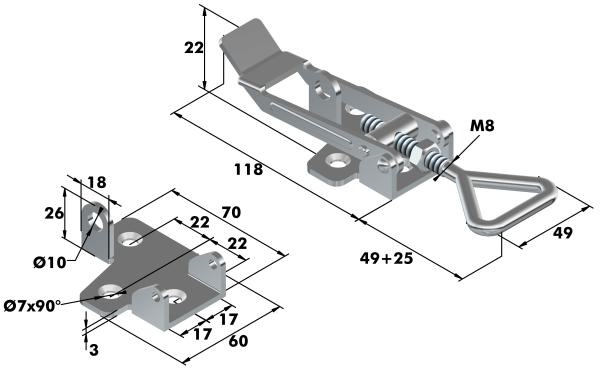

Serie 3520
with lock bracket, adjustable, drilled and countersunk
Executions
Maximum load: approx.5000N
| Art.-No. | Dimensions | Material |
|---|---|---|
| 3520.04 | 173 x 49 mm | Steel galvanised |
| 3520.33 | 173 x 49 mm | polished stainless steel |

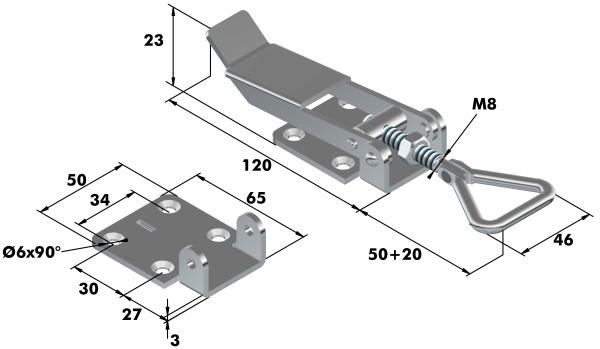

Serie 3390
adjustable, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 3390.30 | 170 x 46 mm | Stainless steel |

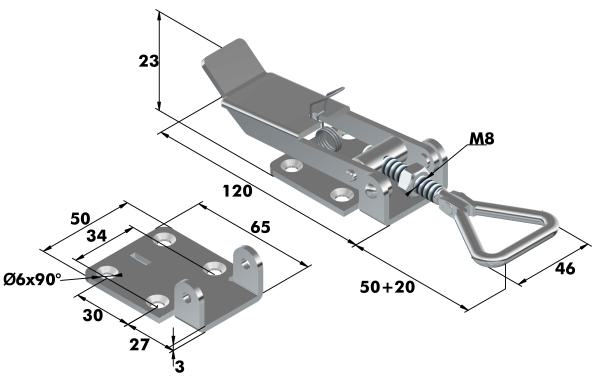

Serie 3475
with safety spring, adjustable, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 3475.30 | 170 x 46 mm | Stainless steel |

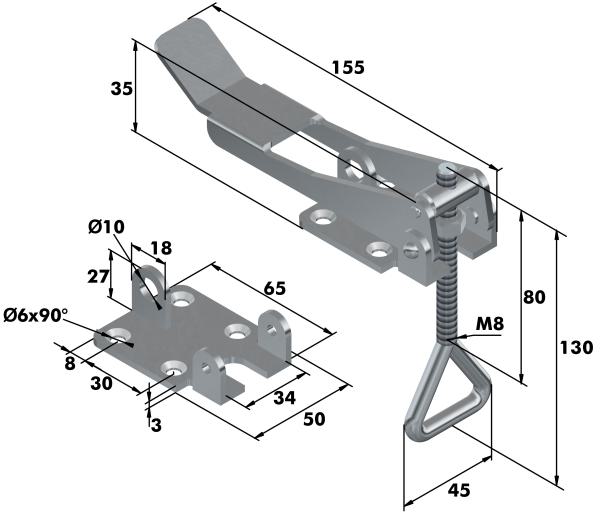

Serie 3470
90°, with lock bracket, adjustable, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 3470.04 | 155+130 x 50 mm | Steel galvanised |
| 3470.30 | 155+130 x 50 mm | Stainless steel |

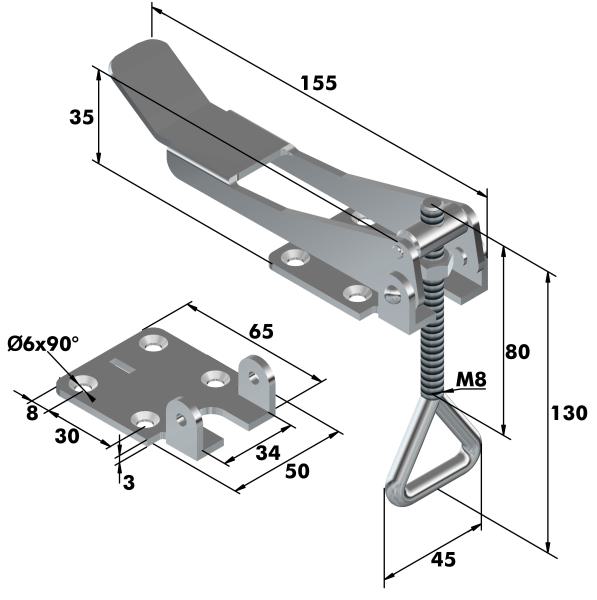

Serie 3471
90°, adjustable, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 3471.04 | 155+130 x 50 mm | Steel galvanised |
| 3471.30 | 155+130 x 50 mm | Stainless steel |

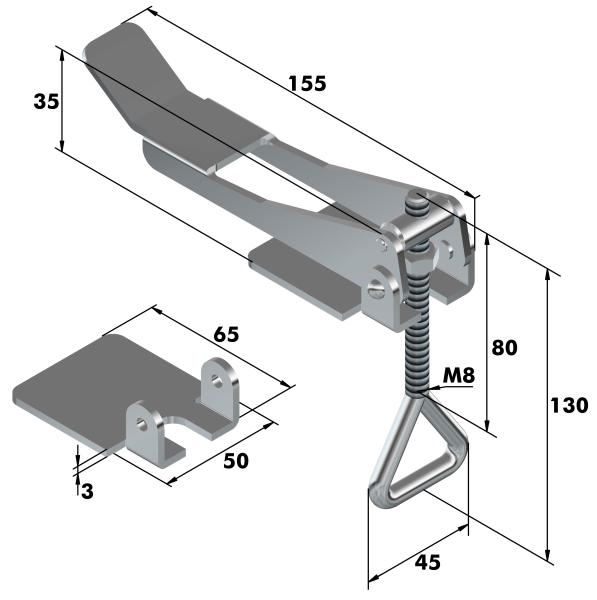

Serie 3472
90°, adjustable, undrilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 3472.04 | 155+130 x 50 mm | Steel galvanised |
| 3472.30 | 155+130 x 50 mm | Stainless steel |
Serie 3480
90°, with lock bracket, adjustable, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 3480.04 | 155+130 x 60 mm | Steel galvanised |
| 3480.30 | 155+130 x 60 mm | Stainless steel |
Serie 99.V18L01-Z-1BP
with adjustable hook and adjustable spring force, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 99.V18L01-Z-1BP.30 | 170 x 43 mm | Stainless steel |

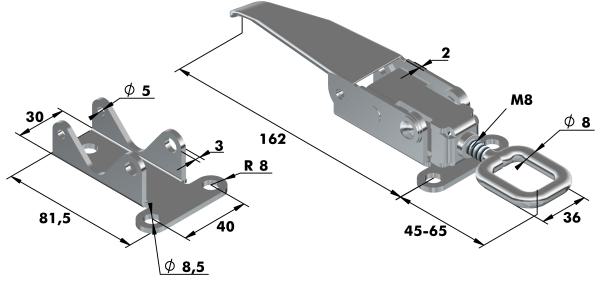

Serie 3157
adjustable, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 3157.04 | 207 x 40 mm | Steel galvanised |

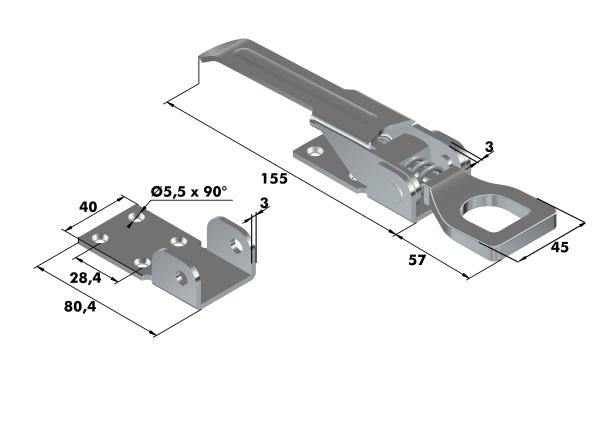

Serie 6266
with spring, adjustable, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6266.04 | 212 x 45 mm | Steel galvanised |
