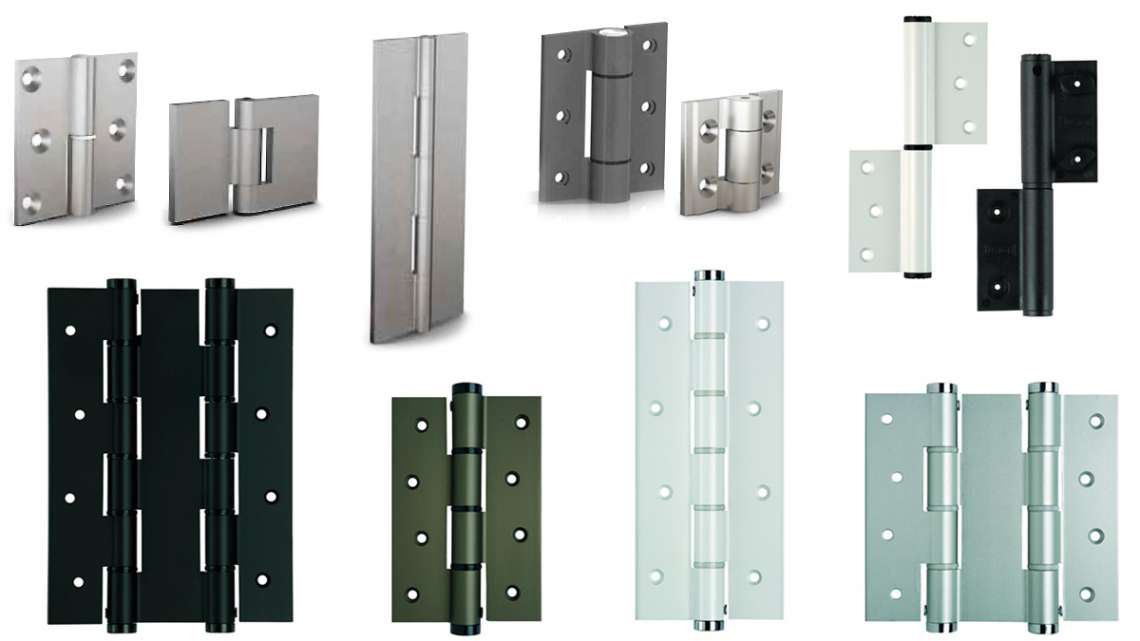

You may choose from our very large assortment of aluminum hinges according to different lengths, bracket width and form, bolt aperture, perforations and surface finishes.
In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to produce a multiplicity of different components with little effort, even in small quantities.
More details can be found in this PDF data file:
Design your individual Hinges, Piano Hinges and weld-on Hinges:
Additional Hinges:
Piano Hinges aus Aluminium
Serie 6711-6718
rolled, 20 mm, drilled and countersunk
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6716.70 | 2000 x 20 x 0,6 mm | Aluminium |
Serie 6703-6730
rolled, 25 mm, undrilled
Executions
the hinge is prepared from already zinc plated steel. The edge cuts are, thus, not zinc plated
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6703.70 | 1000 x 25 x 0,8 mm / D = pin Ø 2mm / E = 15 | Aluminium |
Serie 6708-6747
rolled, 30 mm, undrilled/drilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6708.70 | 1980 x 30 x 1 mm / D = pin Ø 2mm / E= 15 | Aluminium |
Serie 6753-6755
rolled, 35 mm, undrilled/drilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6755.70 | 1995 x 35 x 1mm / D = pin Ø 3mm / E= 30 | Aluminium |
Serie 6757-6799
rolled, 40 mm, undrilled
Executions
galvanised steel – the hinge is prepared from already zinc plated steel. The edge cuts are, thus, not zinc plated
Hinges can be delivered in other lengths, according to enquiry
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6757.70 | 1000 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Aluminium |
| 6769.70 | 2040 x 40 x 1,2 mm / D = pin Ø 3mm / E= 30 | Aluminium |
| 6776.70 | 2000 x 40 x 1,5 mm / D = pin Ø 4mm / E= 15 | Aluminium |
Serie 6781-6823
rolled, 50 mm, undrilled/drilled
Executions
galvanised steel - das Hinge wird aus bereits vorgalvanisedem Steel
gefertigt and die Schnittkanten sind demnach nicht galvanised
Hinges can be delivered in other lengths, according to enquiry and other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6784.70 | 2000 x 50 x 1,2 mm / D = pin Ø 3mm / E= 20 | Aluminium |
| 6786.70 | 2000 x 50 x 1,5 mm / D = pin Ø 4mm / E= 15 | Aluminium |
| 6809.70 | 1000 x 50 x 1,5 mm / D = pin Ø 4mm / E= 15 | Aluminium |
Serie 6704-6807
rolled, 60 mm, undrilled/drilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6806.70 | 2000 x 60 x 2 mm / D = pin Ø 6mm / E=30 | Aluminium |
Serie 6813-6829
rolled, 80 mm, undrilled/drilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6820.70 | 2000 x 80 x 3 mm / D = pin Ø 6mm / E=40 | Aluminium |
Serie 6830-6838
rolled, 100 mm, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6836.70 | 1000 x 100 x 4 mm / D = pin Ø 10mm / E=40 | Aluminium |
Serie 6848
rolled, undrilled
Executions
Hinges can be delivered in other lengths, according to enquiry.
Other perforations/perforation distances are possible, according to enquiry.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6848.70 | 2000 x 50 x 3 mm / D = pin Ø 5,2mm / E=35,5 | Aluminium 6060 T5 |
Serie 6850-6852
with double articulation, undrilled
Executions
Opening angle of 180° without sealing (ordered separately)
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6850.70 | 2000 x 65 mm / D pin Ø = 5 | Aluminium 6060 T5 |
| 6851.70 | 2500 x 15 / D pin Ø = 5 | Aluminium 6060 T5 |
| 6852.70 | 3000 x 115 / D pin Ø = 5 | Aluminium 6060 T5 |
Serie MS6841-MS6849
comparable Military Standard (MS)
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| MS-6841.71 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6841.72 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6841.73 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6841.74 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6841.75 | 915 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6842.70 | 1830 x 31,75 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6844.71 | 915 x 38,1 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6846.70 | 1830 x 38,1 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6845.70 | 1830 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6847.71 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6847.72 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6847.73 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6847.74 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6847.75 | 915 x 44,45 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6843.71 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6843.72 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6843.73 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6843.74 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6843.75 | 915 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
| MS-6849.70 | 1830 x 63,5 x 1,3mm / D=pin Ø 2,2mm / E= 12,7mm | Aluminium 6082 T5 |
Various Hinges aus Aluminium
Serie 6540
drilled and countersunk
Executions
.01 without stopper
.02 with stopper
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6540.01.70 | 65 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6540.01.77 | 65 x 55 x 4,5 mm | Aluminium 6060 T5 black |
| 6540.02.70 | 65 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6540.02.77 | 65 x 55 x 4,5 mm | Aluminium 6060 T5 black |
Serie 6876
drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6876.08.71 | 100 x 82,5 x 5,5 mm | Aluminium 6060 T5 silver |
| 6876.09.77 | 100 x 82,5 x 5,5 mm | Aluminium 6060 T5 black |
Serie 6215
drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6215.01.71 | 38 x 31,75 x 1,3 mm /D= 5/ E=2,29/ F=20/ G= 22/ pin Ø= 4,3 | Aluminium 6082 T5 anodised |
| 6215.02.71 | 50 x 44,45 x 1,3 mm /D= 5/ E=2,29/ F=30/ G= 34/ pin Ø= 4,3 | Aluminium 6082 T5 anodised |
| 6215.03.71 | 63,5 x 63,5 x 1,3 mm /D= 2,29/ E=2,29/ F=40/ G= 40/ pin Ø= 6 | Aluminium 6082 T5 anodised |
Serie 6216
drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6216.01.77 | 30 x 35 x 3,3 mm / pin Ø= 8 | Aluminium 6060 T5 black |
| 6216.01.71 | 30 x 35 x 3,3 mm / pin Ø= 8 | Aluminium 6060 T5 silver |
Serie 6216
drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6216.02.71 | 60 x 35 x 3,3 mm /pin Ø= 8 | Aluminium 6060 T5 anodised / colourless |
| 6216.02.77 | 60 x 35 x 3,3 mm /pin Ø= 8 | Aluminium 6060 T5 anodised / black |
Serie 6216
drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6216.03.71 | 90 x 35 x 3,3 mm /pin Ø= 8 | Aluminium 6060 T5 anodised / colourless |
| 6216.03.77 | 90 x 35 x 3,3 mm /pin Ø= 8 | Aluminium 6060 T5 anodised / black |
Spring Hinges aus Aluminium
Serie 6872
self-opening, drilled and countersunk
Executions
with integrated spring
Also available as free-running hinge, torque hinge and detend hinge.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6872.01.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6872.02.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6872.01.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
| 6872.02.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
| 6872.01.70-AG | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6872.01.77-AG | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
| 6872.02.70-AG | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6872.02.77-AG | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
Serie 6872
self-closing, drilled and countersunk
Executions
with integrated spring
Also available as free-running hinge, torque hinge and detend hinge.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6872.03.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6872.04.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6872.03.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
| 6872.04.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
Serie 6873
self-closing, drilled and countersunk
Executions
with integrated spring
Also available as free-running hinge, torque hinge and detend hinge.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6873.02.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6873.02.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
| 6873.01.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
| 6873.01.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6873.01.70-AG | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6873.01.77-AG | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
Serie 6876
drilled and countersunk
Executions
with integrated spring
Also available as free-running hinge, soft-closing hinge or detend hinge.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6876.01.70 | 100 x 82,5 x 5,5 mm | Aluminium 6060 T5 silver |
| 6876.02.77 | 100 x 82,5 x 5,5 mm | Aluminium 6060 T5 black |
| 6876.01.77 | 100 x 82,5 x 5,5 mm | Aluminium 6060 T5 silver |
| 6876.02.70 | 100 x 82,5 x 5,5 mm | Aluminium 6060 T5 black |
Serie 6960
drilled and countersunk
Executions
with integrated spring
Also available as torque hinge or detend hinge
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6960.01.71 | 30 x 35 x 3 mm | Aluminium 6060 T5 colourless |
| 6960.02.77 | 30 x 35 x 3 mm | Aluminium 6060 T5 black |
| 6960.01.77 | 30 x 35 x 3 mm | Aluminium 6060 T5 colourless |
| 6960.02.71 | 30 x 35 x 3 mm | Aluminium 6060 T5 black |
Serie 158.5314
spring force adjustable, Material thickness 4 mm, drilled
Executions
with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 158.5314.01.71 | 120 x 80 x 4 mm | Aluminium anodised silver |
| 158.5314.02.72 | 120 x 80 x 4 mm | Aluminium anodised gold |
| 158.5314.03.73 | 120 x 80 x 4 mm | Aluminium anodised bronze |
| 158.5314.06.76 | 120 x 80 x 4 mm | Aluminium anodised Weiss |
| 158.5314.09.77 | 120 x 80 x 4 mm | Aluminium anodised black |
Serie 158.5814
spring force adjustable, Material thickness 4 mm, drilled
Executions
with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 158.5814.01.71 | 120 x 80 x 4 mm | Aluminium anodised silver |
| 158.5814.02.72 | 120 x 80 x 4 mm | Aluminium anodised gold |
| 158.5814.03.73 | 120 x 80 x 4 mm | Aluminium anodised bronze |
| 158.5814.06.76 | 120 x 80 x 4 mm | Aluminium anodised Weiss |
| 158.5814.09.77 | 120 x 80 x 4 mm | Aluminium anodised black |
Serie 158.5414
spring force adjustable, Material thickness 4 mm, drilled
Executions
Double joint hinge/Swing door hinge with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 158.5414.01.71 | 120 x 133 x 4 mm | Aluminium anodised silver |
| 158.5414.02.72 | 120 x 133 x 4 mm | Aluminium anodised gold |
| 158.5414.03.73 | 120 x 133 x 4 mm | Aluminium anodised bronze |
| 158.5414.06.76 | 120 x 133 x 4 mm | Aluminium anodised Weiss |
| 158.5414.09.77 | 120 x 133 x 4 mm | Aluminium anodised black |
Serie 158.5914
spring force adjustable, Material thickness 4 mm, drilled
Executions
Double joint hinge/Swing door hinge with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 158.5914.01.71 | 120 x 133 x 4 mm | Aluminium anodised silver |
| 158.5914.02.72 | 120 x 133 x 4 mm | Aluminium anodised gold |
| 158.5914.03.73 | 120 x 133 x 4 mm | Aluminium anodised bronze |
| 158.5914.06.76 | 120 x 133 x 4 mm | Aluminium anodised Weiss |
| 158.5914.09.77 | 120 x 133 x 4 mm | Aluminium anodised black |
Serie 158.6314
drilled
Executions
with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 158.6314.01.71 | 153 x 76 x 2,5 mm | Aluminium anodised silver |
| 158.6314.02.72 | 153 x 76 x 2,5 mm | Aluminium anodised gold |
| 158.6314.03.73 | 153 x 76 x 2,5 mm | Aluminium anodised bronze |
| 158.6314.06.76 | 153 x 76 x 2,5 mm | Aluminium anodised Weiss |
| 158.6314.09.77 | 153 x 76 x 2,5 mm | Aluminium anodised black |
Serie 158.6717
drilled
Executions
with integrated spring
This product will be delivered only in pairs. Close doors automatically, integrated mechanic is very tough and adjustable. max. aperture angle 180°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 158.6717.01.71 | 149 x 80 x 4 mm | Aluminium anodised silver |
| 158.6717.02.72 | 149 x 80 x 4 mm | Aluminium anodised gold |
| 158.6717.03.73 | 149 x 80 x 4 mm | Aluminium anodised bronze |
| 158.6717.06.76 | 149 x 80 x 4 mm | Aluminium anodised Weiss |
| 158.6717.09.77 | 149 x 80 x 4 mm | Aluminium anodised black |
Serie 6896
self-opening, drilled and countersunk
Executions
with integrated spring
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6896.01.71 | 60 x 35 x 3,3 mm | Aluminium 6060 T5 colourless |
| 6896.01.77 | 60 x 35 x 3,3 mm | Aluminium 6060 T5 black |
Serie 6897
self-opening, drilled and countersunk
Executions
with integrated spring
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6897.01.71 | 90 x 35 x 3,3 mm | Aluminium 6060 T5 colourless |
| 6897.01.77 | 90 x 35 x 3,3 mm | Aluminium 6060 T5 black |
Serie 6898
self-opening, drilled and countersunk
Executions
with integrated spring
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6898.01.71 | 120 x 35 x 3,3 mm | Aluminium 6060 T5 colourless |
| 6898.01.77 | 120 x 35 x 3,3 mm | Aluminium 6060 T5 black |
Serie 6960
with threaded bolt M3, with grub screw
Executions
with integrated spring
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6960.03.71 | 30 x 35 x 3 mm | Aluminium 6060 T5 colourless |
| 6960.04.71 | 30 x 35 x 3 mm | Aluminium 6060 T5 colourless |
| 6960.03.77 | 30 x 35 x 3 mm | Aluminium 6060 T5 black |
| 6960.04.77 | 30 x 35 x 3 mm | Aluminium 6060 T5 black |
Serie 6873
with threaded bolt M6, with grub screw
Executions
with integrated spring
Available as: free-running hinge, torque hinge, detend hinge
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6873.04.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6873.05.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6873.06.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6873.07.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6873.08.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6873.09.70 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 silver |
| 6873.04.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
| 6873.05.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
| 6873.06.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
| 6873.07.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
| 6873.08.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
| 6873.09.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 black |
Serie 6876
with M6x 14,5mm bolt
Executions
with integrated spring
Available as: free-running hinge, soft-closing hinge
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6876.03.70 | 100 x 82,5 x 5,5 mm | Aluminium 6082 T5 silver |
| 6876.03.77 | 100 x 82,5 x 5,5 mm | Aluminium 6082 T5 black |
Serie 6164
undrilled
Executions
Tension spring made of stainless steel
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6164.01.70 | 120 x 40 x 1,5 mm | Aluminium 5754 |
| 6164.02.70 | 120 x 40 x 1,5 mm | Aluminium 5754 |
Torque Hinges aus Aluminium
Serie 6198
drilled
Executions
With constant torque.
Friction in one direction only. Torque per pair: 9 N/m. Initial torque can vary between -20% and +40%.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6198.01.70 | 77,5 x 60 x 16 mm | Aluminium anodised |
| 6198.02.70 | 77,5 x 60 x 16 mm | Aluminium anodised |
Serie 150.HG-CSH63
drilled
Executions
Hinge with constant torque and with adjustable torque.
Detent at both 0° and 100°. Torque not adjustable.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 150.HG-CSH631.71 | 63 x 80 x 5 mm | Aluminium anodised |
| 150.HG-CSH63AM2.71 | 63 x 80 x 5 mm | Aluminium anodised |
| 150.HG-CSH63AH2.71 | 63 x 80 x 5 mm | Aluminium anodised |
| 150.HG-CSH63BM3.71 | 63 x 80 x 5 mm | Aluminium anodised |
| 150.HG-CSH63BH3.71 | 63 x 80 x 5 mm | Aluminium anodised |
Serie 6874
with constant torque, drilled and countersunk
Executions
Locking position every 30° from 0° to 270°. With 4 different available locking moments.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6874.01.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 anodised black |
| 6874.02.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 anodised black |
| 6874.03.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 anodised black |
| 6874.04.77 | 67 x 55 x 4,5 mm | Aluminium 6060 T5 anodised black |
Weld-On Hinges aus Aluminium
Serie 6085
with fixed, Zinc plated steel bolt and nylon coating, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6085.02.70 | 80 x 80 x 3,5 mm | Aluminium anodised silver |
| 6085.01.70 | 80 x 80 x 3,5 mm | Aluminium anodised silver |
Serie 6086
with fixed, Zinc plated steel bolt and nylon coating, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6086.01.70 | 100 x 85 x 3,5 mm | Aluminium anodised silver |
| 6086.02.70 | 100 x 85 x 3,5 mm | Aluminium anodised silver |
Serie 6087
with fixed, Zinc plated steel bolt and nylon coating, drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6087.01.70 | 100 x 100 x 4 mm | Aluminium anodised silver |
| 6087.02.70 | 100 x 100 x 4 mm | Aluminium anodised silver |
Serie 6088
with spring and Nylon intermediate ring, drilled and countersunk
Executions
The hinge moves itself automatically back to the initial position with an opening angle of up to 80°
Above 80° the spring function is cancelled.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6088.05.77 | 65 x 55 x 4,5 mm | Aluminium anodised silver |
| 6088.07.77 | 65 x 55 x 4,5 mm | Aluminium anodised black |
| 6088.06.77 | 65 x 55 x 4,5 mm | Aluminium anodised silver |
| 6088.08.77 | 65 x 55 x 4,5 mm | Aluminium anodised black |
Serie 6961
with stainless steel pin 1.4301, drilled
Executions
No metal-metal contact. Polyacetal sleeves minimize penetrating particles. Adapted for Doors 600 x 800
max. door weight: 8kg per pair
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6961.03.71 | 65 x 60 x 3,5 mm | Aluminium untreated |
| 6961.04.71 | 65 x 60 x 3,5 mm | Aluminium untreated |
Serie 6198
with stainless steel pin 1.4301, drilled
Executions
Body in aluminium, shaft in stainless steel. Covers in Polyacetal (POM)
Friction in one direction only. 30.000 load change. Torque is constant in torque direction
Torque per pair: 9 N/m. Initial torque may vary from - 20% and + 40%. Torque will be affected by temperature. Do not lubricate. Not suited for vibration enviroment. For indoor use only
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6198.01.70 | 77,5 x 60 x 16 mm | Aluminium anodised |
| 6198.02.70 | 77,5 x 60 x 16 mm | Aluminium anodised |
Weld-On Hinge Rolls aus Aluminium
Serie ABR
with stainless steel pin 1.4301, drilled
Executions
FVS with fixed stainless steel pin and brass intermediate ring
AVS with extractable stainless steel pin and brass intermediate ring
| Art.-No. | Dimensions | Material |
|---|---|---|
| ABR60FVS.70 | 60 x 12 mm | Aluminium untreated |
| ABR80FVS.70 | 80 x 16 mm | Aluminium untreated |
| ABR100FVS.70 | 100 x 20 mm | Aluminium untreated |
| ABR120FVS.70 | 120 x 20 mm | Aluminium untreated |
| ABR150FVS.70 | 150 x 25,5 mm | Aluminium untreated |
| ABR180FVS.70 | 180 x 25,5 mm | Aluminium untreated |
| ABR60AVS.70 | 60 x 12 mm | Aluminium untreated |
| ABR80AVS.70 | 80 x 16 mm | Aluminium untreated |
| ABR100AVS.70 | 100 x 20 mm | Aluminium untreated |
| ABR120AVS.70 | 120 x 20 mm | Aluminium untreated |
| ABR150AVS.70 | 150 x 25,5 mm | Aluminium untreated |
| ABR180AVS.70 | 180 x 25,5 mm | Aluminium untreated |
