In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to produce a multiplicity of different components with little effort, even in small quantities.

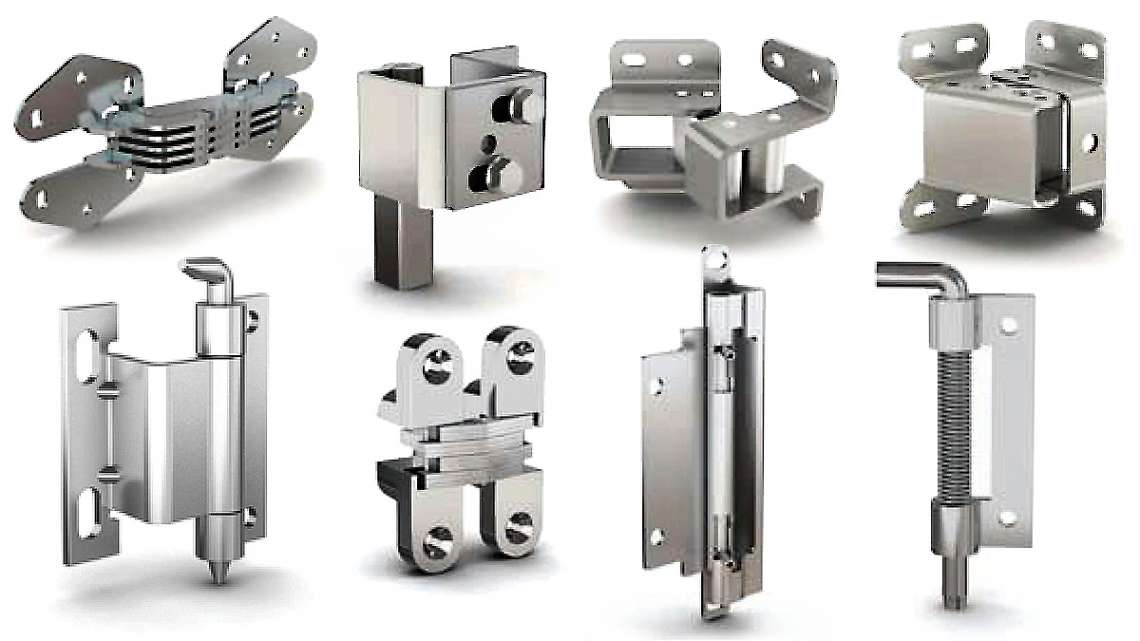

Our offer includes concealed hinges:
- made of brute and galvanized steel
- made of stainless and stained steel
- made of polished brass
- with a 180° angle of aperture
- blind, with a 90° angle of aperture
- duplex, with a 90° angle of aperture
- with clips
- for concealed blocks, with a 120° angle of aperture
More details can be found in this PDF data file:
Design your individual Hinges, Piano Hinges and weld-on Hinges:
Additional Hinges:
Serie 91.1071
drilled
Executions
Hinge for invisible fence. Opening angle approx.110°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 91.1071.03.04 | 60 x 80 x 3 mm | Steel galvanised |
| 91.1071.03.30 | 60 x 80 x 3 mm | Stainless steel untreated |
Serie 6069
undrilled
Executions
Hinge for invisible fence with an extractable steel pin. Opening angle 180°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6069.00.00 | 100 x 50,5 x 1,2 mm | Steel untreated |
Serie 6069
drilled
Executions
Hinge for invisible fence with opening angle 90°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6069.05.04 | 58,6 x 126,5 x 2 mm | Steel galvanised |
Serie 6069
drilled
Executions
Hinge for invisible fence with opening angle 90°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6069.06.04 | 30,2 x 126,5 x 2 mm | Steel galvanised |
| 6069.08.04 | 30,2 x 126,5 x 2 mm | Steel galvanised |
Serie 6069
drilled
Executions
Hinge for invisible fence with opening angle 90°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6069.04.04 | 44 x 29 x 32 mm | Steel galvanised |
| 6069.04.35 | 44 x 29 x 32 mm | Stainless steel 1.4404 untreated |
Serie 6069
drilled
Executions
Hinge for invisible fence with opening angle 125°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6069.18.04 | 44 x 29 x 32 mm | Steel galvanised |
| 6069.18.35 | 44 x 29 x 32 mm | Stainless steel 1.4404 untreated |
Serie 6069
drilled
Executions
Hinge for invisible fence with opening angle 125°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6069.19.04 | 77 x 55,2 x 54 mm | Steel galvanised |
| 6069.19.35 | 77 x 55,2 x 54 mm | Stainless steel 1.4404 untreated |
Serie 6589
drilled
Executions
Hinge for invisible fence with opening angle 110°.
Reinforced design; in the test, 2 hinges open and close a door (1m x 1m) weighing 25 kg 10,000 times. Hinges made of anodised aluminium.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6589.04 | 102 x 80,5 x 76 mm | Steel galvanised |
Serie 6069
drilled
Executions
with stop with opening angle 180°. Articulation made of stainless steel.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6069.09.53 | 43 x 13 mm | Zamak chrome-plated |
| 6069.10.53 | 45 x 32 mm | Zamak chrome-plated |
| 6069.11.53 | 60 x 47 mm | Zamak chrome-plated |
| 6069.12.53 | 70 x 53 mm | Zamak chrome-plated |
| 6069.13.53 | 100 x 80 mm | Zamak chrome-plated |
Serie 6069
drilled
Executions
Hinge for invisible fence with opening angle 180°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6069.14.30 | 50 x 14 | Stainless steel satinised |
Serie 6491
drilled
Executions
Hinge for invisible fence with opening angle 90°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6491.01.01 | 44 x 104,5 x 1,2 mm | Steel nickel-plated |
| 6491.01.35 | 44 x 104,5 x 1,2 mm | Stainless steel 1.4404 untreated |
Serie 6492
drilled
Executions
Hinge for invisible fence with opening angle 150°.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6492.01.01 | 52 x 112 x 2 mm | Steel nickel-plated |
| 6492.01.33 | 52 x 112 x 2 mm | Stainless steel untreated |
Serie 6493
drilled
Executions
Hinge for invisible fence, with constant torque.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6493.01.33 | 40 x 67 x 29,5 mm | Stainless steel polished |
Serie 6127
drilled
Executions
Hinge for invisible fence with opening angle 120°, with pull out pin.
Hinge can be assembled at left or right direction.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6127.01.00 | 80 x 24 x 3 mm | Steel untreated |
| 6127.01.30 | 80 x 24 x 3 mm | Stainless steel untreated |
Serie 6127
drilled
Executions
Hinge for invisible fence with opening angle 100°, with pull out pin.
Hinge can be assembled at left or right direction.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6127.02.00 | 80 x 16 x 2 mm | Steel untreated |
| 6127.02.30 | 80 x 16 x 2 mm | Stainless steel untreated |
Serie 6128
drilled
Executions
Hinge for invisible fence with opening angle 90°, with pull out pin.
Hinge can be assembled at left or right direction.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6128.01.30 | 80 x 62 x 4 mm | Steel untreated |
| 6128.01.00 | 80 x 62 x 4 mm | Stainless steel untreated |
Serie 6128
drilled
Executions
Hinge for invisible fence with opening angle 90°, with pull out pin.
Hinge can be assembled at left or right direction.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6128.02.00 | 80 x 61 x 4 mm | Steel untreated |
| 6128.02.30 | 80 x 61 x 4 mm | Stainless steel untreated |
Serie 6103
drilled
Executions
Hinge for invisible fence with opening angle 120°, with pull out pin.
Available in two additional versions.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6103.01.04 | 60 x 75 x 2,5 mm | Steel galvanised |
| 6103.01.30 | 60 x 75 x 2,5 mm | Stainless steel untreated |
Serie 6104
drilled
Executions
Hinge for invisible fence with opening angle 120°, with pull out pin.
Available in two additional versions.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6104.01.04 | 60 x 75 x 2,5 mm | Steel galvanised |
| 6104.01.30 | 60 x 75 x 2,5 mm | Stainless steel untreated |
Serie 6100
right, drilled
Executions
Hinges with spring-loaded pins for assembly/disassembly of doors and flaps.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6100.01.04 | 82 x 18,2 x 2,8 mm | Steel galvanised |
| 6100.05.30 | 82 x 18,2 x 2,8 mm | Stainless steel untreated |
| 6100.04.00 | 82 x 18,2 x 2,8 mm | Steel untreated |
Serie 6100
left, drilled
Executions
Hinges with spring-loaded pins for assembly/disassembly of doors and flaps.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6100.03.00 | 82 x 18,2 x 2,8 mm | Steel untreated |
| 6100.02.04 | 82 x 18,2 x 2,8 mm | Steel galvanised |
| 6100.06.30 | 82 x 18,2 x 2,8 mm | Stainless steel untreated |
Serie 6102
right, drilled
Executions
Hinges with spring-loaded pins for assembly/disassembly of doors and flaps.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6102.01.00 | 82 x 21 x 2 mm | Steel untreated |
| 6102.03.04 | 82 x 21 x 2 mm | Steel galvanised |
| 6102.06.30 | 82 x 21 x 2 mm | Stainless steel untreated |
Serie 6102
left, drilled
Executions
Hinges with spring-loaded pins for assembly/disassembly of doors and flaps.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6102.05.30 | 82 x 21 x 2 mm | Stainless steel untreated |
| 6102.02.00 | 82 x 21 x 2 mm | Steel untreated |
| 6102.04.04 | 82 x 21 x 2 mm | Steel galvanised |
Serie 6588
drilled
Executions
Two-part hinge for the invisible fence, with spring-loaded pin for assembly/disassembly of doors and flaps.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6588.01.30 | 126 x 17,5 x 1,5 mm | Stainless steel untreated |
| 6588.02.30 | 126 x 20,5 x 1,5 mm | Stainless steel untreated |
| 6588.03.30 | 126 x 23,5 x 1,5 mm | Stainless steel untreated |
Serie 6214
drilled
Executions
For horizontal application only. Steel retaining plate.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6214.01.04 | 50 x 166 x 74,7 mm | Steel galvanised |
Serie 6214
with spring, drilled
Executions
For horizontal application only. Steel retaining plate.
Torque of the spring „opening“: 1 N.m / hinge. Torque of the spring „closing“: 3 N.m/hinge.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6214.02.04 | 50 x 166 x 74,7 mm | Steel galvanised |
Serie 6214
with spring, drilled
Executions
For horizontal application only. Polymer retaining plate.
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6214.03.04 | 50 x 166 x 74,7 mm | Steel galvanised |
