Serie 99.10080
with fixed stainless steel pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
99.10080.30 | 100 x 80 x 4 mm | Stainless steel untreated |
Serie 99.1001003
with fixed stainless steel pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
99.1001003.30 | 100 x 100 x 3 mm | Stainless steel untreated |
Serie 6054
with riveted stainless steel pin, undrilled
Art.-No. | Dimensions | Material |
---|---|---|
6054.03.00 | 130 x 95 x 4 mm | Steel untreated |
Serie 99.2453
Knuckle and pin welded, drilled
Art.-No. | Dimensions | Material |
---|---|---|
99.2453.04 | 130 x 84,5 x 4 mm | Steel galvanised |

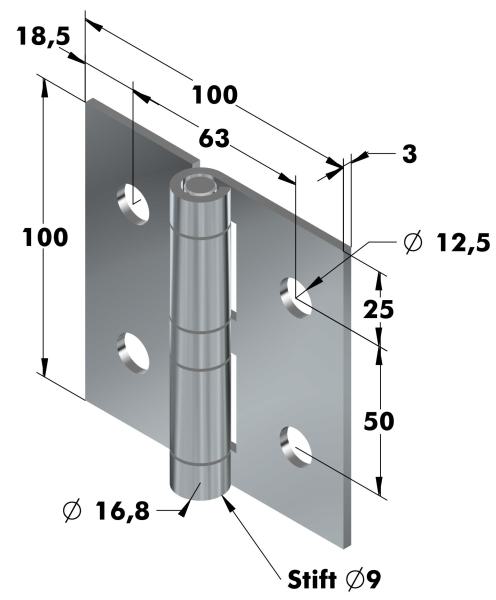

Serie 2003278
drilled
Knuckle and pin welded
Art.-No. | Dimensions | Material |
---|---|---|
2003278 | 100 x 100 x 3 mm | Stainless steel polished |

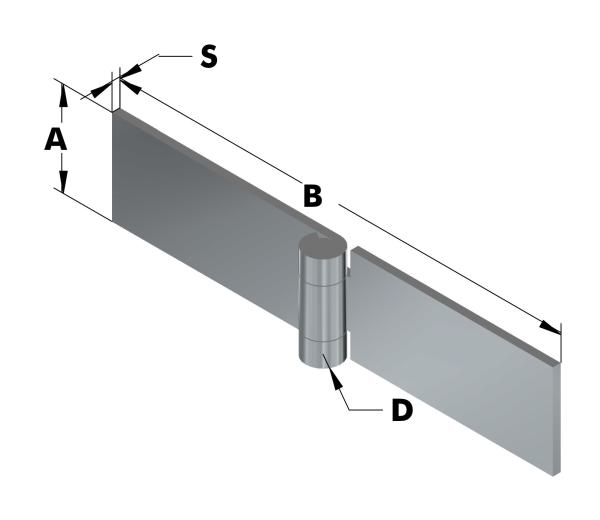

Serie 6012
undrilled
with fixed steel pin, drilling on request
Art.-No. | Dimensions | Material |
---|---|---|
6012.01.00 | 30 x 140 x 2,5 mm / D= 11 / pin Ø= 6 | Steel untreated |
6012.03.00 | 30 x 190 x 3 mm / D= 12 / pin Ø= 6 | Steel untreated |

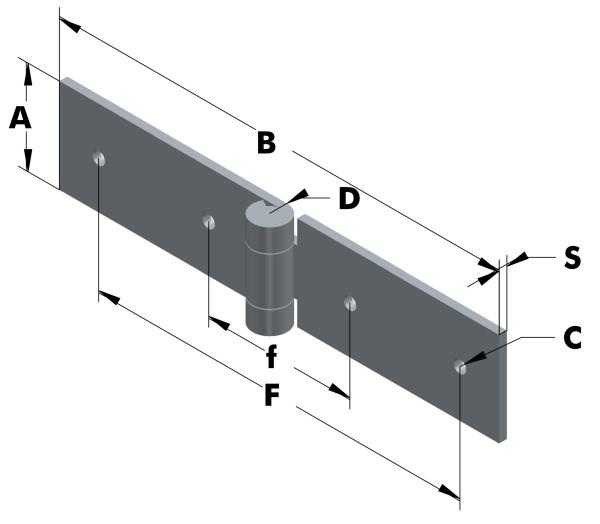

Serie 6014
drilled
with fixed pin
Art.-No. | Dimensions | Material |
---|---|---|
6014.01.04 | 30 x 140 x 2,5 mm / CØ= 4/ D= 11/ F= 115/ f= 45/ pin Ø= 6 | Steel galvanised |
Serie 6050
undrilled
with extractable pin and nylon intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
6050.01.30 | 112 x 136 x 2,5 mm | Stainless steel untreated |
6050.01.00 | 112 x 136 x 2,5 mm | Steel untreated |
Serie 6050
drilled
with extractable pin and nylon intermediate ring
Art.-No. | Dimensions | Material |
---|---|---|
6050.02.30 | 112 x 136 x 2,5 mm | Stainless steel untreated |
Serie 6054
undrilled
with fixed pin
Art.-No. | Dimensions | Material |
---|---|---|
6054.01.33 | 65 x 230 x 4 mm | Stainless steel polished |
6054.01.00 | 65 x 230 x 4 mm | Steel untreated |
Serie 6054
drilled
with fixed pin
Art.-No. | Dimensions | Material |
---|---|---|
6054.02.33 | 65 x 230 x 4 mm | Stainless steel polished |
Serie 6158
drilled
with fixed pin (10mm),
Stainless steel (1.4301) on request
Art.-No. | Dimensions | Material |
---|---|---|
6158.01.04 | 66 x 230 x 5 mm | Steel galvanised |
6158.01 .33 | 66 x 230 x 5 mm | Stainless steel polished |
Serie 99.12637
with fixed pin (10mm), drilled
Art.-No. | Dimensions | Material |
---|---|---|
99.12637.33 | 75 x 300 x 5 mm | Stainless steel polished |
99.12637.04 | 75 x 300 x 5 mm | Steel galvanised |
Serie 6158
drilled
with fixed pin (10mm),
Stainless steel (1.4301) on request
Art.-No. | Dimensions | Material |
---|---|---|
6158.02.04 | 66 x 215 x 5 mm | Steel galvanised |
6158.02.33 | 66 x 215 x 5 mm | Stainless steel polished |
Serie 99.40800B004
drilled
with rammed Stainless steel pin
Art.-No. | Dimensions | Material |
---|---|---|
99.40800B004.04/C | 80 x 224 x 5 mm | Steel feuergalvanised |
Serie 196.3.ST35.001
drilled
Art.-No. | Dimensions | Material |
---|---|---|
196.3.ST35.001.30 | 65 x 191 x 3 mm | Stainless steel polished |
196.3.ST35.001.04 | 65 x 191 x 3 mm | Steel galvanised |
Serie 99.1001404.00
drilled
with fixed steel pin
Art.-No. | Dimensions | Material |
---|---|---|
99.1001404.00 | 100 x 140 x 4 mm | Steel untreated |
Serie 196.3.ST56.002
drilled
Art.-No. | Dimensions | Material |
---|---|---|
196.3.ST56.001.07 | 60 x 135 x 4 mm | Steel black |
196.3.ST56.002SN.30 | 60 x 135 x 4 mm | Stainless steel untreated |
Serie 196.3.ST56.100
drilled
Art.-No. | Dimensions | Material |
---|---|---|
196.3.ST56.100.07 | 63 x 140 x 4 mm | Steel black |
196.3.ST56.100SN.30 | 63 x 140 x 4 mm | Stainless steel untreated |

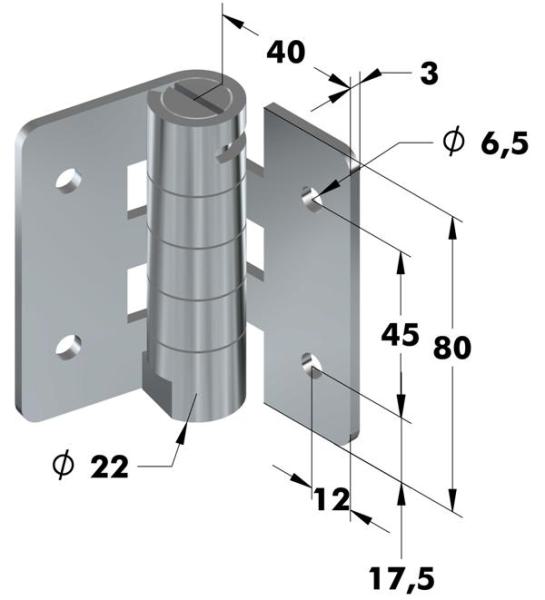

Serie 6877
drilled
Soft-closing hinge
Opens and closes damped,
Function until 115° guaranteed, torque per pair: 2,2 up to 3,0 N.m
Art.-No. | Dimensions | Material |
---|---|---|
6877.01.30 | 80 x 80 x 3 mm | Stainless steel untreated |

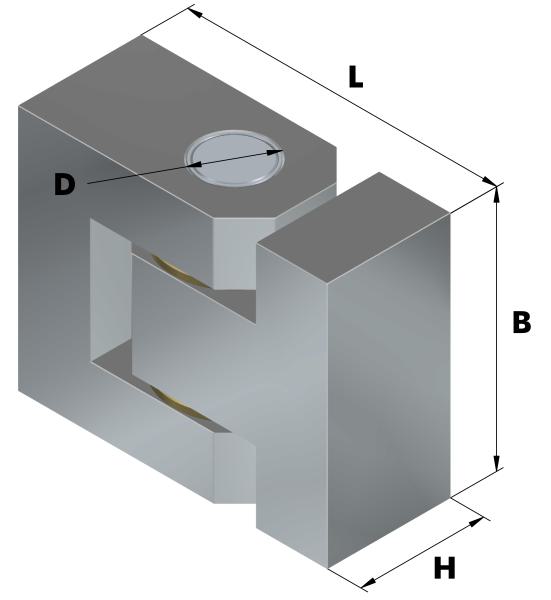

Serie AG
Welded joints
with fixed steel pin
FES on self-lubrificating bushes, with brass intermediate ring.
Art.-No. | Dimensions | Material |
---|---|---|
AG60FES.00 | 60 x 50 x 20 mm / DØ= 10 | Steel untreated |
AG70FES.00 | 70 x 60 x 25 mm / DØ= 12 | Steel untreated |
AG80FES.00 | 80 x 60 x 30 mm / DØ= 15 | Steel untreated |
AG100FES.00 | 100 x 80 x 40 mm / DØ= 20 | Steel untreated |
AG120FES.00 | 120 x 100 x 50 mm / DØ= 25 | Steel untreated |
AG140FES.00 | 140 x 120 x 60 mm / DØ= 30 | Steel untreated |
AG60FES.30 | 60 x 50 x 20 mm / DØ= 10 | Stainless steel untreated |
AG70FES.30 | 70 x 60 x 25 mm / DØ= 12 | Stainless steel untreated |
AG80FES.30 | 80 x 60 x 30 mm / DØ= 15 | Stainless steel untreated |
AG100FES.30 | 100 x 80 x 40 mm / DØ= 20 | Stainless steel untreated |
AG120FES.30 | 120 x 100 x 50 mm / DØ= 25 | Stainless steel untreated |
AG140FES.30 | 140 x 120 x 60 mm / DØ= 30 | Stainless steel untreated |
Serie AB
3-part
AES with extractable steel pin and brass intermediate ring
AMS with extractable brass pin and brass intermediate ring.
Art.-No. | Dimensions | Material |
---|---|---|
AB135/3AES.00 | 135/3 x 22,5 mm / D=18/ pin Ø= 12 | Steel untreated |
AB150/3AES.00 | 150/3 x 25,5 mm / D=20/ pin Ø= 13 | Steel untreated |
AB180/3AES.00 | 180/3 x 25,5 mm / D=20/ pin Ø= 13 | Steel untreated |
AB200/3AES.00 | 200/3 x 29 mm / D=23/ pin Ø= 16 | Steel untreated |
AB135/3AMS.00 | 135/3 x 22,5 mm / D=18/ pin Ø= 12 | Steel untreated |
AB150/3AMS.00 | 150/3 x 25,5 mm / D=20/ pin Ø= 13 | Steel untreated |
AB180/3AMS.00 | 180/3 x 25,5 mm / D=20/ pin Ø= 13 | Steel untreated |
AB200/3AMS.00 | 200/3 x 29 mm / D=23/ pin Ø= 16 | Steel untreated |
AB135/3AVS.30 | 135/3 x 22,5 mm / D=18/ pin Ø= 12 | Stainless steel untreated |
AB150/3AVS.30 | 150/3 x 25,5 mm / D=20/ pin Ø= 13 | Stainless steel untreated |
AB180/3AVS.30 | 180/3 x 25,5 mm / D=20/ pin Ø= 13 | Stainless steel untreated |

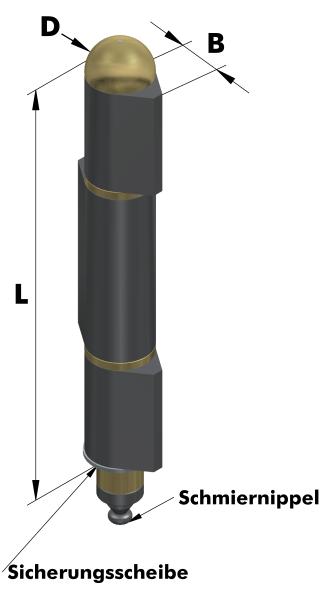

Serie ABN
3-part with lubrication nipple
AMS with extractable brass pin and brass intermediate ring.
Art.-No. | Dimensions | Material |
---|---|---|
ABN135/3AMS.00 | 135/3 x 22,5 mm / D=18/ pin Ø= 12 | Steel untreated |
ABN150/3AMS.00 | 150/3 x 25,5 mm / D=20/ pin Ø= 13 | Steel untreated |
ABN180/3AMS.00 | 180/3 x 25,5 mm / D=20/ pin Ø= 13 | Steel untreated |
ABN200/3AMS.00 | 200/3 x 29 mm / D=23/ pin Ø= 16 | Steel untreated |
Serie AB
3-part with 2 ball bearings
AES with extractable steel pin and 2 ball bearingn
AMS with extractable brass pin and 2 ball bearings
Art.-No. | Dimensions | Material |
---|---|---|
AB90/3AMS.00 | 90/3 x 25,5 mm / D= 20/ pin Ø= 12 | Steel untreated |
AB110/3AES.00 | 110/3 x 29 mm / D= 23/ pin Ø= 13 | Steel untreated |
AB90/3AES.00 | 90/3 x 25,5 mm / D= 20/ pin Ø= 12 | Steel untreated |
AB110/3AMS.00 | 110/3 x 29 mm / D= 23/ pin Ø= 13 | Steel untreated |
Serie 150.HG-KM
drilled
Ultra thick „lift-off“ hinge for heavy doors.
The load capacity is the value when using two hinges.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-KM12-268.32 | 268 x 350 x 12 mm | Stainless steel satinised |
150.HG-KM19-275.32 | 275 x 350 x 19 mm | Stainless steel satinised |
150.HG-KM20-250.32 | 250 x 350 x 20 mm | Stainless steel satinised |
Serie 150.HG-KH
drilled
Ultra thick „lift-off“ hinge for heavy doors
The load capacity is the value when using two hinges.
Art.-No. | Dimensions | Material |
---|---|---|
150.HG-KH12-268.32 | 268 x 300 x 12 mm | Stainless steel satinised |
150.HG-KH19-275.32 | 275 x 300 x 19 mm | Stainless steel satinised |
150.HG-KH20-250.32 | 250 x 300 x 20 mm | Stainless steel satinised |
HoKon Locking Technology offers a wide range of heavy-duty hinges of all types in various sizes, arm widths and shapes, as well as lengths, materials, surface treatments, and commercial divisions. Additionally, we provide different sizes of drill holes and perforations. Our hinges are made of untreated steel or stainless steel (marine grade). Upon request, we supply heavy-duty hinges made of galvanized or nickel-plated steel with various surface treatments. Whether undrilled or drilled, with or without countersinking, with fixed or removable pins – we deliver what we seal!
