Spannverschlüsse mit Drahtbügel:

Art.-Nr.MaßeMaterialMenge
1001.00/566 x 27 mmStahl unbehandelt

1001.01/566 x 27 mmStahl vernickelt





  Handles

Drop Handles

You may choose from our very large assortment of drop handles according to different materials and damping characteristics.

In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to produce a multiplicity of different components with little effort, even in small quantities.



 Our offer includes drop handles:

  • made of steel or stainless steel
  • galvanized and nickel-plated
  • burnished and brassed
  • with rubber sleeve
  • with spring adjustment
  • with internal handle

More details can be found in this PDF data file:

Download



Additional Handles:



PDF

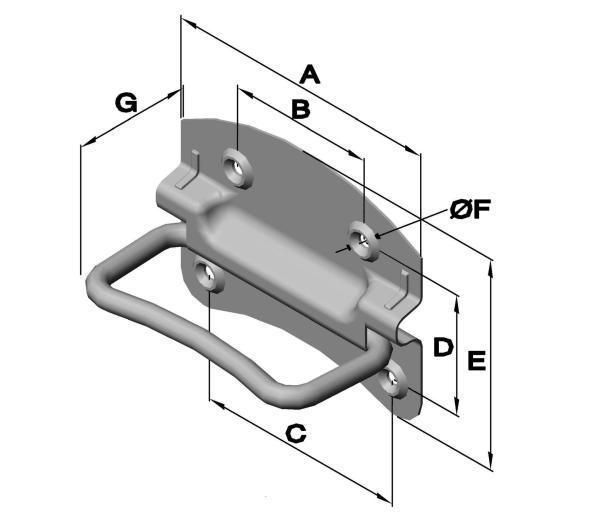

Serie 1054
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
1054.09.0290 x 67 x 40 mmSteel brass plated
1054.09.0490 x 67 x 40 mmSteel galvanised
1054.09.0790 x 67 x 40 mmSteel bronzed
1054.11.02110 x 84 x 55 mmSteel brass plated
1054.11.04110 x 84 x 55 mmSteel galvanised
1054.11.07110 x 84 x 55 mmSteel bronzed
1054.12.30120 x 84 x 75 mmStainless steel

PDF

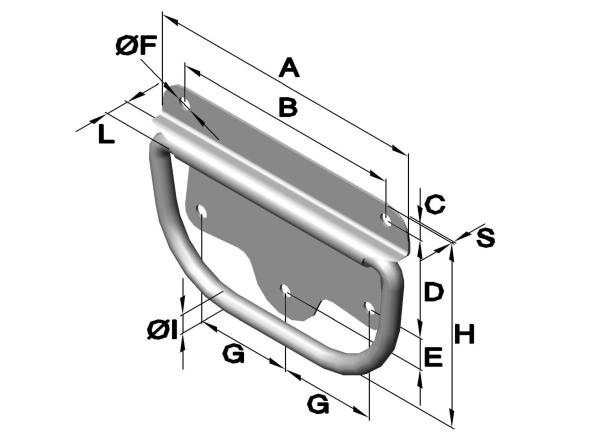

Serie 1055
drilled

Executions


Art.-No.DimensionsMaterial
1055.08.0280 x 56 x 6 mmSteel brass plated
1055.08.0480 x 56 x 6 mmSteel galvanised
1055.08.0780 x 56 x 6 mmSteel bronzed
1055.09.0290 x 61 x 6,5 mmSteel brass plated
1055.09.0490 x 61 x 6,5 mmSteel galvanised
1055.09.0790 x 61 x 6,5 mmSteel bronzed
1055.10.02100 x 62,5 x 6,5 mmSteel brass plated
1055.10.04100 x 62,5 x 6,5 mmSteel galvanised
1055.10.07100 x 62,5 x 6,5 mmSteel bronzed
1055.11.02110 x 66,5 x 7 mmSteel brass plated
1055.11.04110 x 66,5 x 7 mmSteel galvanised
1055.11.07110 x 66,5 x 7 mmSteel bronzed

3D PDF

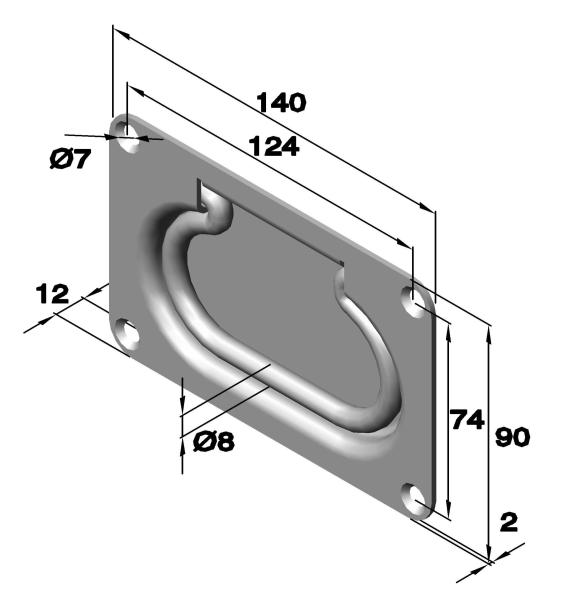

Serie 2130
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
2130.04140 x 90 x 2 mmSteel galvanised

3D PDF

Serie 2134
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
2134.04130 x 70 x 1,5 mmSteel galvanised

3D PDF

Serie 2134
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
2134.30130 x 70 x 1,3 mmStainless steel

3D PDF

Serie 2135
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
2135.04 130 x 70 x 1,5 mmSteel galvanised

3D PDF

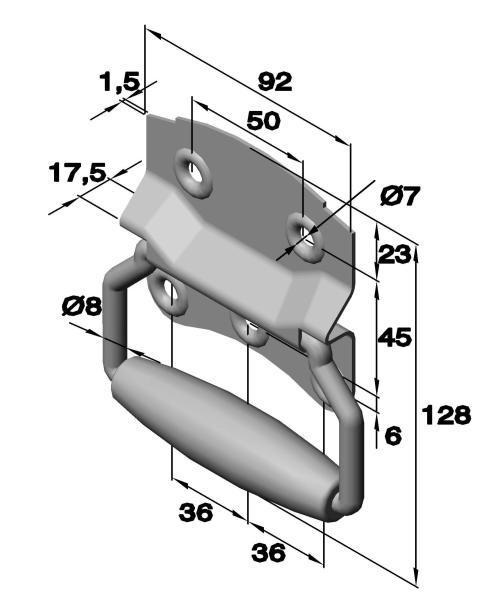

Serie 3101
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3101.0492 x 128 x 1,5 mmSteel galvanised
3101.0792 x 128 x 1,5 mmSteel bronzed
3101.0892 x 128 x 1,5 mmSteel yellow chromatisiert

3D PDF

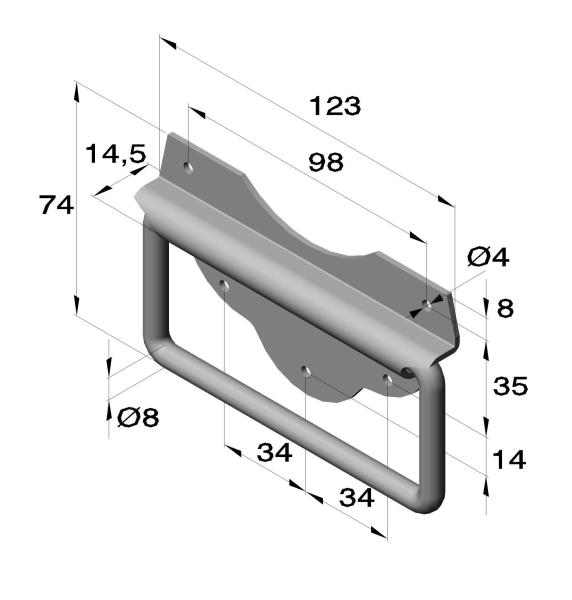

Serie 3102
drilled

Executions


Art.-No.DimensionsMaterial
3102.04123 x 74 x 14,5 mmSteel galvanised

3D PDF

Serie 3119
drilled and countersunk

Executions


Art.-No.DimensionsMaterial

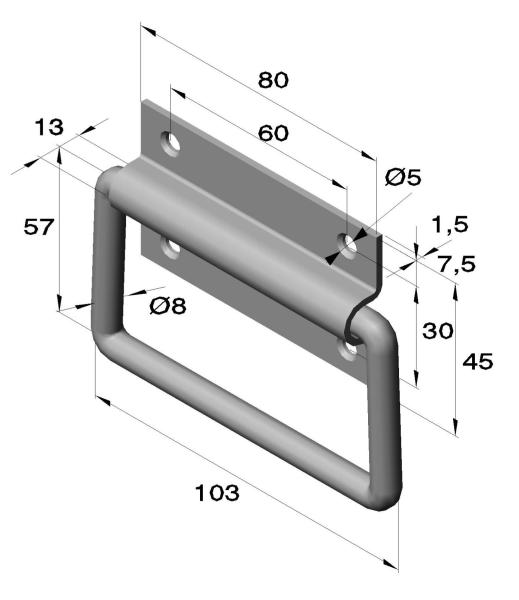

3119.04 80 x 57 x 1,5 mmSteel galvanised

PDF

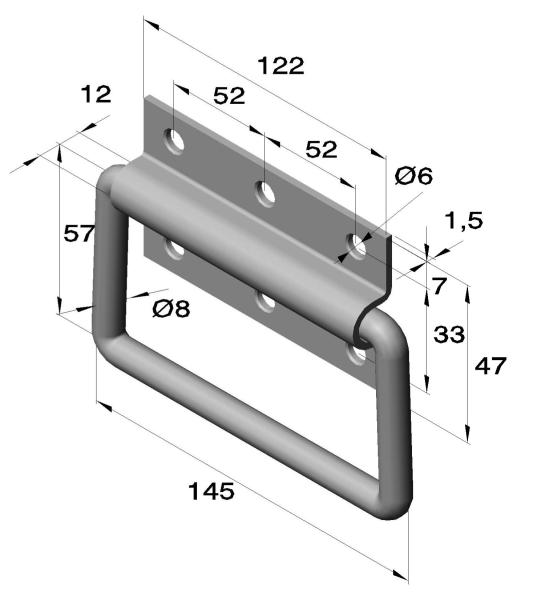

Serie 3122
drilled and countersunk

Executions


Art.-No.DimensionsMaterial
3122.04 122 x 57 x 1,5 mmSteel galvanised

3D PDF

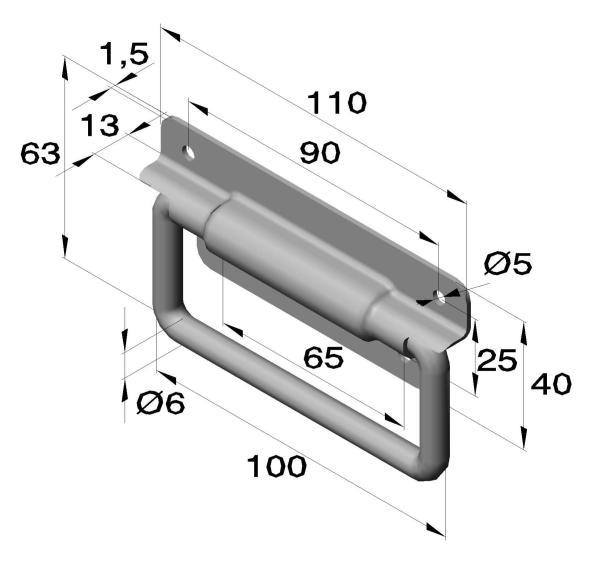

Serie 3510
available on request with return springs, drilled

Executions


Art.-No.DimensionsMaterial
3510.04110 x 63 x 1,5 mmSteel galvanised

3D PDF

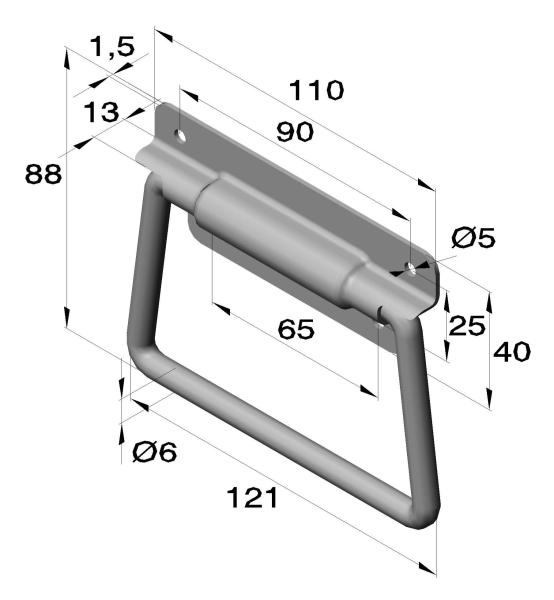

Serie 3511
Different drop handles available on request, drilled

Executions


Art.-No.DimensionsMaterial
3511.04 110 x 88 x 1,5 mmSteel galvanised

3D PDF

Serie 3512
Different drop handles available on request, drilled

Executions


Maximum load: approx. 25 kg

Art.-No.DimensionsMaterial
3512.04100 x 73 x 1,5 mmSteel galvanised
3512.30 100 x 73 x 1,5 mmStainless steel

3D PDF

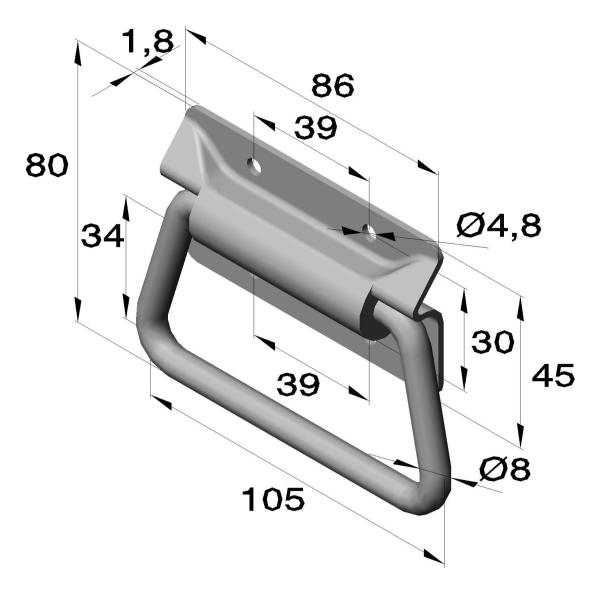

Serie 6407
drilled

Executions


Maximum load: max. 90 kg
aperture angle: up to 90°

Art.-No.DimensionsMaterial
6407.04 105 x 45 x 1,8 mmSteel galvanised

3D PDF

Serie 6440
drilled and countersunk

Executions


Maximum load: max.100 kg /pair Opening angle: up to 90°
Installation opening: 97,5 x 47,5

Art.-No.DimensionsMaterial

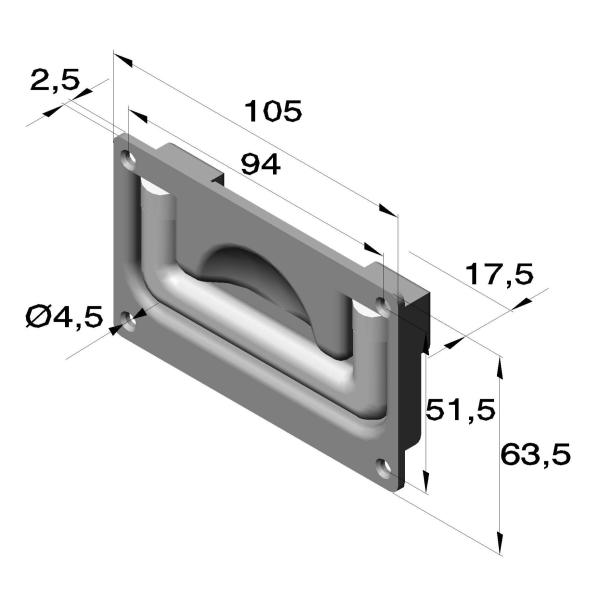

6440.70105 x 63,5 x 2,5 mmAluminium

3D PDF

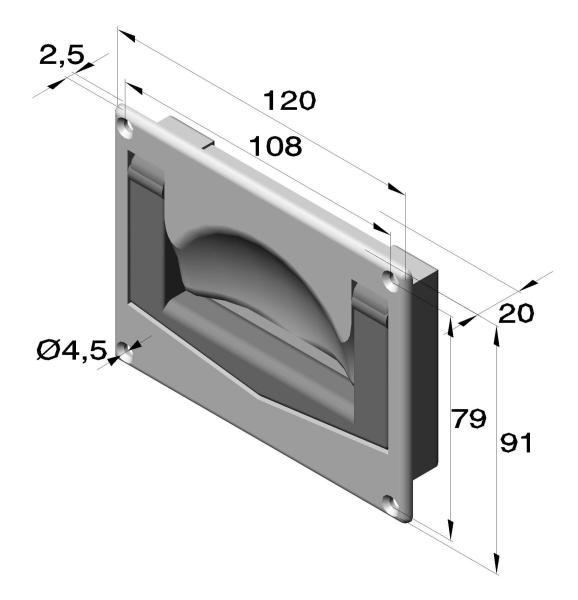

Serie 6442
drilled and countersunk

Executions


Maximum load: max.100 kg /pair Opening angle: up to 90°
Installation opening: 110 x 70

Art.-No.DimensionsMaterial
6442.70120 x 91 x 2,5 mmAluminium

PDF

Serie 6425

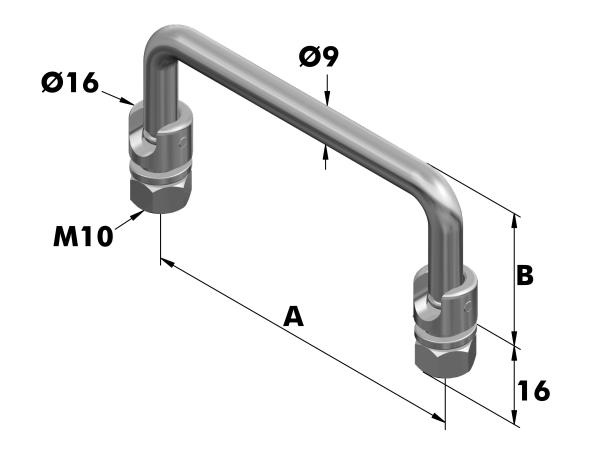

Opening stop by 90° precise positioning

Executions


Art.-No.DimensionsMaterial
6425.01.03100 x 41,5 mmSteel chrome-plated
6425.02.03135 x 41,5 mmSteel chrome-plated

3D PDF

Serie 6444
drilled and countersunk

Executions


Maximum load: max.100 kg /pair Opening angle: up to 90°

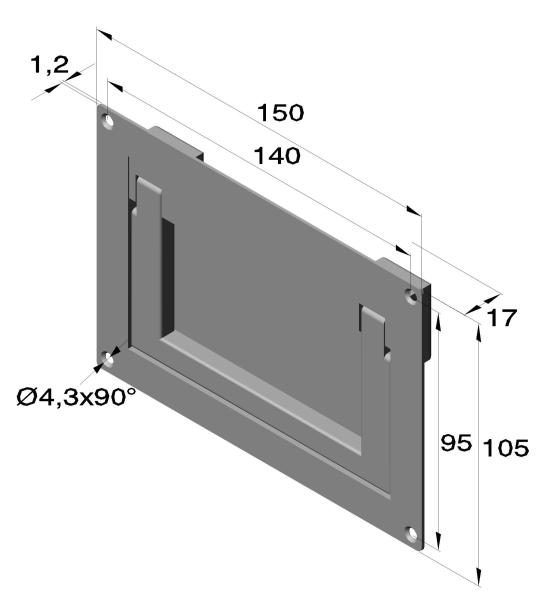

Installation opening: 127 x 83 mm

Art.-No.DimensionsMaterial
6444.34150 x 95 x 1,2 mmSteel galvanised

3D PDF

Serie 6451
drilled and countersunk

Executions


Maximum load: max.100 kg /pair Opening angle: up to 90°
Installation opening: 171 x 73

Art.-No.DimensionsMaterial

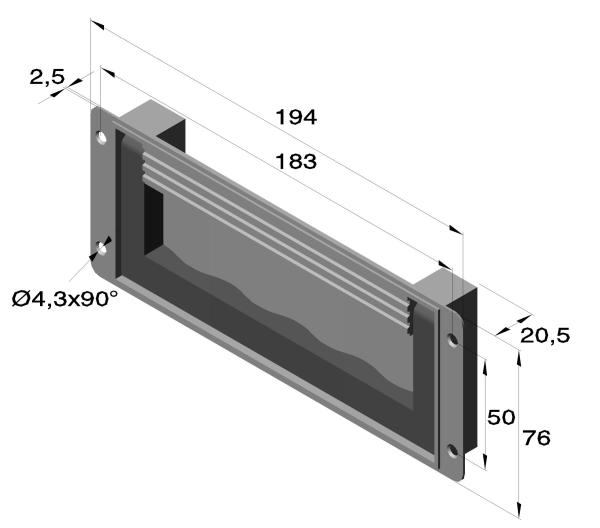

6451.50194 x 76 x 2,5 mmZamak silver lacquered

3D PDF

Serie 6457
drilled

Executions


Maximum load: max.25 kg
aperture angle: up to 80°

Art.-No.DimensionsMaterial
6457.01.0096 x 61 x 1 mmSteel untreated

3D PDF

Serie 6457
drilled

Executions


Maximum load: max.25 kg
aperture angle: up to 80°

Art.-No.DimensionsMaterial
6457.02.0496 x 61 x 1 mmSteel galvanised

3D PDF

Serie 6457
drilled

Executions


Maximum load: max.25 kg
aperture angle: up to 80°

Art.-No.DimensionsMaterial
6457.03.0496 x 71 x 1 mmSteel galvanised

3D PDF

Serie 6457
drilled

Executions


Maximum load: max.60 kg
aperture angle: up to 80°

Art.-No.DimensionsMaterial
6457.04.00140 x 87 x 1,5 mmSteel untreated
6457.04.04140 x 87 x 1,5 mmSteel galvanised

PDF

Serie 6460 Variante 1
drilled and countersunk

Executions


Opening angle: up to 90°

Art.-No.DimensionsMaterial
6460.04.04142 x 44,5 x 2 mmSteel galvanised
6460.05.04160 x 49,6 x 2 mmSteel galvanised
6460.07.04188 x 49,6 x 2 mmSteel galvanised

3D PDF

Serie 6460 Variante 2
drilled and countersunk

Executions


Maximum load: max.35 kg
aperture angle: up to 90°

Art.-No.DimensionsMaterial
6460.06.30160 x 54 x 1,5 mmSteel galvanised

3D PDF

Serie 100.H1030
drilled

Executions


Opening angle: up to 90°

Art.-No.DimensionsMaterial
100.H1030.04102 x 77 x 2 mmSteel galvanised

3D PDF

Serie 100.H1030R
Opening angle: up to 90°, drilled

Executions


Art.-No.DimensionsMaterial
100.H1030R.04102 x 77 x 2 mmSteel galvanised

3D PDF

Serie 100.H1079
Opening angle: up to 90°, drilled

Executions


Art.-No.DimensionsMaterial
100.H1079118 x 66 Aluminium untreated

3D PDF

Serie 100.HE-2457
Opening angle: up to 90°, drilled

Executions


Art.-No.DimensionsMaterial
100.HE-2457.0493 x 94 mmSteel galvanised
