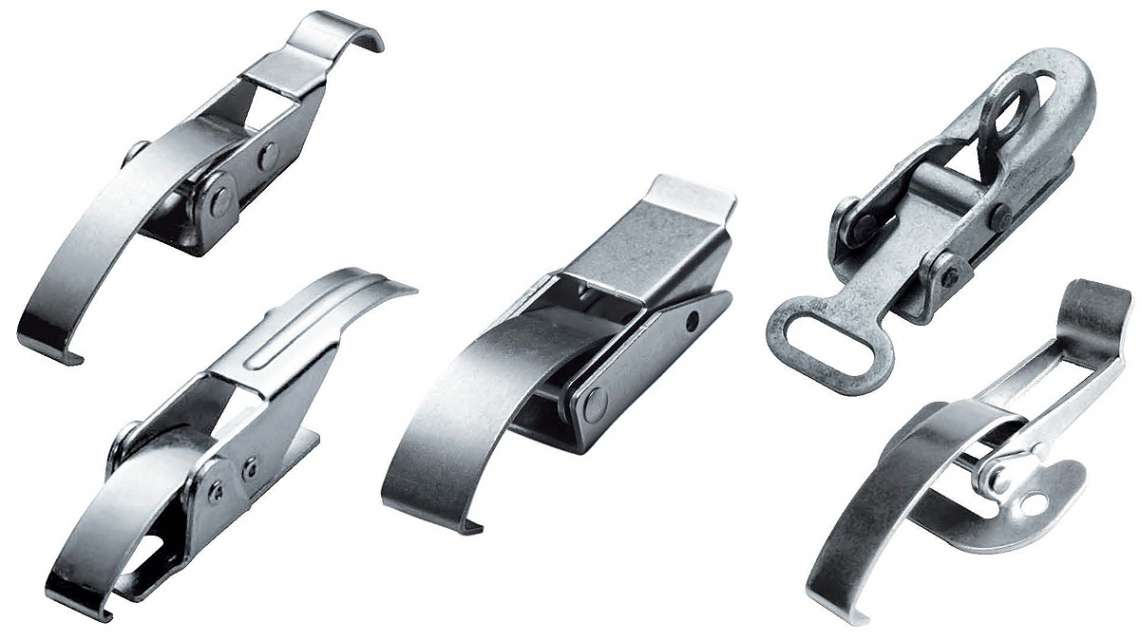

You may choose from our very large assortment of latches with sheet metal clamps according to different constructive solutions, materials and surface finishes.
In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to prduce a multiplicity of different components with little effort, even in small quantities.
Our offer includes latches with sheet metal clamps:
- galvanized and made of stainless steel
- with eyelet
- with safety interlock
- with safety spring
More details can be found in this PDF data file:
Additional Latches:
Serie 6344
lockable, drilled
Executions
Strike plate included in delivery
with lock
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6344.01.50 | 64,5 x 26,5 mm | Zamak |
| 6344.03.50 | 76 x 32 mm | Zamak |
Serie 6332
lockable, drilled
Executions
Strike plate included in delivery
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6332.50 | 92 x 36 mm | Zamak |
Serie 6344
with striking plate, drilled
Executions
without lock
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6344.02.50 | 64,5 x 26,5 mm | Zamak |
| 6344.04.50 | 76 x 32 mm | Zamak |
Serie 1020
drilled
Executions
Permitted tractive force: 500N
Breaking strength: 900N
| Art.-No. | Dimensions | Material |
|---|---|---|
| 1020.00/6 | 90 x 14 mm | Steel untreated |
| 1020.01/6 | 90 x 14 mm | Steel nickel-plated |
| 1020.04/6 | 90 x 14 mm | Steel galvanised |
| 1020.30/6 | 90 x 14 mm | Stainless steel |
Serie 1026
drilled
Executions
Permitted tractive force: 750 N
Breaking strength: 1500 N
| Art.-No. | Dimensions | Material |
|---|---|---|
| 1026.04/6 | 128,5 x 22 mm | Steel galvanised |
Serie 1036
with spring, drilled
Executions
Permitted tractive force: 150 N
Breaking strength: 300 N
| Art.-No. | Dimensions | Material |
|---|---|---|
| 1036.04/6 | 26 x 13 mm | Steel galvanised |
Serie 2005
drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 2005.00 | 76 x 25 mm | Steel untreated |
| 2005.04 | 76 x 25 mm | Steel galvanised |
Serie 2006
lock bracket, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 2006.00 | 76 x 25 mm | Steel untreated |
| 2006.04 | 76 x 25 mm | Steel galvanised |
Serie 2030
drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 2030.04 | 71,5 x 22 mm | Steel galvanised |
| 2030.30 | 71,5 x 22 mm | Stainless steel |
Serie 2031
drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 2031.04 | 71,5 x 22 mm | Steel galvanised |
| 2031.30 | 71,5 x 22 mm | Stainless steel |
Serie 2035/1
with safety spring, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 2035/1.30 | 71,5 x 22 mm | Stainless steel |
Serie 6606
drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6606.08 | 88,2 x 35,8 mm | Steel galvanised yellow chromatised |
Serie 6236
drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6236.02.30 | 64 x 28,7 mm | Stainless steel |
| 6236.01.04 | 64 x 28,7 mm | Steel galvanised |
Serie 6208
with spring clamp, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6208.02.30 | 26 x 13 | untreated Stainless steel |
Zubehör: Strikes
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6379.01.30 | 9,5 x 13,5 mm | Stainless steel |
Serie V934L01
drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| V934L01-1-1AGV | 39 x 14 mm | Steel galvanised |
| V934L01-1-1BP | 39 x 14 mm | Stainless steel |
Serie V934L01
with secondary lock, drilled
Executions
Tensile load max. 550 N
Operating load 310 N
| Art.-No. | Dimensions | Material |
|---|---|---|
| V934L01-1X-1AGV | 39 x 14 mm | Steel galvanised |
| V934L01-1X-1BP | 39 x 14 mm | Stainless steel |
Serie 1429L02-1
drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 1429L02-1-1AG | 69 x 26 mm | Steel galvanised |
| 1429L02-1-1BP | 69 x 26 mm | Stainless steel |
Serie 1429L02-1X
with secondary lock, drilled
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 1429L02-1X-1AG | 69 x 26 mm | Steel galvanised |
| 1429L02-1X-1BP | 69 x 26 mm | Stainless steel |
