You may choose from our very large assortment of plastic handles and shell grips according to different materials and damping characteristics.
In the case the wanted product is not illustrated in the layout, please send us an enquiry. We are able to prduce a multiplicity of different components with little effort, even in small quantities.
Our offer includes synthetic handles:
- made of black plastic
- prepared
- made of black plastic
More details can be found in this PDF data file:
Additional Handles:
Serie 6420
drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6420.04 | 142 x 26 x 40 x 12 mm | PA black |

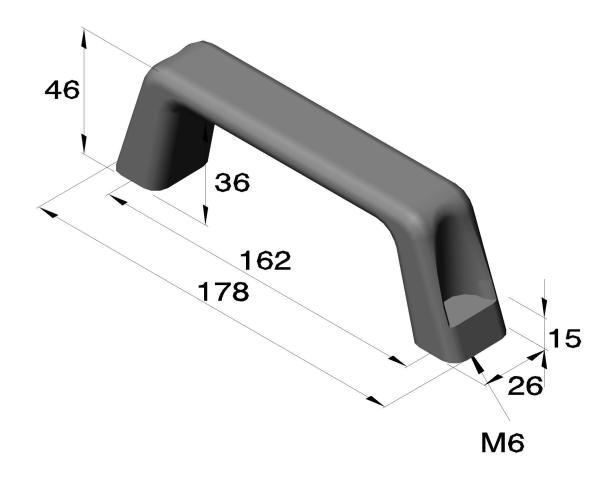

Serie 7038
with internal thread
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 7038 | 178 x 26 x 46 x 15 mm | PA black |

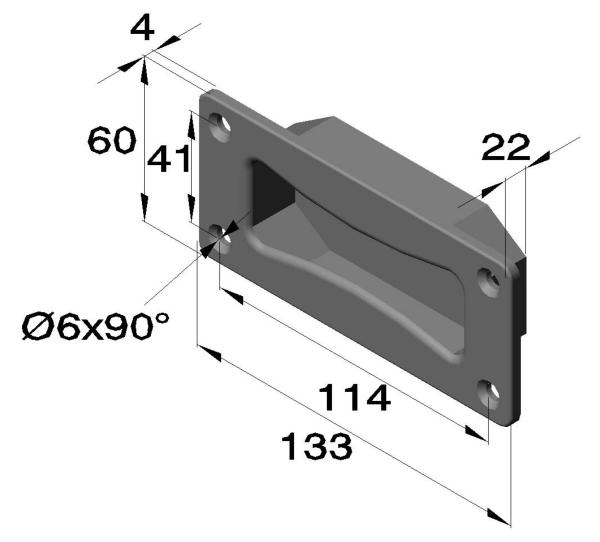

Serie 6508
countersunk shell grip to screw, drilled and countersunk
Executions
Installation opening:104 x 50
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6508 | 133 x 60 x 22 mm | Polyamide black |

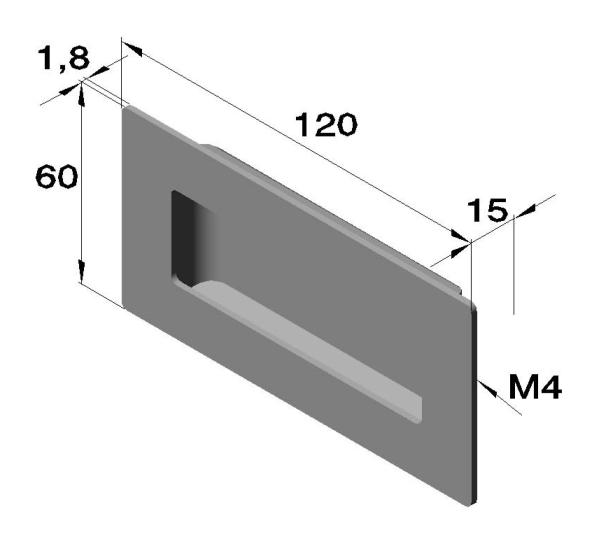

Serie 6507
countersunk shell grip to screw, with grub screw
Executions
Installation opening: 91 x 45
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6507.30 | 120 x 60 x 15 x 1,8 mm | Stainless steel satinised |

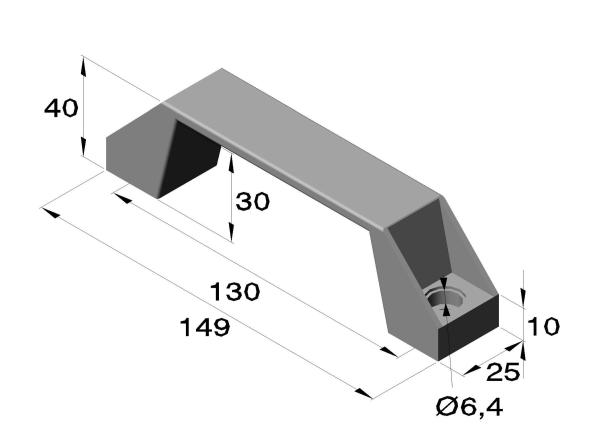

Serie 7039
drilled and countersunk
Executions
| Art.-No. | Dimensions | Material |
|---|---|---|
| 7039 | 149 x 25 x 40 mm | PA black |

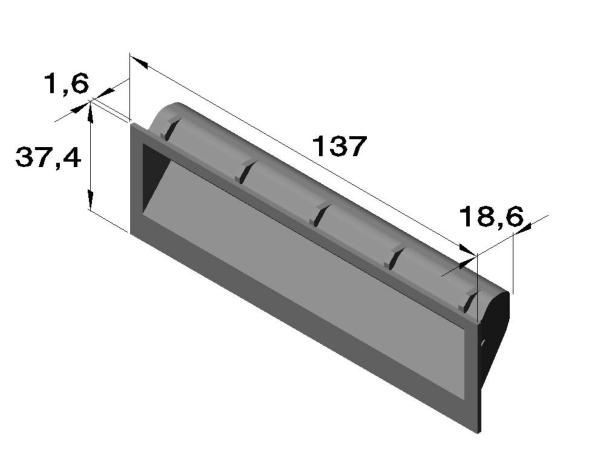

Serie 6450
countersunk shell grip to clamp
Executions
for sheet thickness: 0,8 up to 1,5
Installation opening: 132 x 30,7
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6450.01.70 | 137 x 37,4 x 18,6 x 1,6 mm | ABS |

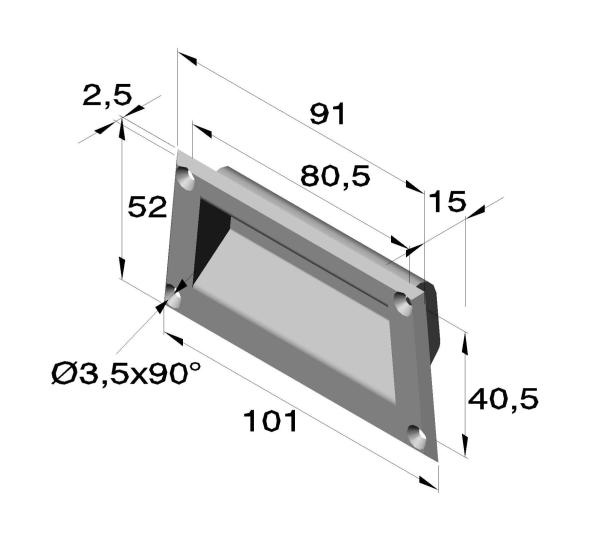

Serie 6500
countersunk shell grip to screw, drilled and countersunk
Executions
Installation opening: 73x37x83
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6500 | 101 x 91 x 52 x 2,5 mm | ABS grey |

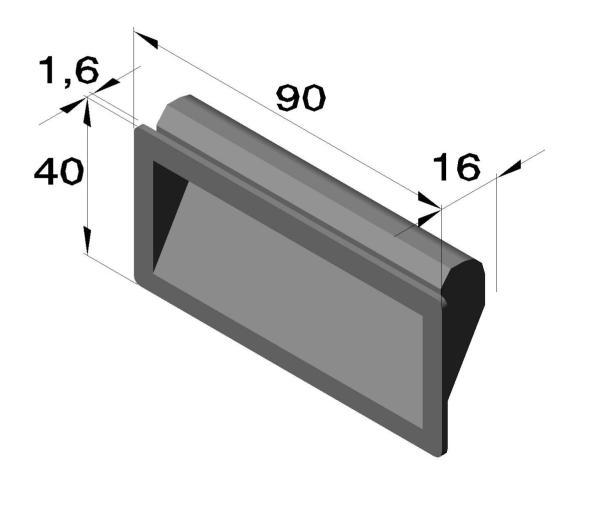

Serie 6501
countersunk shell grip to clamp
Executions
for sheet thickness: 0,75 up to 1,5
Installation opening: 34 x 83
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6501 | 90 x 40 x 16 x 1,6 mm | Polyamide black |

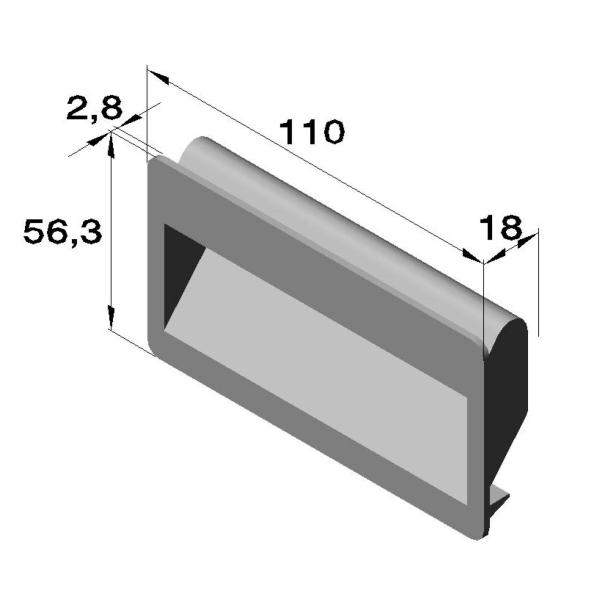

Serie 6502
countersunk shell grip to clamp
Executions
for sheet thickness: 0,75 up to 1,5
Installation opening: 49 x103
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6502 | 110 x 56,3 x 18 x 2,8 mm | ABS black |

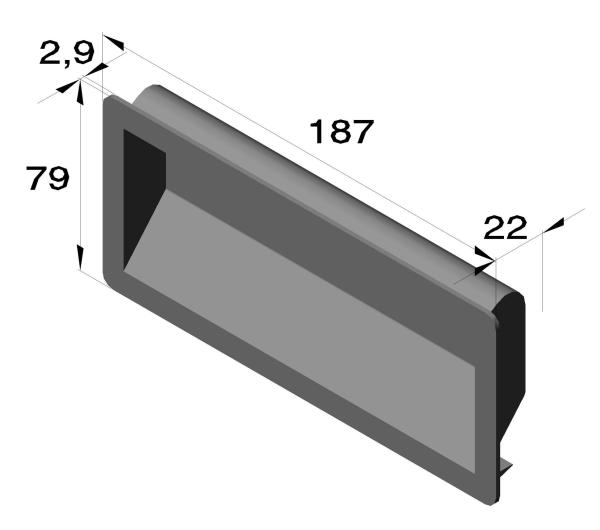

Serie 6503
countersunk shell grip to clamp
Executions
for sheet thickness: 1,5 up to 2,0
Installation opening: 73 x 171
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6503 | 187 x 79 x 22 x 2,9 mm | Plastik black |

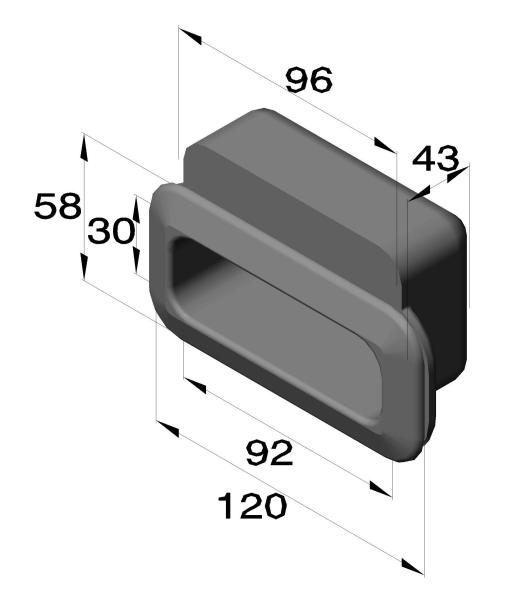

Serie 6504
countersunk shell grip to clamp
Executions
for sheet thickness: 2 mm
Installation opening: 106 x 39
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6504 | 120 x 58 x 43 mm | Elastomer black |

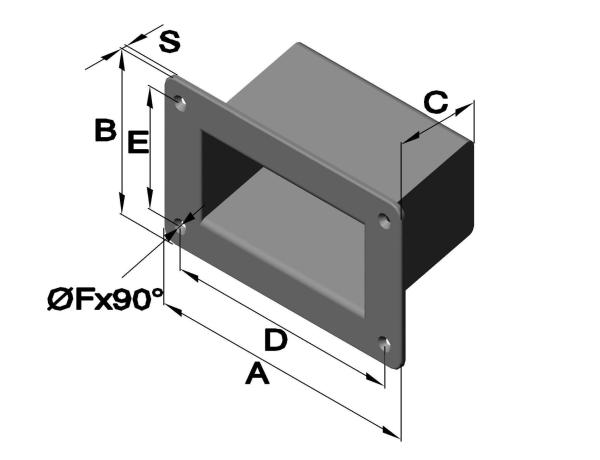

Serie 6505
countersunk shell grip to screw, drilled and countersunk
Executions
for sheet thickness: 2 mm
Installation opening: 104 x 50
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6505 | 131 x 79 x 58 x 2,5 mm | ABS black |

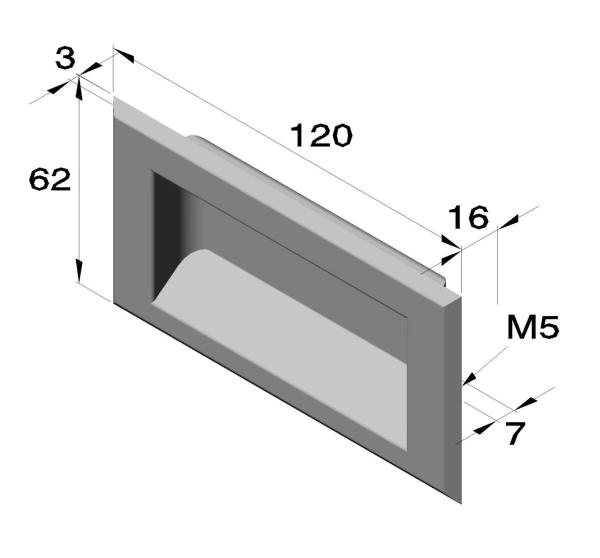

Serie 6506
countersunk shell grip to screw with threaded bolt
Executions
Installation opening: 90 x 47
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6506.02.30 | 120 x 62 x 16 x 3 mm | Stainless steel satinised |
Serie 6389
countersunk shell grip to screw with threaded bolt
Executions
Flush T-Handle with 4mm compression stroke
Tightness: IP65 (with seal)
| Art.-No. | Dimensions | Material |
|---|---|---|
| 6389.01.80 | 149 x 139 mm | Polyamide/ Zamak black |
